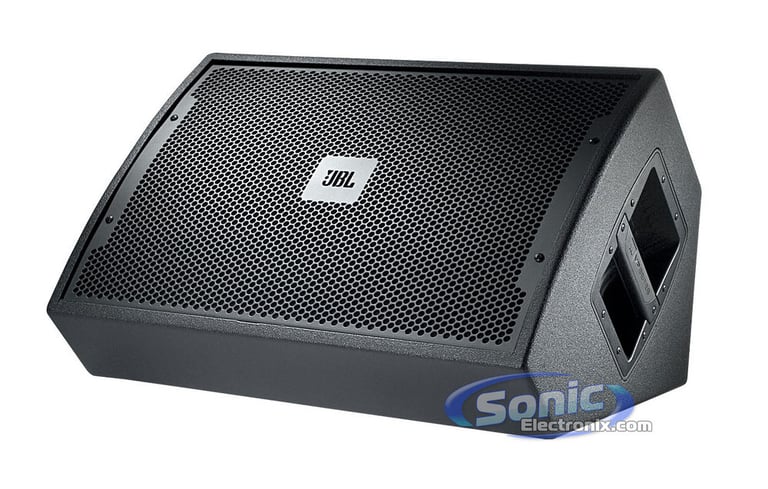

JBL VP7212MDP

1750W 12" Two-Way Powered Integrated Stage Monitor Loudspeaker with JBL DrivePack Technology

JBL
Shop all JBL
Product videos
highlight-star-icon

12" Two-Way Powered Integrated Stage Monitor Loudspeaker • 1750 Watts • JBL DrivePack Technology • Field Rotatable Baffle • Bi-Amplified • 50° x 90° Coverage • Premium Fidelity

Learn more about the vp7212mdp

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Add to cart
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Add to cart
C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8

$94.99

Add to cart
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

$80.95

Add to cart
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Add to cart
Limited time!
Club 422F main

JBL Club 422F (SPKCB422FAM)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohm Speakers

-46.14%

$69.99

List price $129.95

Add to cart
H40 main

Cerwin-Vega H40

300W Peak (100W RMS) 4" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

Add to cart
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14

$64.99

Add to cart
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

1
-29.45%

$59.96

List price $84.99

Add to cart
Club 44F main

JBL Club 44F (JBLSPKCB44F)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohms Speakers

-23.09%

$99.95

List price $129.95

Add to cart

Product Highlights

12" Two-Way Powered Integrated Stage Monitor Loudspeaker • 1750 Watts • JBL DrivePack Technology • Field Rotatable Baffle • Bi-Amplified • 50° x 90° Coverage • Premium Fidelity

Description

JBL brand icon

Authorized dealer

Integrate Sound And Life

The VP7212MDP is a powered 12" 2-way integrated loudspeaker system designed specifically as a high-impact stage monitor. The VP7212MDP features 1750 watts of peak output power, and integrated onboard digital signal processing.

Designed in cooperation with Crown International, the ultracompact, high-power JBL DrivePack DPC-2 amplifier module features Crown’s Class D digital power amplification circuitry.

DBT (Dual-Bridged Technology™) directly links discrete amplifier channel outputs to each voice-coil in the Differential Drive loudspeaker. Electrical power transfer to the transducer is optimized for maximum system performance.

VP7212MDP transducers are JBL’s 2262FF 12" diameter Differential Drive woofer and the JBL 2452H-SL compression driver. The high frequency driver is coupled to a JBL PT-F95HF Progressive Transition (PT) Waveguide for excellent 50° x 90° pattern control, smooth frequency response, and low distortion.

General Features:
  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for stage monitor use
  • High-impact system with premium fidelity
  • Field rotatable baffle for easy left/right configurations
  • 1750 watts peak output power, 875 watts continuous
  • 12-inch Differential Drive® low-frequency driver for extended lowfrequency output
  • 50° x 90° coverage optimized for use as stage monitor
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
System Specifications:
  • DPC1 Internal Amplification Output (at nominal load): 1750 Watts Peak, 875 Watts Continuous
  • DPC1 Output: 750 LF / 125 HF Watts (Continuous IEC shaped pink noise rated load impedance)
  • DPC1 Output Section: LF: Dual Bridge Technology, Class D HF: Bridged Class D
  • Audio Input Connector: XLR with loop-through
  • User Controls: System EQ Selection: Full Range or Speech / Vocal 0-16 dB input Attenuator w/ 32 precision 0.5 dB steps
  • Signal Processing: DSP based, resident in Input Module
  • System Management: DSP based limiters for mechanical and thermal protection
  • AC Power Operating Range: 90-132 VAC / 216-264 VAC, 50/60 Hz
  • AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
  • AC Input Connector: Neutrik PowerCon (NAC 3MPA)
  • AC Look-thru: Neutrik PowerCon (NAC 3MPB)
  • AC Current Requirement: 6A/system at 120V, 3A/system at 240V
Acoustic And Electrical Specifications:
  • Frequency Response: 80 Hz – 18 kHz (±3 dB)
  • Frequency Range: 55 Hz – 20 kHz (–10 dB)
  • Maximum Peak Output: 134 dB SPL 1m
  • Coverage Pattern: 90º x 50° rotatable waveguide
  • Directivity Factor (Q): 12.6
  • Directivity Index (DL): 11 dB
Transducer Specifications:
  • Cabinet: Not for Sale
  • Grille: 363498-001
  • Low Frequency Driver: JBL 2262FF, 304mm (12 in) dia., 76mm (3 in) Dual Coil neodymium Differential Drive, Direct Cooled
  • Bandpass Nominal Impedance: 2 x 2 ohm
  • High Frequency Driver: JBL 2452H-SL, 100mm (4 in) titanium damped diaphragm, 1.5 in exit
  • Bandpass Nominal Impedance: 8 ohm
Aural Sweep Test Specifications:
  • A. System Aural Sweep Test: 150mV Input, 20 Hz to 20 kHz
  • B. L.F. Aural Sweep Test: 4.0V Input, 20 Hz to 1.2 kHz
  • C. H.F. Aural Sweep Test: 2.5V Input, 300 Hz to 20 kHz
Physical Specifications:
  • Enclosure Dimensions: 346 x 565 x 413 mm (Height x Width x Depth) 13.6 x 22.3 x 16.2 in
  • Net Weight: 20.7 kg (45.5 lb)

Specifications & Details

Loudspeaker Specifications
Frequency Response
55 - 20,000 Hz
Sensitivity
134 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

JBL

Model Number:

VP7212MDP

Weight:

45.50lbs

Internal SKU:

vp7212mdp

Internal Product ID:

32442
