B-52 PA-MN12

650W Compact 12" Passive Stage Monitor Speaker with High-Temperature Polyamide Voice Coil

B-52
Shop all B-52
highlight-star-icon

Compact 12" Passive Stage Monitor Speaker • 650W RMS • Made in the U.S.A. • High Temperature Polyamide Voice Coil • Cast-Aluminum Frames • Baltic Birch Construction • Black Scratch Resistant Paint Finish

Learn more about the pamn12

We apologize

This item has been discontinued


Loading...
APSUB-CH41 main

PAC APSUB-CH41

Amplifier and Subwoofer Integration Interface for select 2013-2024 vehicles from Ram, Jeep, Dodge

-27.36%

$239.00

List price $329.00

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

Limited time!
KFC-XP6902C main

Kenwood eXcelon KFC-XP6902C

600W Peak (200W RMS) 6x9" Excelon Series 2-way 4-ohm Component Speaker System for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

5
-34.69%

$209.00

List price $320.00

APH-CH01 main

PAC APH-CH01 AmpPro Speaker Connection Harness

Used in conjunction with AmpPro Harness when you add an amplifier to your factory radio for select 2007-2023 vehicles from Dodge, Jeep, Chrysler w/ Factory Amplified Sound Systems

1
-54.14%

$49.99

List price $109.00

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

95-6553B main

Metra 95-6553B Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2015-2023 300

-32.74%

$529.99

List price $787.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

ESP69 main

NVX ESP69

480W Peak (160W RMS) 6x9" E-Series 2 Way Coaxial Car Speakers

5
-16.67%

$54.99

List price $65.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Description


B-52 brand icon

Authorized dealer

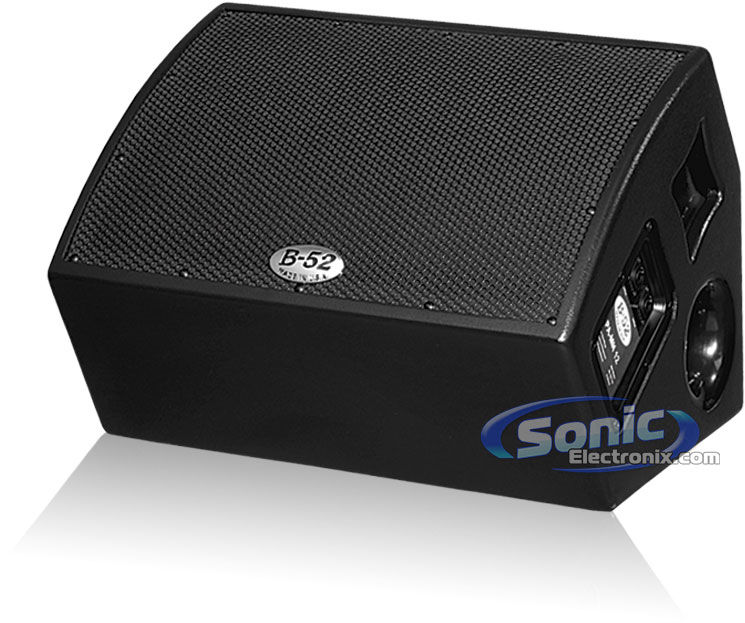

B-52 PA-MN12 Passive Stage Monitor Speaker

The PA-MN 12 is a compact and powerful stage monitor that delivers sound clarity that is not fatiguing to your ears. Components include a B-52 12-200 loudspeaker and a 1” exit titanium diaphragm compression driver.

Titanium Compression Driver

The COMP-3300 compression driver features a 2” exit pure titanium diaphragm with an impregnated polymer fiber surround for high sensitivity, low distortion and a smooth extended frequency response. An optimized aluminum phase plug prevents phase cancellation problems. High flux density magnetic assembly with copper shorting ring lowers distortion and reduces the voice coil self-inductance. The compression driver’s base and cover are injected aluminum assuring high resistance.

Product Features
  • Compact 12" Passive Stage Monitor Speaker
  • Power Handling
    • RMS: 650 watts
  • Made in the U.S.A.
  • High-temperature polyamide voice coil
  • Cast-aluminum frames
  • Vented magnet assemblies
  • Titanium diaphragm compression drivers
  • 13-Ply Baltic birch construction
  • Black scratch resistant paint finish
  • Enhanced-grip B-52 handles
  • Dual Neutrik NL4 Speakon connectors
  • Nominal Impedance: 8 Ohm
  • Frequency Response: 50-19,000 Hz
  • High-Frequency Dispersion: 60° x 40°
  • X-Over Points: 1600 Hz
  • Peak SPL: 128 dB
  • Dimensions: 17"D x 25"W x 15"H
  • 1-year Manufacturer's warranty

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

188
-38.14%

$255.32

List price $412.71

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Specifications & Details


Loudspeaker Specifications
Type
Passive
High Frequency Driver Size
1"
Low Frequency Driver Size
12" Driver
Frequency Response
50 - 19,000 Hz
Sensitivity
97 dB
Maximum Sound Pressure Level SPL
128 dB
Dispersion
60° H x 40° V
Active Power Specifications
Peak Power Rating
1300 watts
Continuous Power Rating
650 watts
Amplifier Class
D
Amplifier Controls
Level Control
Power On/Off
Built-in Equalizer
No
Physical Features
Inputs
SpeakOn
Outputs
SpeakOn
Enclosure Material
Coated Plywood
Carrying Handles
Yes
Speaker Mounts
No
Height
15"
Width
25"
Depth
17"
Weight (Pounds)
48 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PA-MN12

Weight:

48.00lbs

Internal SKU:

pamn12

Internal Product ID:

32520
