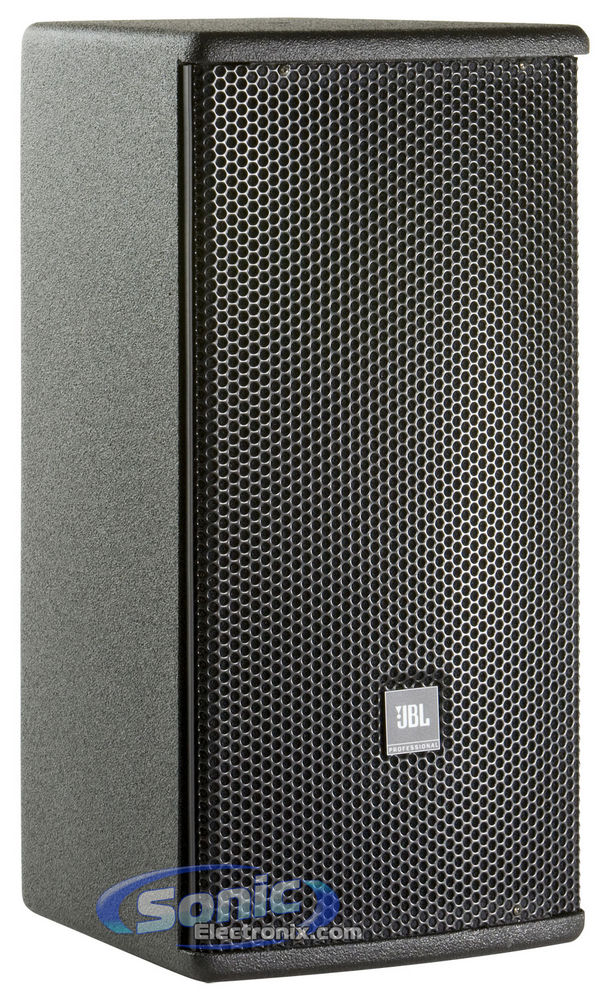

JBL AC18/26

1000W Compact 2-Way Loudspeaker with 8" LF Transducer & 1” Exit Compression Driver

JBL
Shop all JBL
Product videos
highlight-star-icon

1000W Compact 2-Way Loudspeaker • 8" LF Transducer • 1" Exit Compression Driver • Progressive Transition Field Rotatable Waveguide • Dual Neutrik NL4 Connectors

Learn more about the ac1826

We apologize

This item has been discontinued


Loading...
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

XSP692 main

NVX XSP692

900W Peak (300W RMS) 6x9" X-Series 2 Way Coaxial Car Speakers

14
-32.29%

$129.99

List price $191.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Club 9632 main

JBL Club 9632 (SPKCB9632AM)

510W Peak (170W RMS) 6x9" Club Series 3-way 3-ohm Coaxial Car Speaker

3
-20.59%

$134.95

List price $169.95

Limited time!
Stage1 9631 main

JBL Stage1 9631

600W Peak (120W RMS) 6x9” Stage1 Series 3 Way Coaxial 4-ohm Speakers

1
-25.04%

$74.95

List price $99.99

AXSWC-2 main

Axxess AXSWC-2

Universal Steering Wheel Control Data Interface and Wiring Harness

1
-38.46%

$79.99

List price $129.99

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


1000W Compact 2-Way Loudspeaker • 8" LF Transducer • 1" Exit Compression Driver • Progressive Transition Field Rotatable Waveguide • Dual Neutrik NL4 Connectors

Description


JBL brand icon

Authorized dealer

Natural Voicing

The AC18/26 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC18/26 utilizes an 8" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket. The AC18/26 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

The rugged plywood enclosure features JBL’s textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

General Features:
  • Compact enclosure
  • 205 mm (8 in) LF transducer
  • 120° x 60° Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
System Specifications:
  • Frequency Range (-10 dB): 52 Hz - 20 kHz
  • Frequency Response (+/-3 dB): 63 Hz - 19 kHz
  • Horizontal Coverage: 120°
  • Vertical Coverage: 60°
  • Directivity Factor (Q): 7 (avg. 500 Hz - 16 kHz)
  • Directivity Index (DI): 8 dB (avg. 500 Hz - 16 kHz)
  • System Sensitivity1: 92 SPL dB/1W/1m
  • Rated Maximum SPL (1m)2: 116 dB
  • System Nominal Impedance: 8 Ohm
  • Long-Term System Power Rating (Continuous/Program/Peak): 250 W / 500 W / 1000 W
  • AES Standard Power Rating: 375 W
  • Crossover: 1.6 kHz
Transducer Specifications:
  • Low Frequency Driver: 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
  • High Frequency Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
  • High-Frequency Waveguide: PT-D126HF-1 (Field Rotatable)
Physical Specifications:
  • Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachment: 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions5: WRC & WRX available upon request
  • Grille: Powder coated 16 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)
  • Input Connectors: Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through)
  • Environmental Specifications: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX
  • Dimensions (H x W x D): 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
  • Weight: 12.8 kg (28.2 lb)
  • Optional Accessories: MTU-18, U-Bracket 365469-001, M8 x 38mm Tee Knob Thumbscrew Kit for use with BMB-200k or K&M 195/8 stand mount accessory
