JBL AC25

900W Ultra Compact Dual 2-Way Loudspeaker with 2" x 5-1/4" LF Transducers

JBL
Shop all JBL
Product videos
highlight-star-icon

900W Ultra Compact Dual 2-Way Loudspeaker • 2" x 5-1/4" LF Transducers • Dual Neutrik NL4 Connectors • Multiple Attachment Points • 90° x 90° waveguide with 25 mm (1 in) dome tweeter

Learn more about the ac25

We apologize

This item has been discontinued


Loading...
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

Product Highlights


900W Ultra Compact Dual 2-Way Loudspeaker • 2" x 5-1/4" LF Transducers • Dual Neutrik NL4 Connectors • Multiple Attachment Points • 90° x 90° waveguide with 25 mm (1 in) dome tweeter

Description


JBL brand icon

Authorized dealer

Copper Clad Aluminum

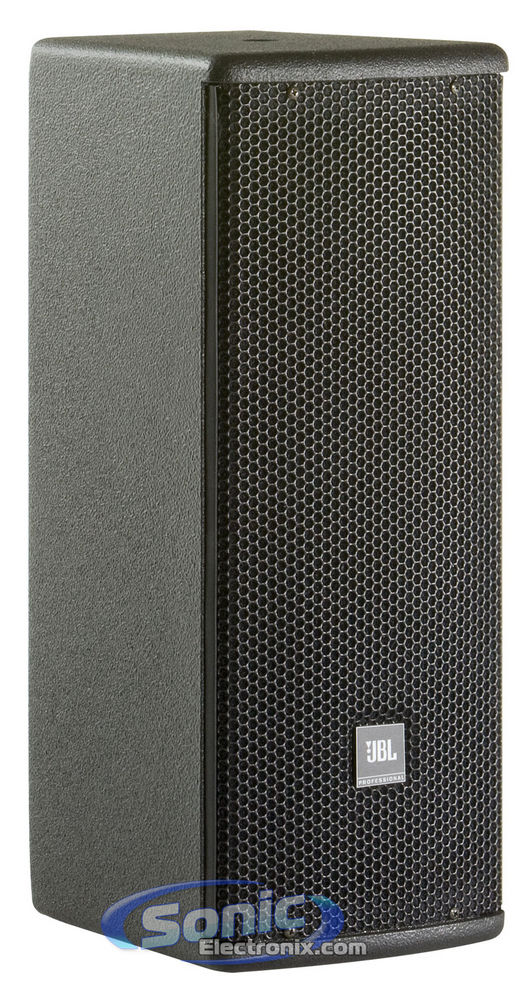

The AC25 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC25 utilizes dual 5.25" Symmetrical Field Geometry (SFG™) LF Transducers each with a copper-clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion. In addition Filtered Array Technology (FAT™) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage.

The rugged multiply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket.

The rugged plywood enclosure features JBL’s textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

General Features:
  • Ultra compact enclosure
  • Dual 135 mm (5.25 in) LF transducers
  • 90° x 90° waveguide with 25 mm (1 in) dome tweeter
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
System Specifications:
  • Frequency Range (-10 dB): 80 Hz - 20 kHz
  • Frequency Response (+/-3 dB): 90 Hz - 18 kHz
  • Horizontal Coverage: 90°
  • Vertical Coverage: 90°
  • Directivity Factor (Q): 7.5 (avg. 500 Hz - 16 kHz)
  • Directivity Index (DI): 8.5 (avg 500 Hz - 16 kHz)
  • System Sensitivity1: 91 dB SPL/1W/1m
  • Rated Maximum SPL (1m)2: 115 dB
  • System Nominal Impedance: 16 Ohm
  • Long-Term System Power Rating(Continuous/Program/Peak): 225 W / 450 W / 900 W
  • AES Standard Power Rating4: 300 W
  • Crossover: 3.3 kHz
Transducer Specifications:
  • Low Frequency Driver: 2 x JBL 225H, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
  • High Frequency Driver: 1 x JBL 201J, 25mm (1 in) voice coil dome tweeter
  • High-Frequency Waveguide: Constant Coverage 90° x 90°
Physical Specifications:
  • Enclosure: 12 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachment: 4 x M8 points; 1 top, 1 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0.
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions: WRC & WRX not available for this model
  • Grille: Powder coated 18 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)
  • Input Connectors: Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through)
  • Environmental Specifications: Mil-Std 810; IPx3 per IEC529.
  • Dimensions (H x W x D): 377.8 x 150.3 x 177.8 mm (14.9 x 5.9 x 7.0 in)
  • Weight: 7.5 kg (16.5 lb)
  • Optional Accessories: MTU-25 U-Bracket 365469-001 M8 x 38mm Tee Knob Thumbscrew Kit for use with BMB-200k or K&M 195/8 stand mount accessory
