JBL AM5212/26

1600W Medium Power 12" 2-Way Full Range Loudspeaker with Bi-Amp/Passive Switchable Operation

JBL
Shop all JBL
Product videos
highlight-star-icon

Medium Power 12" 2-Way Full Range Loudspeaker • 1600W Peak • 300W RMS • Progressive Transition Waveguide • Black DuraFlex Finish • Perforated Steel Grille • Bi-Amp/Passive Switchable Operation • NL4 Neutrik Speakon

Learn more about the am521226

We apologize

This item has been discontinued


Loading...
82-3005 main

Metra 82-3005

6" to 6.75" Speaker Mounting Adapters for select 2010-2025 vehicles from GMC, Chevrolet, Cadillac

10
-11.11%

$31.99

List price $35.99

72-4573 main

Metra 72-4573

Install New Tweeters or Speakers in select 2015-2024 vehicles from GMC, Chevrolet, Cadillac

6
UBE-GMC-ACA-G2 main

NVX Empty BOOST Box - 2017-2023 GMC Acadia and Acadia Limited - UBE-GMC-ACA-G2

For select 2017-2023 Acadia and Acadia Limited - Single 10" Empty BOOST Sealed Enclosure

-16.67%

$229.99

List price $275.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

C1-100ct main

JL Audio C1-100ct

120W RMS 1" C1 Series 8-ohm Component Dome Tweeters

9

NVX Loaded BOOST Box - 2017-2023 GMC Acadia - BE-GMCACA-G2

For select 2017-2023 Acadia and Acadia Limited - Single 10" 500W RMS Loaded BOOST Sealed Enclosure

-20.09%

$349.99

List price $437.99

JBL GX9638 (JBLGX9638AM)

600W Peak (200W RMS) 6x9" GX Series 3 Way Coaxial 2.3-ohm Speakers with Dual Tweeters

16
-10.01%

$89.95

List price $99.95

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Product Highlights


Medium Power 12" 2-Way Full Range Loudspeaker • 1600W Peak • 300W RMS • Progressive Transition Waveguide • Black DuraFlex Finish • Perforated Steel Grille • Bi-Amp/Passive Switchable Operation • NL4 Neutrik Speakon

Description


JBL brand icon

Authorized dealer

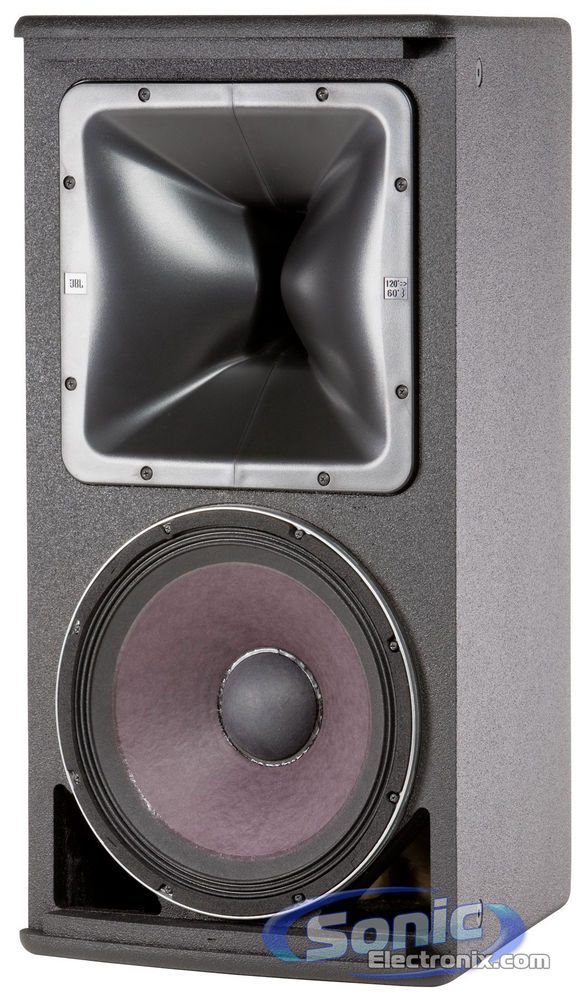

JBL AM5212/26 Full Range Loudspeaker

The AM5212/26 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability.

Product Features
  • Medium Power 12" 2-Way Full Range Loudspeaker
  • Power Handling
    • Peak: 1600 watts
    • RMS: 300 watts
  • 120° x 60° Coverage
  • 262H-1 Differential Drive Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Black DuraFlex finish
  • Powder coated 14 gauge perforated steel grille
  • 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Bi-Amp/Passive Switchable operation
  • NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
  • Frequency Range: 37-20,000 Hz
  • Frequency Response: 43-18,000 Hz
  • Impedance: 8 ohm
  • Sensitivity: 113 dB
  • Crossover Frequency: 1600 Hz
  • Dimensions: 18-1/8"D x 14-5/8"W x 28"H
  • 1-year Manufacturer's warranty
