900W, 2 Channel Power Amplifier
Product highlights
2 Channel Power Amplifier • 900 Watts • Uncompromised PLX performance • "Plug-and-Play" • Reference-Quality Playback • Designed to Power One or Two Speakers
Learn more about the plx1804
900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers
$111.96
List price $159.99
400W Peak (200W RMS) 6.5" KS Series 2 Way Coaxial 4-ohm Speakers
$129.99
List price $149.99
DS18 PRO-X8.4BM (Sold Individually)
550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker
$70.95

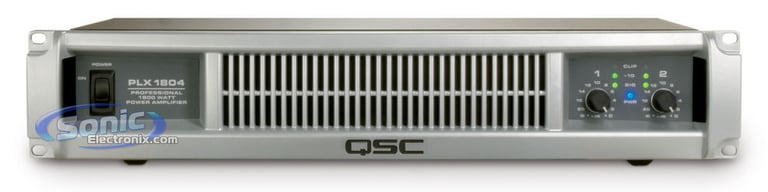

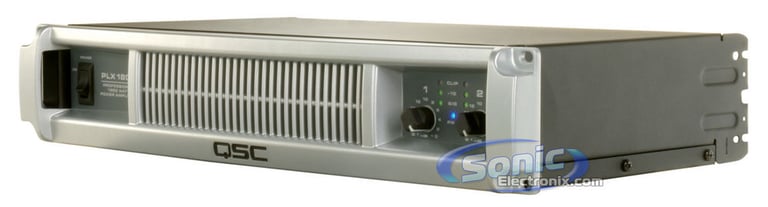

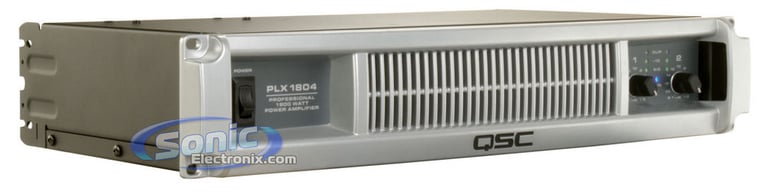

The compact PLX1804 brings the same performance and technology as the rest of the PLX2 Series, plus even greater value, to applications that don't require bridged or 2 ohm operation. Designed to power one or two speakers from each amplifier channel (4 ohm minimum loading), this model offers a simplified feature set while retaining genuine, uncompromised PLX performance and technology. Weighing just 13 pounds (5.9 kg), the "plug-and-play" PLX1804 is perfect for ultra-portable rigs, as well as reference-quality playback.
| SPECIFICATIONS | PLX1804 |
|---|---|
| Stereo Mode 8 ohm (each channel) * FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
550 W 600 W |
| Stereo Mode 4 ohm (each channel) * FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
800 W 900 W |
| Signal to Noise (20 Hz - 20 kHz) | -106 dB |
| Input Sensitivity @ 8 ohm | 1.20 Vrms |
| Gain @ 8 ohm | 35 dB |
| Output Circuitry | 2-Tier Class H |
| Distortion (SMPTE-IM) | Less than 0.02% |
| Typical Distortion 1/8 rated power, 20 Hz-20 kHz Full rated power, 20 Hz-20 kHz |
Less than 0.02% Less than 0.02% |
| Frequency Response | 20 Hz-20 kHz, -0.5 dB |
| Damping Factor | Greater than 200 |
| Input Impedance | 20k ohm balanced 10k ohm unbalanced |
| Input Clipping | 5.5 Vrms (+15 dBu) |
| Cooling | Variable-speed fan, rear-to-front air flow |
| Input Connectors, each channel | 3-pin XLR and 1/4" TRS balanced |
| Output Connectors, each channel | Neutrik® NL4 Speakon® (Both channels available on Ch 1 output) |
| Rear Panel Switches | Circuit Breaker |
| Front Panel Controls | Detented Gain Attenuator: 0 to ∞ dB Power On/Off |
| Front Panel Indicators | Clip: Red LED -10: Green LED Signal (-35 dB): Green LED Power: Blue LED |
| PROTECTION
|
|
| Amplifier Protection | Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection Stable into reactive or mismatched loads |
| Load Protection | On/off muting, DC-fault power supply shutdown |
| Infrasonic | -3 dB, 6 Hz |
| DC fault | Power supply shutdown |
| Ultrasonic | -3 dB, 80 kHz |
| Short Circuit | Muting |
| Thermal | Limiting at 85° C, Muting at 90° C |
| Over Current | Active clip limiting AC circuit breaker |
| High Line | Standard +15%, survive +25% |
| Low Line | -40% |
| PHYSICAL | |
| Dimensions Height Width Depth, Rack mounting surface to rear panel Overall Depth |
3.5" (8.9 cm) 2 rack spaces 19" (48.3 cm) 8.95" (22.7 cm) 11" (27.9 cm) |
| Weight | 13 lbs. (5.9 kg) net 18 lbs. (8.2 kg) shipping |
| Agency Approvals | CE, FCC, cUL, UL |
| CURRENT CONSUMPTION | PLX1804 | |
|---|---|---|
| 1/8 Power (pink noise) | 8 ohm 4 ohm |
5.7A/120V 9.4A / 120V |
| 1/3 Power (pink noise) | 8 ohm 4 ohm |
10.4A/120V 16.5A / 120V |
| Full Power | 8 ohm 4 ohm |
20A/120V 32A / 120V |
| Notes | Long term, breaker-limited to 15A/120V | |
