550W, 2 Channel Power Amplifier
Product highlights
2 Channel Power Amplifier • 550 Watts • Uncompromised PLX Performance and Technology • "plug-and-play" • Reference-Quality Playback • Designed to Power One or Two Speakers
Learn more about the plx1104
600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers
$79.96
List price $119.99
360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers
$99.95
List price $139.95
480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)
$84.99
List price $94.99
600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers
$109.00
List price $119.99
600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System
$999.99
List price $1175.00
250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers
$319.00
List price $339.00
600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers
$49.99
List price $59.99
600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers
$189.99
List price $227.99
440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers
$42.99
List price $54.99

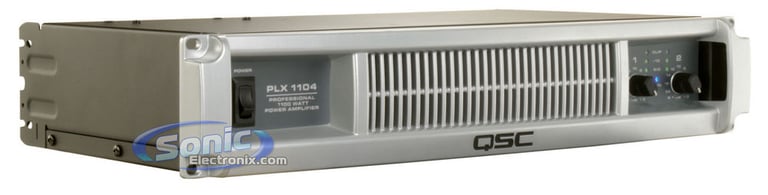

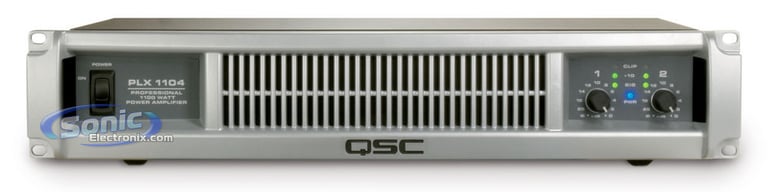

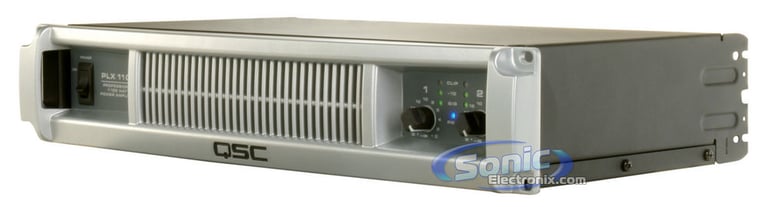

The compact PLX1104 brings the same performance and technology as the rest of the PLX2 Series, plus even greater value, to applications that don't require bridged or 2 ohm operation. Designed to power one or two speakers from each amplifier channel (4 ohm minimum loading), this model offer a simplified feature set while retaining genuine, uncompromised PLX performance and technology. Weighing just 13 pounds (5.9 kg), the "plug-and-play" PLX1104 is perfect for ultra-portable rigs, as well as reference-quality playback.
| SPECIFICATIONS | PLX1104 |
|---|---|
| Stereo Mode 8 ohm (each channel) FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
310 W 325 W |
| Stereo Mode 4 ohm (each channel) FTC 20 Hz - 20 kHz 0.05% THD EIA 1 kHz 0.1% THD |
500 W 550 W |
| Signal to Noise (20 Hz - 20 kHz) | -106 dB |
| Input Sensitivity @ 8 ohm | 1.18 Vrms |
| Gain @ 8 ohm | 32.5 dB |
| Output Circuitry | AB |
| Distortion (SMPTE-IM) | Less than 0.02% |
| Typical Distortion 1/8 rated power, 20 Hz-20 kHz Full rated power, 20 Hz-20 kHz |
Less than 0.02% Less than 0.02% |
| Frequency Response | 20 Hz-20 kHz, -0.5 dB |
| Damping Factor | Greater than 200 |
| Input Impedance | 20k ohm balanced 10k ohm unbalanced |
| Input Clipping | 5.5 Vrms (+15 dBu) |
| Cooling | Variable-speed fan, rear-to-front air flow |
| Input Connectors, each channel | 3-pin XLR and 1/4" TRS balanced |
| Output Connectors, each channel | Neutrik® NL4 Speakon® (Both channels available on Ch 1 output) |
| Rear Panel Switches | Circuit Breaker |
| Front Panel Controls | Detented Gain Attenuator: 0 to ∞ dB Power On/Off |
| Front Panel Indicators | Clip: Red LED -10: Green LED Signal (-35 dB): Green LED Power: Blue LED |
| PROTECTION
|
|
| Amplifier Protection | Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection Stable into reactive or mismatched loads |
| Load Protection | On/off muting, DC-fault power supply shutdown |
| Infrasonic | -3 dB, 8 Hz |
| DC fault | Power supply shutdown |
| Ultrasonic | -3 dB, 120 kHz |
| Short Circuit | Muting |
| Thermal | Limiting at 85° C, Muting at 90° C |
| Over Current | Active clip limiting AC circuit breaker |
| High Line | Standard +15%, survive +25% |
| Low Line | -40% |
| PHYSICAL | |
| Dimensions Height Width Depth, Rack mounting surface to rear panel Overall Depth |
3.5" (8.9 cm) 2 rack spaces 19" (48.3 cm) 8.95" (22.7 cm) 11" (27.9 cm) |
| Weight | 13 lbs. (5.9 kg) net 18 lbs. (8.2 kg) shipping |
| Agency Approvals | CE, FCC, cUL, UL |
