JBL AM6340/95

4800W High Power 3-Way Loudspeaker with 4 x 10" LF Drivers & Rotatable Horn

JBL
Shop all JBL
Product videos
highlight-star-icon

High Power 3-Way Loudspeaker • 4800W Peak • 1000W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Learn more about the am634095

We apologize

This item has been discontinued

Product Highlights


High Power 3-Way Loudspeaker • 4800W Peak • 1000W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Description


JBL brand icon

Authorized dealer

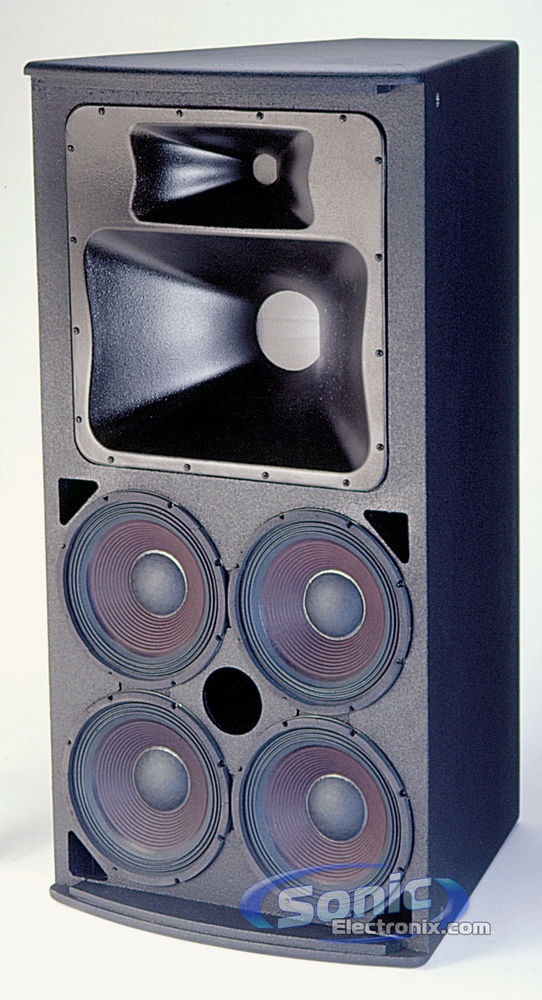

JBL AM6340/95 3-Way Loudspeaker

AM6340/95 is a high power 3-way full-range loudspeaker system comprised of four 250 mm (10 in) LF drivers, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver.

For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Product Features
  • High Power 3-Way Loudspeaker
  • Power Handling
    • Peak: 4800 watts
    • RMS: 1000 watts
  • 90° x 50° Coverage, rotatable for use in either vertical or horizontal orientation
  • Multiple LF Drivers extend pattern control into the LF Band. Excellent with subwoofer in 4-way system
  • CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency
  • PT Progressive Transition Waveguide for excellent pattern control with low distortion
  • Bi-Amp/Passive Switchable operation
  • Black DuraFlex finish
  • Powder coated 14 gauge perforated steel grille
  • NL8 Neutrik Speakon and CE-compliant covered barrier strip terminals
  • Frequency Range: 50-19,000 Hz
  • Frequency Response: 55-17,000 Hz
  • Max SPL: 134 dB
  • Sensitivity: 99 dB
  • Nominal Impedance: 8 ohm
  • Dimensions: 25-15/16"D x 22-1/8"W x 43-1/16"H
  • 1-year Manufacturer's warranty
