JBL AM7212/66

4000W 12" High Power 2-Way Loudspeaker with 1 X 12" LF

JBL
Shop all JBL
Product videos
highlight-star-icon

12" High Power 2-Way Loudspeaker • 4000W Peak • 700W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Learn more about the am721266

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


12" High Power 2-Way Loudspeaker • 4000W Peak • 700W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Description


JBL brand icon

Authorized dealer

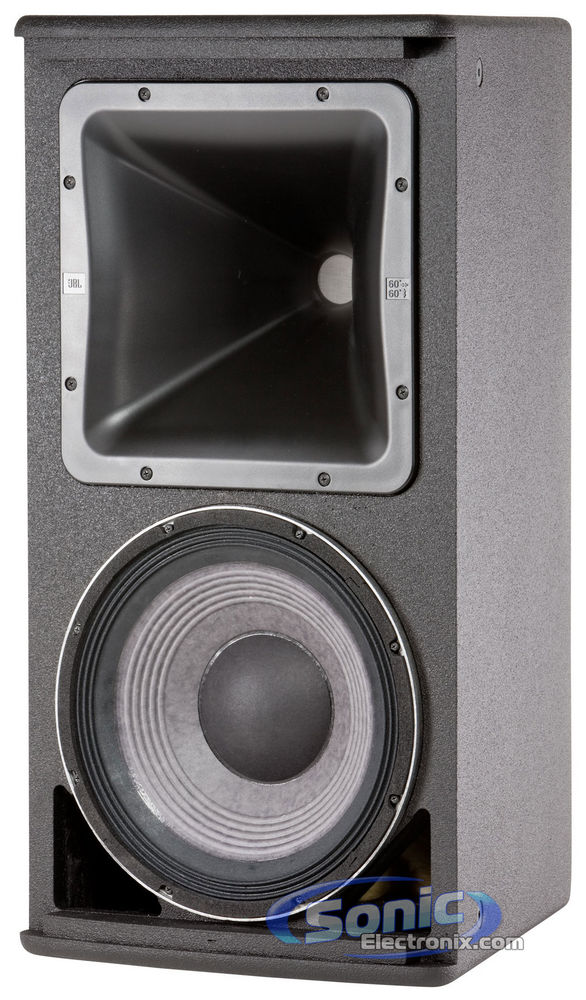

JBL AM7212/66 High Power Loudspeaker

The AM7212/66 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability.

Product Features
  • 12" High Power 2-Way Loudspeaker
  • Power Handling
    • Peak: 4000 watts
    • RMS: 700 watts
  • 60° x 60° Coverage, rotatable for use in either vertical or horizontal orientation
  • 2262H Differential Drive Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • PT Progressive Transition Waveguide for excellent pattern control with low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable operation
  • Black DuraFlex finish
  • Powder coated 14 gauge perforated steel grille
  • NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
  • Frequency Range: 36-20,000 Hz
  • Frequency Response: 42-20,000 Hz
  • Max SPL: 131 dB
  • Sensitivity: 95 dB
  • Nominal Impedance: 8 ohm
  • Dimensions: 18"D x 14-1/2"W x 28"H
  • 1-year Manufacturer's warranty

Best selling similar products

JBLPARTYBOX520AM small

JBL PartyBox 520 (JBLPARTYBOX520AM) (Black)

• PartyBox Portable Bluetooth Speaker
• Power Output Rating: 400 watts RMS
• IPX4 splashproof / dustproof
• Supports wired and wireless audio playback
• 3 hours of charging for 15 hours of playtime

$879.95

List price $1056.00

JBLPBCLUB120AM small

JBL PartyBox Club 120 (JBLPBCLUB120AM) (Black)

• Dual 5.25" woofers and dual 2.25" dome tweeters
• Dynamic, synchronized light show
• IPX4 certified splashproof
• Ergonomic body with foldable handle
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$449.95

List price $540.00

JBLPBCLUB120SWAM small

JBL PartyBox Club 120 (JBLPBCLUB120SWAM) (White)

• Dual 5.25" woofers and dual 2.25" dome tweeters
• Dynamic, synchronized light show
• IPX4 certified splashproof
• Ergonomic body with foldable handle
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$449.95

List price $540.00

Specifications & Details


Loudspeaker Specifications
Frequency Response
42 - 20,000 Hz
Sensitivity
95 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

AM7212/66

Weight:

51.00lbs

Internal SKU:

am721266

Internal Product ID:

32645
