JBL MRX515

1600W 15" 2-Way Bass-Reflex Stage Monitor Loudspeaker with Tough DuraFlex Enclosure Finish

JBL
Shop all JBL
Product videos
highlight-star-icon

15" 2-Way Bass-Reflex Stage Monitor Loudspeaker • 1600W Peak • 400W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon

Learn more about the mrx515

We apologize

This item has been discontinued


Loading...
72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

FKB169. main

MB Quart FKB169

300W Peak (150W RMS) 6x9" Formula Series 2-Way 4-ohm Coaxial Car Speakers

8
-43.34%

$50.99

List price $89.99

Product Highlights


15" 2-Way Bass-Reflex Stage Monitor Loudspeaker • 1600W Peak • 400W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon

Description


JBL brand icon

Authorized dealer

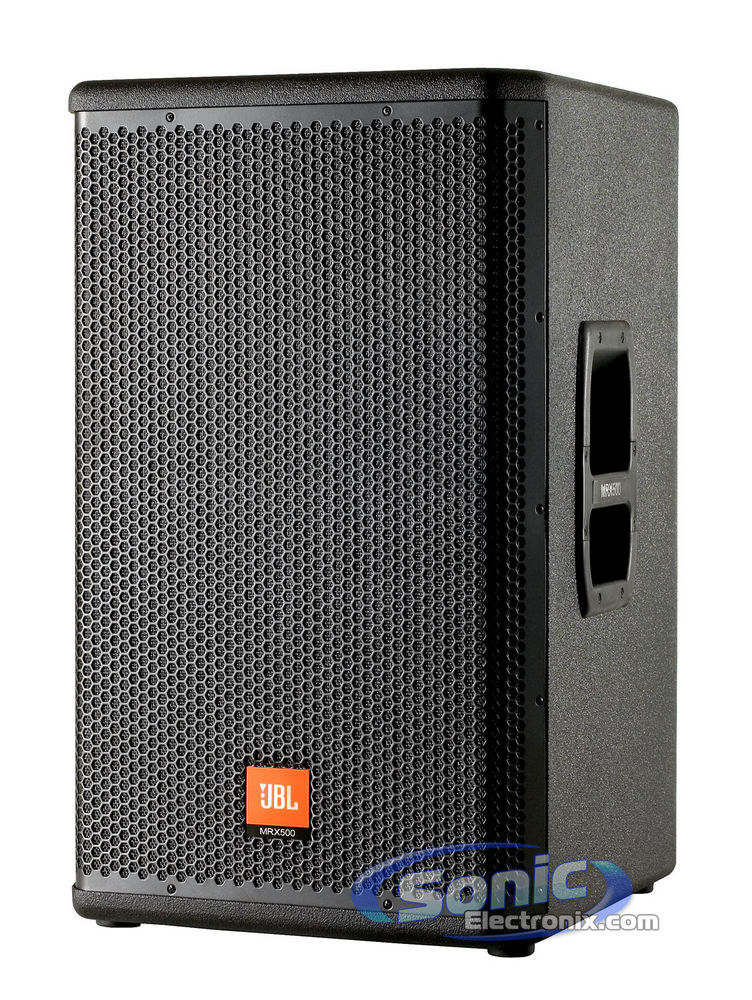

JBL MRX515 Stage Monitor Loudspeaker

The MRX515 is high-power, lightweight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The MRX515 is comprised of a 380 mm (15 in) 265H Differential Drive woofer which handles 400 watts (continuous) yet the entire system weighs only 19.5 kg (43 lbs). For the high frequencies, the 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn. For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Product Features
  • 15" 2-Way Bass-Reflex Main PA/Monitor Loudspeaker
  • Power Handling
    • Peak: 1600 watts
    • Program: 800 watts
    • RMS: 400 watts
  • 15" Differential Drive woofer for high-power capacity and very lightweight
  • 1-1/2" Annular polymer diaphragm compression driver
  • Compact and low-profile for minimal obstruction of audience sight-lines
  • 70° x 70° coverage for even and smooth response on and off axis
  • Dual-angle pole socket for applications requiring tripod mounting
  • Top quality birch plywood enclosure
  • Coated in rugged DuraFlex finish
  • 16-Gauge perforated steel grille
  • 2 x Neutrik Speakon NL-4 input connectors
  • Frequency Range: 52-20,000 Hz
  • Frequency Response: 65-20,000 Hz
  • Max SPL: 130 dB
  • Sensitivity: 98 dB
  • Nominal Impedance: 8 ohm
  • Dimensions: 18-1/2"D x 17-1/2"W x 27-1/4"H
  • 1-year Manufacturer's warranty
