JBL MRX528S

4000W Dual 18" Bass-Reflex High Power Subwoofer with Tough DuraFlex Enclosure Finish

JBL
Shop all JBL
Product videos
highlight-star-icon

Dual 18" Bass-Reflex High Power Subwoofer • 4000W Peak • 1000W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • Large Vents for Reduced Distortion

Learn more about the mrx528s

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HONK830 main

American International HONK830

Single DIN or Double DIN Stereo Dash Kit for select 1990-2012 vehicles from Honda, Acura, Isuzu

2
-41.05%

$22.99

List price $39.00

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

99-7819 main

Metra 99-7819

Single DIN and Double DIN Stereo Dash Kit for select 2006-2008 Pilot

1
-47.37%

$39.99

List price $75.99

99-7861 main

Metra 99-7861 Dash Kit

Install a new Single-DIN car stereo in select 2003-2008 Pilot

1
-53.14%

$14.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Product Highlights


Dual 18" Bass-Reflex High Power Subwoofer • 4000W Peak • 1000W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • Large Vents for Reduced Distortion

Description


JBL brand icon

Authorized dealer

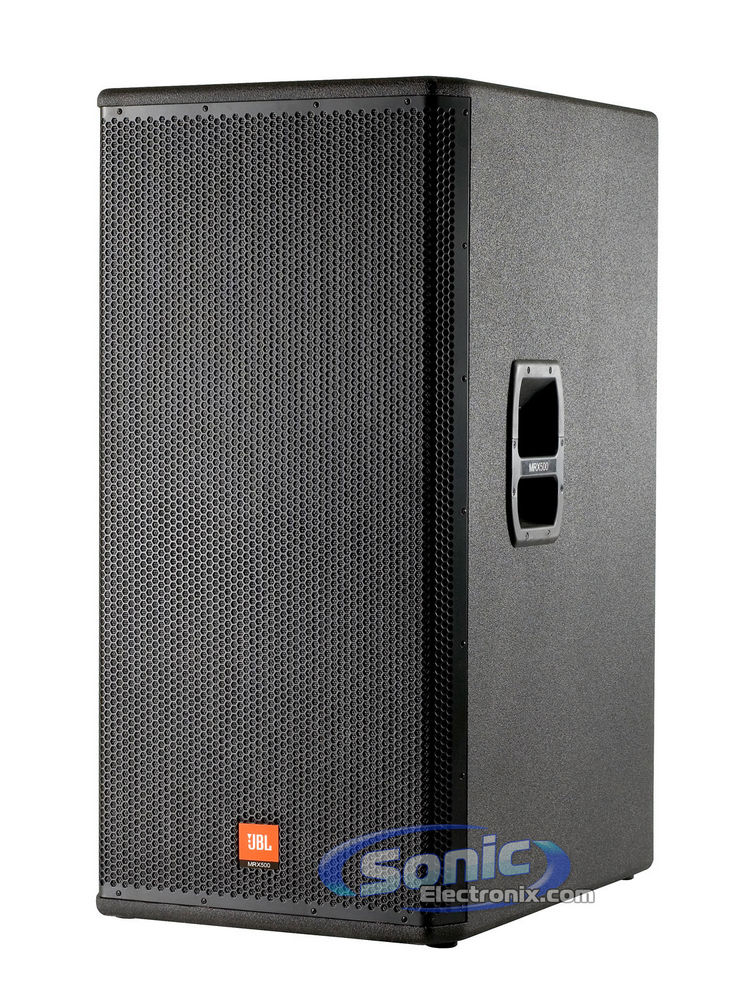

JBL MRX528S Bass Reflex Subwoofer

The MRX528S is a compact, high power subwoofer system containing dual 2044H 457 mm (18") woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. It is also configured in an upright format to permit the convenient stacking of fullrange enclosures on top without the need for an additional pole. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. The input panel incorporates a pair of Neutrik Speakon NL-4 connectors wired in parallel. The MRX528S is supplied with pins +1/-1 connected to the woofer. This may be easily reconfigured to work with cabling systems intended to drive subwoofers on pins +2/-2. The enclosure is constructed of quality plywood, coated in JBL’s rugged DuraFlex™ finish and is braced to maximize low-frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Product Features
  • Dual 18" Bass-Reflex High Power Subwoofer
  • Power Handling
    • Peak: 4000 watts
    • Program: 2000 watts
    • RMS: 1000 watts
  • Dual 18" Differential Drive woofer for high-power capacity and very lightweight
  • Large vents for reduced distortion
  • Vertical orientation for convenient ground stacking
  • Top quality birch plywood enclosure
  • Coated in rugged DuraFlex finish
  • 16-Gauge perforated steel grille
  • 2 x Neutrik Speakon NL-4 input connectors
  • Frequency Range: 35-250 Hz
  • Frequency Response: 40-250 Hz
  • Max SPL: 139 dB
  • Sensitivity: 103 dB
  • Nominal Impedance: 4 ohm
  • Dimensions: 27-1/2"D x 21"W x 43"H
  • 1-year Manufacturer's warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

JBLPARTYBOX520AM small

JBL PartyBox 520 (JBLPARTYBOX520AM) (Black)

• PartyBox Portable Bluetooth Speaker
• Power Output Rating: 400 watts RMS
• IPX4 splashproof / dustproof
• Supports wired and wireless audio playback
• 3 hours of charging for 15 hours of playtime

$879.95

List price $1056.00

JBLPBCLUB120AM small

JBL PartyBox Club 120 (JBLPBCLUB120AM) (Black)

• Dual 5.25" woofers and dual 2.25" dome tweeters
• Dynamic, synchronized light show
• IPX4 certified splashproof
• Ergonomic body with foldable handle
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$449.95

List price $540.00

JBLPBCLUB120SWAM small

JBL PartyBox Club 120 (JBLPBCLUB120SWAM) (White)

• Dual 5.25" woofers and dual 2.25" dome tweeters
• Dynamic, synchronized light show
• IPX4 certified splashproof
• Ergonomic body with foldable handle
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$449.95

List price $540.00

JBLPARTYBOXULTAM small

JBL PartyBox Ultimate (JBLPARTYBOXULTAM) (Black)

• PartyBox Ultimate Portable Bluetooth Speakers with Light Patterns
• Power Output: 1100 watts
• Wired and wireless audio playback function with microphone input
• Bluetooth version 5.1
• IPX4 splashproof / dustproof rating

$1899.95

List price $2280.00

JBLPBSTAGE320AM small

JBL PartyBox Stage 320 (JBLPBSTAGE320AM) (Black)

• Dual 2" dome tweeters and 6.5" woofers
• Dynamic RGB Lighting
• IPX4 certified splashproof
• Telescopic handle and smooth-glide wheels
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$629.95

List price $756.00

JBLPBENCOREESS2AM small

JBL JBLPBENCOREESS2AM (Black)

• PartyBox portable Bluetooth speaker with LED
• Features AI sound boost
• Up to 15 Hours of play time
• Multi-speaker connection by Auracast
• Microphone and guitar inputs
• Control music from JBL PartyBox app
• IPX4 Splash proof speaker

$329.95

List price $396.00

JBLPBSTAGE320SWAM small

JBL PartyBox Stage 320 (JBLPBSTAGE320SWAM) (White)

• Dual 2" dome tweeters and 6.5" woofers
• Dynamic RGB Lighting
• IPX4 certified splashproof
• Telescopic handle and smooth-glide wheels
• USB recharging
• Dimensions: 15.70"W x 17.20"D x 35.60"H

$629.95

List price $756.00

JBLPBOTGESAM small

JBL PartyBox On-The-Go Essential (JBLPBOTGESAM) (Black)

• PartyBox Encore Essential Portable Bluetooth Speakers
• Power Output: 100 watts
• IPX4 splashproof / dustproof rating
• Wired and wireless audio playback function
• Six LED light presets
• 3.5 hours of charging for 6 hours of play time

$379.95

List price $456.00

PartyBox 720 small

JBL PartyBox 720 (JBLPARTYBOX720AM) (Black)

• PartyBox Portable Bluetooth Speaker
• Power Output Rating: 800 watts RMS
• IPX4 splashproof / dustproof
• Supports wired and wireless audio playback
• 3 hours of charging for 15 hours of playtime

$1099.95

List price $1319.95

JBLPBM100BLKAM small

JBL PBM100 (JBLPBM100BLKAM)

• Wired microphone for JBL PartyBox speakers
• Sleek, rugged built-to-last stage quality casing
• Wire mesh cap with windscreen

$54.95

List price $66.00

Specifications & Details


Subwoofer Specifications
Power Configuration
Passive
Number of Drivers
2
Driver Size
18"
Frequency Response
40 - 250 Hz
Maximum SPL (Sound Pressure Level)
139 dB
Inputs
SpeakOn
Outputs
SpeakOn
Passive Subwoofer Specifications
Peak Power Handling
4000 watts
Program Power Handling
2000 watts
Continuous Power Handling
1000 watts
Impedance
4 ohms
Case Specifications
Mounting Options
Floor Standing
Convenience Features
Built-in Handles
Enclosure Material
Solid Plywood with Durable Finish
Grille
Yes
Height
43"
Width
21"
Depth
27-1/2"
Weight (Pounds)
121 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MRX528S

Weight:

121.00lbs

Internal SKU:

mrx528s

Internal Product ID:

32711
