JBL SRX722

4800W Dual 12" Two-Way High Power Loudspeaker with Bi-Amplified or Full-Range Passive Operation

JBL
Shop all JBL
Product videos
highlight-star-icon

Dual 12" Two-Way High Power Loudspeaker • 4800W Peak • 1200W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • 4" Voice-Coil

Learn more about the srx722

We apologize

This item has been discontinued


Loading...
72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

FKB169. main

MB Quart FKB169

300W Peak (150W RMS) 6x9" Formula Series 2-Way 4-ohm Coaxial Car Speakers

8
-43.34%

$50.99

List price $89.99

Product Highlights


Dual 12" Two-Way High Power Loudspeaker • 4800W Peak • 1200W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • 4" Voice-Coil

Description


JBL brand icon

Authorized dealer

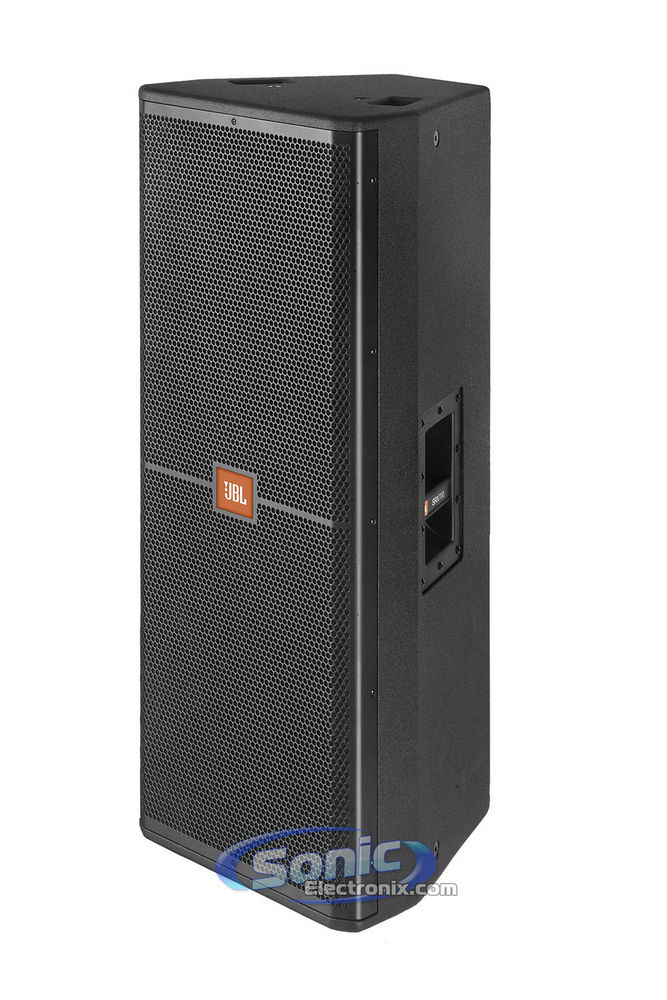

JBL SRX722 High Power Loudspeaker

Taking a page from high performance hot rod design, JBL filled the smallest possible cabinet with the highest possible power capacity. Especially suited for subwoofer-equipped systems, the SRX722 delivers very high acoustic output from a compact, easily transported system. A pair of 2262H Differential Drive® woofers handles 1200 watts (continuous) of power. Top these off with the world-class, 2451H four-inch compression driver, and you have big PA performance that fits easily into a sport utility vehicle.

Product Features
  • Dual 12" Two-Way High Power Loudspeaker
  • Power Handling
    • Peak: 4800 watts
    • Program: 2400 watts
    • RMS: 1200 watts
  • Dual 305 mm (12 in) Differential Drive low-frequency drivers for very high acoustic output
  • 4" Voice-Coil neodymium compression driver
  • 75° x 50° coverage
  • Bi-amplified or full-range passive operation
  • Top quality birch plywood enclosure
  • Coated in rugged DuraFlex finish
  • 16-Gauge perforated steel grille
  • 2 x Neutrik Speakon NL-4 input connectors
  • Frequency Range: 72-20,000 Hz
  • Frequency Response: 81-20,000 Hz
  • Max SPL: 135 dB
  • Sensitivity: 97 dB
  • Nominal Impedance: 4 or 8 ohm
  • Dimensions: 15-1/2"D x 15-1/2"W x 38"H
  • 1-year Manufacturer's warranty
