JBL SRX738

3200W Dual 18" Three-Way High Power Loudspeaker with Cone Midrange Compression Driver

JBL
Shop all JBL
Product videos
highlight-star-icon

Dual 18" Three-Way High Power Loudspeaker • 3200W Peak • 800W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • Cone Midrange Compression Driver

Learn more about the srx738

We apologize

This item has been discontinued


Loading...
82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XSP692 main

NVX XSP692

900W Peak (300W RMS) 6x9" X-Series 2 Way Coaxial Car Speakers

14
-32.29%

$129.99

List price $191.99

V692 main

Cerwin-Vega V692

840W Peak (280W RMS) 6x9" Vega Series 2025 Edition 2-Way Coaxial 2-ohm Speakers

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


Dual 18" Three-Way High Power Loudspeaker • 3200W Peak • 800W RMS • 16 Gauge Perforated Steel Grille • Rugged DuraFlex Finish • Top Quality Birch Plywood Enclosure • 2 x NL4 Neutrik Speakon • Cone Midrange Compression Driver

Description


JBL brand icon

Authorized dealer

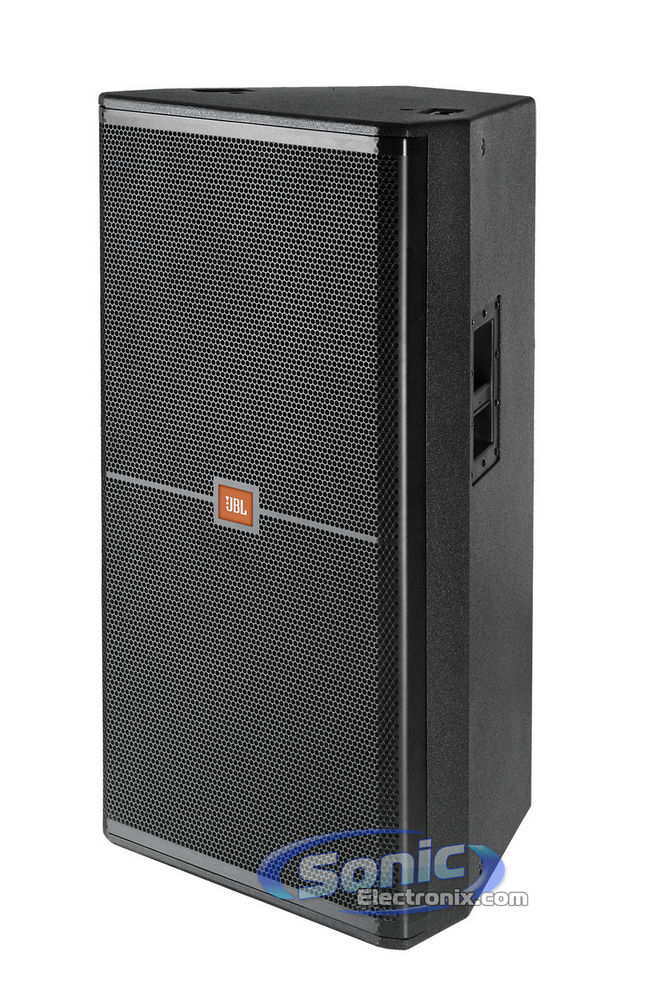

JBL SRX738 3-Way Loudspeaker

Combining the performance of a subwoofer/satellite system with a single-enclosure ease-of-use, the SRX738 uses a 2268 18" Differential Drive woofer for world-class low-end performance, even without a sub. Mids are handled by a 2169 8" driver using JBL's CMCD™ Cone Mid-range Compression Driver™ technology that provides very low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency. The mid-range driver is mounted to a 60° x 40° waveguide* hosting a 3" (voice coil) 2431 high-frequency driver.

Ideally suited to sound reinforcement and music playback use where low-frequency extension, mid-range clarity and projection are critical, mobile DJs and musicians will appreciate the simplicity and performance of the SRX738. Sound companies will also find the SRX738 to be a flexible addition to their arsenals.

The SRX738 may be used in full-range or bi-amplified modes with a passive cross-over handling the transition from the mid-range to the high-frequency driver.

Product Features
  • Dual 18" Three-Way High Power Loudspeaker
  • Power Handling
    • Peak: 3200 watts
    • Program: 1600 watts
    • RMS: 800 watts
  • Dual 18" Differential Drive low-frequency drivers for very high acoustic output
  • CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence
  • 60° x 40° coverage
  • Bi-amplified or full-range passive operation
  • Top quality birch plywood enclosure
  • Coated in rugged DuraFlex finish
  • 16-Gauge perforated steel grille
  • 2 x Neutrik Speakon NL-4 input connectors
  • Frequency Range: 35-20,000 Hz
  • Frequency Response: 44-20,000 Hz
  • Max SPL: 130 dB
  • Sensitivity: 95 dB
  • Nominal Impedance: 8 ohm
  • Dimensions: 20"D x 21"W x 40-1/4"H
  • 1-year Manufacturer's warranty
