Pyle PCM60A

100W PA Power Amplifier with Bass and Treble Tone Controls

Pyle
Shop all Pyle
highlight-star-icon

PA Power Amplifier • 100 Watts • Power On/Off Switch & LED Indicator • Bass and Treble Tone Controls • Speaker Terminals • 110/220 Voltage Selector • Detachable Power AC Input • Replaceable Fuse

Learn more about the pcm60a

We apologize

This item has been discontinued


Loading...
SWRVL-54 main

Crux SLWRV54 Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 1999-2012 vehicles from Volvo

4
-35.71%

$160.65

List price $249.90

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Description


Pyle brand icon

Authorized dealer

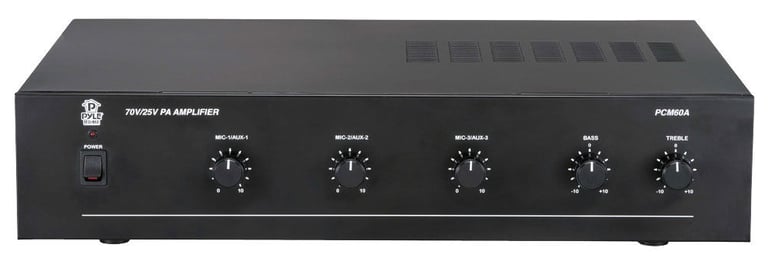

Pyle PCM60A PA Amplifier

This 100 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. The three 1/4” jack inputs are conveniently located on the front – two mic inputs and one auxiliary input. Mic 1 has an auto-talkover, so you can easily cancel the other inputs. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.

Product Features
  • PA Power Amplifier
  • 100 Watts of continuous power
  • Power on/off switch & LED indicator
  • MIC 1/AUX Output level control
  • MIC 2/AUX Output level control
  • MIC 3/AUX Output level control
  • Contour control on/off loudness switch
  • AUX RCA input
  • Bass and treble tone controls
  • AUX 1/AUX2/AUX 3 RCA input
  • AUX/MIC input selector switch
  • Mute Terminals
  • MIC 1/MIC 2/MIC 3 Terminals (MIC 1 Auto Talkover)
  • MIC 1 XLR Connector
  • Monitor 600-Ohm 1V Terminals
  • Monitor 1W 8-Ohm Terminals
  • Monitor Output Level Control
  • TEL/PAGING Terminals
  • Paging Output Level Control
  • MIC/TEL VOX Level Control

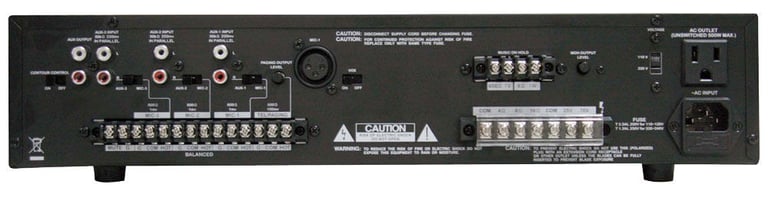

  • Speaker Terminals
  • Replaceable Fuse
  • Unswitched 500W Max AC Outlet
  • 110/220 Voltage Selector
  • Detachable AC Power Input
  • Dimensions: 10-1/2”D x 16-15/16”W x 3-7/16”H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

VS-AmplifierSystem-4 small

Wet Sounds VS-AmplifierSystem-4

• Venue Series 4-Channel Class D Power Amplifier
• Includes VS-LS-ENC landscape enclosure
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1999.98

List price $1999.98

VS-1200-AMP small

Wet Sounds VS-1200-AMP

• Venue Series 4-Channel Class D Power Amplifier
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1249.99

List price $1249.99

Specifications & Details


Power Specifications
Number of Channels
1 - Mono
Max Power Output
120 watts x 1 channel
Total Max Power
120 watts
Amplifier Specifications
Signal-to-Noise Ratio
Not specified by manufacturer
Frequency Response
50 - 15000 Hz
THD (Total Harmonic Distortion)
1%
Inputs
Binding Posts
RCA
Outputs
Binding Posts
Physical Specifications
Height
3-1/2"
Width
10-3/4"
Depth
8-7/8"
Weight (Pounds)
9.8 lbs
Rackmount Spaces
2U
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PCM60A

Weight:

17.00lbs

Internal SKU:

pcm60a

Internal Product ID:

33050
