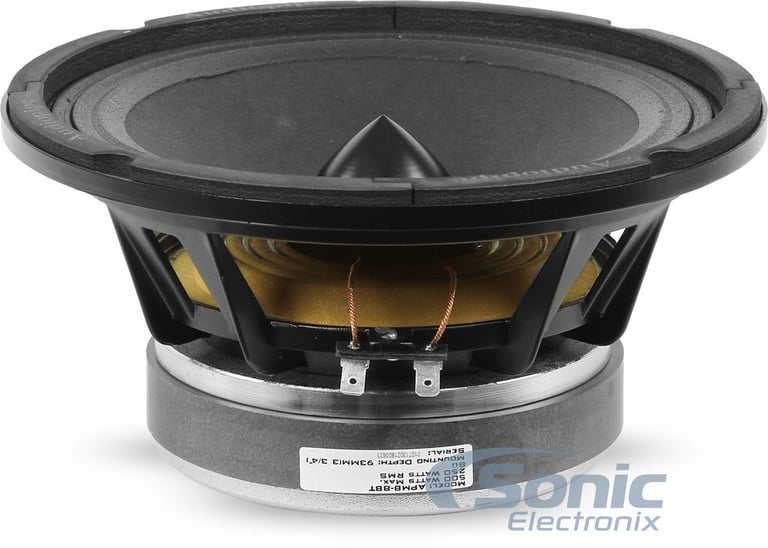

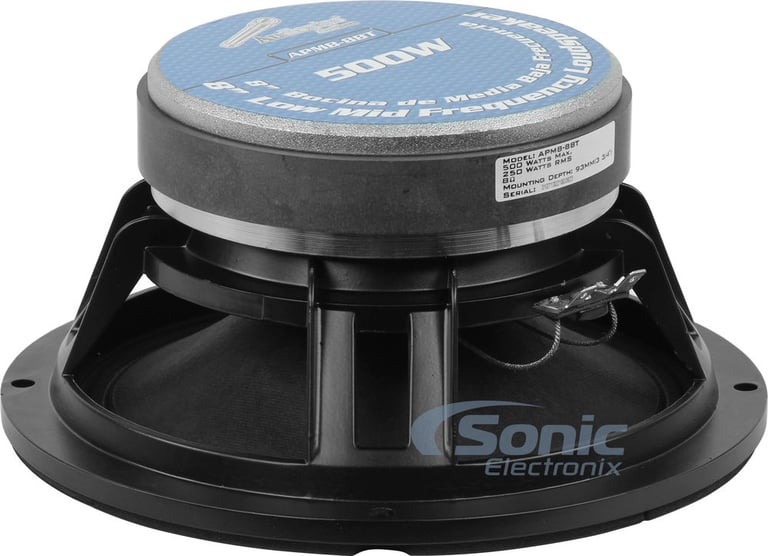

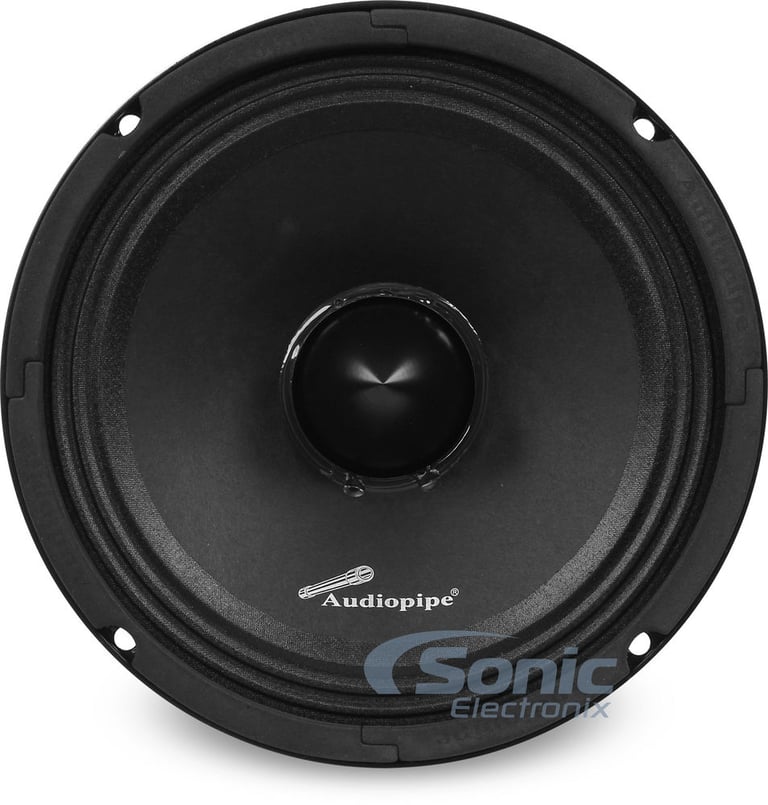

Audiopipe APMB-8BT

8", 8 ohm APMB-8 Series Low Mid Frequency Loudspeaker w/ Bullet Phase Plug

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 8" APMB Series Midbass Driver
• Peak: 500W
• 2" Til Voice Coil
• Frequency Response: 65 - 6,000 Hz
• Sensitivity: 95 dB
• Mounting depth: 3-21/32"

Learn more about the apmb8bt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

apmb8btc thumbnail

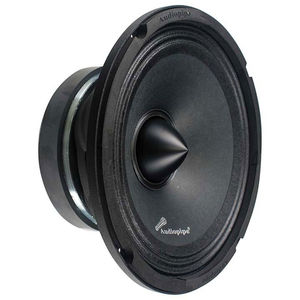

Audiopipe APMB-8BT-C

OUR PRICE: $44.99

View item

Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT, CSDF620X2 main

Dual XRM59BT Stereo + (2-Pairs) of JVC CSDF620

Single DIN Mechless Car Stereo Receiver + (4-Total) JVC 6.5" Speakers

32
-50.42%

$88.25

List price $177.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

DMH-WT8000NEX main

Pioneer DMH-WT8000NEX

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, Alexa and Dolby Atmos Feature (SiriusXM and iDataLink Maestro Ready)

-18.75%

$1,299.99

List price $1600.00

Product Highlights


• 8" APMB Series Midbass Driver
• Peak: 500W
• 2" Til Voice Coil
• Frequency Response: 65 - 6,000 Hz
• Sensitivity: 95 dB
• Mounting depth: 3-21/32"

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Incorporated Phase Plugs Provide Better SoundPhase Plug for Sound Quality

Audiopipe designed the 8BT speaker with an incorporated phase plug to provide high quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Durable Audiopipe Paper ConesLight and Strong

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 8BT speaker features a light weight yet incredibly stiff paper cone. This cone type delivers outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible.


General Features:

  • 8" APMB Series Midbass Driver
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • High quality paper cone
  • Corrugated surround
  • Durable 2" Til voice coil
  • Heavy duty 35 oz Magnet
  • Frequency Response: 65 - 6,000 Hz
  • Sensitivity: 95 dB
  • Mounting depth: 3-21/32"
  • Mounting Diameter: 7-1/4"
  • 8 ohm impedance
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications:

  • FS (Free Air Resonance): 85 Hz.
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.36 mH
  • QMS (Mechanical Q Value): 6.5
  • QES (Electrical Q Value): 0.38
  • QTS (Total Speaker Q Value): 0.36
  • VAS (Equivalent Compliance): 9.3 L (0.32 cu ft.)
  • Xmax (One-Way Linear Excursion): 1mm (0.04")

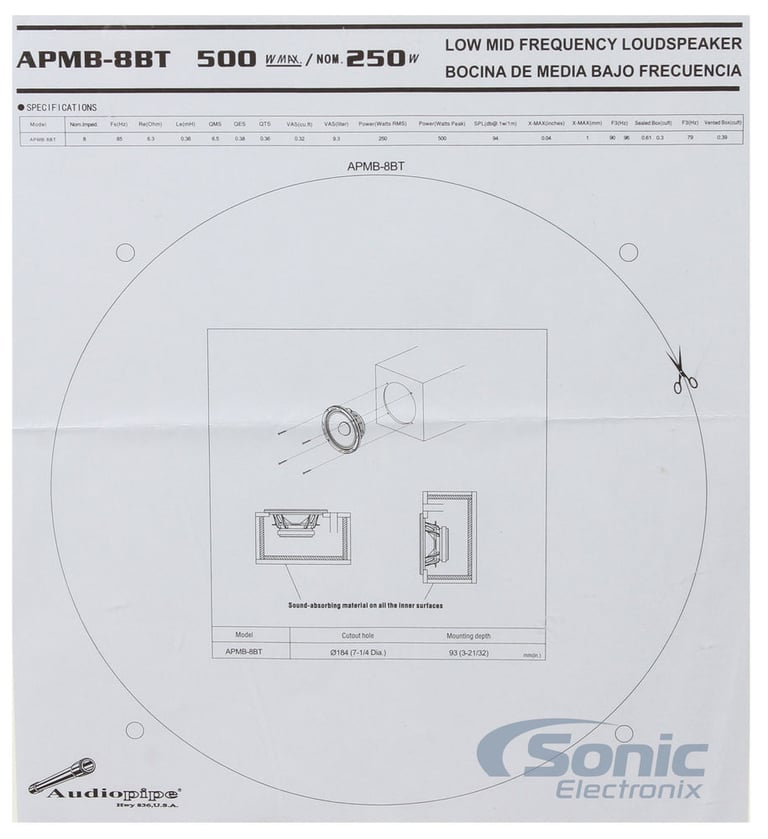

  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 96 Hz
    • 0.61 cu ft.: 90 Hz
  • F3 (for Vented Enclosure):
    • 0.39 cu ft.: 79 Hz

Priced Per Speaker
