JL Audio PWM110-WXJX R/B

Refurbished One 10WX-4 in a Sealed Enclosure, Rear-Firing, Gray Carpet Finish. Includes JX-250/1 amplifier.

JL Audio
Shop all JL Audio
highlight-star-icon

Loaded Single 10" Sealed Rear Firing Subwoofer Enclosure • 400W Peak • 200W RMS • Single 4 Ohm • One 10" WX Series Subwoofer Included • Durable Dark Gray Carpet • High Quality MDF Construction • Built-In 175W Amplifier

Learn more about the LS-pwm110wxjx-RB

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

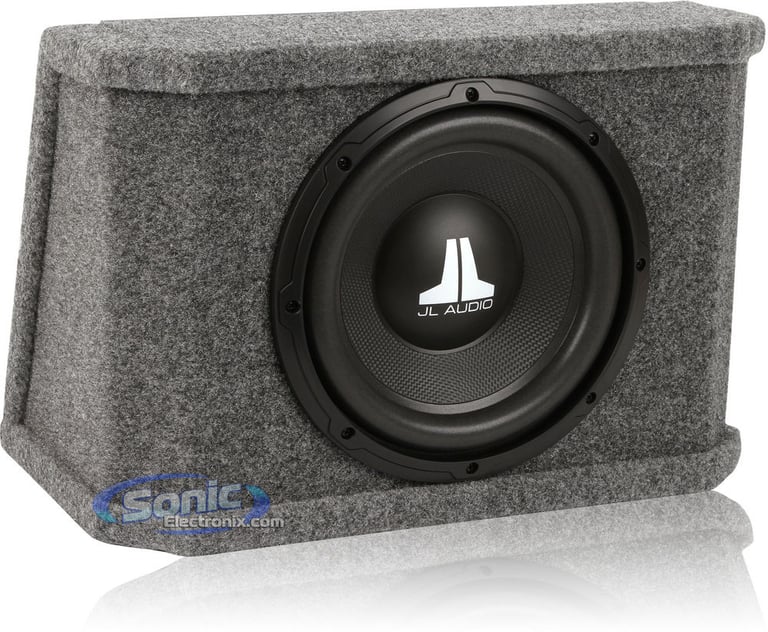

JL Audio PWM110-WXJX 10" Loaded Enclosure

JL Audio's single 10" sealed rear-firing subwoofer enclosure has a peak power rating of 400 watts and an RMS rating of 200 watts. This enclosure comes equipped with one JL Audio 10WX-4 single subwoofer and a built-in 175W 4 ohm amplifier. The subwoofers are loaded into high quality MDF sealed enclosure that is covered in durable dark gray carpet. This package will enhance your cars audio system immensely.

Subwoofer Features:

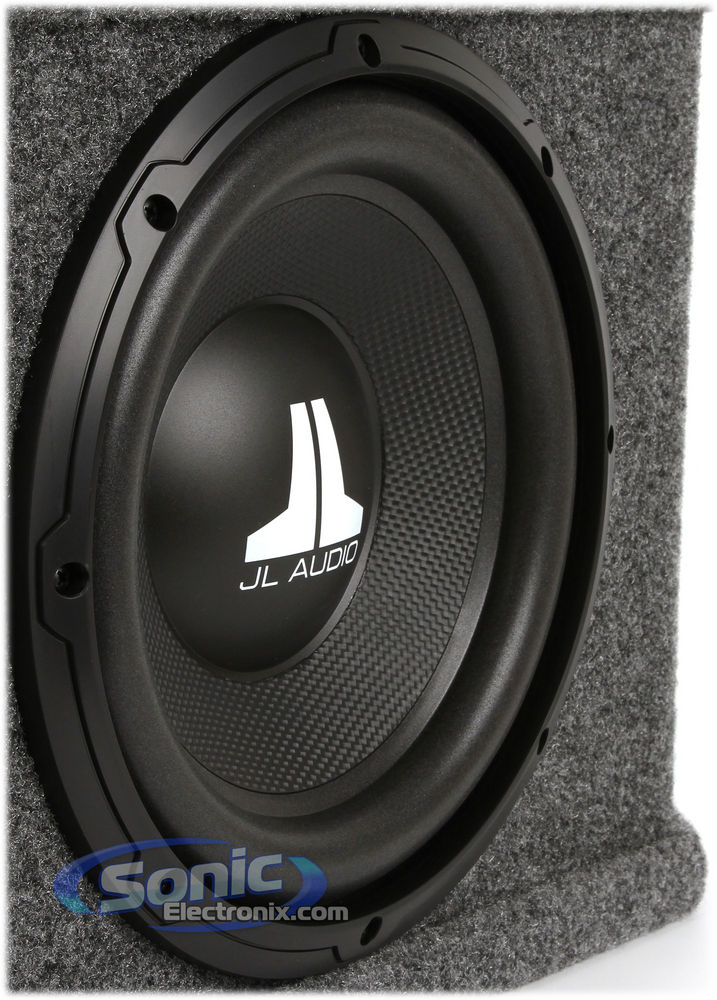

  • 10" Single 4 Ohm WX Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency Response: 25-250 Hz
  • Sensitivity: 86.06 dB
  • 1-year Sonic Electronix warranty

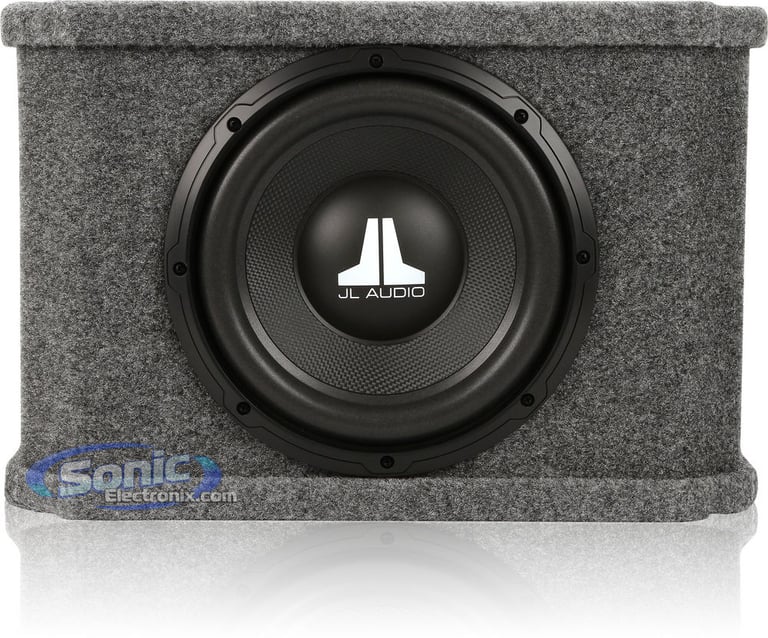

Enclosure Features:
  • Single 10" Sealed Rear Firing Enclosure

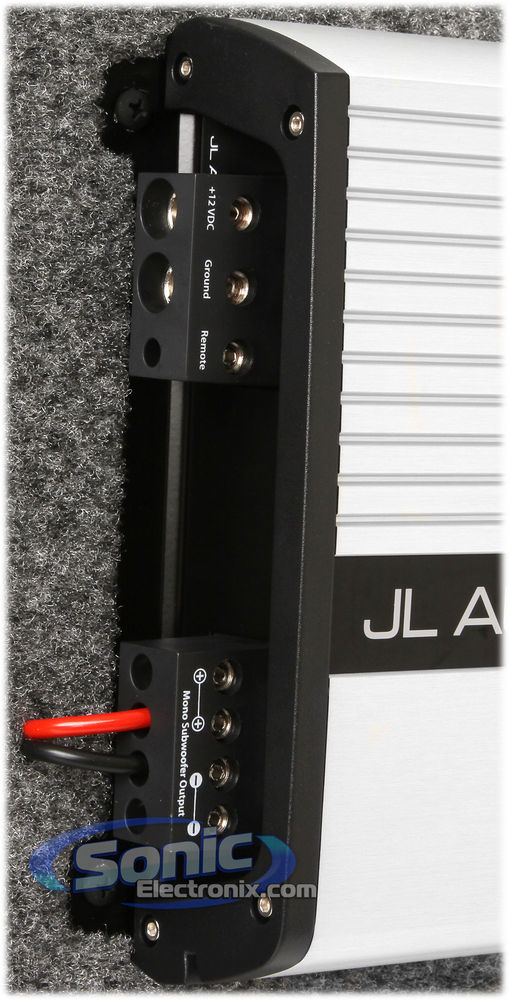

  • Built-In 175W @ 4 ohm amplifier
  • Includes one JL Audio 10WX-4
  • Durable dark gray carpet
  • High quality MDF construction
  • 4 ohm mono final impedance
  • Dimensions: 11-1/2”D x 18-3/4”W x 12-1/2”H

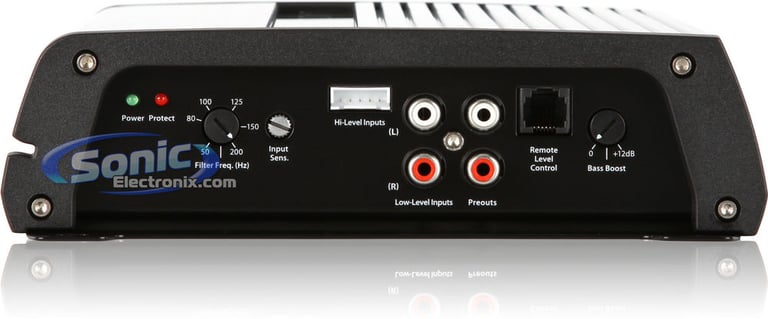

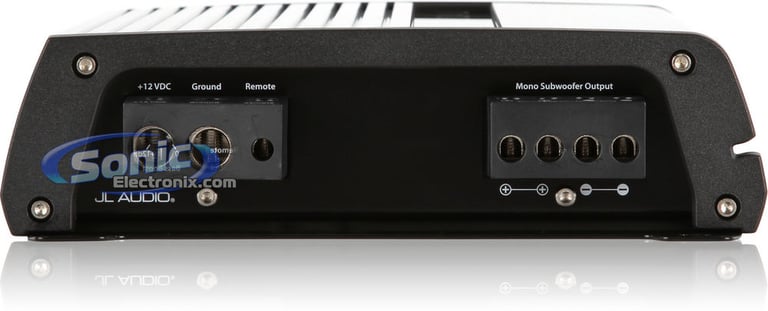

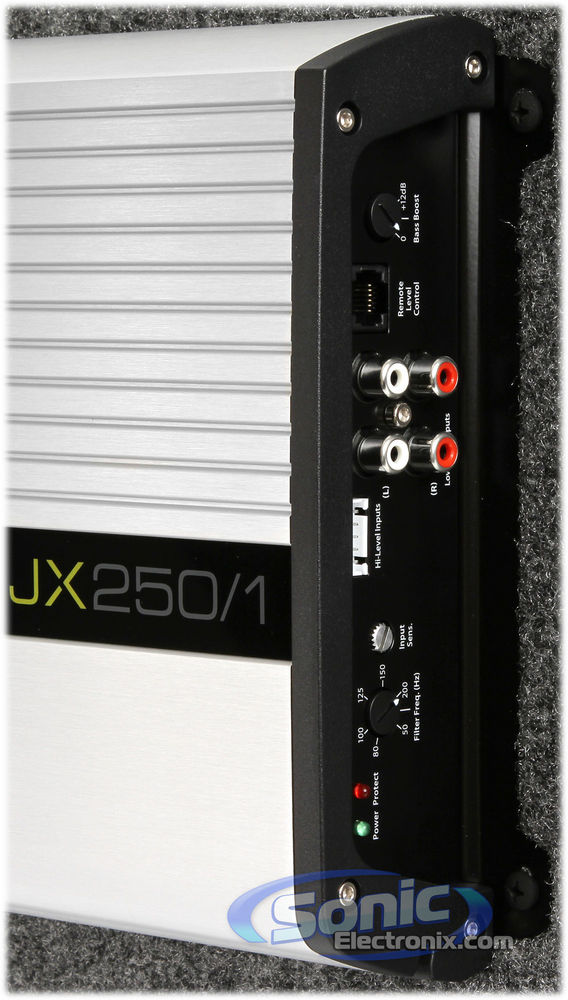

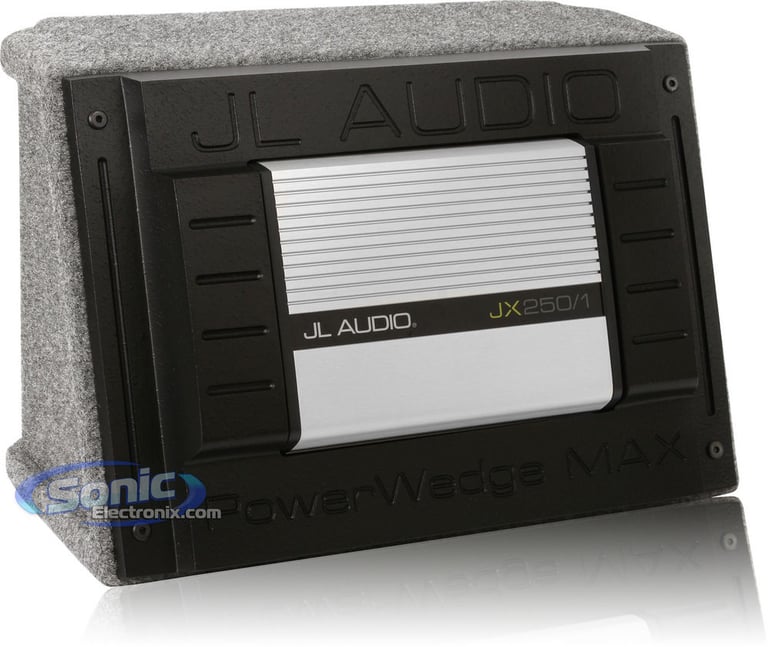

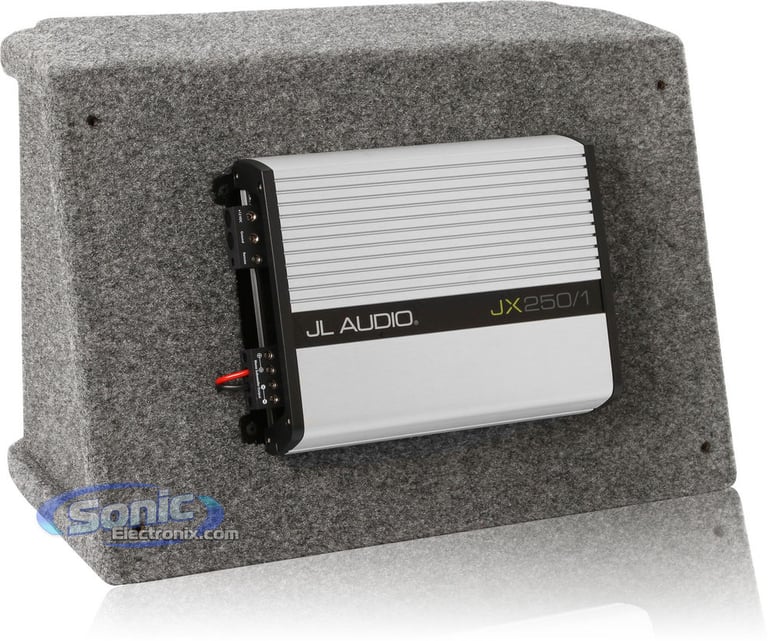

Amplifier Features:
  • JX Series 1-Channel Class A/B Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 175 watts x 1 chan.
    • 3 ohm: 210 watts x 1 chan.
    • 2 ohm: 250 watts x 1 chan.
  • RMS Power Rating (@ 12.5V):
    • 4 ohm: 130 watts x 1 chan.
    • 3 ohm: 170 watts x 1 chan.
    • 2 ohm: 210 watts x 1 chan.
  • Unregulated PWM switching type power supply
  • Remote bass level input (JL Audio RBC-1 sold separately)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
  • Soft start turn-on prevent clicking and popping when system turns on
  • 1 channel operation

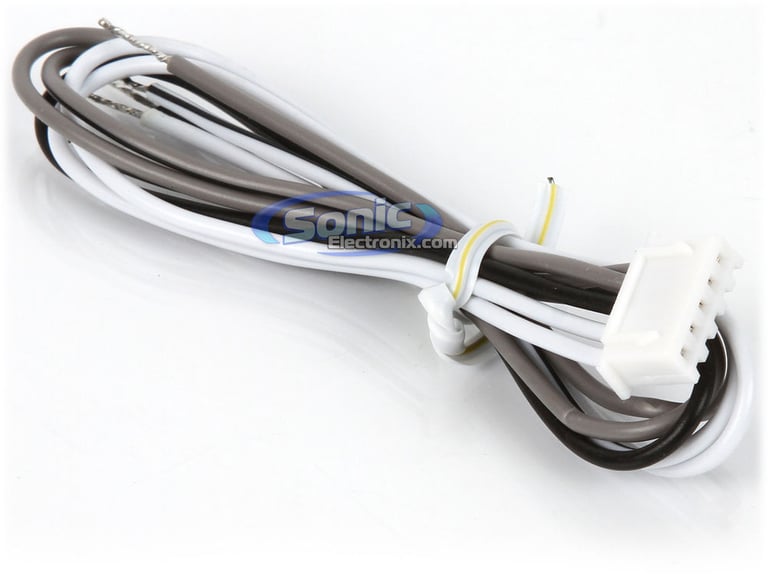

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for effective heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-4V
    • High level: 2.0V-10V
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Damping factor: >160 @ 4 ohm / >80 @ 2 ohm
  • Frequency response: 10-150 Hz (+/– 1 dB)
  • Dimensions: 11L x 7-3/4"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 90 Day SonicElectronix.com warranty

Item Details


Manufacturer:

Model Number:

PWM110-WXJX-RB

Weight:

34.00lbs

Internal SKU:

LS-pwm110wxjx-RB

Internal Product ID:

43426
