Power Acoustik MOFO-154X

1700W 15" MOFO Series Dual 4 ohm Subwoofer

Product videos
highlight-star-icon

• 3000W Peak
• 1700W RMS
• Non Pressed Pulp Cone
• Polyether Foam Surround
• Die Cast Aluminum Frame
• 2-1/2" 4-Layer Voice Coil
• Anodized Aluminum Former
• 170 oz Strontium Ferrite Magnet

Learn more about the mofo154x

We apologize

This item has been discontinued


Loading...
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

99-6700 main

Metra 99-6700 Dash Kit

Install a new Single-DIN car stereo in select 1974-2002 vehicles from Dodge, Chrysler, Plymouth

5
-36.86%

$11.99

List price $18.99

460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Product Highlights


• 3000W Peak
• 1700W RMS
• Non Pressed Pulp Cone
• Polyether Foam Surround
• Die Cast Aluminum Frame
• 2-1/2" 4-Layer Voice Coil
• Anodized Aluminum Former
• 170 oz Strontium Ferrite Magnet

Description


Power Acoustik brand icon

Authorized dealer

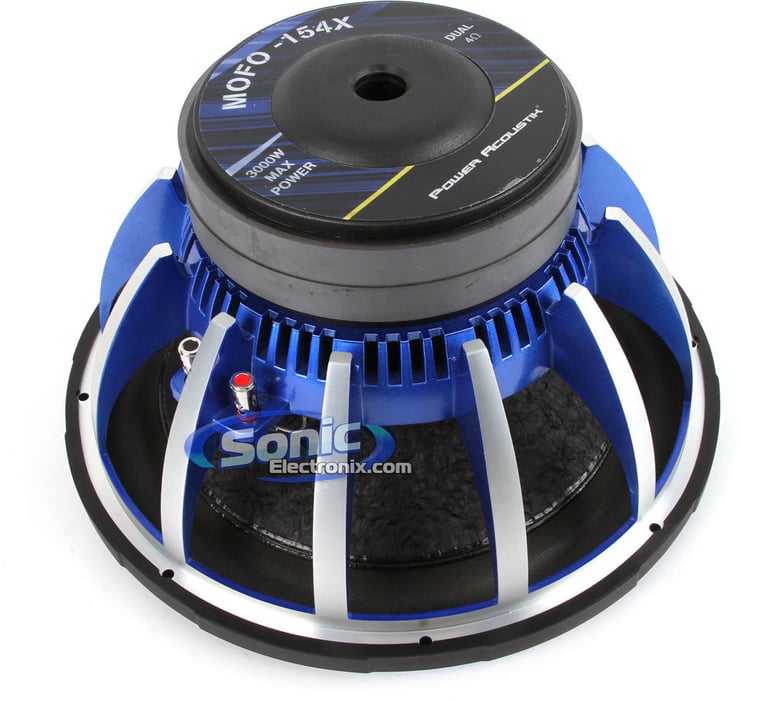

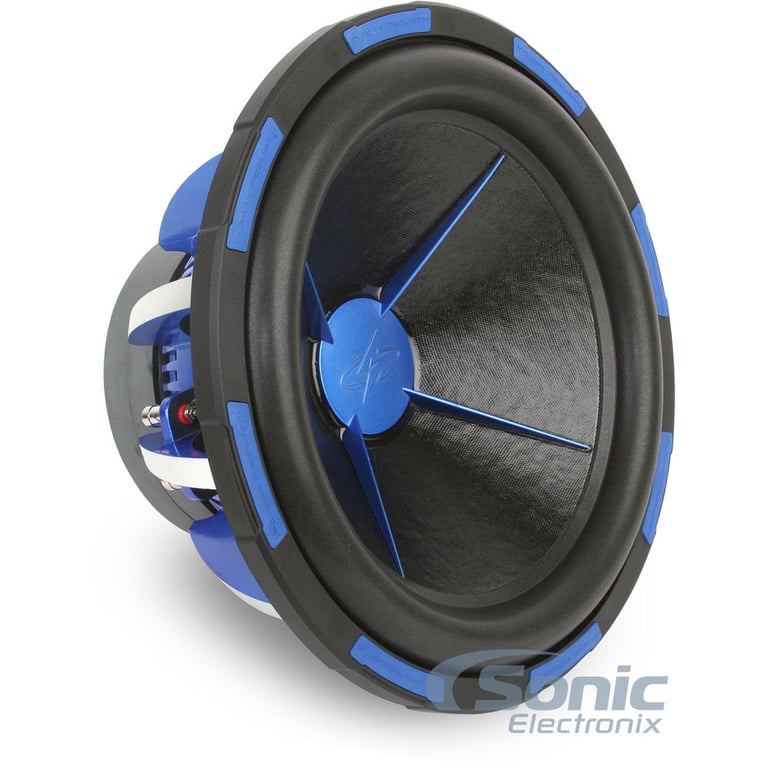

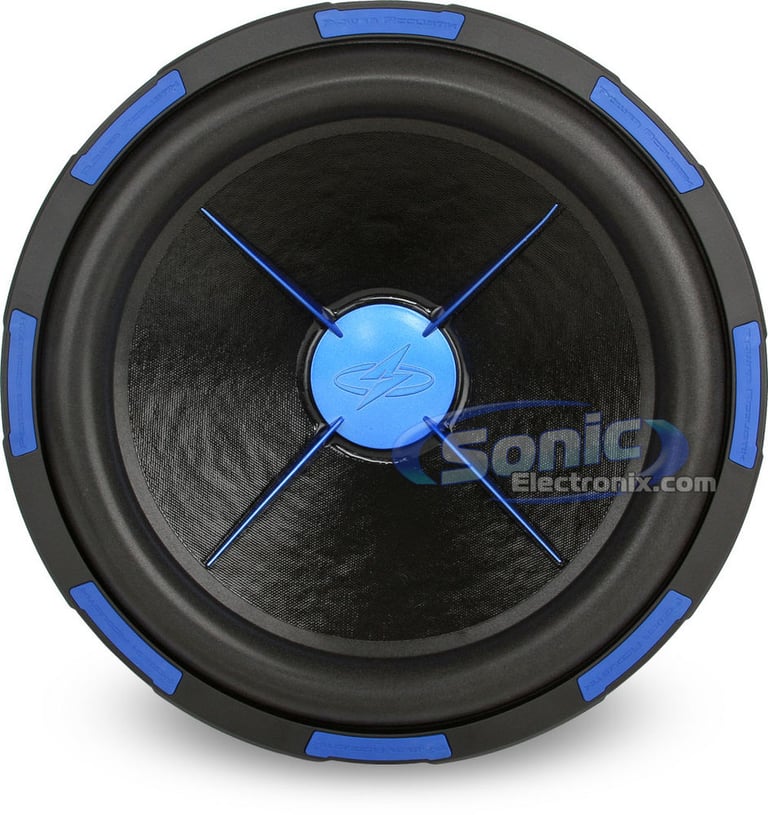

Power Acoustik MOFO-154X 15" Subwoofer

The MOFO Series 15" Subwoofer has a peak power rating of 3000 watts and a RMS rating of 1700 watts. This sub will produce some ground shaking bass and is constructed with a non-pressed pulp cone and a polyether foam surround. This woofer is also equipped with a dual 2-1/2" Voice coil and a 170 oz strontium magnet structure. Add some bumps in your trunk and enhance your cars stereo system with this Power Acoustik MOFO Series Subwoofer.

Enclosure Recommendations

All enclosures should be made of .75" (3/4") material only. When possible, make the baffle 1.5" (1 1/2") thick and add .75" (3/4") to the depth of the enclosure to compensate. All volumes INCLUDE vent/port and subwoofer displacements. DO NOT change the volume unless you plan on adding a substantial amount of bracing. For added performance, applying a coat of fiberglass resin to the interior walls will greatly improve sealing the enclosure. Adding a thin layer of poly-fill will improve response by smoothing out enclosure reflections.

Product Features

  • 15" Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1700 watts
  • Recommended power range: 600 - 1700 watts RMS
  • Impedance: Dual 4 Ohm
  • Non pressed pulp cone
  • Polyether foam surround for enhanced excursion
  • Die cast aluminum frame
  • 2-1/2" 4-layer voice coil
  • Anodized aluminum former
  • Nickel plated 8 gauge compression wire terminal
  • 170 oz Strontium ferrite magnet
  • Royal blue finish with diamond cut accents
  • Die cast aluminum voice coil heatsink
  • Dual poly cotton spiders
  • Vented pole piece
  • Optimum Sealed Enclosure: 2 ft3
  • Optimum Ported Enclosure: 4 ft3
  • Sensitivity: 87 dB
  • Xmax: 15mm
  • Mounting Depth: 8-1/4"
  • Cutout Diameter: 14-1/8"
  • Re-cone kit available Power Acoustik MOFO-154X-RC
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Power Acoustik MOFO-154X Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Power Acoustik MOFO-154X Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Power Acoustik MOFO-154X Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Power Acoustik MOFO-154X Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Series
MOFO Series
Subwoofer Size
15"
Peak Power Handling
3000 watts
RMS Power Handling
1700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Blue
Woofer Composition
Non-Pressed Paper
Woofer Surround
Polyether Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.00 cubic feet
Maximum Sealed Box Volume
2.00 cubic feet
Minimum Ported Box Volume
4.00 cubic feet
Maximum Ported Box Volume
4.00 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
14-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24.4 Hz
Equivalent Compliance (Vas)
4.077 liters
Total Speaker Q Value (Qts)
0.47
Electrical Q Value (Qes)
0.51
Electrical Resistance of Voice Coil (Re)
7.23 ohm
Mechanical Q Value (Qms)
5.95
What is in the box?
Paperwork

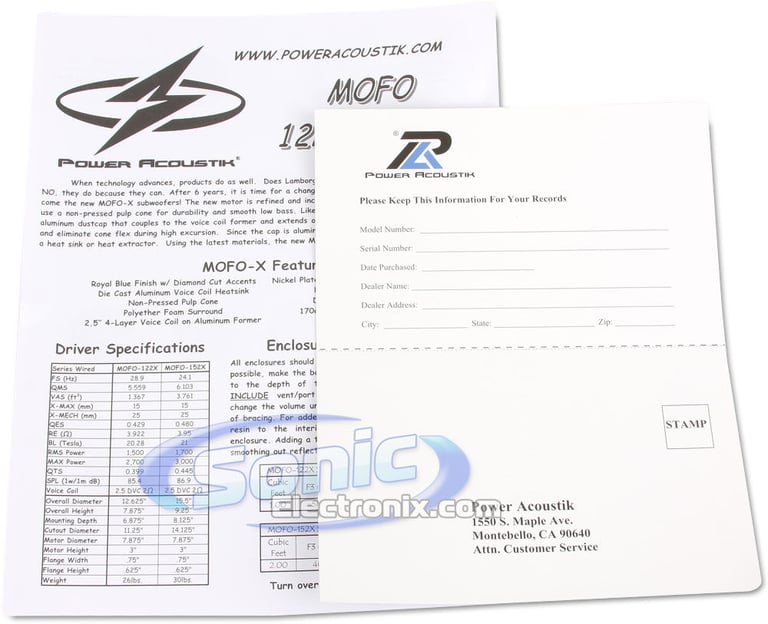

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MOFO-154X

Weight:

35.00lbs

Internal SKU:

mofo154x

Internal Product ID:

33524

Product and How-to Videos


  • Power Acoustik MOFOX Car Subwoofers | Redesigned for 2013!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Power Acoustik MOFO-154X thumbnail image

5 star
88%
4 star
4%
3 star
4%
2 star
0%
1 star
4%



Durability
4.6
Value
4.8
Features
4.7
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Mofo 154x .... Wow!!

This thing is ridiculously loud heard it was lot thought it was
Loud , now I know it loud, vibrates my hat as I drive and it
Still hasn't been broke in . 4000 class d boss armour amp
Kenwood deck heavy gauge wireing in a 98 Chevy Pick up
Ext cab ported box and sub on back seat .. Not much room left for
sitting but it does it's job voice coils start to stink when you
Crank it

By Taylor on January 8, 2014

27 found this helpful


These womp

Yeah, this sub WOMPS. Like the reviewer below me stated, these are worth every penny. I had a decision I had to make: two 12's or one 15, and I am glad I went with the MOFO, because it pounds bass like a mofo.
Built a 4 cubic foot box as the specs called for, and it pounds looooowww, thunderous bass. My ears were thanking me for my decision.

By Phil on October 3, 2014

24 found this helpful


Can't handle big power

I would not recommend running this woofer over 1000 watts. Definitely could not handle the 1500 - 3000 watts I gave it. Overall the woofer lasted 2 weeks at a moderate level of bass and I smelled it the whole time. Didn't sound bad when it was playing but there is better woofers for just a few dollars more. I would only recommend this product if you are a non bass freak and you like low level music volume.

By 39th street customs on March 16, 2015

23 found this helpful


Loud

I got one of des hooked up 2 a 4000 class d boss in my 03 impala and it beat super dumb

By Redd on January 29, 2015

24 found this helpful


worth every penny

Definitely recommend this product..best subs I've ever bought. .i hooked them up to my power acoustik crypt series 5500..you can here my car for a long way off..feel the bass in the concrete by your feet..thanks sonic..

By wolf on September 30, 2014

22 found this helpful


MOFO

Straight up contender to the RE SEX 15. I have 6 MOFO's and dang these things hit really hard for a budget build these are perfect subs. They slam.

By MOFO on October 31, 2013

21 found this helpful


AWESOME BUY UNBELIEVABLE SOUNDS

Awesome well built sub for the money I'm feeding this monster a constant 1000rms from a Rockford fosgate power amp and this thing takes every low note I throw at it. This sub is officially a street banger!!!! And trust me I owned alot of subs high price and low from Kickers, Pioneers,Orions, Sundowns, and Memphis so I know about music and SQ.

By SBK on December 27, 2013

20 found this helpful


MOFO 154x

I have two of these in my extra cab on a gothic 6000 amp by Power Acoustik it is great cant beat these subs I went to a FCBC stereo competition and hit a 145dbs first time ever going to one you cane beat power acoustik

By logan on April 7, 2014

20 found this helpful


Awesomely loud!

I have this sub in a ground shaker SQPXL115 box hooked to a Rockford Fosgate R1000-1D amp @2ohms. It hits hard enough to restrict your breathing! This is in a 2007 crown vic with all the windows down. With the windows up it is actually painful to listen to and it will blur your vision. For those who don't know, the trunk in a crown vic is sealed off from the interior, so i can only imagine how hard it would hit in a car with the seats folded down!

By Ieatpeople on August 14, 2013

20 found this helpful


this sub will turn every head on the street

This sub is a very clean sounding sub an very loud. If you wana be deaf by age 40 this is your choice.

By chad on January 3, 2013

22 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2023 Mazda MX-30 EV

2007 Audi Q7

1991 Dodge Dakota

2007 Ford Five Hundred

2020 Mazda CX-3

2019 Ram 1500

1966 Cadillac Eldorado

2004 Mazda MX-5 Miata

2003 Saturn Ion-2

2017 Audi A6 Quattro

Vehicle
Store
Delete

2013 Harley Davidson FLD Switchback

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
