Audiobahn ABP122J

800W RMS, Dual 12" Slot Tuned Bandpass Loaded Subwoofer Enclosure

Audiobahn
Shop all Audiobahn
highlight-star-icon

Dual 12" Slot Tuned Bandpass Subwoofer Enclosure • 800W RMS • IMPP Cone with EPDM • High Quality MDF Construction • Blue Interior LED Lighting • 3/8” Plexiglass Window • Black Carpeted Covering • Gold Binding Post Terminals

Learn more about the abp122j

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Description

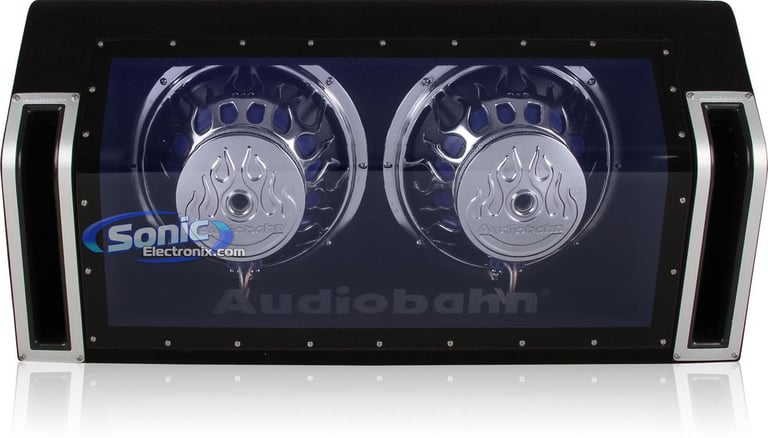

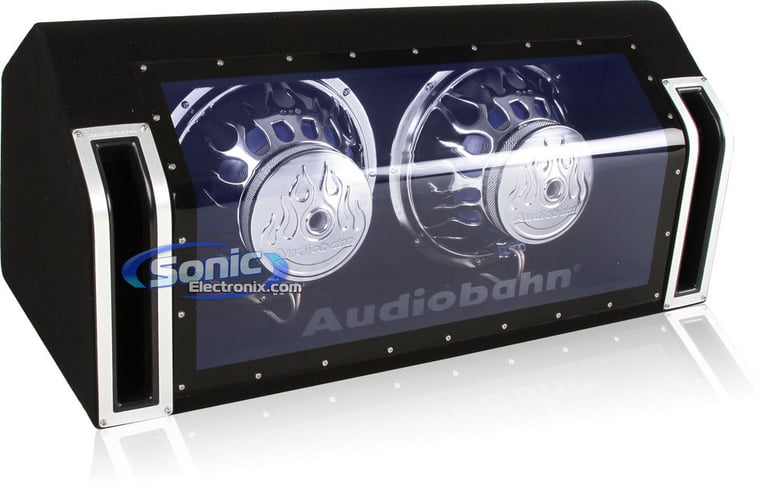

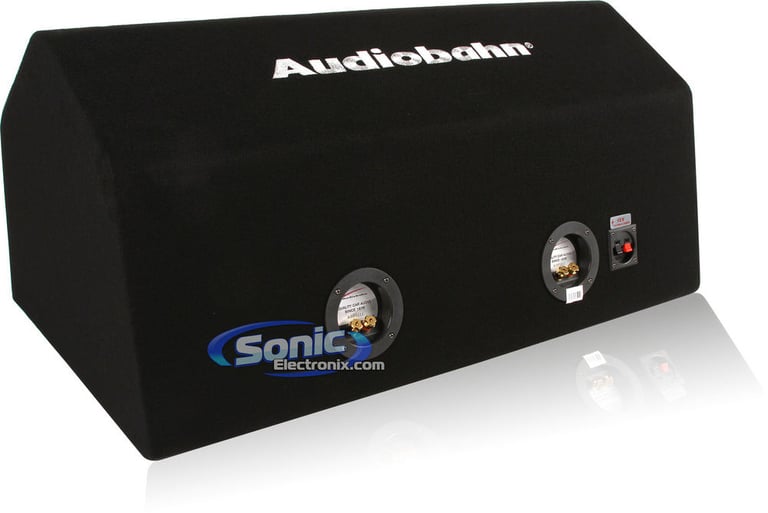

Audiobahn ABP122J Dual 12" Bandpass Subwoofer Enclosure

Sonic Electronix is now carrying Audiobahn's new 2011 subwoofer enclosures. The slot tuned bandpass loaded enclosures feature the same attractive appearance you are used to from Audiobahn with a black carpet finish, a Audiobahn embroidery, and blue interior LED lighting. The subwoofers inside these enclosures are equipped with a IMPP Cone more aggressive operation and a rubber surround for high quality excursion. There are two options to choose from in this series of enclosure, a dual 12" with 800 watts of RMS power and a dual 10" model with 600 watts of power. These enclosure will add style and sound to any ride.

Heavy Duty Construction

The durable 5/8-inch wood construction is designed to reduce vibration, which can affect the performance of the subwoofers. Additionally, a special bonding sealer is used to create an air-tight seal to increase joint strength. The 3/8 inch Plexiglas window is strategically angled for added support, giving full view of the reverse-mounted Flame Basket subwoofers.

Product Features
  • Dual 12" Slot Tuned Bandpass Subwoofer Enclosure
  • Power Handling
    • RMS: 800 watts
  • IMPP Cone with EPDM for more aggressive operation
  • Rubber surround for enhanced excursion
  • High quality MDF construction
  • Black carpeted covering
  • Blue interior LED lighting for enhanced appearance
  • Extended low frequency for deep bass
  • Slotted ports provide a lower tuning frequency
  • Bumped back plate
  • Audiobahn logo embroidery
  • Extended & vented pole piece

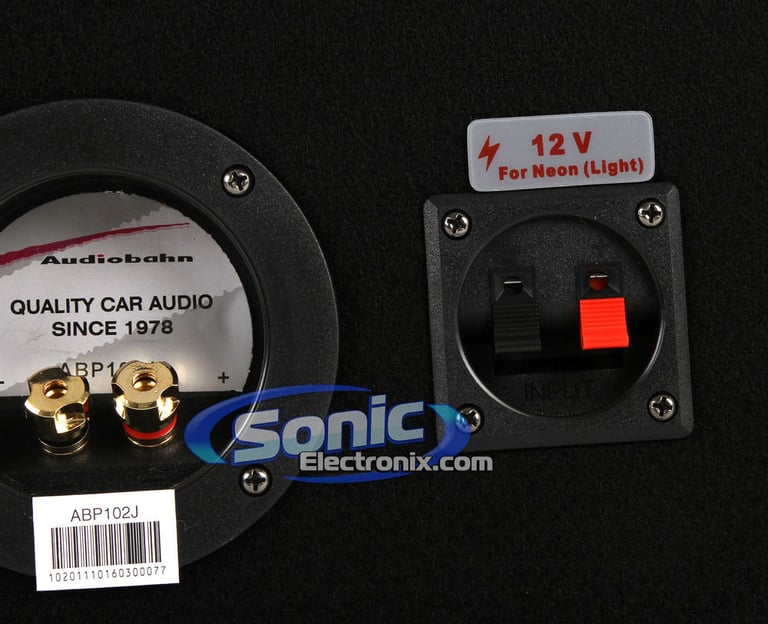

  • Gold binding post terminals for corrosion resistance
  • 3/8” Plexiglass window allows you to see the attractive woofers
  • 50 oz Strontium magnet
  • 2” 4 Layer voice coils
  • Frequency Response: 28-1000 Hz
  • Sensitivity: 103 dB
  • Impedance: 4 ohm
  • Dimensions: 14-9/16"H x 29-3/4"W x 16-3/4"D
  • 1-year Manufacturer's warranty

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
400 watts
Woofer Composition
IMPP Cone with EPDM
Woofer Surround
Rubber
Sensitivity
103 dB
Frequency Response
28 - 1000 Hz
Enclosure Specifications
Box Type
Bandpass Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Wood Thickness
5/8"
Number of Terminals
2
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Second Width
Not specified by manufacturer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ABP122J

Weight:

77.00lbs

Internal SKU:

abp122j

Internal Product ID:

33620
