See all parts that fit your 2007 Rainier

Audiobahn AW1000J Open Box

(Open Box) 10" Dual 4 ohm High Excursion Series Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

10" High Excursion Series Subwoofer • 600W RMS • High Gloss High-Strength Carbon Composite Cone • Tall Narrow Foam Surround • Flame Design Basket • Extended Pole Piece • Multi-Connect Lug Lock Terminals • 3" Dual 4 Ohm Voice Coil

Learn more about the LS-aw1000j-OB

We apologize

This item has been discontinued

Product Highlights


10" High Excursion Series Subwoofer • 600W RMS • High Gloss High-Strength Carbon Composite Cone • Tall Narrow Foam Surround • Flame Design Basket • Extended Pole Piece • Multi-Connect Lug Lock Terminals • 3" Dual 4 Ohm Voice Coil

Description


Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Audiobahn AW1000J 10" Subwoofer

Sonic Electronix is now carrying Audiobahn's new 2011 subwoofers. The High Excursion series features the same attractive appearance you're used to from Audiobahn with the cast aluminum flame design basket. The high excursion series can be installed in a sealed, ported or band pass enclosure. These subwoofers can operate in a 2 ohm or 8 ohm configuration and come in a 15", 12" or a 10" model, each featuring a dual 4 ohm voice coil. Featuring multi-connect lug lock terminals, the high excursion series offers increased versatility in wiring multiple subwoofers.

Versatility

Audiobahn’s High Excursion subwoofer is regarded as the most widely applicable performance subwoofer. Whether it’s installed in a sealed, ported or band pass enclosure or even in novice SPL applications, this subwoofer will adapt to your ever-changing car audio needs and various musical tastes.

Surround

The taller, narrower surround increases cone surface area which means more air displacement, which gives way to greater efficiency. Also, since the, surround is taller, it creates a longer excursion with the same linear control.

Cone

This series of subwoofers features a high-gloss cone made from high-strength carbon composite with laminated pulp reinforcement. The cone is much sturdier than paper cones, allowing for more aggressive operation.

Product Features
  • 10" High Excursion Series Subwoofer
  • Power Handling
    • RMS: 600 watts
  • Impedance: Dual 4 Ohm
  • High gloss high-strength carbon composite cone with laminated pulp reinforcement
  • Tall narrow foam surround increases cone surface area which means more air displacement
  • Can be installed in a sealed, ported or band pass enclosure
  • Cast aluminum flame design basket
  • Aluminum black anodized voice coil former for highly efficient thermal transfer
  • Extended pole piece provides a more linear magnetic field
  • Vented oversized back plate for high excursion
  • Flat spider design
  • 3" Dual 4 Ohm voice coil
  • 120 oz magnet

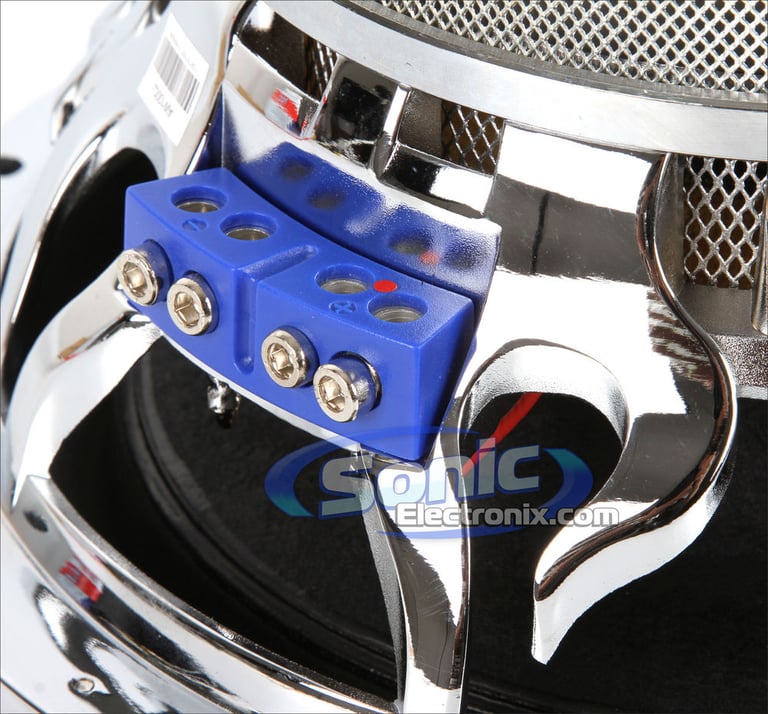

  • Multi-Connect lug lock terminals offer increased versatility in wiring multiple subwoofers
  • Operates in 2 or 8 ohm configurations
  • Frequency Response: 23-500 Hz
  • Efficiency: 94.1 dB
  • Mounting Depth: 5"
  • Hole Cut Out: 9-3/4"
  • Outer Diameter: 10-7/8"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1000J Open Box Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1000J Open Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1000J Open Box Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1000J Open Box Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 500 Hz
Sensitivity
94.1 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Composite
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.25 cubic feet
Maximum Sealed Box Volume
.75 cubic feet
Minimum Ported Box Volume
.65 cubic feet
Maximum Ported Box Volume
2.35 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-3/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW1000J-OB

Weight:

18.00lbs

Internal SKU:

LS-aw1000j-OB

Internal Product ID:

39495
