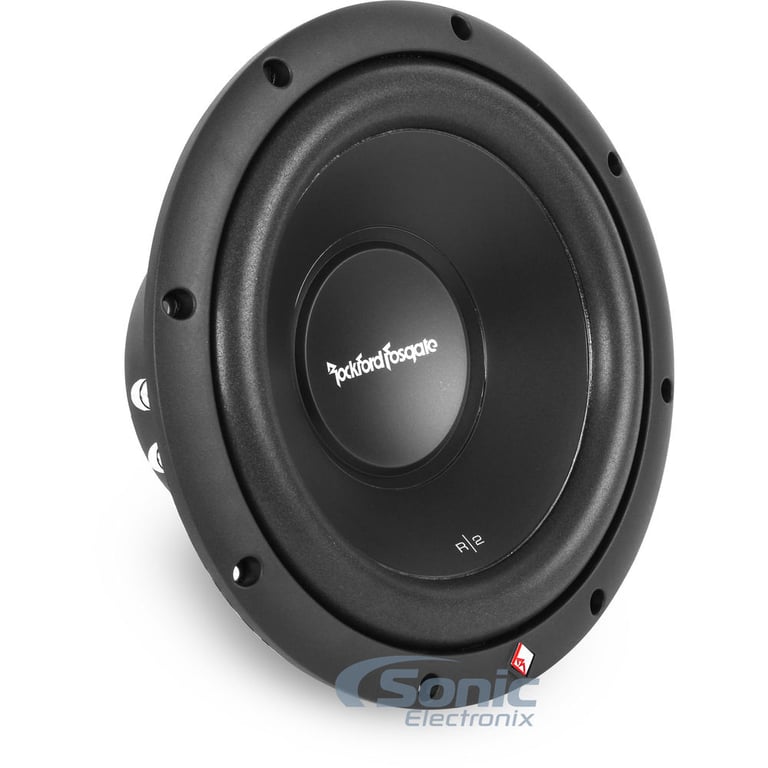

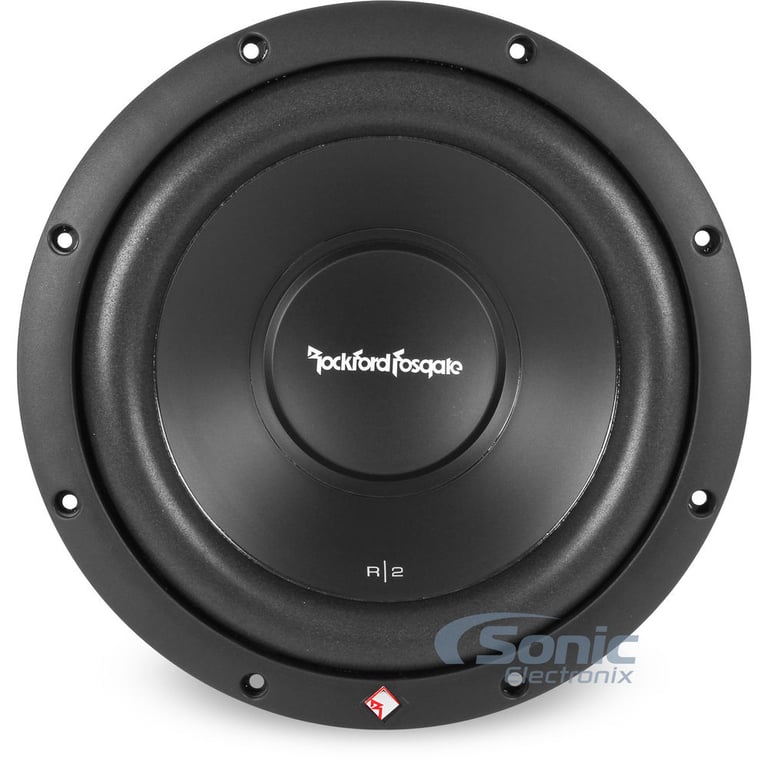

Rockford Fosgate R2D2-10( OPEN BOX COMPLETE)

250W 10" Prime Stage 2 Dual 2 ohm Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• Peak Power: 500W
• RMS Power: 250W
• 10" Dual 2 ohm Prime Stage 2 Series Subwoofer
• Mica Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 45-250 Hz

Learn more about the LS-r2d210-OBCRA241925

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 500W
• RMS Power: 250W
• 10" Dual 2 ohm Prime Stage 2 Series Subwoofer
• Mica Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 45-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

This is an Open Box Item


We have checked, tested, and confirmed this item to function properly. It contains all the same parts as a new unit, but shows some visible signs of use.

This open box product has a 30-day return policy and a 90-day warranty

Eliminate Entry Level and Go Straight to Prime

Sonic Electronix is now carrying the brand new line of Rockford Fosgate Prime Series Car Audio Subwoofers. The R2D2-10 10" subwoofer has a peak power rating of 500 watts and a continuous RMS power rating of 250 watts. This makes this an ideal subwoofer for anyone looking to add some bass to their car audio system. Equipped with anodized aluminum voice coil formers for extreme heat dissipation, will allow this sub to perform at optimum level during long hard hitting sessions. Perfect for sealed or ported enclosures the R2D2-10 is the way to go when looking for Prime performance with an affordable price tag.



Anodized Aluminum Voice Coil Former

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

CEA-2031 Rockford Fosgate Subwoofers

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Rockford Fosgate Stitched Tinsel Leads

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

General Features

  • 10" Dual 2 ohm Prime Stage 2 Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: 2 ohm
  • Mica injected polypropylene cone

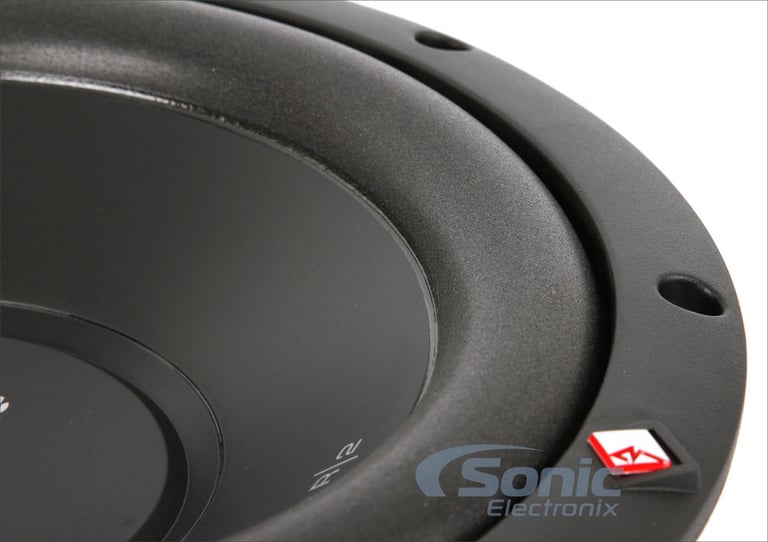

  • Black raised surround
  • Linear spider with 16 AWG woven tinsel leads
  • StampCast basket with integrated spider venting
  • CEA-2031 Compliant accurate power handling rating
  • Designed for use with sealed and vented enclosures
  • High temperature voice coil
  • Integrated PVC trim ring
  • Anodized aluminum voice coil former
  • Frequency response: 45-250 Hz
  • Sensitivity: 87 dB
  • 90 Day Sonic Electronix Warranty
Tips for Installing the ::R2D2-10 Subwoofer::


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate R2D2-10( OPEN BOX COMPLETE) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate R2D2-10( OPEN BOX COMPLETE) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate R2D2-10( OPEN BOX COMPLETE) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate R2D2-10( OPEN BOX COMPLETE) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Prime R2 Series
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2"
Frequency Response
45 - 250 Hz
Sensitivity
87 dB
Xmax (millimeters)
6.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/8"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.6 Hz
Equivalent Compliance (Vas)
39.0 liters
Total Speaker Q Value (Qts)
0.47
Electrical Q Value (Qes)
0.50
Electrical Resistance of Voice Coil (Re)
3.84 ohm
Mechanical Q Value (Qms)
6.93
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

R2D2-10-2

Weight:

8.50lbs

Internal SKU:

LS-r2d210-OBCRA241925

Internal Product ID:

105745
