JL Audio SB-F-TAURUS/13TW5

Ford Taurus 2010-Up 13-1/2" 3 Ohm Loaded Vehicle Specific Subwoofer Stealthbox Enclosure

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

13-1/2" Loaded Sealed Subwoofer Stealthbox Enclosure • 1200W Peak • 600W RMS • Made to Fit in a 2010-Up Ford Taurus • Loaded with One 13TW5 Woofer • Installs in the Bottom of the Spare Tire Well • Acoustic Suspension Enclosure

Learn more about the sbftaurus13tw5

We apologize

This item has been discontinued


Loading...

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

$119.95

Product Highlights


13-1/2" Loaded Sealed Subwoofer Stealthbox Enclosure • 1200W Peak • 600W RMS • Made to Fit in a 2010-Up Ford Taurus • Loaded with One 13TW5 Woofer • Installs in the Bottom of the Spare Tire Well • Acoustic Suspension Enclosure

Description


JL Audio brand icon

Authorized dealer

JL Audio SB-F-TAURUS/13TW5 Ford Taurus Stealthbox

JL Audio Stealthboxes are the solution to the problem of Subwoofers taking up most of the room in your automobiles trunk. These custom enclosures are vehicle specific and maximize performance while minimizing loss of vehicle utility & comfort. Hence the name "Stealth" Box, these unique enclosures install discreetly in your vehicle and are almost undetectable.

This Stealthbox was designed specifically for the 2010-Up Ford Taurus and is loaded with one JL Audio 13-1/2" TW5 Thin-Line subwoofer. This subwoofer features a peak power rating of 1200 watts with an RMS rating of 600 watts. Its is constructed with a mica-filled polypropylene cone and a santoprene rubber surround. The stealthbox installs in the bottom of the spare tire well and the spare tire mounts to the box itself. Best of all, this Stealthbox is specifically tuned for the Taurus by JL Audio's sub-bass experts, and is ready to serve as the center point of your ultimate audio system.

Subwoofer Features
  • 13-1/2" TW5 Thin-Line Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: 3 Ohm
  • Mica-filled polypropylene cone
  • Santoprene surround
  • Unique design allows for small airspace requirements
  • Requires only 0.8 cubic feet of airspace
  • Cast alloy basket
  • Frequency Response: 20-500 Hz
  • Sensitivity: 85.87 dB
  • Mounting Depth: 2-1/2"
  • Cutout Diameter: 12-1/2"
  • 1-year SonicElectronix.com warranty
Enclosure Features

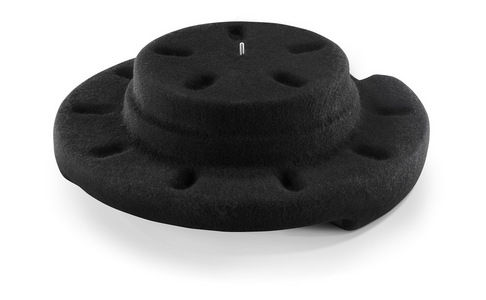

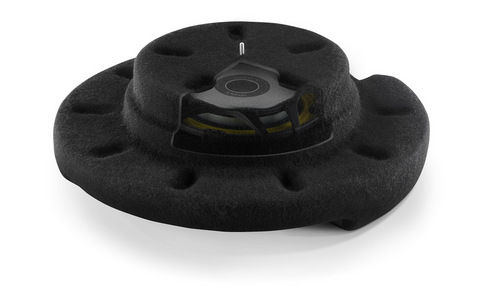

  • 13-1/2" Loaded Sealed Subwoofer Stealthbox Enclosure
  • Enclosure is specifically made to fit in a 2010-Up Ford Taurus
  • Loaded with one JL Audio 13TW5-3

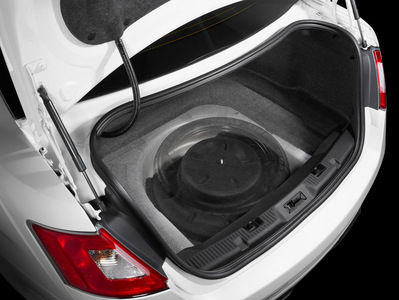

  • Installs in the bottom of the spare tire well, spare tire mounts to the Stealthbox
  • Will sit flush with the sides and the front of the trunk compartment
  • Acoustic suspension enclosure type
  • Wired for 3 ohm mono
  • Durable carpeted finish

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$1149.99

List price $1149.99

SB-T-TACDCG3/10TW3 small

JL Audio Stealthbox® SB-T-TACDCG3/10TW3

• Sealed enclosure with 1 10" Stealthbox Series Subwoofer
• Designed for select 2012-2015 Tacoma
• 400 watts RMS Power Rating
• Final Impedance: 2-ohm
• Designed to install neatly behind the rear seat
• Hassle-free plug and play installation

(2)

$999.99

List price $999.99

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Single
Impedance (Per Voice Coil)
3 ohm
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
85.87 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
9.7 mm
Subwoofer Size
13.5"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Height
Not specified by manufacturer
Width
Not specified by manufacturer
Depth
Not specified by manufacturer
Second Width
Not specified by manufacturer
Wood Thickness
Not specified by manufacturer
Number of Terminals
Not specified by manufacturer
Terminal Type
Not specified by manufacturer
Box Exterior Color
Black
Box Finish
Carpet
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-F-TAURUS/13TW5

Weight:

0.90lbs

Internal SKU:

sbftaurus13tw5

Internal Product ID:

33893
