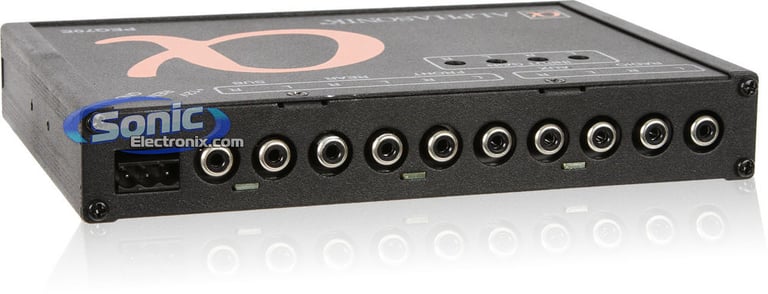

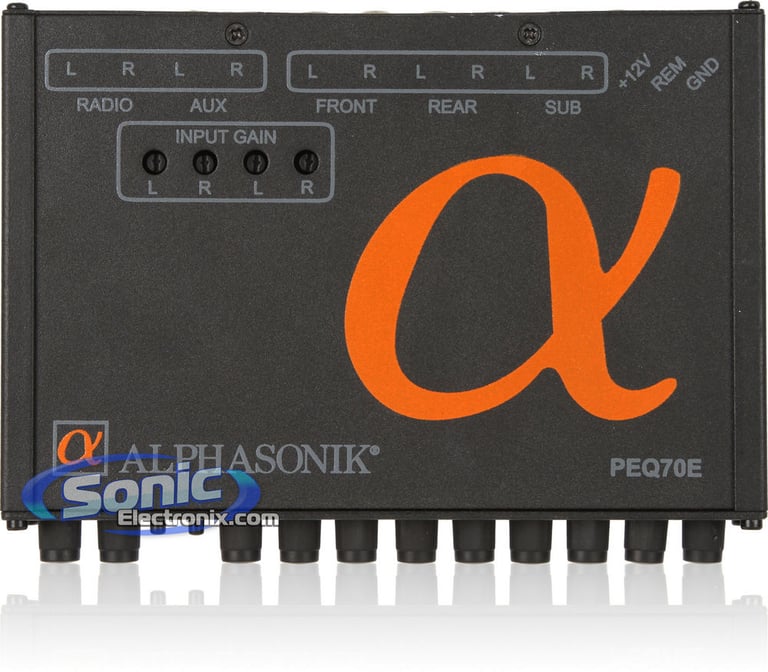

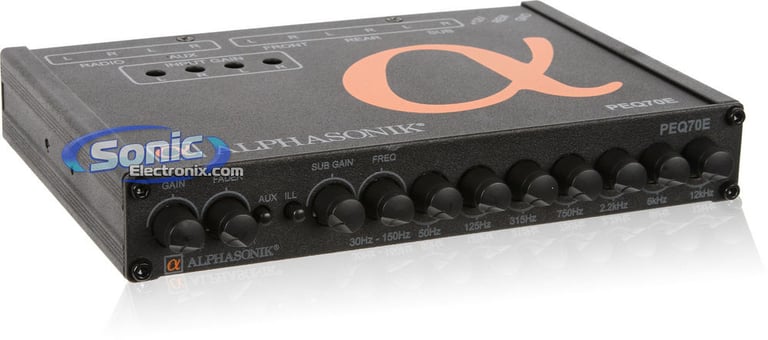

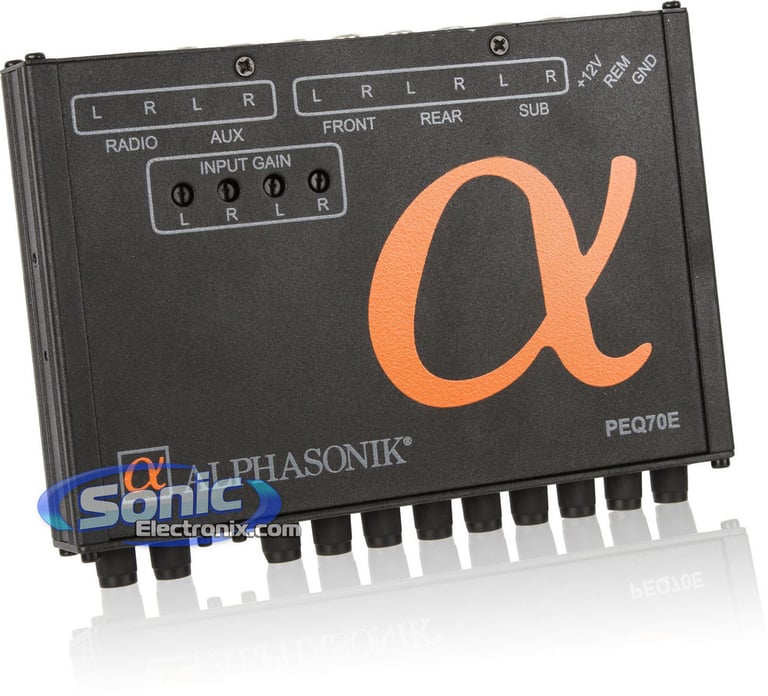

Alphasonik PEQ70E

7-Band In-Dash Parametric Equalizer

Product videos
highlight-star-icon

7-Band In-Dash PE Series 7-Band Parametric Equalizer • Active Gain Pre-Amplifiers • On-Board 30V Bi-Polar Switching Power Supply • Subwoofer Frequency Adjustable

Learn more about the peq70e

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


7-Band In-Dash PE Series 7-Band Parametric Equalizer • Active Gain Pre-Amplifiers • On-Board 30V Bi-Polar Switching Power Supply • Subwoofer Frequency Adjustable

Description


Product Features:
  • 7-Band In-Dash PE Series 7-Band Parametric Equalizer
  • Active gain pre-amplifiers with adjustable input sensitivity
  • Volume control with up to 9.75 volts RMS of output
  • Individual left and right sensitivity control for Main/Aux
  • Five band parametric equalizer with 18dB boost
  • Low noise BI-FET op-amp design yields minimum distortion
  • On-board 30V bi-polar switching power supply
  • Universal Half-DIN chassis for ease of installation
  • High grade golden Tiffany RCA jack input/output
  • Subwoofer level control
  • Subwoofer frequency adjustable
  • 20dB headroom eliminates signal overload
  • Main/Aux (Radio/CD) input selector
  • 2 color illumination design
  • 1-year Manufacturer's warranty
Product Specifications:
  • Number of Bands: 7
  • Input sensitivity: 200mV-3.5V
  • Signal-to-noise ratio: 110dB
  • Max Output level: 9.75V
  • Cut/Boost: +/-12dB
  • Total Harmonic Distortion (THD): 0.05%
  • Frequency response: 20-20,000Hz
  • Channel separation: 80dB @ 1kHz
  • Dimensions: 4-3/4"D x 7-1/8"W x 1-3/16"H
