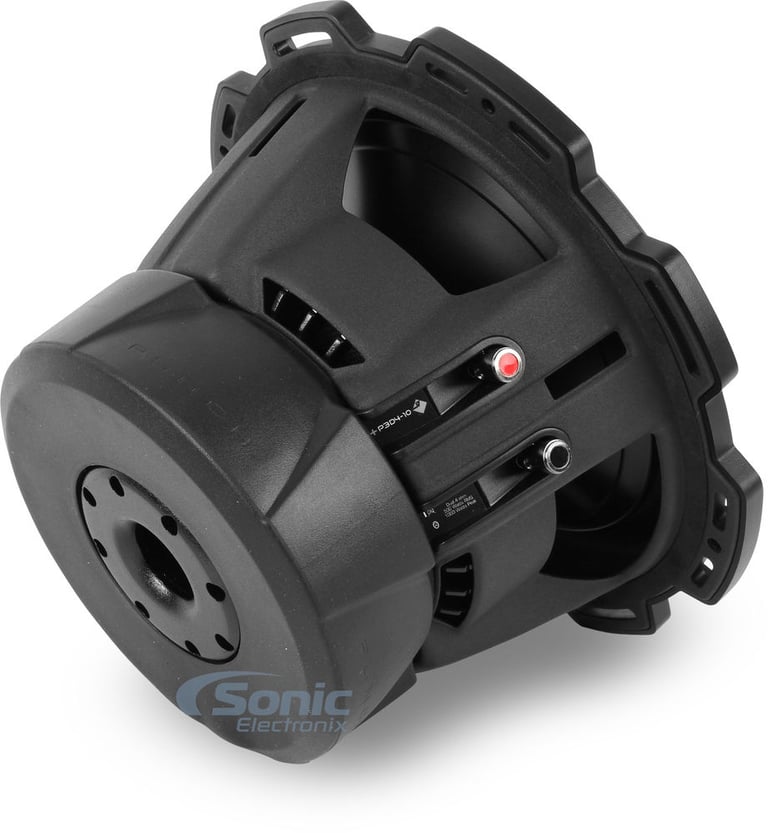

Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good)

1000W Peak (500W RMS) 10" Punch Series Dual 4-ohm Car Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 82 dB

Learn more about the ls-p3d410-u7

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 82 dB

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


Rockford Fosgate Punch P3D4-10

The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.


Product Details:

  • 10" Dual 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Anodized Aluminum Cone
  • Santoprene Rubber Surround
  • Spun-laced Nomex re-enforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Extended pole piece and bumped vented backplate
  • Stamp Cast basket with integrated spider venting

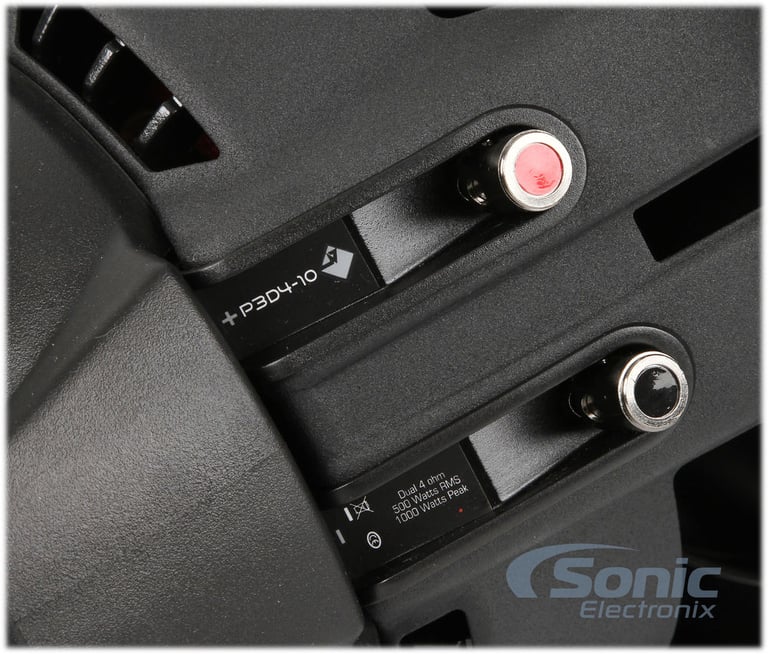

  • Custom 10-AWG nickel plated push terminals

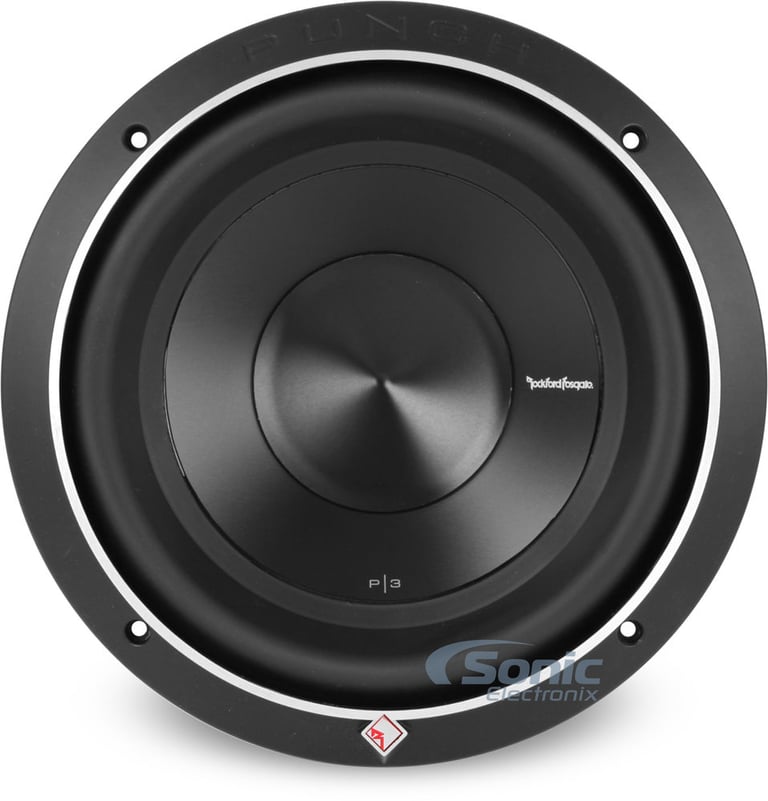

  • Diamond cut cast aluminum trim ring
  • 2.5" High Temperature Aluminum Voice coil
  • 15.9 mm Xmax
  • 81 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 28 - 250 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 82 dB
  • Recommended sealed box volume: 0.5 cubic feet - 0.75 cubic feet
  • Recommended ported box volume: 1.4 cubic feet
  • Cutout diameter: 9.13"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional subwoofer grille Rockford Fosgate P2P3G-10 (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconRockford Fosgate P3D410 owner’s manual

Product history:

Rockford Fosgate P3D4-10 thumbnail
(newest, current model)
Rockford Fosgate P3D410 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good))
Rockford Fosgate P310D4 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D410 (09P3D410))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3 P3D4-10 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.5"
Frequency Response
28 - 250 Hz
Sensitivity
82 dB
Xmax (millimeters)
15.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Magnet weight
81 oz.
Magnet Type
Ferrite
Subwoofer Grille
Optional (Accessory required and sold separately)
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Optimum Sealed Box Volume
.59 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.4 cubic feet
Cutout Diameter
9.13"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
27.0 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.63
Electrical Resistance of Voice Coil (Re)
6.40 ohm
Mechanical Q Value (Qms)
0.56
What is in the box?
Paperwork

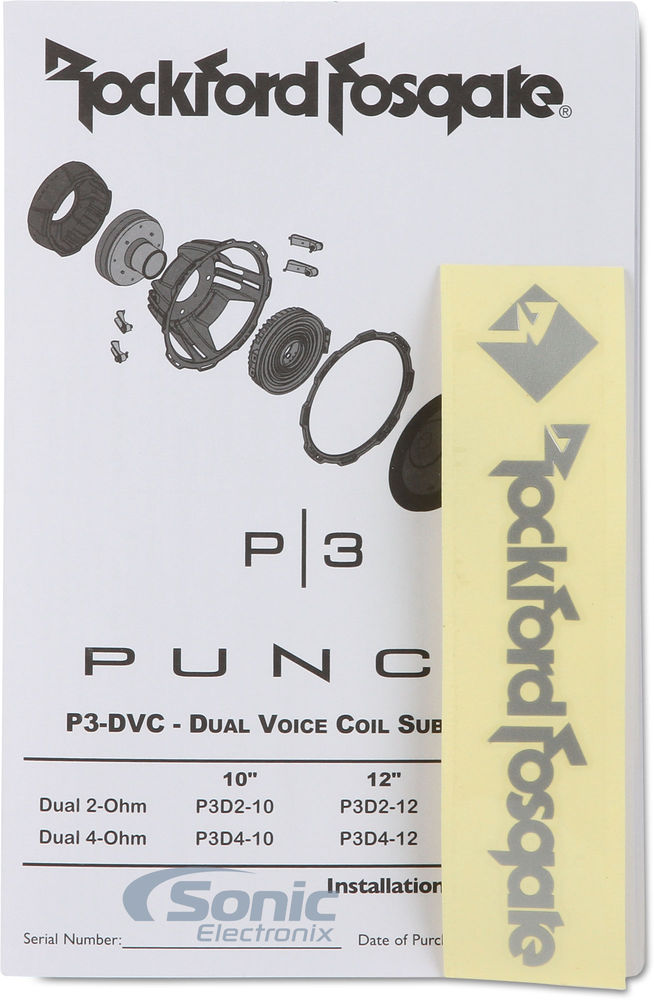

User manual
Quick start guide
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3D4-10

Weight:

17.00lbs

Internal SKU:

ls-p3d410-u7

Internal Product ID:

230961
