Rockford Fosgate Punch P1-1X12 500W Loaded Enclosure (Open Box, Good)

500W Peak (250W RMS) Punch P1 Single 12" P1S412 Subwoofer Loaded Ported Enclosure

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 12" Single 4 Ohm Punch Series Stage 1 Subwoofer
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

Learn more about the ls-p11x12-u7

We apologize

This item has been discontinued

Product Highlights


• 12" Single 4 Ohm Punch Series Stage 1 Subwoofer
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Subwoofer Features:

  • 12" Single 4 ohm Punch Stage 1 Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 125 - 300 watts RMS
  • CEA-2031 Compliant
  • Klippel Verified
  • Flex-fit; Mounting pattern
  • Proprietary spider venting/cooling technique
  • StampCast basket with integrated spider venting
  • Sturdy 16 gauge compound bend frame geometry
  • High modulus Kevlar re-inforced paper-pulp cone
  • Semi-flexible, PVC removable protective motor cover
  • Multi-point high-temp/high-strength neck joint bonding technique
  • Tall-profile VAST Santoprene surround for larger surface area
  • Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
  • Fatigue resistant and reduced strain "stitched on" flexible lead wire design
  • Proprietary all metal, radially oriented compression input terminal assembly
  • Optimized motor magnetics with extended pole and bumped vented backplate
  • High temp 2" voice coil w/ spun-laced Nomex insulating re-inforcement collar
  • Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
  • Stamped Mesh Grille Insert Available: Rockford Fosgate P1G-12
  • Magnet Weight: 45 oz
  • Frequency Response: 20 - 250 Hz
  • Xmax: 9mm
  • Sensitivity: 86 dB @ 1 watt / 1 meter
  • Matching Amplifiers: (one subwoofer)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Enclosure Features:

  • Single 12" Loaded, Ported Box
  • Solid 5/8" MDF Construction
  • Front-firing tuned port

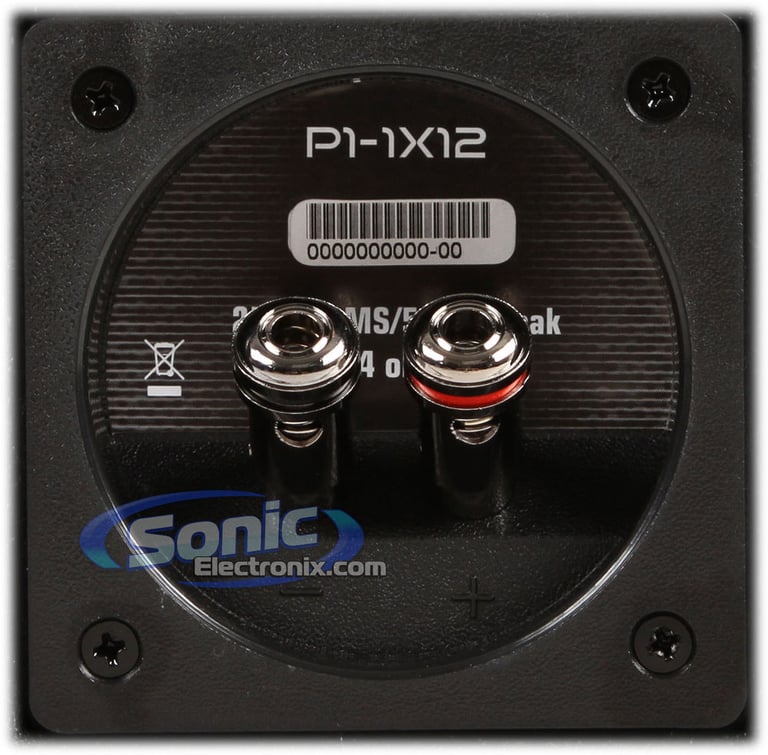

  • Spring-loaded binding posts
  • Complete with high-density black box carpeting
  • Dimensions: 15-3/4"D x 19-1/8"W x 15-1/8"H

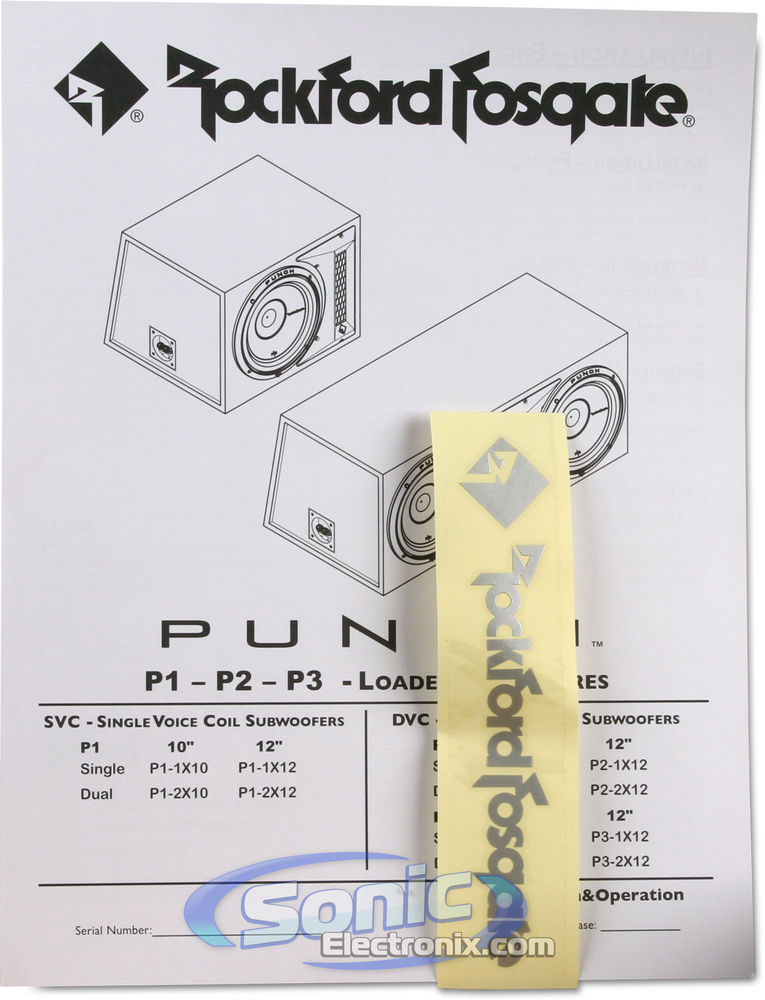

Check out the Rockford Fosgate P1-1X12 Owner's Manual

Product history:

Rockford Fosgate P1-1X12-2 thumbnail
(newest, current model)
Rockford Fosgate P1L-1X12 thumbnail
(previous model, replaced by Rockford Fosgate Punch P1-1X12 500W Loaded Enclosure (Open Box, Good))

Specifications & Details


Subwoofer Specifications
Series
Punch P1 Series
Subwoofer Size
12"
RMS Power Handling
250 watts
Peak Power Handling
500 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
NBR Half Roll
Sensitivity
86 dB
Frequency Response
25 - 250 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
5/8"
Number of Terminals
1
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P1-1X12-2

Weight:

46.10lbs

Internal SKU:

ls-p11x12-u7

Internal Product ID:

225208
