Product highlights

Records on up to 32GB SDHC cards • 8 balanced XLR-1/4-inch combination inputs • 48V phantom power • Over 4 hours of operation using 6 AA alkaline batteries • 24-bit/96kHz recording

Learn more about the LS-r24-OB

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

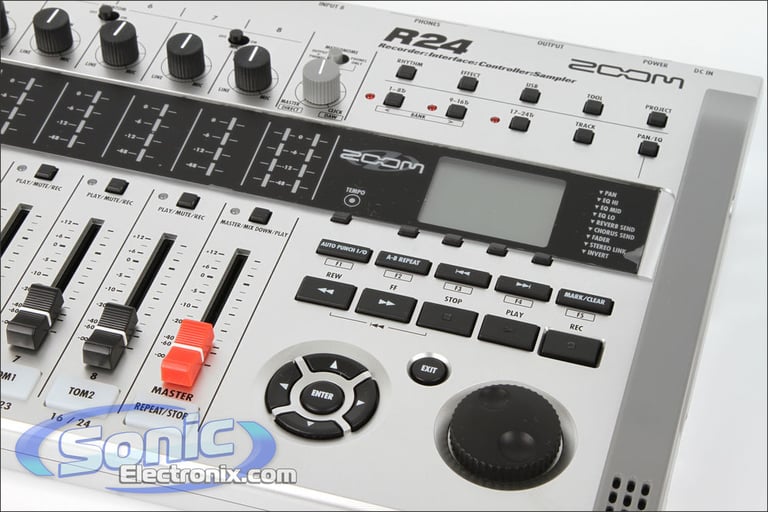

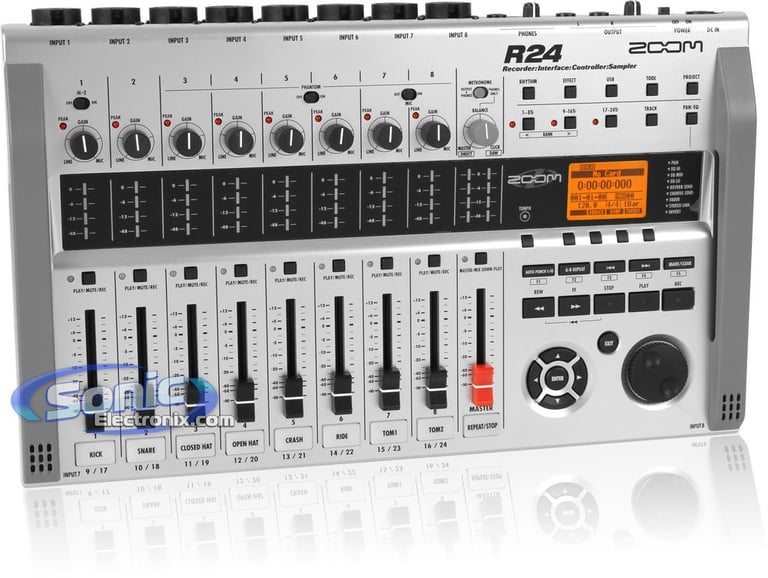

The Zoom R24:

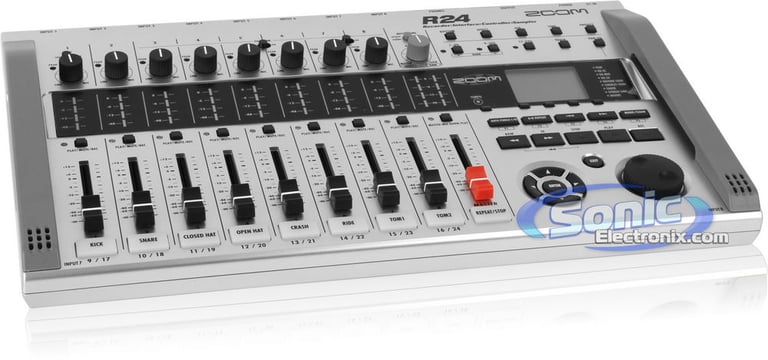

The R24 is a powerful, compact and wonderfully portable music production system. It's got four key functions that make it the beast it is: it's a 24-track recorder, an audio interface with eight inputs and two outputs, a DAW control surface (which is marvelously convenient considering the R24 comes with a copy of Cubase LE 5), and a drum machine/sampler with pads and a loop sequencer.

The built-in high-sensitivity stereo mic pair is handy for quickly recording phrases and melody ideas as they come to mind. Vocals and acoustic instruments can be captured with excellent clarity. Need some DSP effects to make your recordings shine? You're in luck! The R24 comes with 150 types of DSP effects and 390 patches, which can be used for recording, mixing and mastering. Three types of effects ― the insert effect and the two send-return effects ― can all be used simultaneously.

You can achieve a powerful amp sound just by connecting a guitar or bass directly to the R24 and using one of the 18 types of guitar amp models or 6 types of bass amp models that have been ported straight from Zoom's best-selling
G2nu effects unit. You can also use the 8xCOMP EQ effect, which lets you apply compression and EQ to eight channels simultaneously.

Simultaneous recording of 8 tracks and playback of 24 tracks:
The R24's simultaneous 8-track recording capability allows you to capture live band performances, record drum kits with multiple mics and make other recordings of multiple sound sources. Play back up to 24 tracks of 16/24-bit and 44.1/48-kHz sampling rate WAV format files. You can use the UNDO/REDO functions to cancel the last recording operation and restore the previous state. When you complete a song, you can mix it down and save a stereo mix for each project in the R24.

Audio Interface: 8 Inputs / 2 Outputs
The R24 can function as an audio interface, enabling direct input of sounds to a computer. Support for 24-bit/96-kHz encoding ensures high-quality sound. Eight input channels and two output channels can be used simultaneously. The internal DSP effects of the R24 can also be used when the sampling rate is 44.1 kHz. A dedicated knob lets you adjust the balance between the DAW playback sound and the direct input sound when monitoring.

Control surface for most DAW software:
The R24 can be used as a control surface for DAW transport functions (play, record, stop) and mixing operations. You can easily move multiple faders at the same time, which can be difficult to do with a mouse! You can also assign the five function keys to various DAW software commands. Cubase (the DAW that comes bundled with the R24), Logic, Sonar and other major DAW applications are supported in Mackie Control emulation mode.

24-voice sampler with 8 pads and 3 banks:
The built-in sampler functions allow you to use audio files on any tracks as loops. Play the pads in real-time and create performance for an entire track by combining loops. Use the display of the audio waveform for visual confirmation when setting loop intervals. Use time-stretching to change the tempo of a file without changing its pitch, and trim unneeded parts of loops. The sampler and recorder can also be used together seamlessly, allowing you to also record instrument performances while playing back loops on other tracks.

Cubase LE 5
Steinberg Cubase LE 5 is a powerful music workstation combining audio and MIDI recording, editing and mixing in a single, integrated software package. Based on the same technologies as Steinberg’s award-winning advanced music production system Cubase 5, Cubase LE 5 is the perfect entry ticket into the world of computer-based music production.

R24 Features:

Multi-track Recorder:

Over 100 studio-quality effects including guitar amp models and mastering effects
Records on up to 32GB SDHC cards for maximum recording time
(click here for a list of confirmed compatible memory cards)
8 balanced XLR-1/4-inch combination inputs
Records in WAV 48kHz/44.1kHz at 16-bit or 24-bit
Easily viewable 4-segment LED meter bridge
48V phantom power available on 6 tracks
Over 4 hours of operation using 6 AA alkaline batteries (AC adapter included)
Sync two R24s via USB for 16 tracks of simultaneous recording

Audio Interface:

High-definition 24-bit/96kHz recording capability using digital audio software
8 in / 2 out (8 x 2) via USB

Control Surface:

Full mixing and transport controls for Cubase, Logic, Sonar and more
USB Control Surface uses Mackie Control emulation

Sampler:

Pad sampler with 24 voices (8 pads x 3 banks)
Loop-based audio sequencer for music creation

Cubase LE 5 Features:

Audio and MIDI Recording / Editing / Mixing
Pristine 32-bit Floating Point Audio Engine
48 Audio / 64 MIDI / 8 Instrument Tracks
VST Instrument & VST Effect Plug-in Supported
Audio Editing with Hitpoint Detection
Realtime time-streching and pitch shifting playback
Drum Editor included
HALionOne Sample Player included
Streamlined score editing and printing feature set
Cross-Platform: Windows and Mac OS X Universal Binary

R24 Specifications:

Recorder:

Physical Tracks: 24
Simultaneous Recording Tracks: 8
Simultaneous Playback Tracks: 24
Recording Data Format: 44.1/48kHz, 16/24bit WAV
Maximum Recordable Time: 200 minutes / GB (44.1kHz 16-bit, mono tracks)
Projects: 1,000
Markers: 100 / Project
Locator: Hours / Min. / Sec. / msec or Bars / Beats / Ticks
File Editing: Divide, Trim
Other Functions: Punch-In / Out (Manual, Automatic), Bounce,
A-B Repeat, Undo / Redo, Metronome

Audio Interface:

Input Channels: 8
Output Channels: 2
Quantization: 24bit
Sampling Frequency: 44.1, 48, 88.2, 96kHz

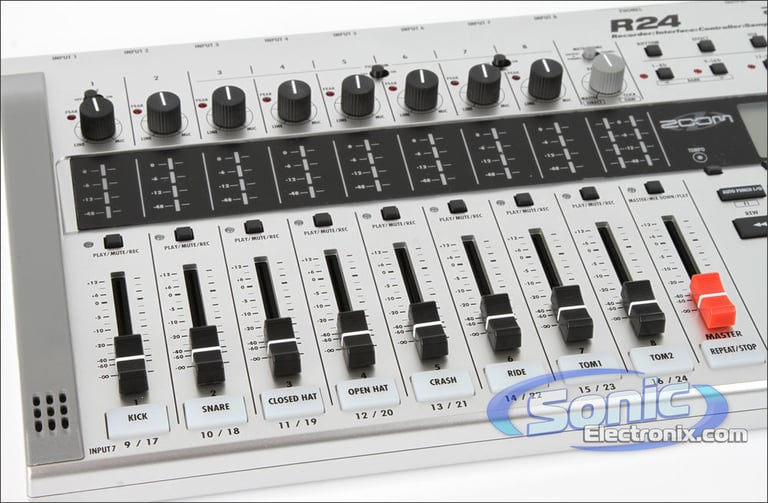

Mixer:

Faders: 9
Level Meters: 4-Segment LED
Track Parameters: 3-Band Equalizer, Pan (Balance),
Effect Send x 2, Invert
Stereo Links Track Pairs: 1/2 to 23/24 selectable

Effects:

Algorithms: 9

CLEAN
DISTORTION
ACO / BASS SIM
BASS
MIC
DUAL MIC
STEREO
8 x COMP EQ
MASTERING

Types: 150
Modules: 7 for Insert, 2 for Send / Return
Patches: 330 for Insert, 60 for Send / Return
Tuner : Chromatic, Guitar, Bass, Open A/D/E/G, D modal

Sampler:

Playback Data Format: 44.1/48kHz, 16/24bit WAV
Voices: 24
Editing Functions: Trim, Time-stretch

Rhythm:

Voices: 8
Sound Format: 16-bit Linear PCM
Drum Kits: 10
Pads: 8 (velocity-sensitive)
Precision: 48 PPQN
Rhythm Patterns: 511/project
Patterns: 511 (472 factory, 39 blank) / Project
Beat : 1/4 - 8/4
Tempo : 40.0 - 250.0 BPM

Hardware:

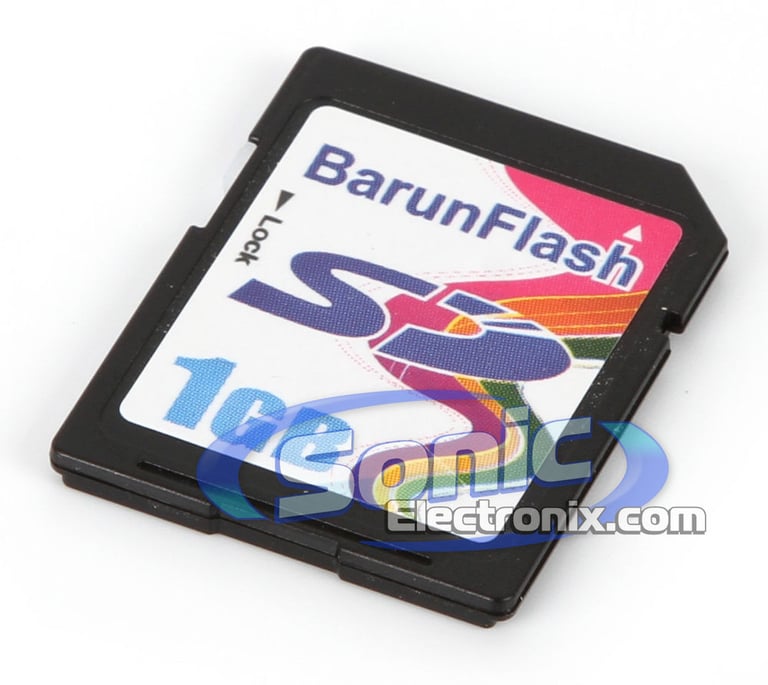

Recording Media: SD Card (16MB-2GB), SDHC Card (4-32GB)
A/D Conversion: 96kHz 24bit delta-sigma ADC
D/A Conversion: 96kHz 24bit delta-sigma DAC
Display: 128 x 64 pixel LCD (with backlight)

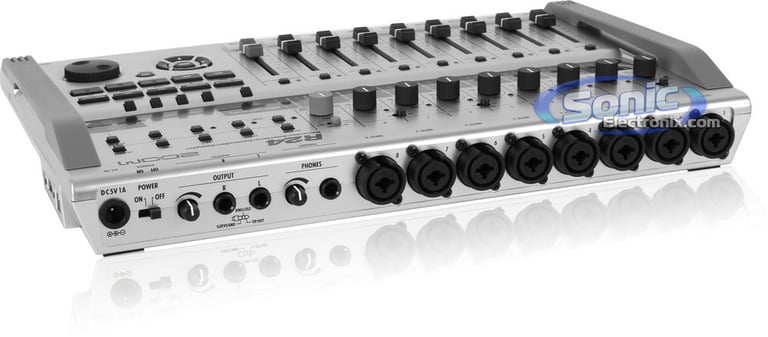

Inputs: 8 x XLR-1/4" Phone Combo Jack
Input Impedance:

Balanced input: 1kΩ balanced
Unbalanced input: 50kΩ unbalanced
Hi-Z Input: 470kΩ

Input Level: -50dBm to +4dBm continuously variable
Built-in microphones: Omnidirectional condenser
Gain: -50dBm to +4dBm continuously variable
Phantom Power Supply: 48V / 24V
Master Output: 1/4" TRS Phone (balanced)
Output Impedance: 1kΩ
Rated Output Level: +4dBm
Headphones Output: 1/4" Stereo Phone Jack, 20mW x 2 (at 32Ω load)

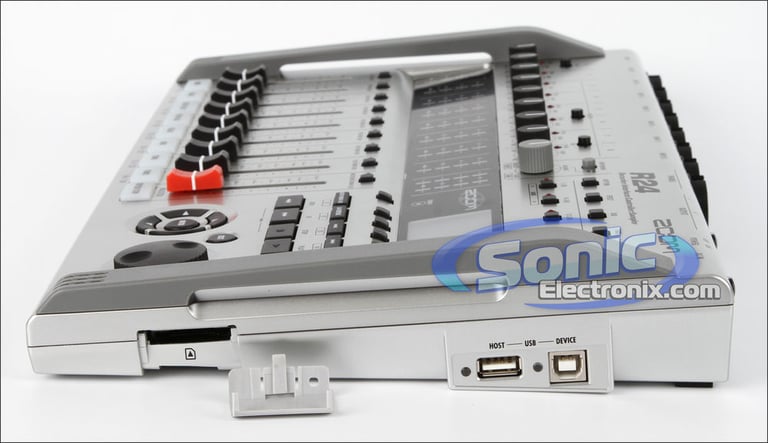

USB: B type (USB2.0 High-Speed compatible) for Audio Interface, Control Surface
or Mass Storage Class operation

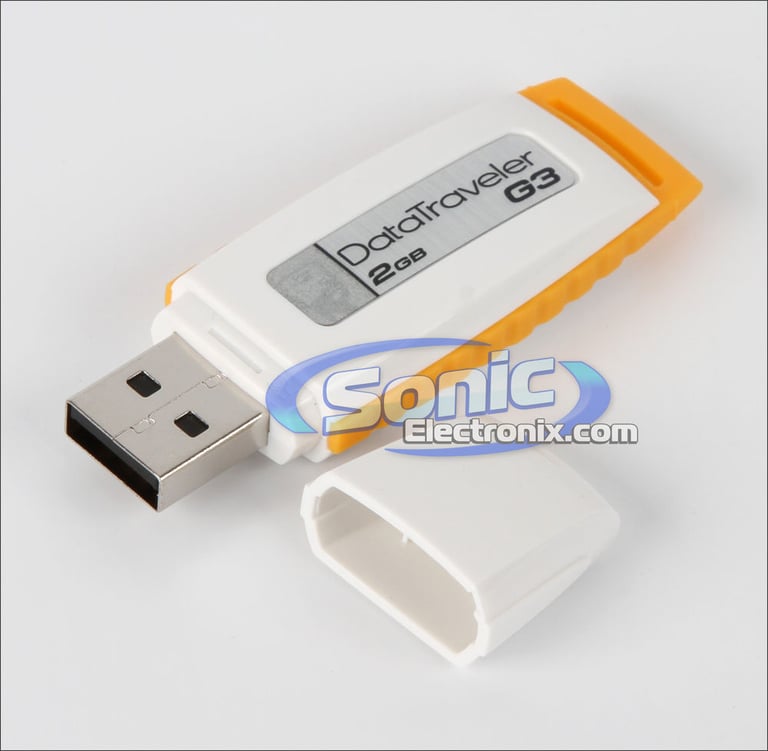

A type (USB2.0 High-Speed compatible) for USB Host capability

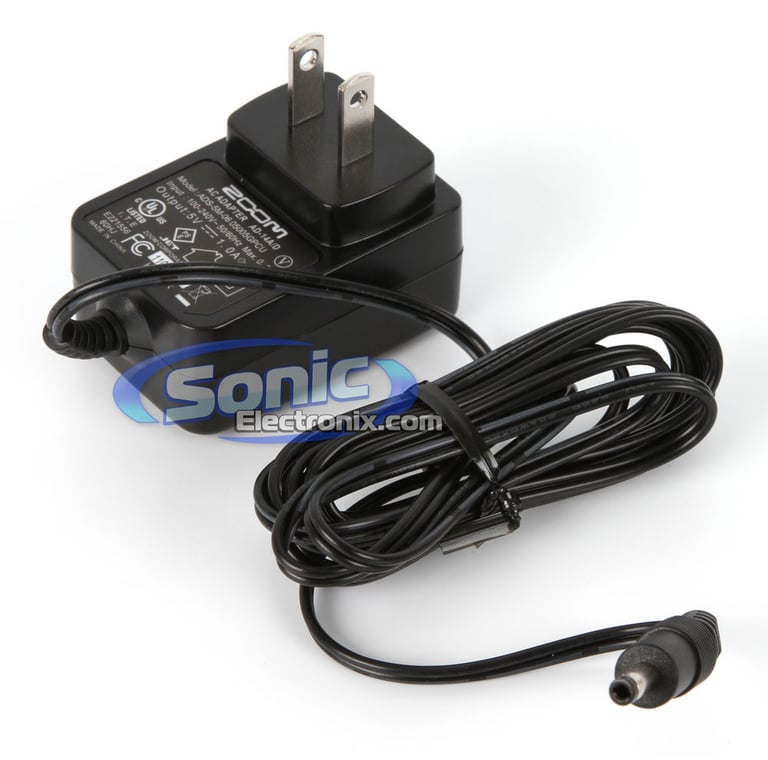

Power Requirements: AC adapter (DC5V/1A/center positive)
or AA size (LR6) battery x6
Battery Life: 4.5 hours (with backlight on and phantom power off)
Size & Weight:

Weight: 2 lbs. 14 oz. (1.3 kg) (without batteries)
Width: 14-13/16" (376 mm)
Depth: 9-3/8" (237.1 mm)
Height: 2-1/16" (52.2 mm)

R24 USB Audio Interface System Requirements:

Windows®

Windows® XP SP2 or later / Vista SP1 or later / 7
Intel® Pentium® 4 1.8GHz or better
1GB RAM or more
USB 2.0 compatible port

Intel® Mac

OS X 10.4.11 or later / 10.5 / 10.6
Intel® Core Duo processor 1.83GHz or better
1GB RAM or more
USB 2.0 compatible port

* USB hub is not supported.
* Intel® Chipset is recommended.

Cubase LE 5 System Requirements:

Windows

OS: Windows XP (SP2 or later) / Vista / 7
CPU: 2GHz or higher (Dual Core CPU recommended)
RAM: 1GB or higher (1GB or higher recommended)
HDD: 4GB of free disk space
DVD-ROM drive
Internet access required for license activation

Macintosh

OS: OS X 10.5.5 or later / 10.6
CPU: PowerPC G5 or higher (Intel Core Duo CPU recommended)
RAM: 1GB or higher
HDD: 4GB of free disk space
DVD-ROM drive
Internet access required for license activation
