Product Highlights


12" Sound Q Series Low Profile Subwoofer • Dual 4 Ohm • 500W RMS • IX Series Monoblock Class D Car Amplifier • High-Efficiency Regulated MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • 5-way Protection Circuit

Description

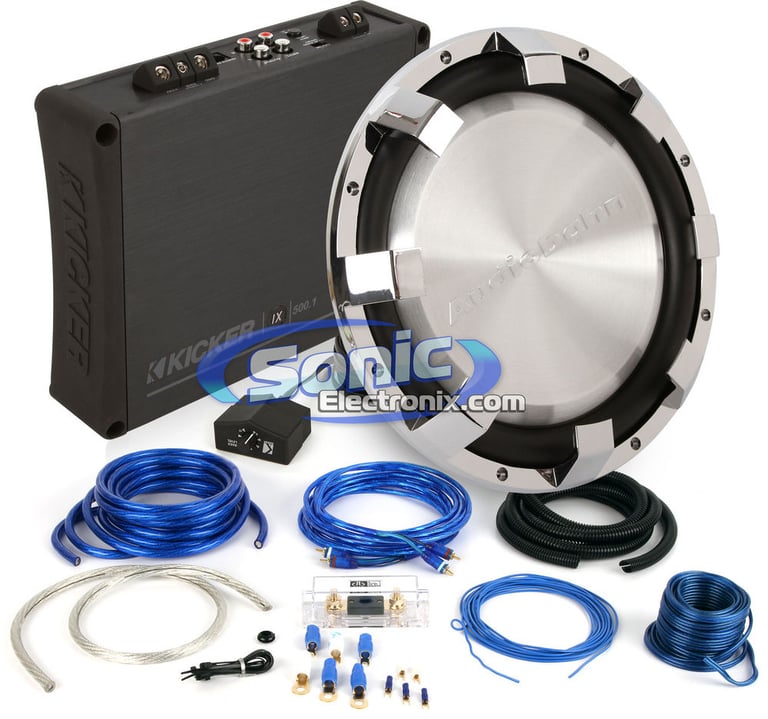

Audiobahn and Kicker Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Kicker 10IX500.1 Amplifier along with a 12" Sound Q Series Low Profile Subwoofer. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Audiobahn Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Audiobahn AW1204J Sound Q Series Low Profile subwoofer requires 500 watts of RMS power. The included Kicker 10IX500.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Audiobahn subwoofer, Kicker amplifier and dB Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

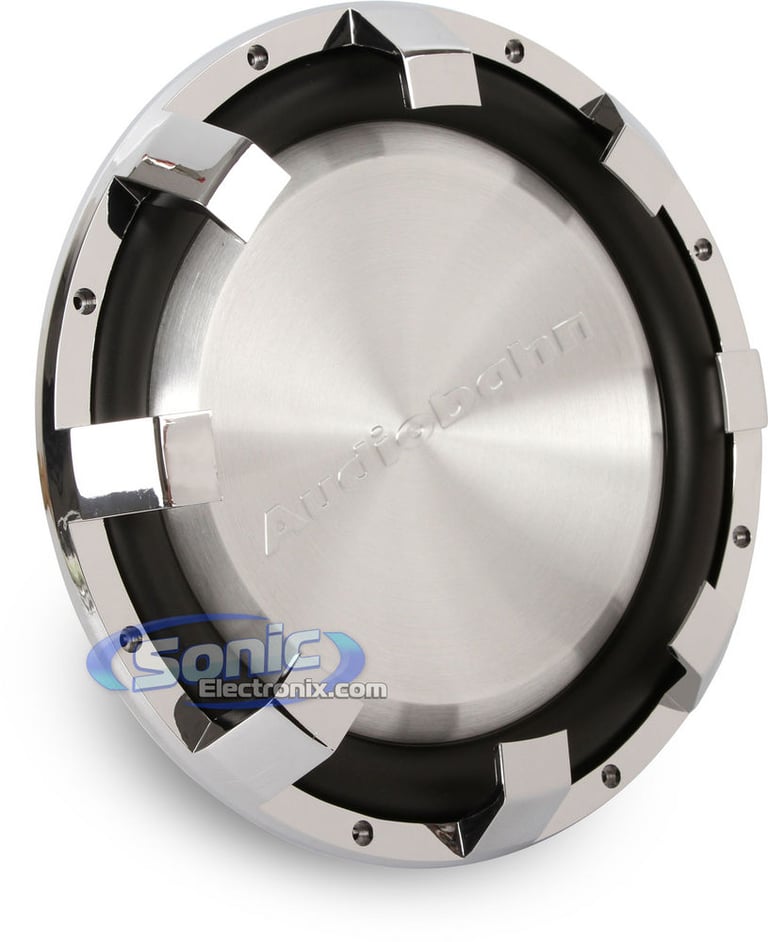

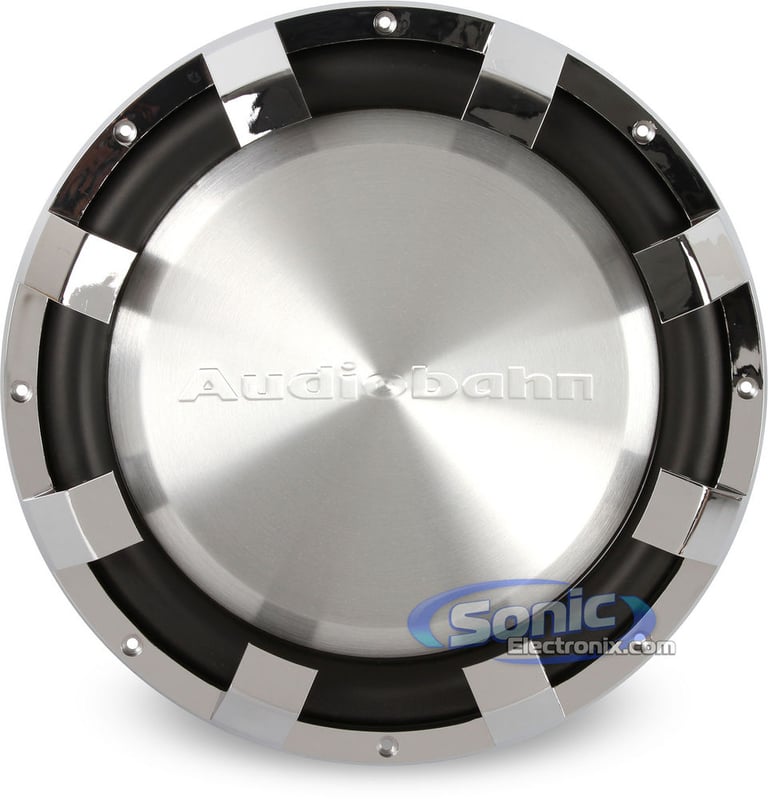

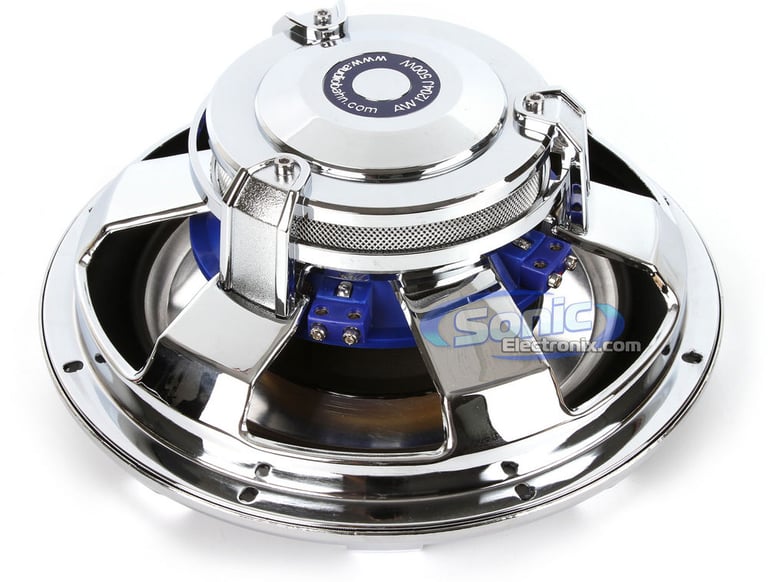

Audiobahn AW1204J Features:
  • 12" Sound Q Series Low Profile Subwoofer
  • Power Handling
    • RMS: 500 watts
  • Dual 4 Ohm voice coil
  • Spun aluminum 1 piece cone provides high stability
  • Phat 1-3/4” EPDM rubber surround for enhanced excursion
  • Aluminum black anodized voice coil former for highly efficient thermal transfer
  • Flat spider design
  • 50 oz magnet
  • Multi-Connect lug lock terminals offer increased versatility in wiring multiple subwoofers
  • Operates in 2 or 8 ohm configurations
  • Frequency Response: 24-500 Hz
  • Efficiency: 93.8 dB
  • Mounting Depth: 4-3/4"
  • Hole Cut Out: 11-1/4"
  • Outer Diameter: 12-3/8"
  • 1-year Manufacturer's warranty

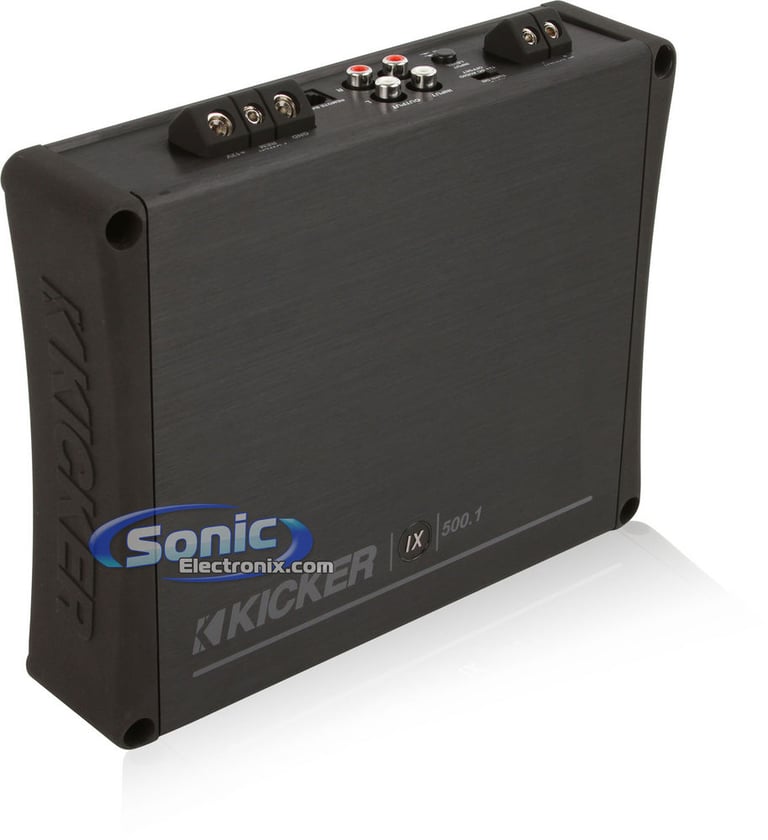

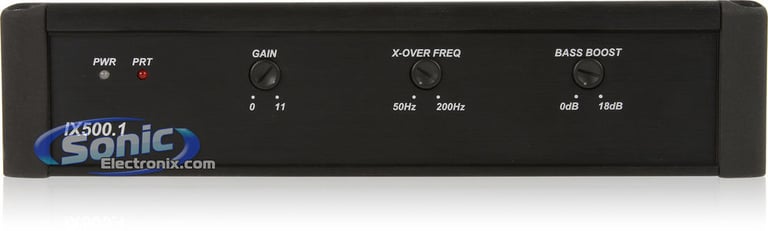

Kicker 10IX500.1 Features:
  • IX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 275 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • High-efficiency regulated MOSFET power supply

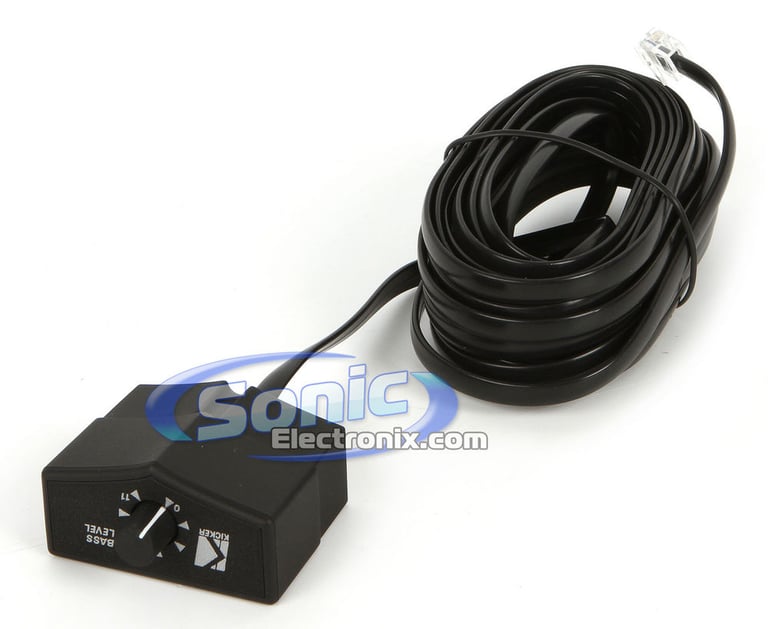

  • Remote bass level input (remote level control sold separately)
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
  • Optional Kicker 10IXSM stacking mounts available for a clean install
  • Optional vinyl skins for personalizing heat sinks available
  • Super-small footprint for easy mounting, decreased weight, and increased cargo space
  • Mono channel operation

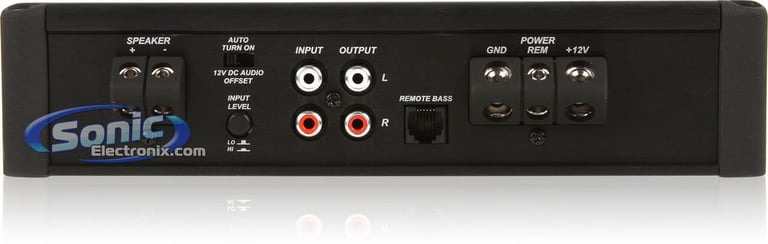

  • Preamp RCA outputs
  • 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, and overvoltage)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Fixed subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz

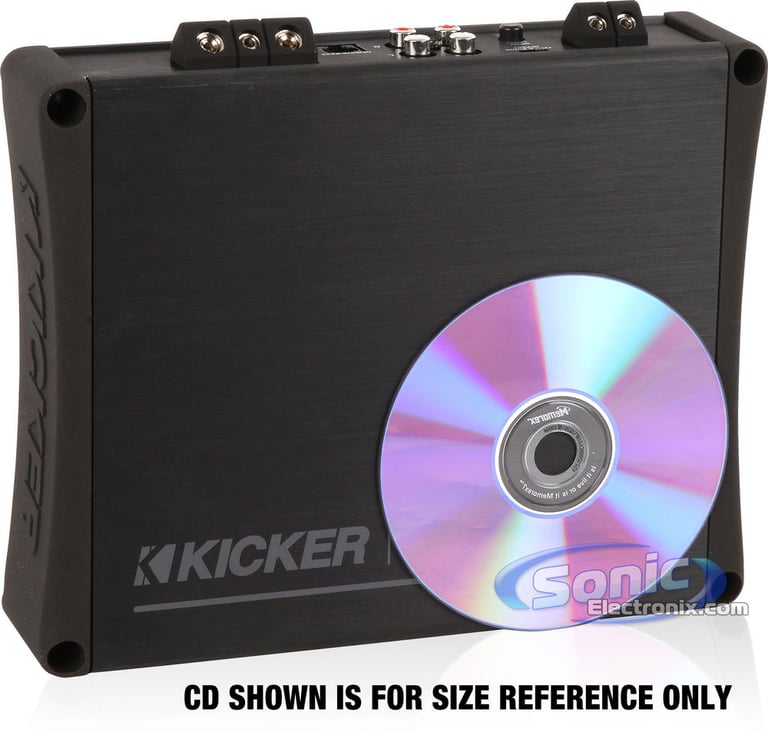

  • Dimensions: 9-3/8"L x 7-7/8"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

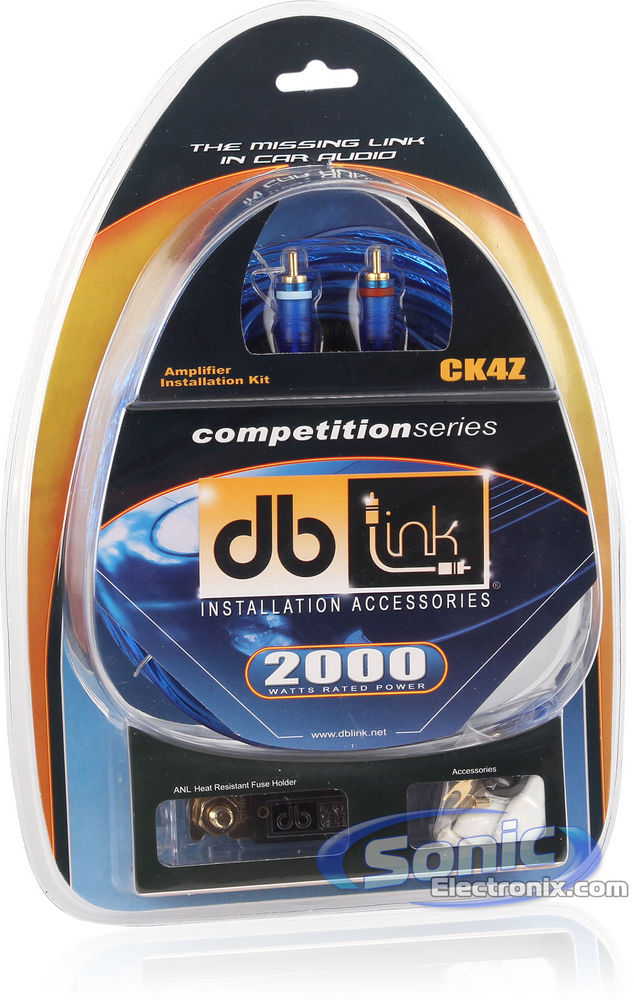

db Link CK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 2000 watts
  • Premium power and ground wire provides optimal power transfer
  • Made with oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection for mid level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
db Link CK4Z Includes:

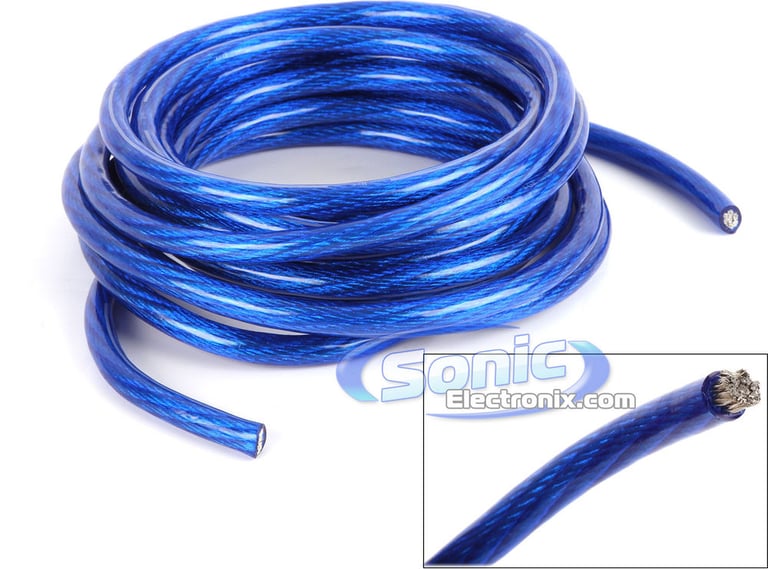

  1. 17 ft. of 4 AWG Blue power cable

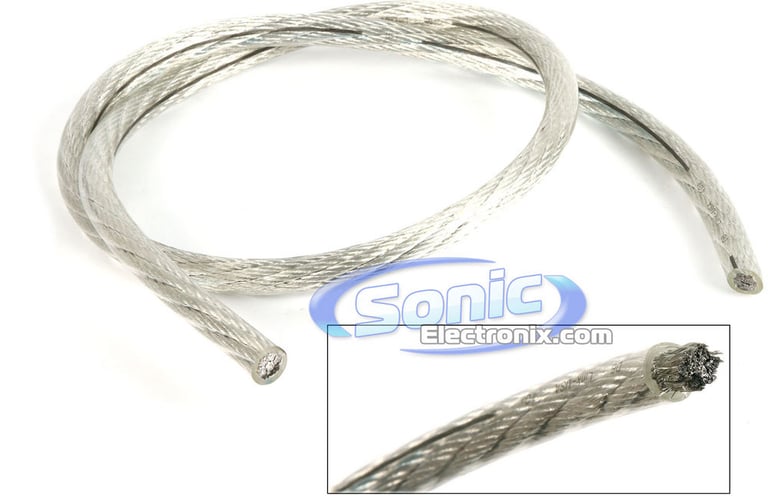

  2. 3 ft. of 4 AWG Silver ground cable

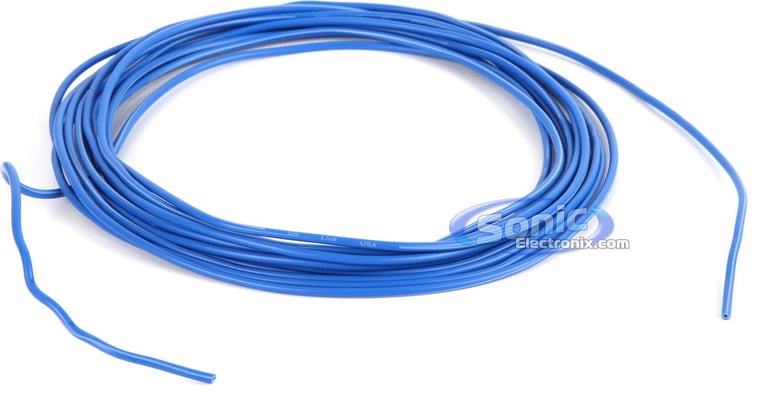

  3. 17 ft. of 18 AWG Blue remote turn-on wire

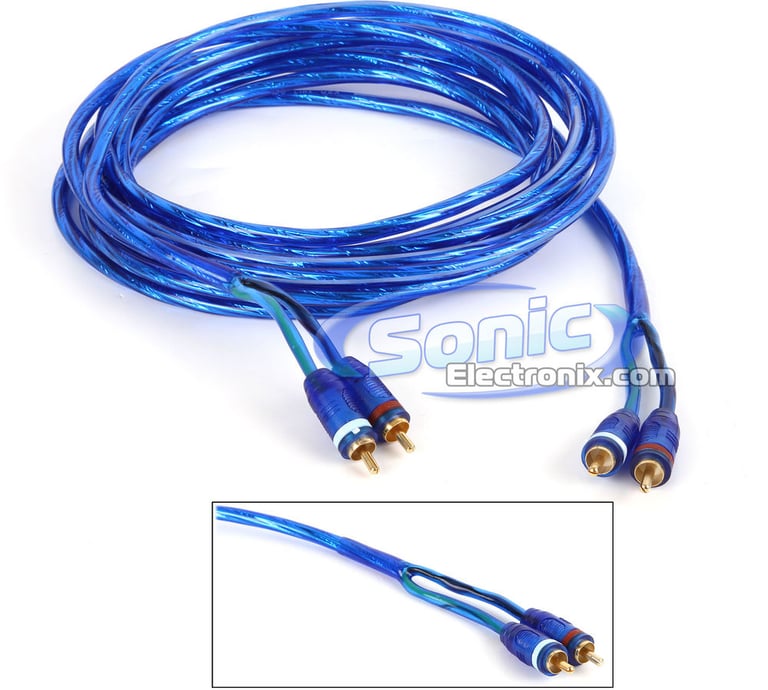

  4. 17 ft. of Blue twisted pair shielded RCA cable

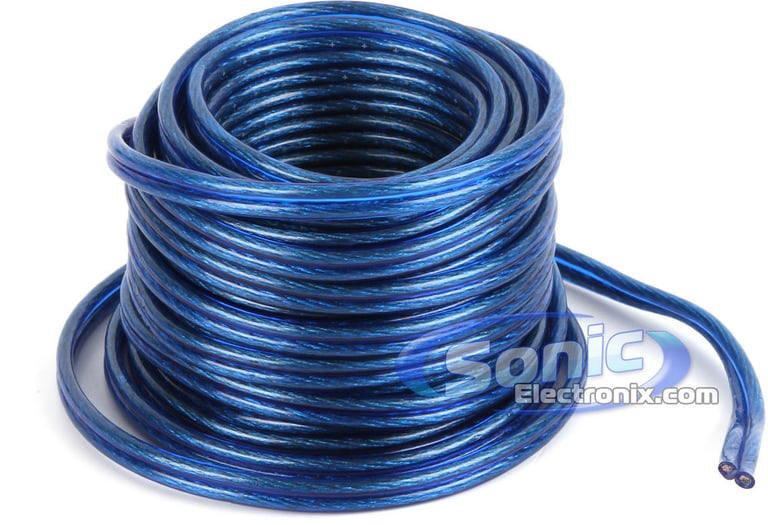

  5. 25 ft. of 16 AWG Blue speaker wire

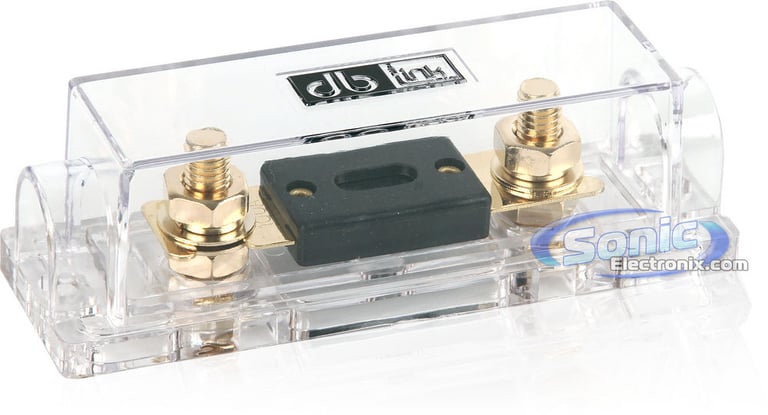

  6. 4 AWG In-line ANL fuseholder
  7. 100 Amp ANL fuse

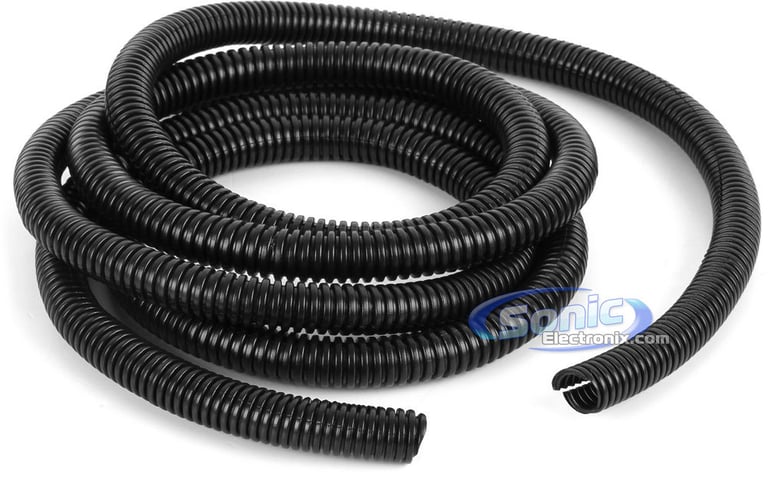

  8. 6 ft. Black split loom tubing

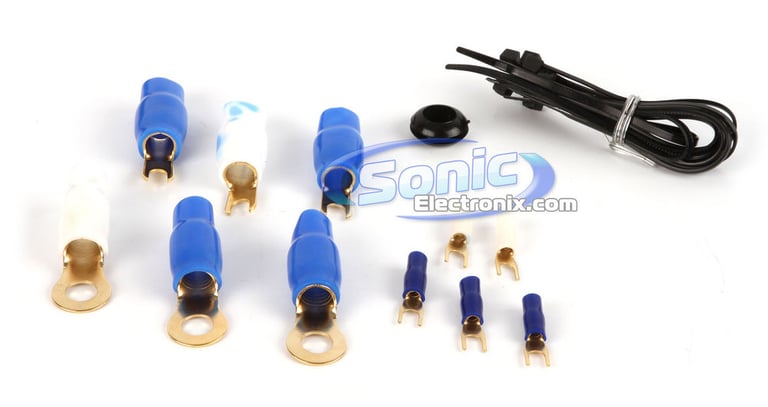

  9. Other Installation Accessories
2011 Kicker Authorized Online Dealer and eBay Seller

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
275 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
Not Specified
Total Peak Power Handling
Not Specified
Woofer Surround
EPDM Rubber
Woofer Composition
Aluminum
Minimum Sealed Box Volume
.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
3.15 cubic feet
Sensitivity
93.8 dB
Frequency Response
24 - 500 Hz
Xmax (millimeters)
18 mm
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
11.-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10IX500.1_AW1204J

Weight:

25.00lbs

Internal SKU:

10ix5001_aw1204j

Internal Product ID:

35717
