600W Kicker + Infinity Bass Bundle

Pair of Kicker 12" 10C124 Subs + Infinity Reference 1300A Amp + The Install Bay 4 Gauge Amp Kit

Kicker
Shop all Kicker
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Single 4 Ohm Competition (Comp) Series Subwoofers • 600W Max • 300W RMS • Reference Series Class D Monoblock Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • LED Power and Protection Indicators

Learn more about the 2-10c124_1300a

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


Pair of 12" Single 4 Ohm Competition (Comp) Series Subwoofers • 600W Max • 300W RMS • Reference Series Class D Monoblock Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • LED Power and Protection Indicators

Description


Kicker brand icon

Authorized dealer

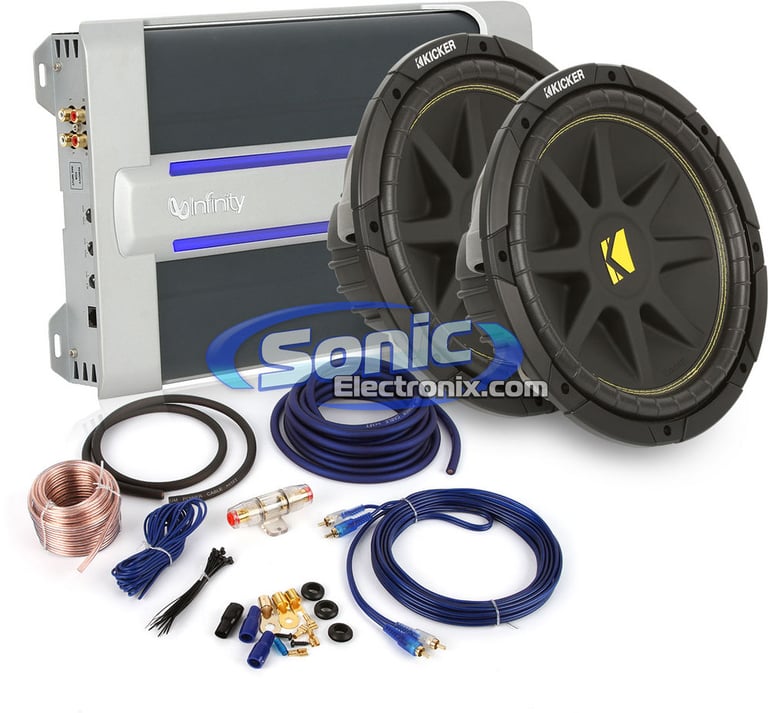

Kicker and Infinity Bass Bundle

This Sonic Electronix Exclusive Bass package showcases an Infinity Reference 1300A Amplifier along with a pair of 10" Competition Series Subwoofer. This excellent bass package pushes 300 watts of clean, continuous RMS power. The Kicker Subwoofers each have a Single 4 Ohm Voice Coil; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kicker 10C124 Competition Series subwoofers require 300 watts of RMS power. The included Infinity Reference 1300A amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Kicker subwoofers, Infinity amplifier, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

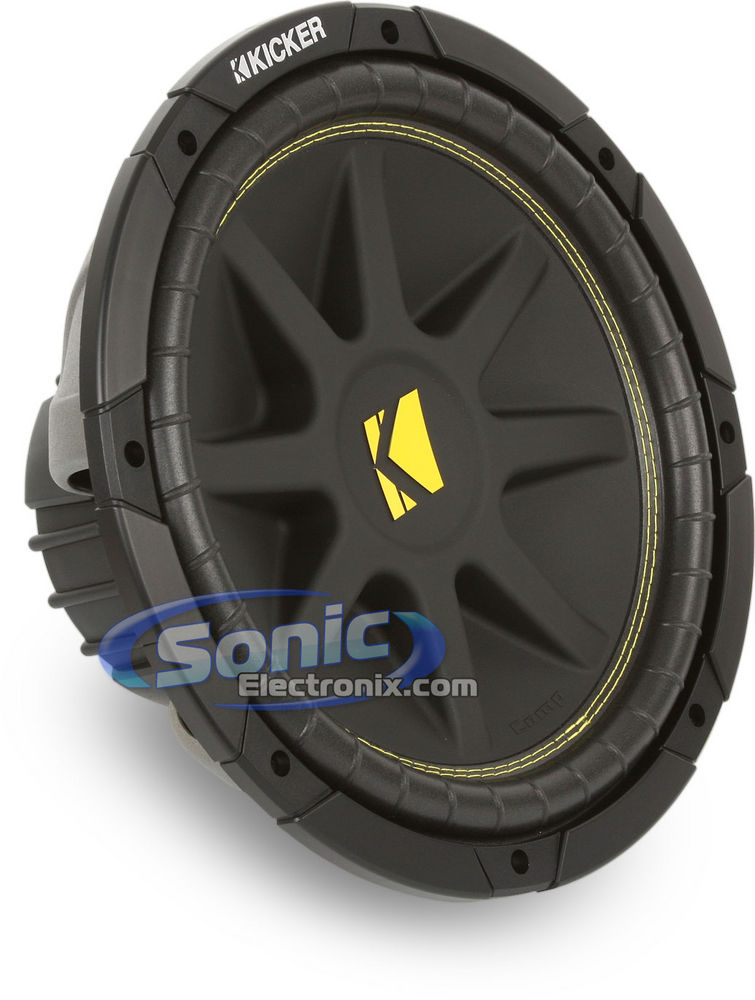

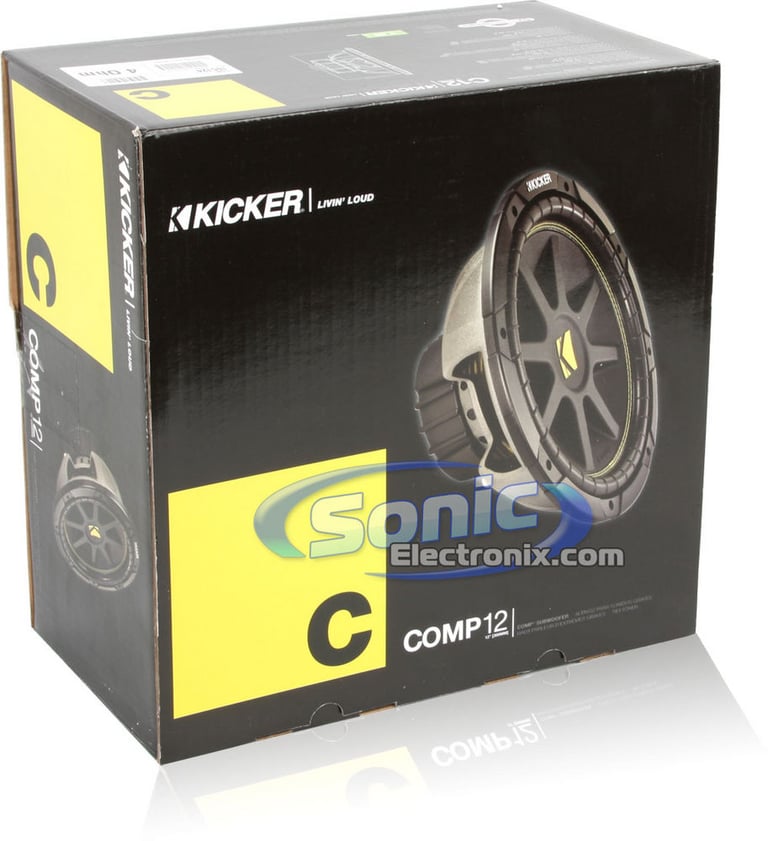

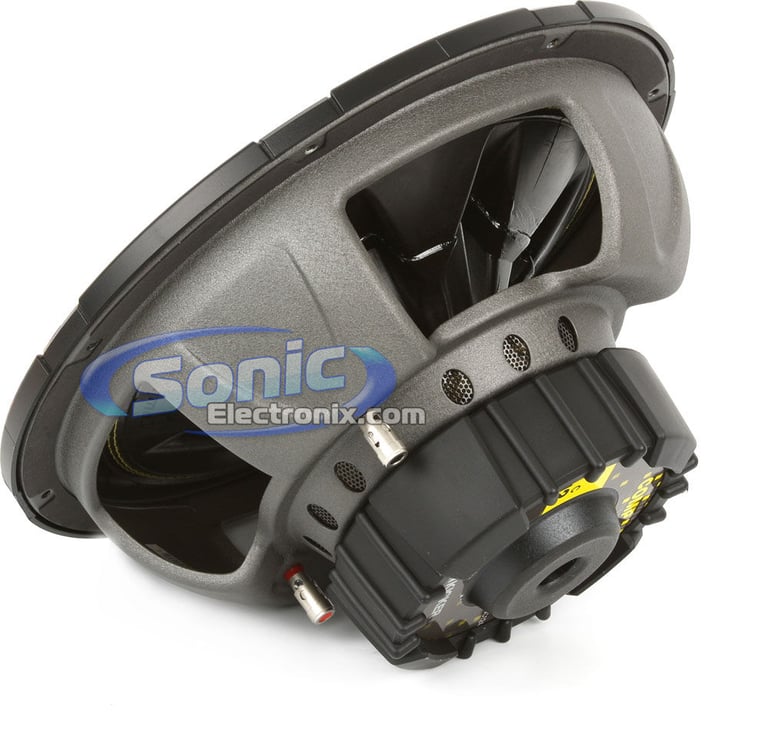

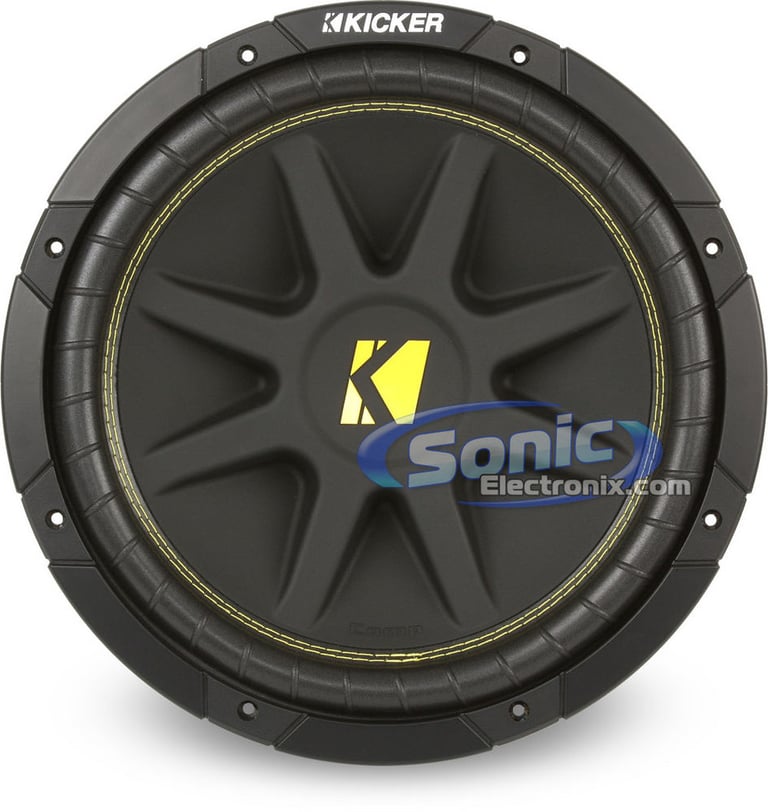

Kicker 10C124 Features:
  • Pair of 12" Single 4 Ohm Competition (Comp) Series Subwoofers
  • Power Handling:
    • Peak: 600 watts total / 300 watts each
    • RMS: 300 watts total / 150 watts each
  • Impedance: Single 4 ohm
  • Injection molded SoloKon cone

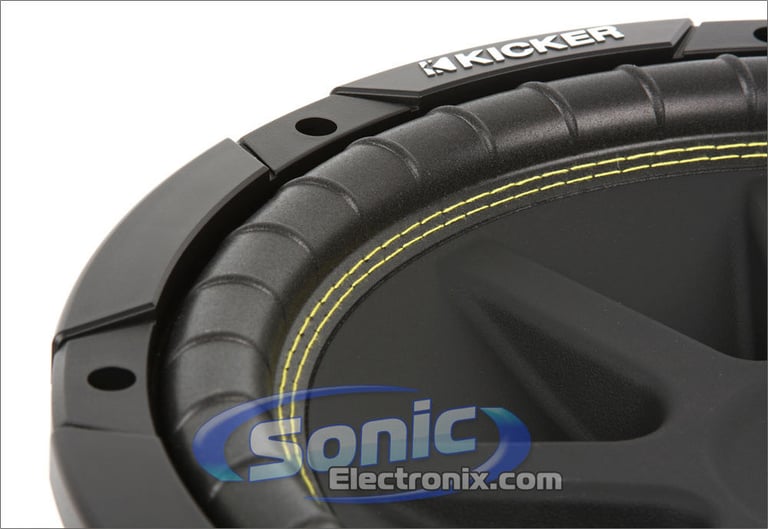

  • Optimized Polyfoam Ribbed Surround
  • Extremely rigid cone, along with 360 degree back bracing eliminates distortion
  • Double stitched surround for enhanced durability
  • Tinsel leads woven into the spider with Kicker's Spiralead technology
  • Single high-temperature voice coil
  • 45oz. Magnet structure
  • Frequency response: 27-500 Hz
  • Sensitivity: 88.3 dB
  • Mounting depth: 5-7/8"
  • Also found as: 10C12-4 ohm, C12-4, Comp 124, Comp 12" 4 ohm, 2010 C124
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

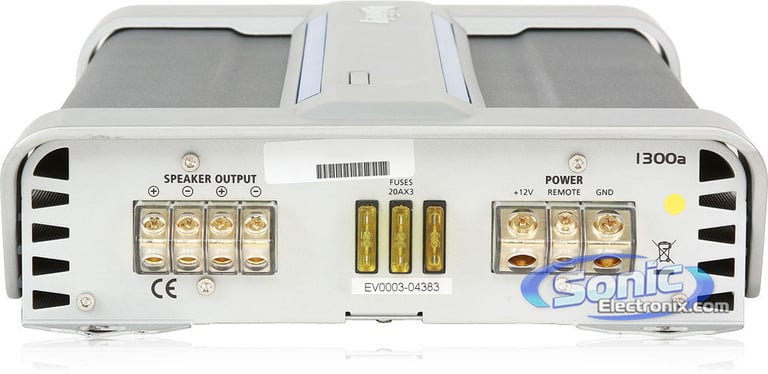

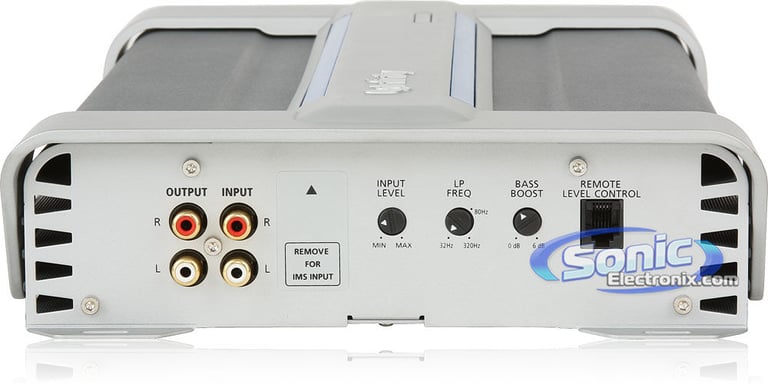

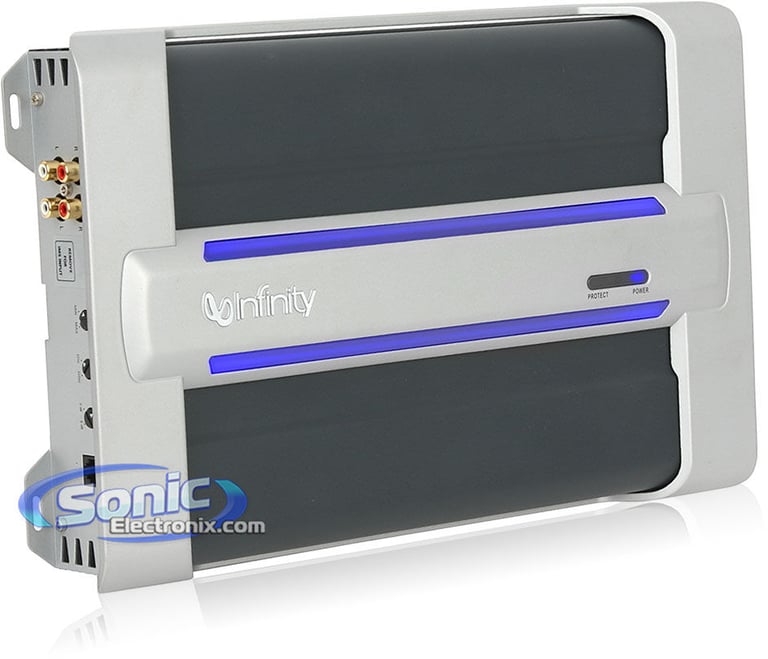

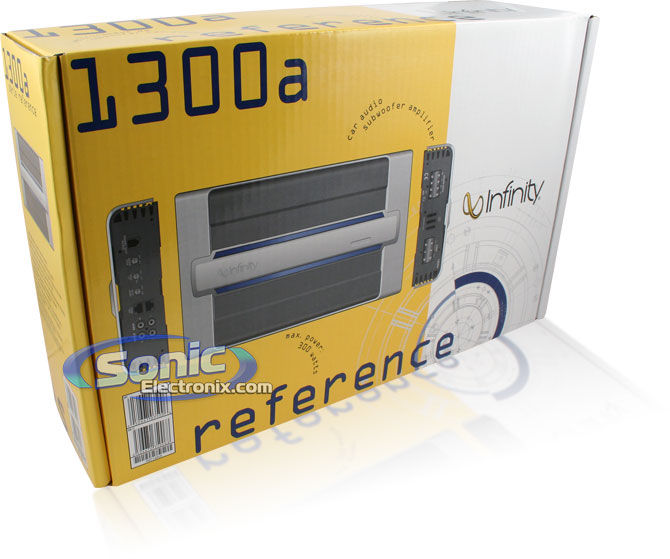

Infinity Reference 1300A Features:
  • Reference Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 342 watts x 1 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 11-330 Hz
  • Efficiency: 85 dB
  • Dimensions: 14-3/4"L x 9"W x 2-11/16H
  • 4-gauge power and ground leads recommended.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

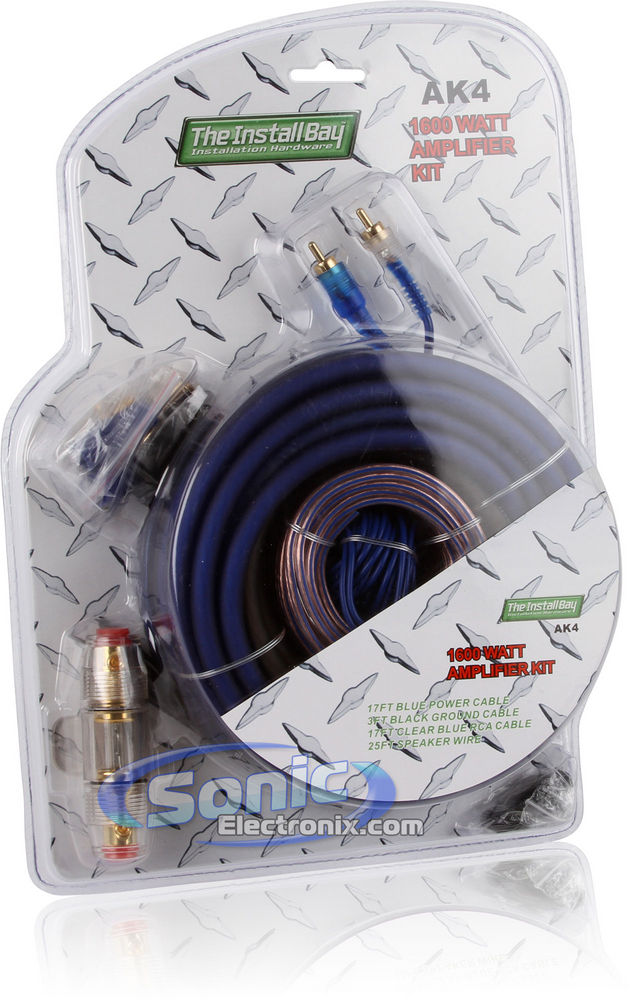

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

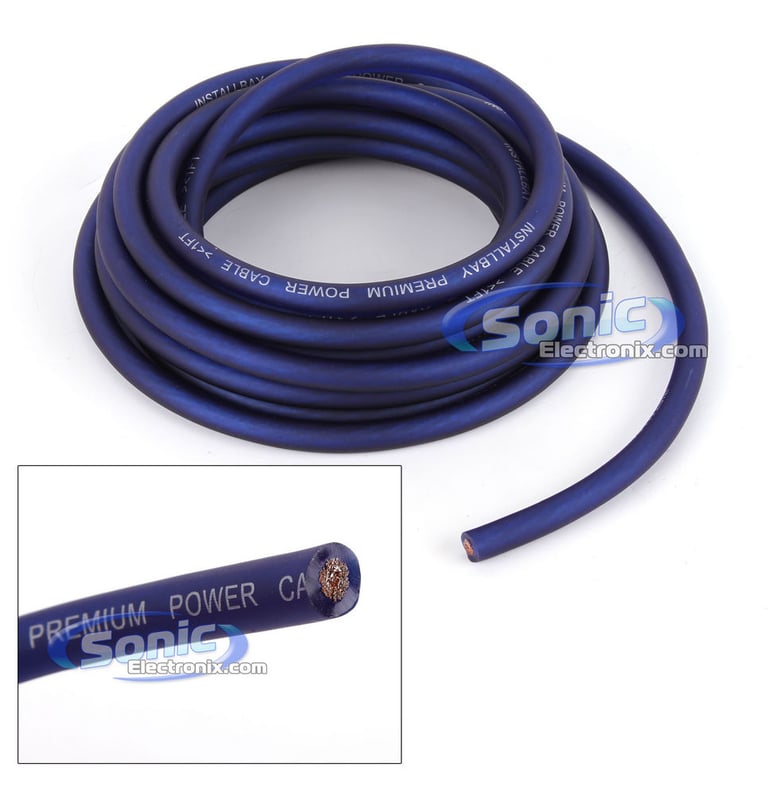

  1. 17 ft. of Blue power cable

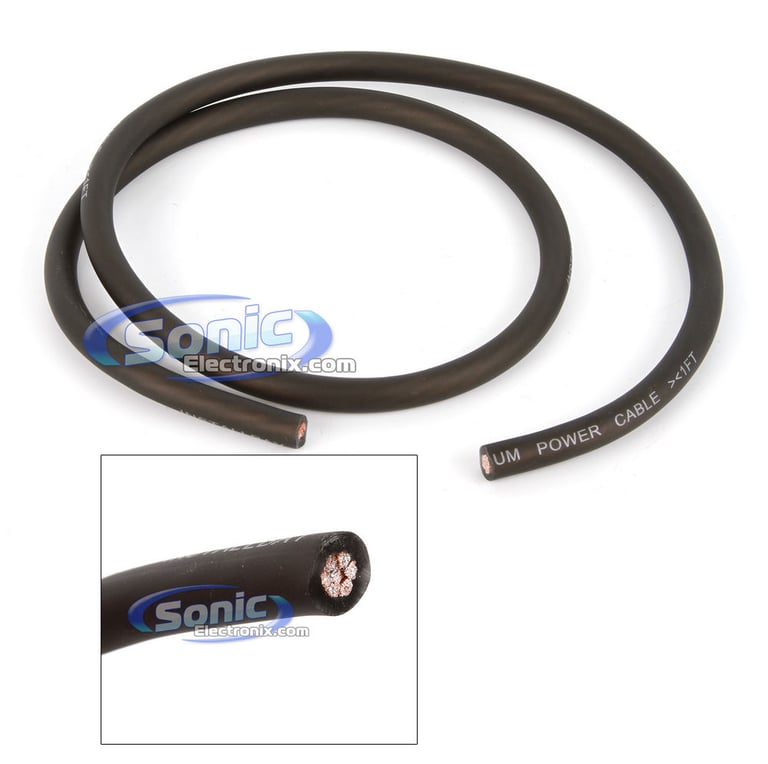

  2. 3 ft. of Black ground cable

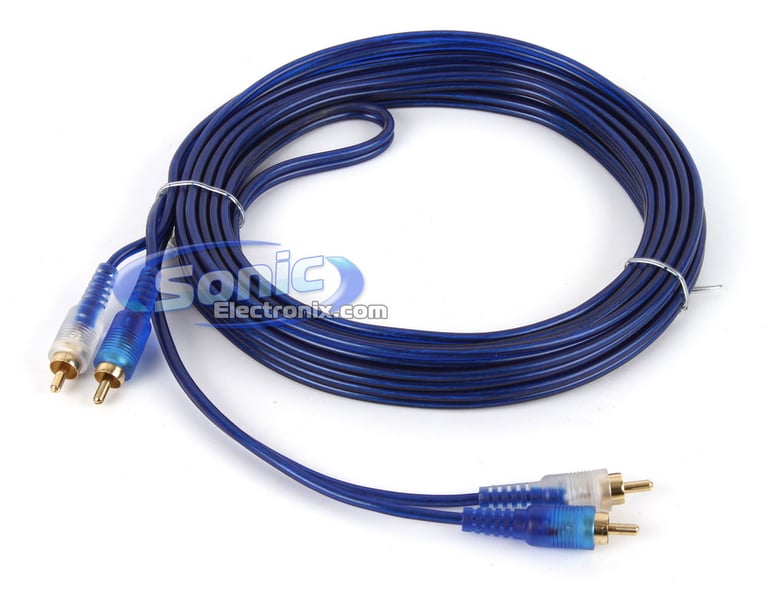

  3. 17 ft. of Clear/blue RCA cable

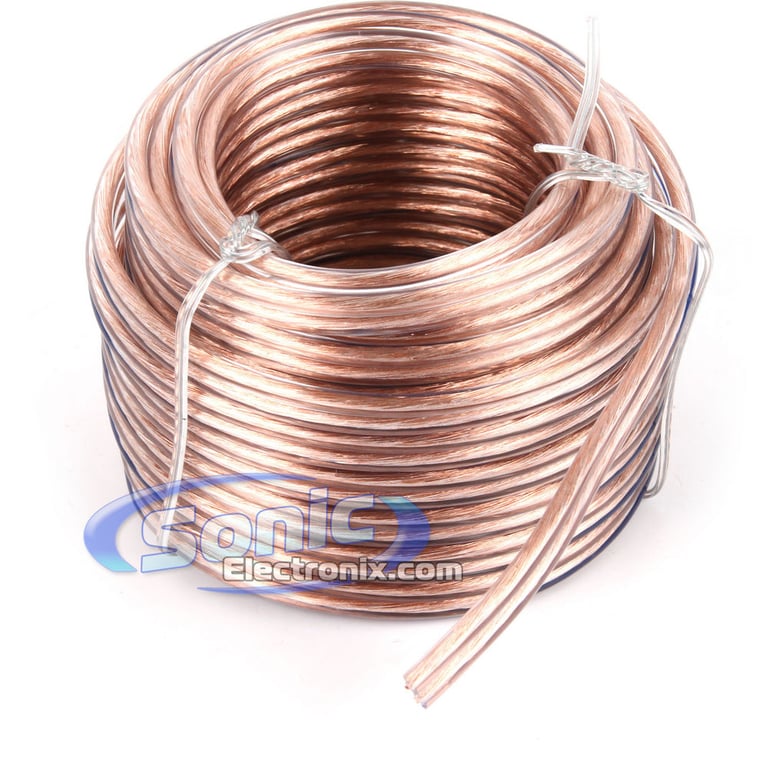

  4. 25 ft. of Speaker wire

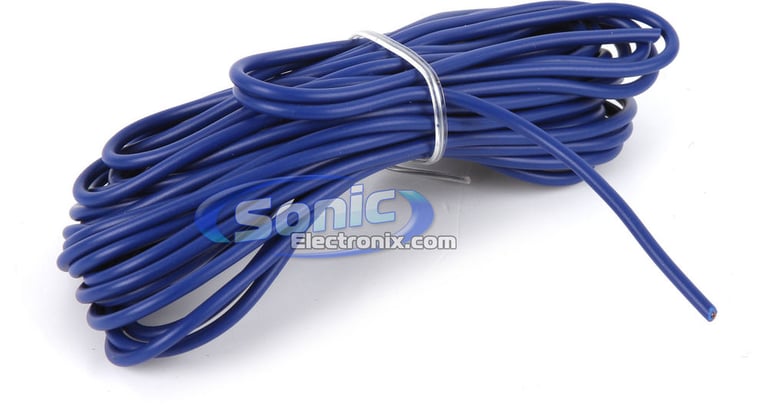

  5. 17 ft. of Remote turn-on wire

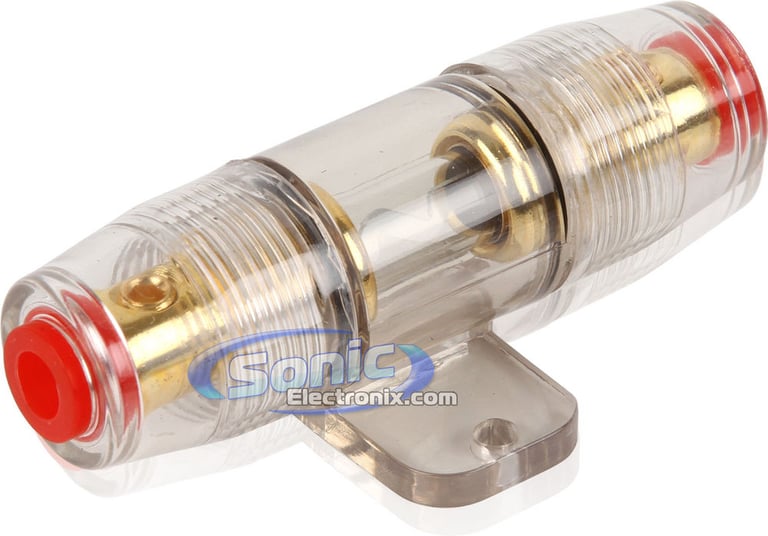

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

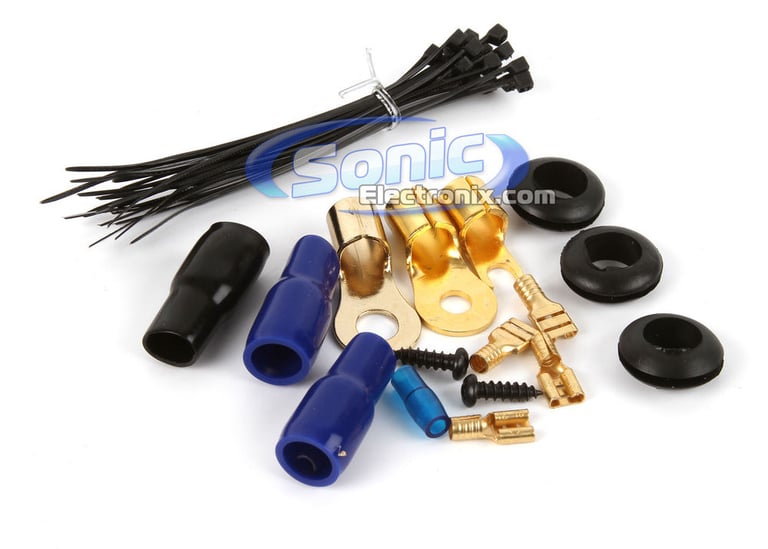

  8. Installation hardware

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
342 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
342 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
20A x 3
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
150 watts
Total RMS Power Handling
300 watts
Peak Power Handling
300 watts
Total Peak Power Handling
600 watts
Woofer Surround
Ribbed Poly-Foam
Woofer Composition
SoloKon Polypropylene
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
3.5 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Sensitivity
88.3 dB
Frequency Response
27 - 500 Hz
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-10C124_1300A

Weight:

39.55lbs

Internal SKU:

2-10c124_1300a

Internal Product ID:

35767

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2
