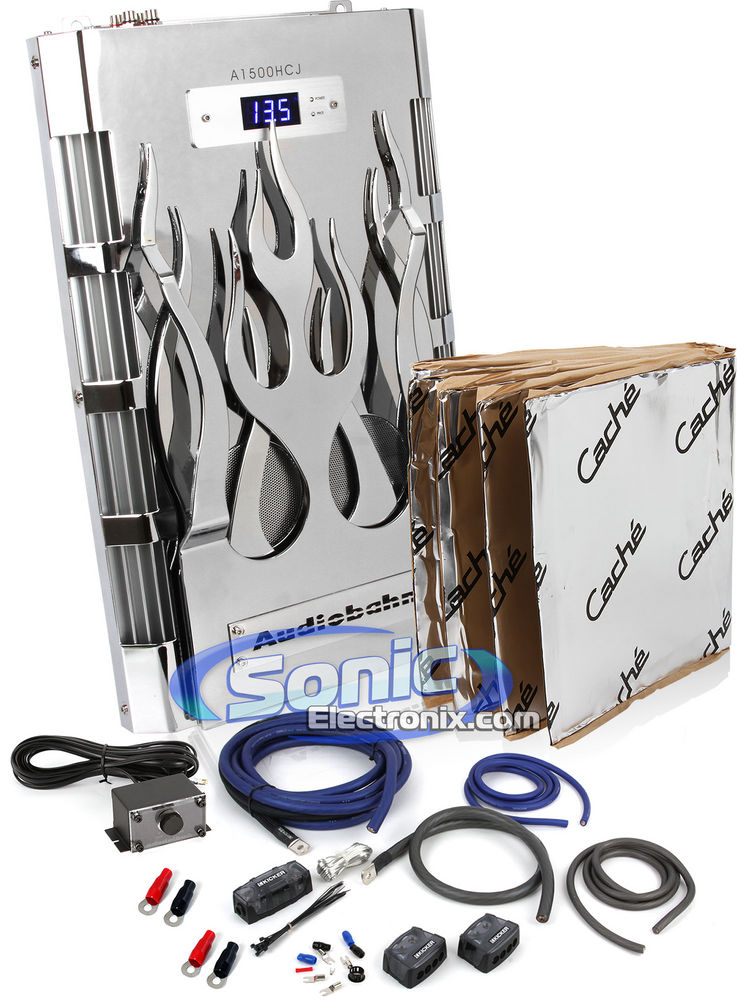

Audiobahn A1500HCJ + Amplifier Kit

2200W Max, Monoblock Class AB High Current Series Car Amp + 1/0 Gauge Amp Kit + Sound Dampening

EXCLUSIVE
Product videos
highlight-star-icon

Monoblock Class AB High Current Series Car Amplifier • PWM MOSFET Power Supply • 4-way Protection Circuitry • Variable Low-Pass Filter • Subsonic Filter • Dual Amplifier 1/0 Gauge Power Installation Kit • 3000 Watts Max • Direct-Connect Engineering

Learn more about the a1500hcj_09pkd1

We apologize

This item has been discontinued


Loading...
iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Product Highlights


Monoblock Class AB High Current Series Car Amplifier • PWM MOSFET Power Supply • 4-way Protection Circuitry • Variable Low-Pass Filter • Subsonic Filter • Dual Amplifier 1/0 Gauge Power Installation Kit • 3000 Watts Max • Direct-Connect Engineering

Description


Audiobahn and Kicker Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is an Audiobahn A1500HCJ Monoblock Class AB Car Amplifier. This amplifier is perfect for those looking to power up their subwoofers or even single subwoofer. With an RMS power rating of 600 watts @ 4 Ohms, 1100 watts @ 2ohms, and 2200 watts @ 1 Ohm, this amplifier will work with any car audio system. We have also included a high quality Kicker 09PKD1 amplifier kit to get the best signal and performance out of your brand new amplifier. The Kicker 1/0 gauge amplifier kit, along with the Kicker 09XI25, will have everything you need for complete installation. The bundle will also include Cache CDM sound dampening material, which will increase the quality of sound by minimizing road noise, rattling and any unnecessary vibrations. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

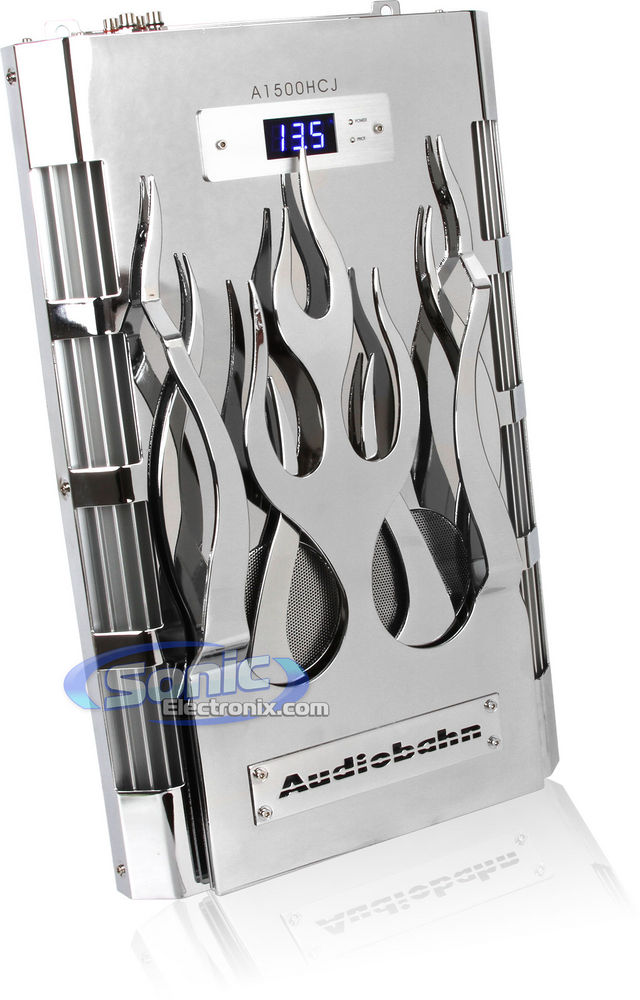

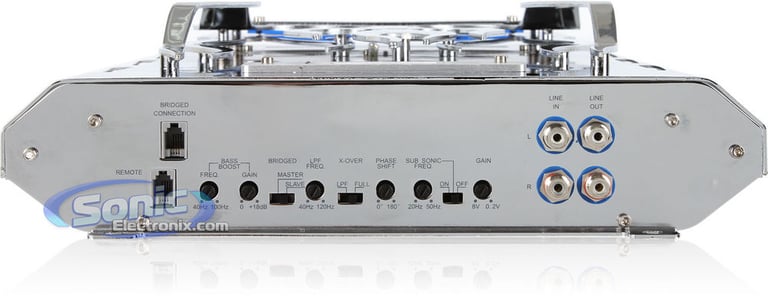

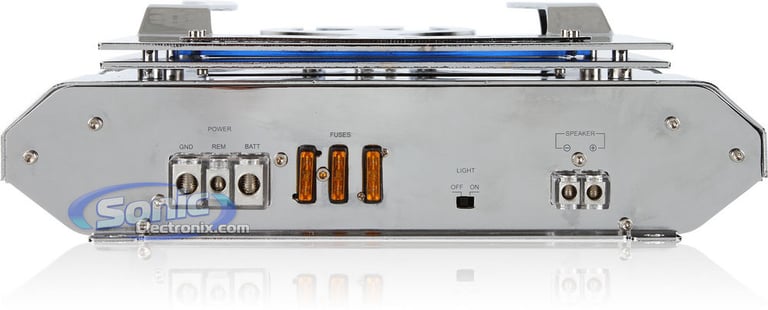

Audiobahn A1500HCJ Features:
  • Monoblock Class AB High Current Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
    • 1 ohm: 2200 watts x 1 chan.
  • PWM MOSFET Power Supply

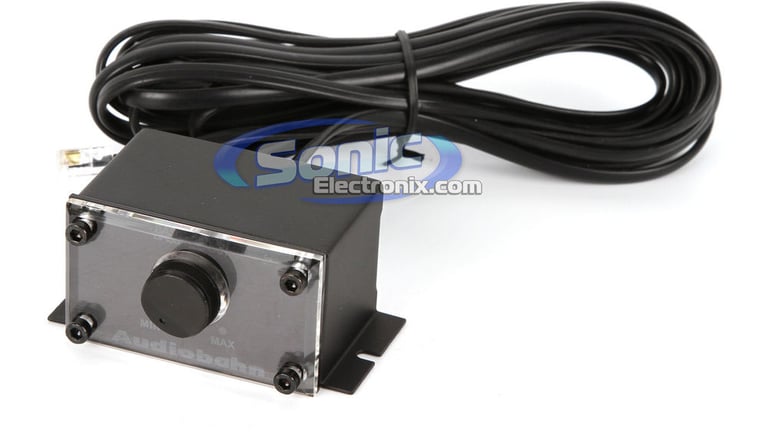

  • Remote bass control with blue backlight knob
  • Large display volt meter with blue illumination
  • Variable Bass Boost: 0-18 dB
  • High gloss chrome-plated finish
  • Mono channel operation
  • Throughput RCA connections
  • Cobalt blue illumination
  • Double-Sided glass epoxy circuit board
  • Dual cooling fans to keep amp functioning for extended periods of time
  • Chrome flame designs for enhanced appearance
  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs
  • Nickel-Plated block terminals
  • Input Sensitivity: 200mV-8V
  • Variable Low-Pass Filter (30-120 Hz, 24 dB/octave)
  • Variable High-Pass Filter (50-750 Hz, 24 dB/octave)
  • Subsonic Filter (20-45 Hz)
  • Variable Phase Control: 0-180°
  • Frequency Response: 10-200 Hz
  • Signal-To-Noise Ratio: >100 dB
  • Variable Bass Boost Frequency: 40-100 Hz
  • Dimensions: 15-1/2"L x 11-15/16"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation.
  • 1-year Manufacturer's warranty

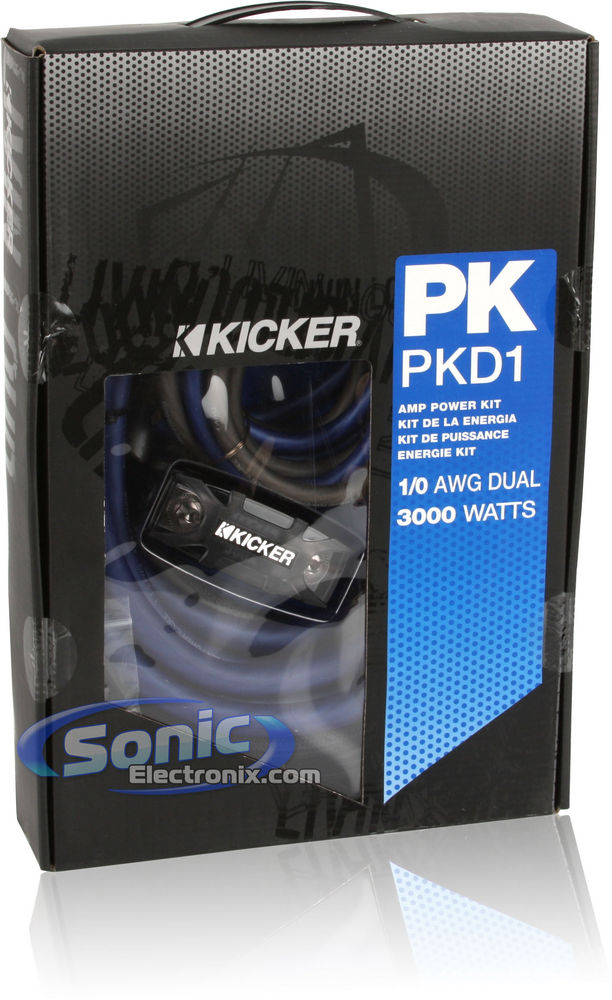

Kicker 09PKD1 Features:
  • Dual Amplifier 1/0 Gauge Power Installation Kit
  • 3000 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker 09PKD1 Includes:

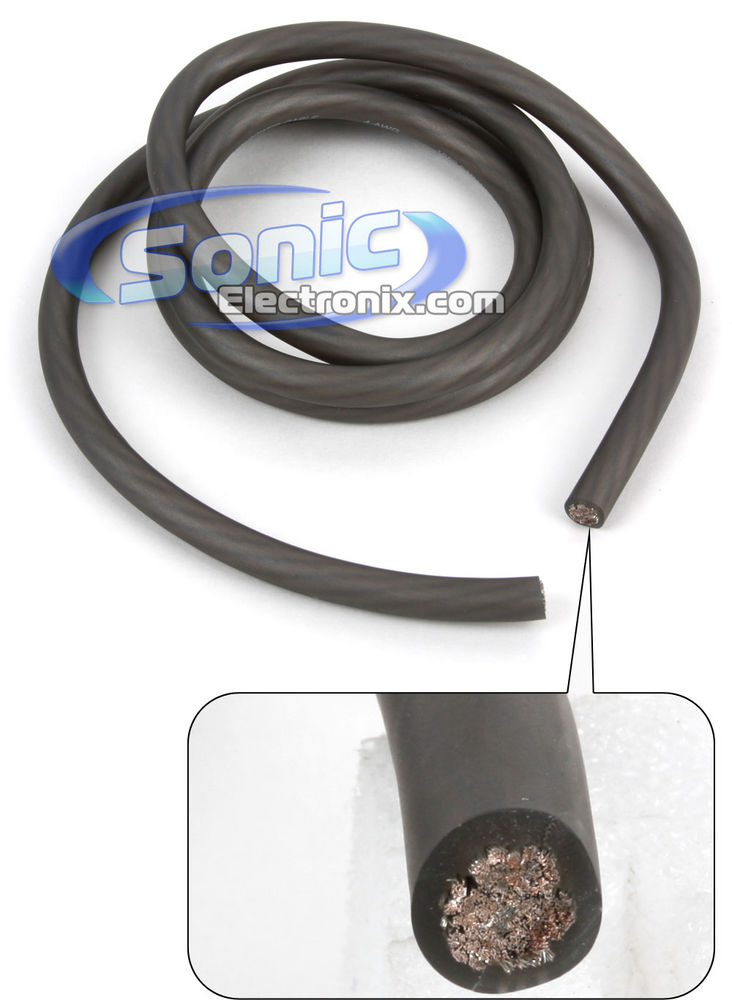

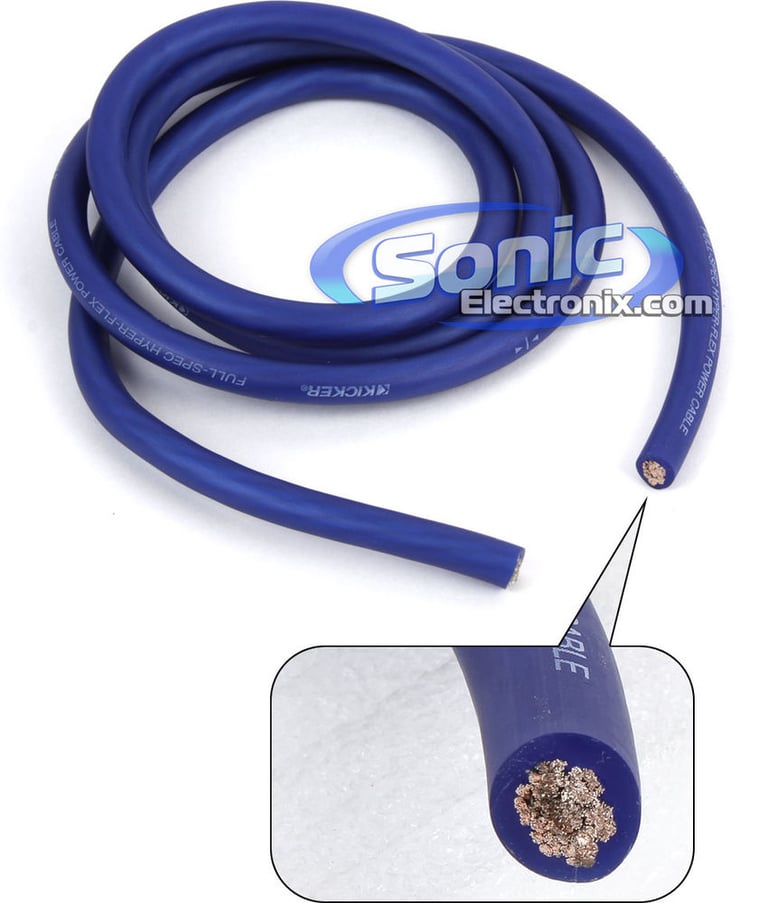

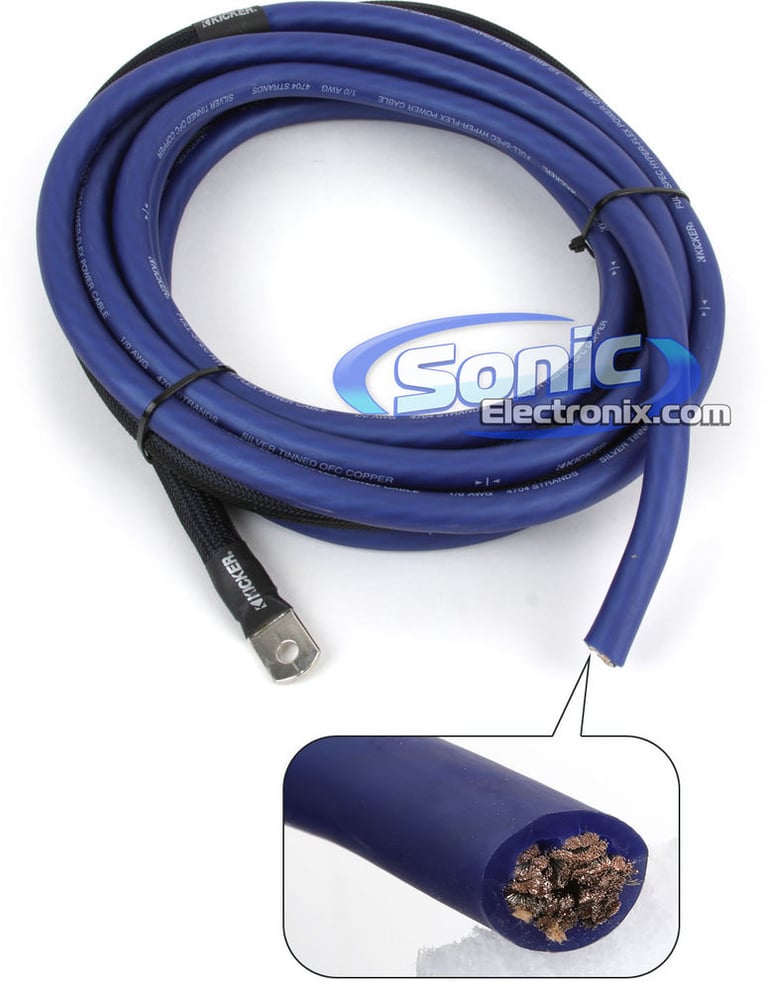

  1. 20ft(6.1m) Blue 1/0AWG power wire

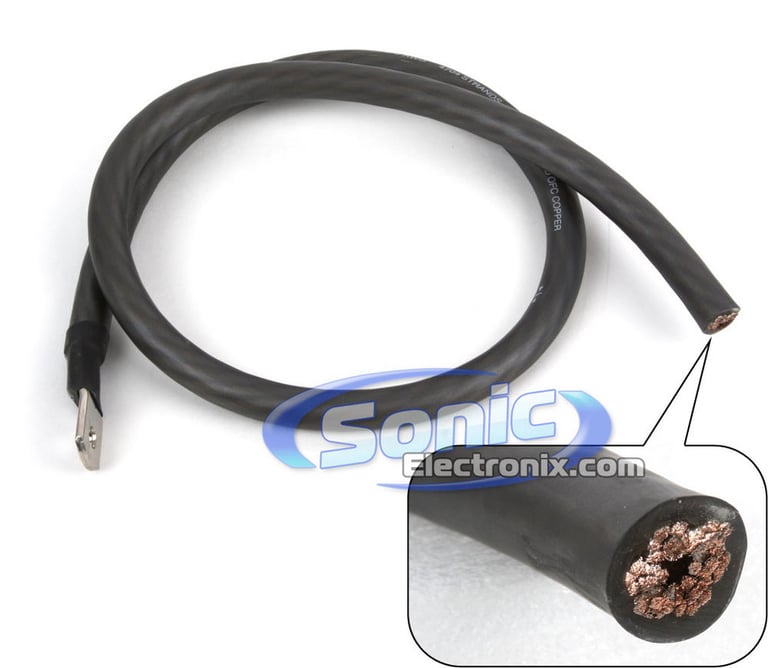

  2. 3ft(0.9m) Black 1/0AWG ground wire
  3. 5ft(1.5m) Blue 4AWG power wire
  4. 5ft(1.5m) Blue 4AWG ground wire

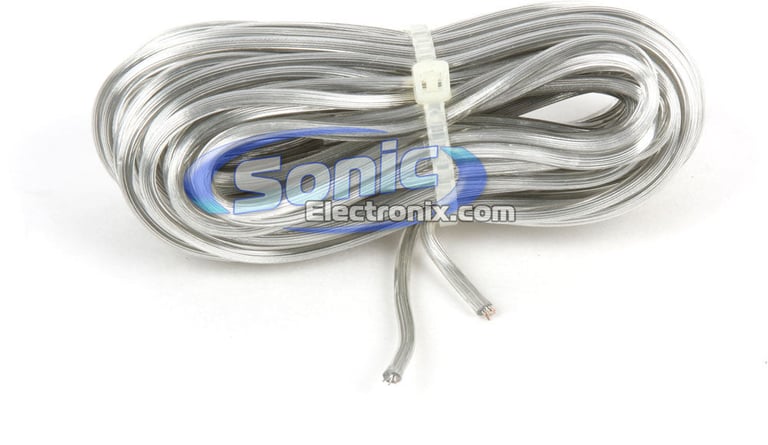

  5. 20ft(6.1m) Blue 18AWG remote lead wire

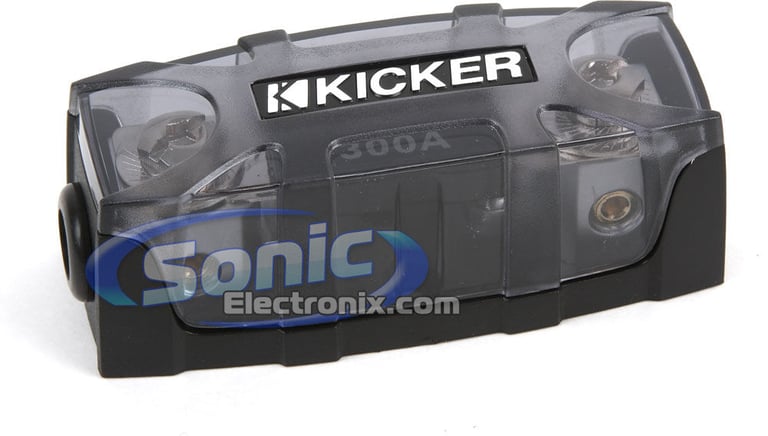

  6. 1 Kicker 09FHA Fuse holder with 300 amp ANL fuse

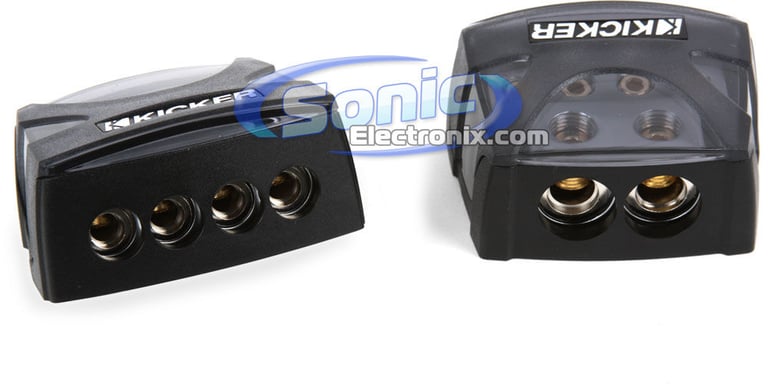

  7. 2 Kicker 09DB1448 Distribution blocks

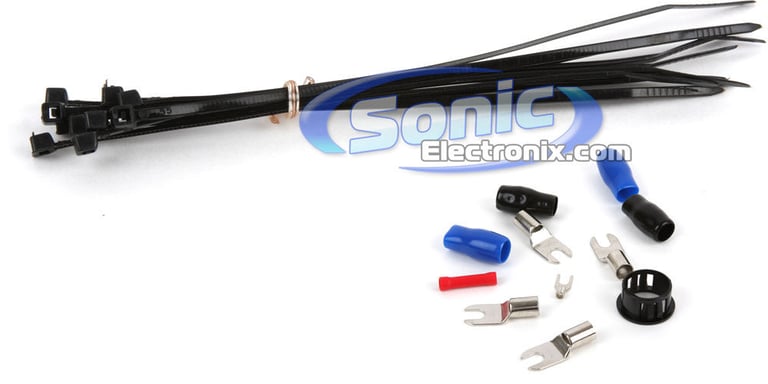

  8. Black rubber firewall grommet
  9. 4 1/0 AWG Spade terminals
  10. 1 18AWG Spade terminal
  11. Black zip ties
  12. Red butt connector

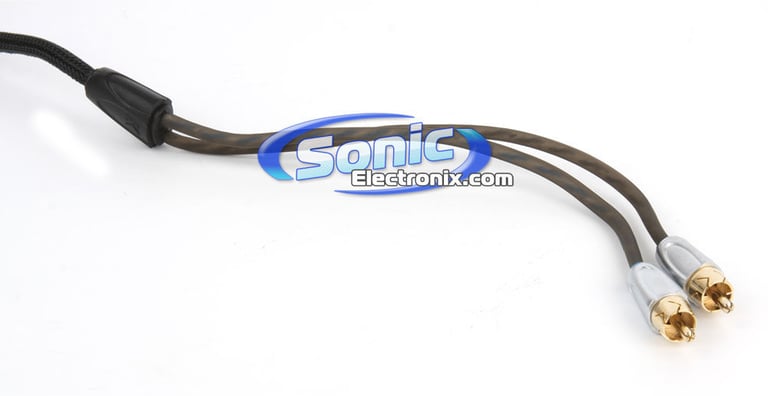

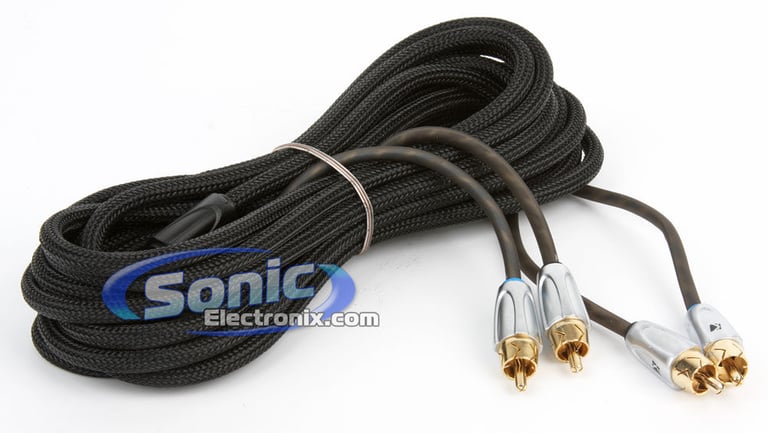

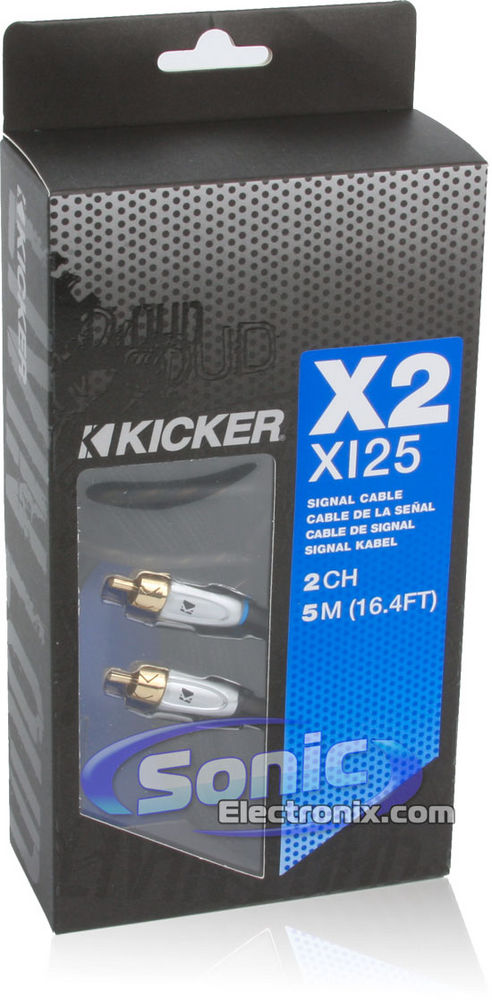

Kicer 09XI25 Features:
  • 5 Meter, 2-Channel X-Series signal cables
  • Dual twisted-pair conductors to eliminate inducted noise and interference
  • Hyper-flex technology for flexibility
  • Short, proprietary-machined metal ends
  • Gold-plated k-cut collars, dual split center pin, and black protective mesh
  • Tactile grip RCA ends
  • Color-coded strain relief identifies front-rear/light-right channels
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

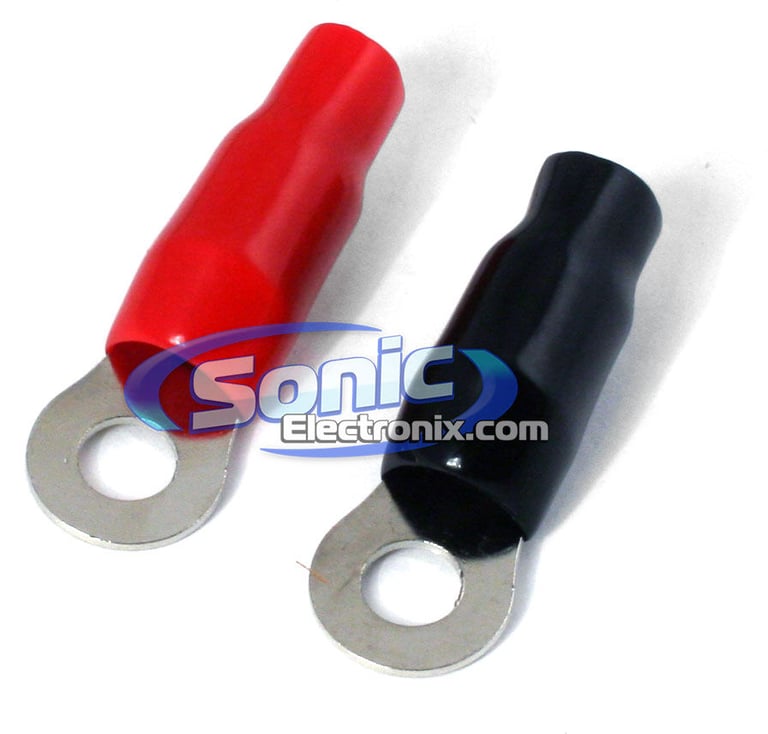

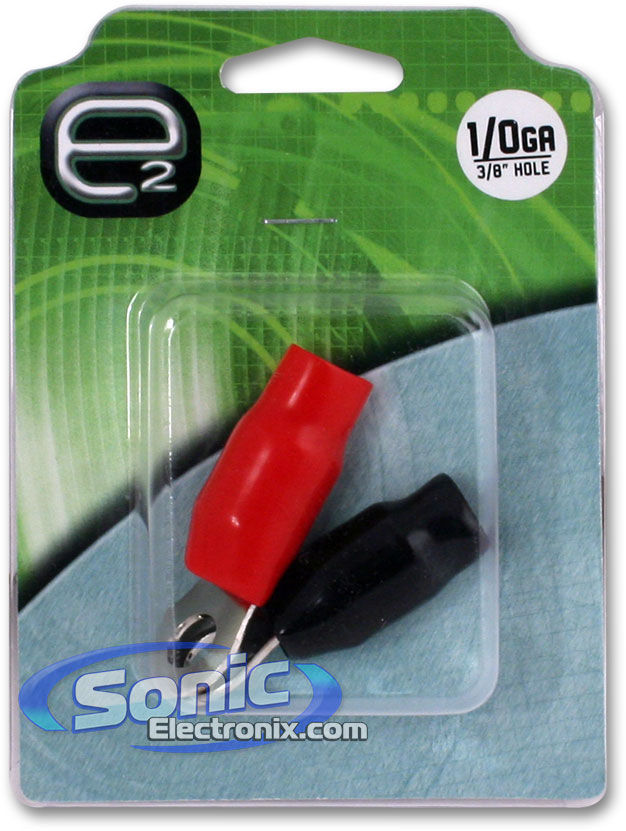

Scosche ERTC0-2 Features:
  • 2 pack of 1/0 Gauge Ring Terminals
  • 2 Pieces: 1 black, 1 red
  • Platinum Plated

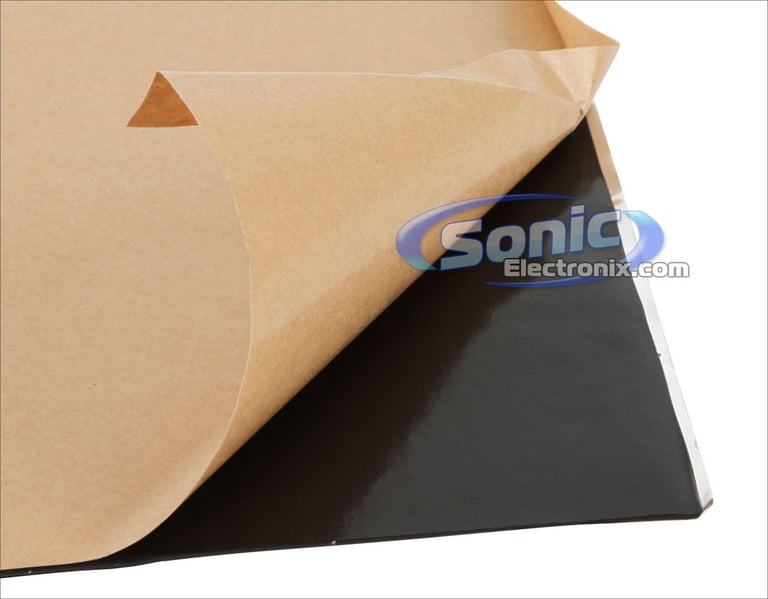

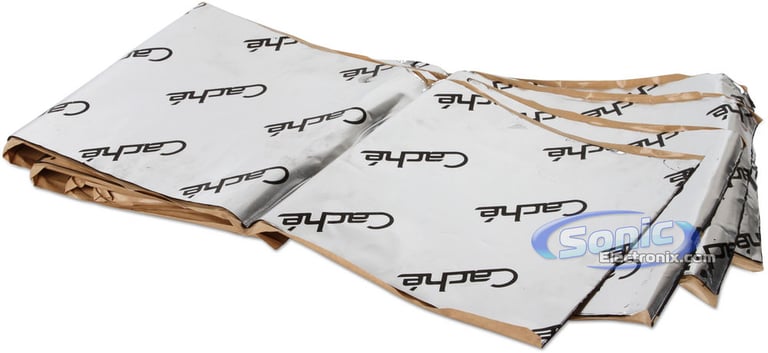

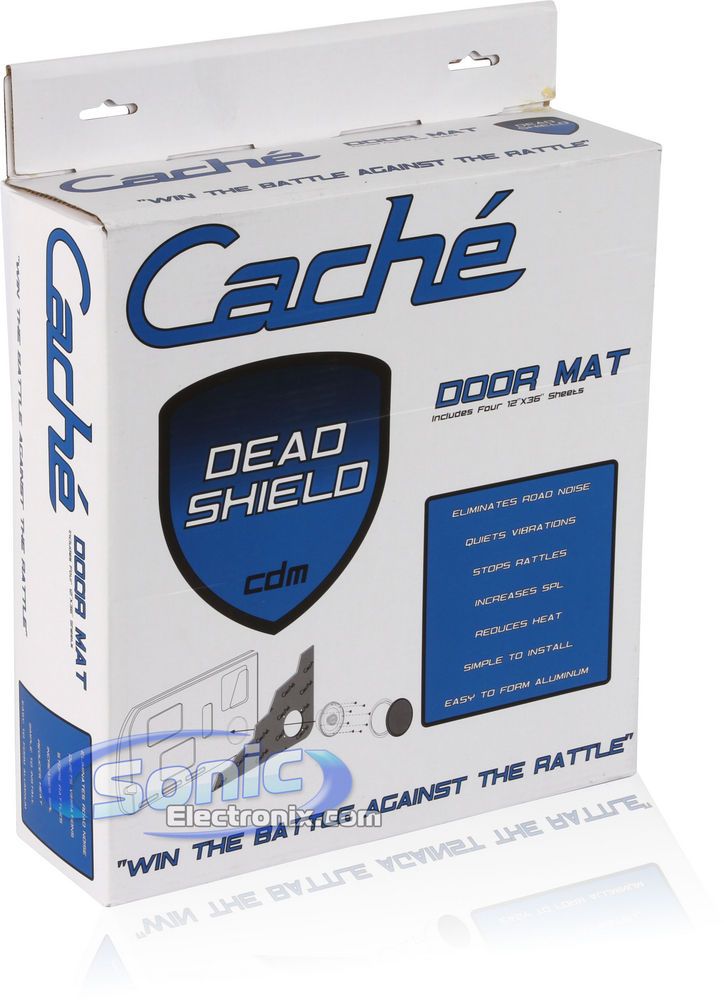

Cache CDM Features:
  • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 12"L x 36"W

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
Not specified by manufacturer
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
30 - 120 Hz
Subsonic Filter
20 - 45 Hz
Channel Separation
>100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
2
Power/Ground Wire Size
1/0 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
No
Fuse Holder
ANL
Fuse Size
300A
Distribution Block Included
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A1500HCJ_09PKD1

Weight:

46.95lbs

Internal SKU:

a1500hcj_09pkd1

Internal Product ID:

35809

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A1500HCJ + Amplifier Kit thumbnail image

5 star
79%
4 star
15%
3 star
5%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

their good

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

It's a good product at a good price, can't say much bad.

By MARK on February 6, 2012

47 found this helpful


Doesn't get much better

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

These are great ring terminals, they crimp and solder perfectly. They are a bit thin and will bend a bit if you tug on your wires too hard, but all in all they are solid and look great under the hood!

By Mike on January 19, 2011

44 found this helpful


Scosche rocks!

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

This fits right on my Battery side posts, 3/8" Hole!

By Ace on September 26, 2010

43 found this helpful


0 gauge ring by scosche.

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

If you looking for a 0 or 2 gauge ring this is what you really need. But, you might say that stinger ring is way better then this one, I tell you they're the same thing from 2 very different companies. Given 2 different names, so the price are different. Plus this will get the job done will.

By Austin on March 9, 2010

40 found this helpful


Work good

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

fit perfectly on my battery. would definately recomend

By Chyna on September 16, 2008

40 found this helpful


perfect!

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

bought for a great price, and they work great! used them on my big three upgrade, and they soldered nicely!

By trev on February 3, 2013

37 found this helpful


Good product for the price

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

I have these on my 0 gauge power cable and ground cable. fit perfect with no problems.

By Lorenzo on September 17, 2013

35 found this helpful


0 AWG ring terminals

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

Crimpable but much better soldered for best and strongest conection.

By Samuel on November 9, 2012

35 found this helpful


Amazing Value, Amazing Product

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

Good ring terminals for the money

By me on April 1, 2011

35 found this helpful


Decent terminals

The following review is for ERTC0-2, which is a part of the bundle you are viewing.

I wished I would have paid attention to the wire, I have these on some KnuKonceptz 1/0 with is actually 2/0 wire with very little jacket. But I've not had any trouble from them. Would recommend.

By HuX on August 11, 2013

32 found this helpful



No picture

Phoenix Gold R5.0:4 R/B

(Factory Refurbished) Octane-R 5.0:4 4-Channel Amplifier

$79.99

List price $269.99

07S12X4SP small

Kicker SPAIR - 07S12X4SP

Dual 4 ohm 12" SoloX Replacement Cone Assembly Kit (07S12XSP4, S12X4SP, 07S12XSP)

(1)

$249.95

List price $249.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Dodge Caliber

1998 Mercury Sable

1986 Ford Escort

2012 BMW 335is

1998 Ford Expedition

1990 Mercury Sable

2015 Ford Transit Connect

2017 Audi S8

2000 Saturn SC2

2007 Chevrolet Uplander

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
