Rockford Fosgate Punch P3D4-15 (Open Box, Great)

1200W Peak (600W RMS) 15" Punch Series Dual 4-ohm Car Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 86 dB

Learn more about the ls-p3d415-u8

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 86 dB

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

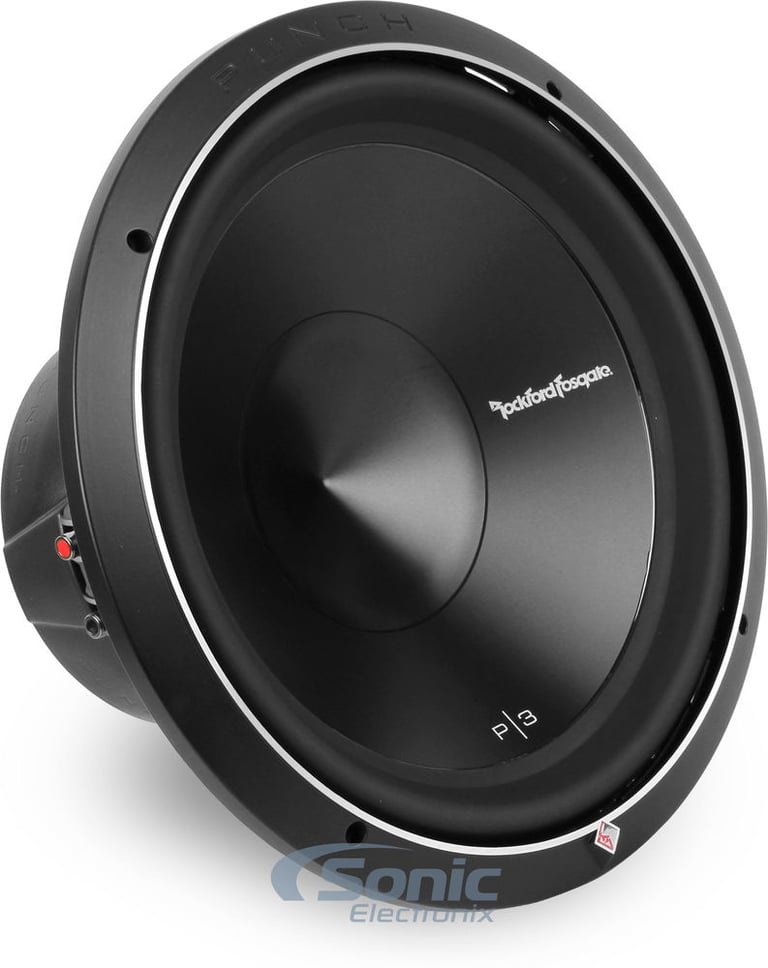

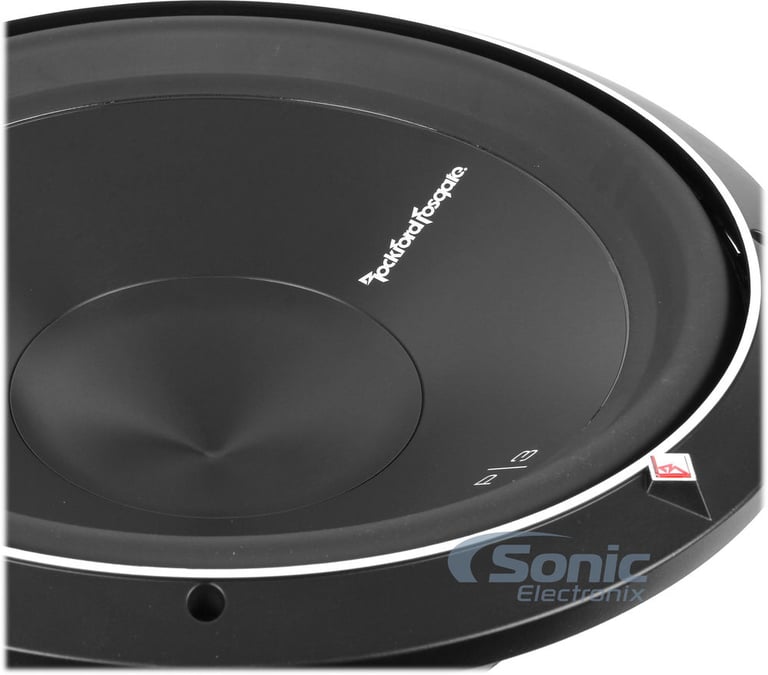

Rockford Fosgate Punch P3D4-15

The P3D4-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.


Product Details:

  • 15" Dual 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts

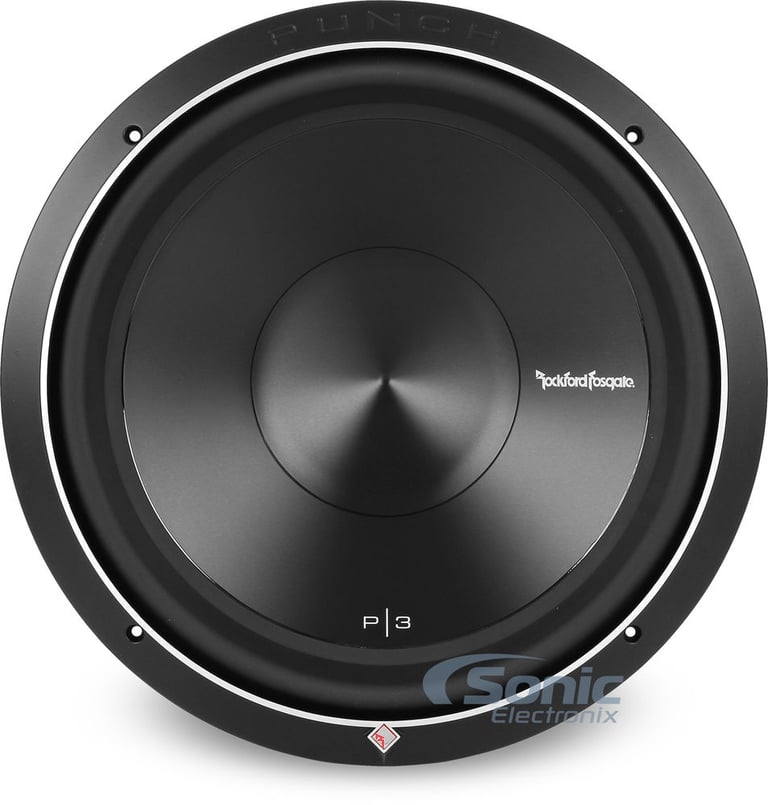

  • Anodized Aluminum Cone
  • Santoprene Rubber Surround
  • High-temp voice coil with spun-laced Nomex re-enforcement collar

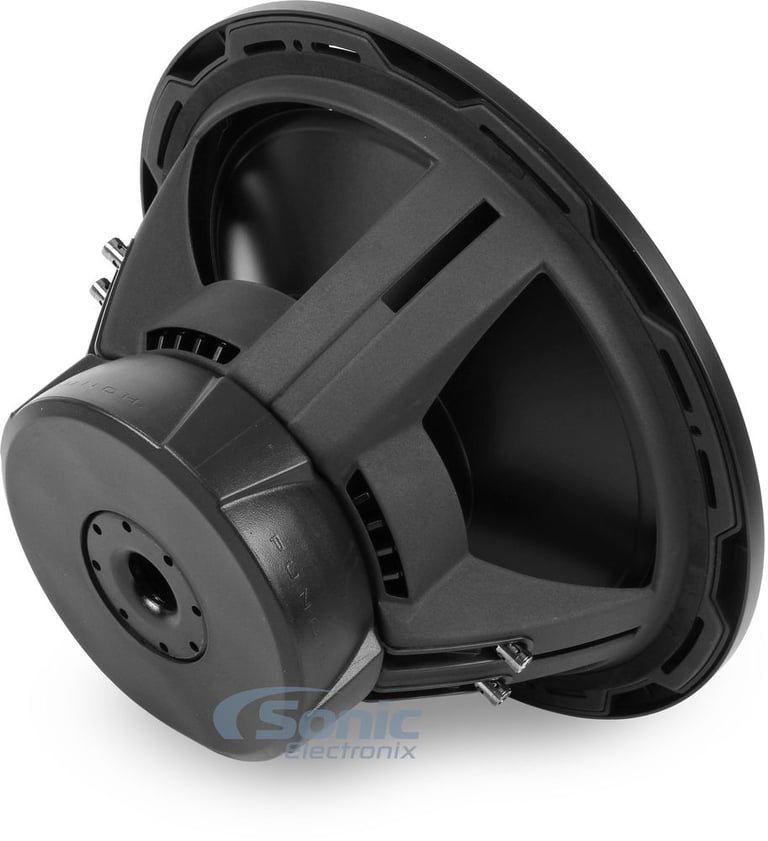

  • Extended pole piece and bumped vented backplate
  • Stamp cast basket with integrated spider venting

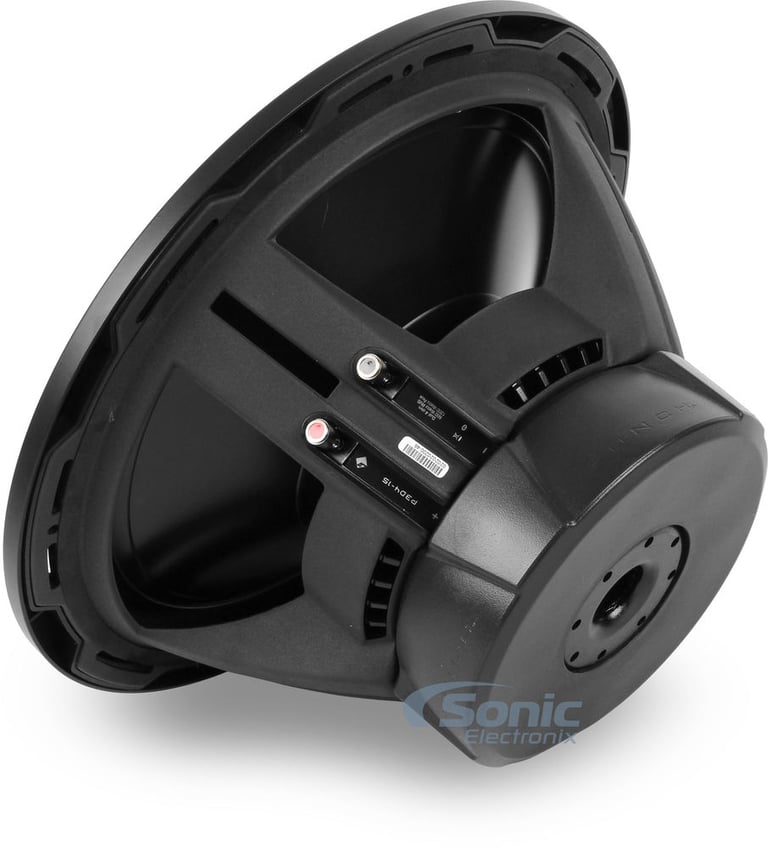

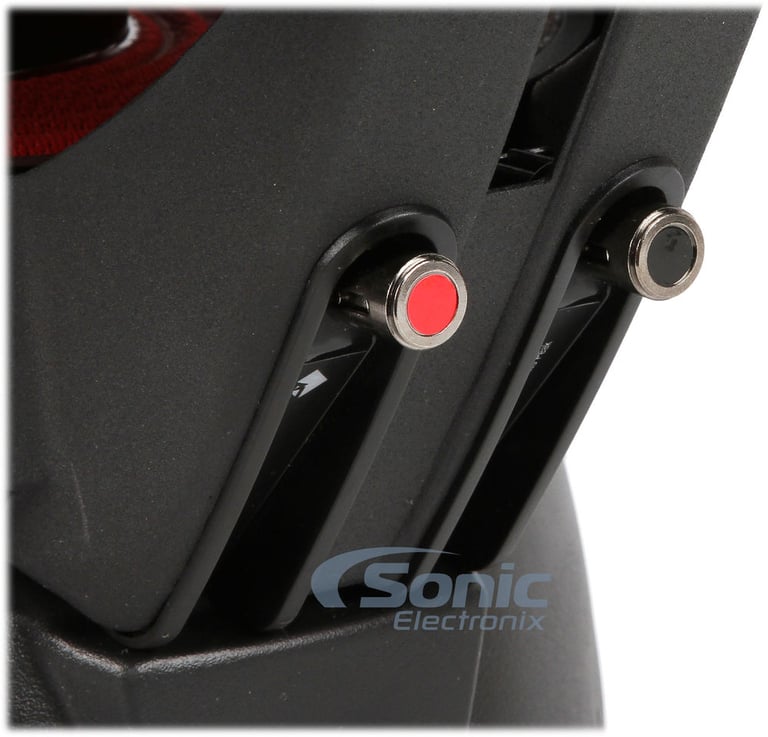

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring
  • Protective PVC textured magnet cover
  • 2.5" High Temperature Voice coil
  • 15.9 mm Xmax
  • 96 oz. Double Stacked magnet motor structure
  • Resonance Frequency (Fs): 22.4 Hz
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 1.58 cubic feet
  • Recommended ported box volume: 2.66 cubic feet
  • Cutout diameter: 13.94"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately) Rockford Fosgate P2P3G-15
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconRockford Fosgate P3D415 owner’s manual

Product history:

Rockford Fosgate P3D4-15-3 thumbnail
(newest, current model)
Rockford Fosgate P3D415 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D4-15 (Open Box, Great))
Rockford Fosgate P315D4 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D415 (09p3D415))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3D4-15 (Open Box, Great) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3D4-15 (Open Box, Great) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3D4-15 (Open Box, Great) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3D4-15 (Open Box, Great) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
21.7 - 250 Hz
Sensitivity
86 dB
Xmax (millimeters)
15.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Magnet weight
96 oz.
Subwoofer Grille
Optional (Accessory required and sold separately)
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.58 cubic feet
Optimum Ported Box Volume
2.66 cubic feet
Cutout Diameter
13.94"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
22.4 Hz
Equivalent Compliance (Vas)
155.8 liters
Total Speaker Q Value (Qts)
0.57
Electrical Q Value (Qes)
0.64
Electrical Resistance of Voice Coil (Re)
6.40 ohm
Mechanical Q Value (Qms)
4.90
What is in the box?
Paperwork

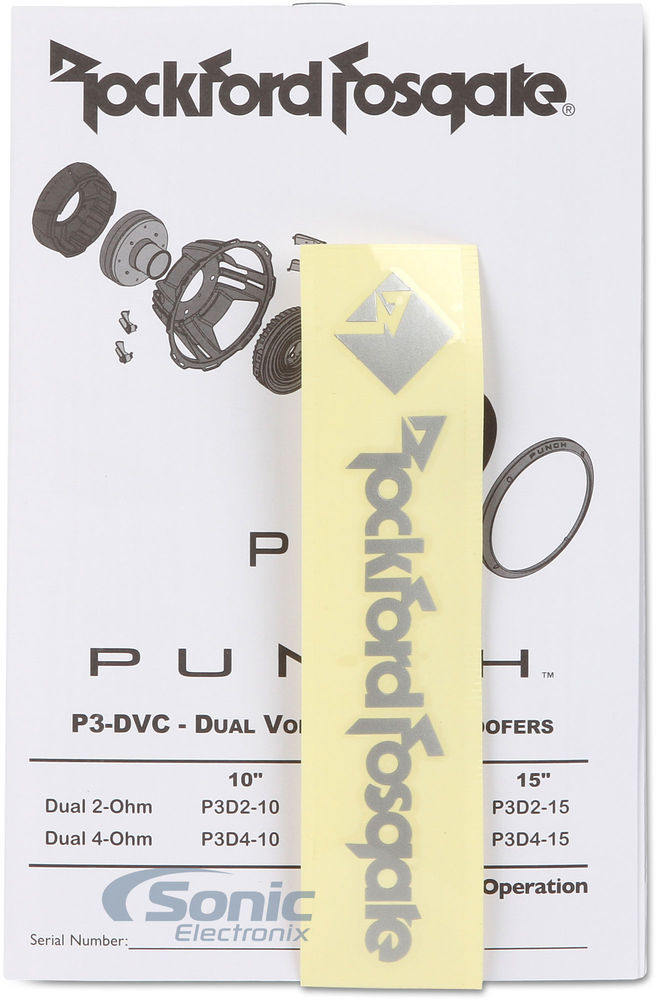

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3D4-15-3

Weight:

23.00lbs

Internal SKU:

ls-p3d415-u8

Internal Product ID:

222757
