Rockford Fosgate Prime R2SD2-12 (Open Box, Like New)

500W Peak (250W RMS) 12" Prime Series Dual 2-ohm Shallow Car Subwoofer

highlight-star-icon

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Dual 2 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.602"
• Sensitivity: 81 dB

Learn more about the r2sd212_obn

We apologize

This item has been discontinued

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

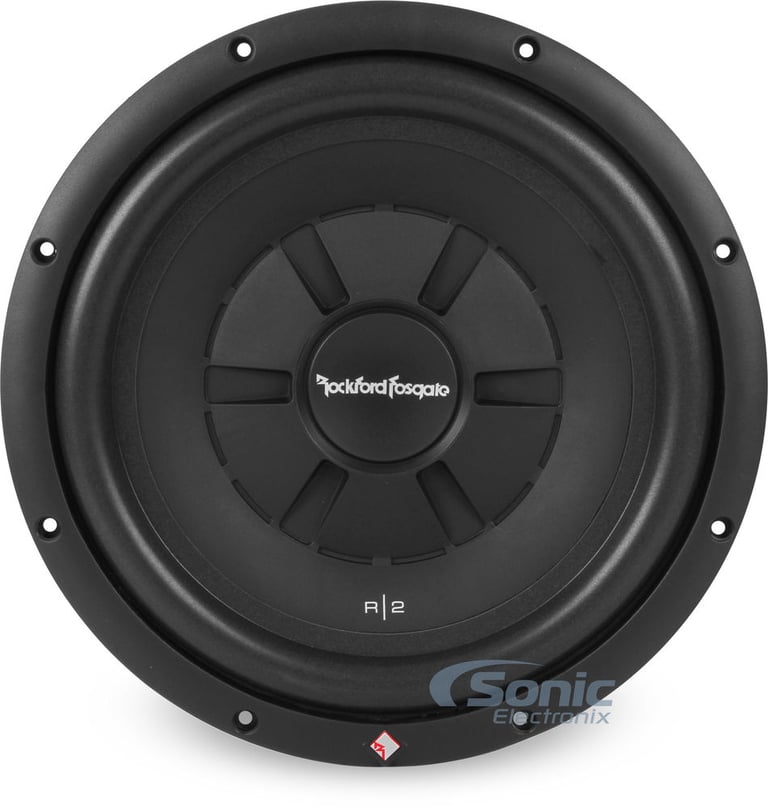

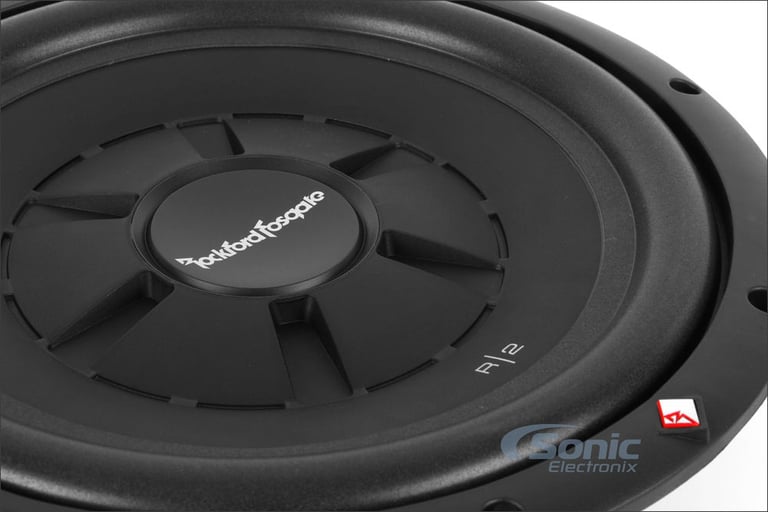

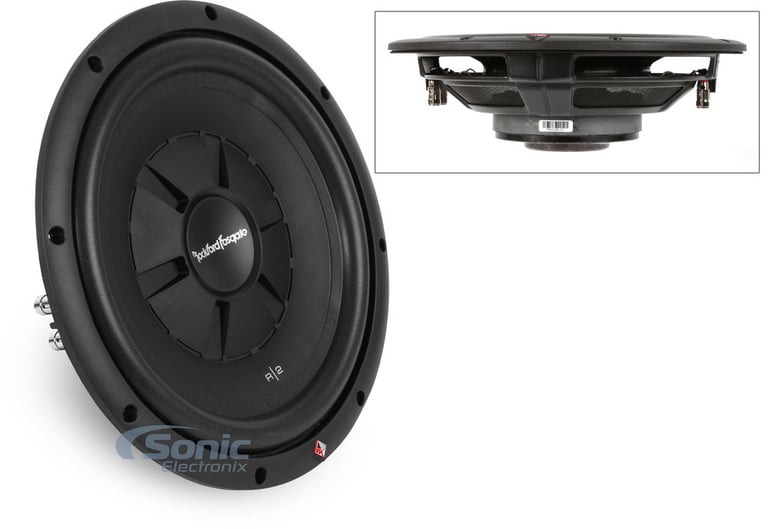

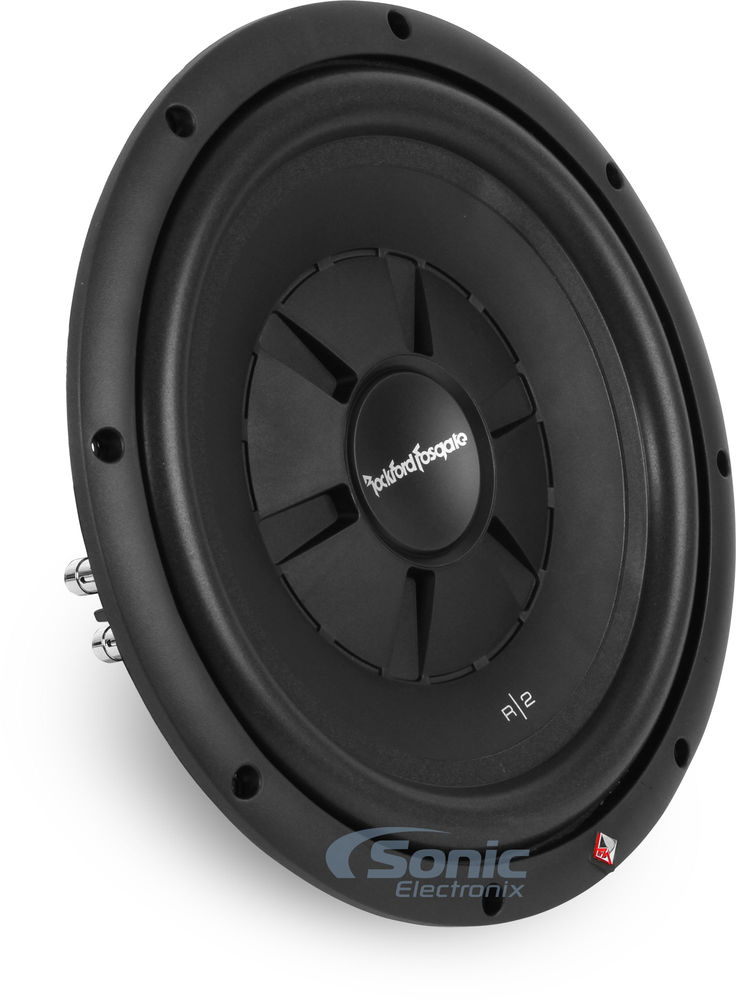

Prime R2SD2-12

When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.


Rockford Fosgate Prime R2 R2SD2-12

500W Peak (250W RMS) 12" Prime Series Dual 2-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 2 ohm Prime Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Rubber Surround
  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Optimized for sealed enclosures

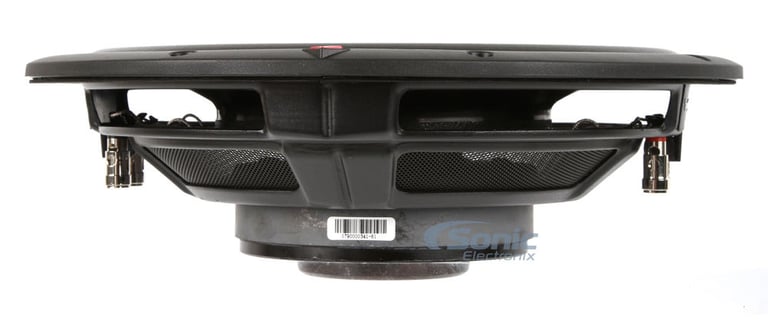

  • Shallow Motor Assembly
  • Integrated PVC trim ring

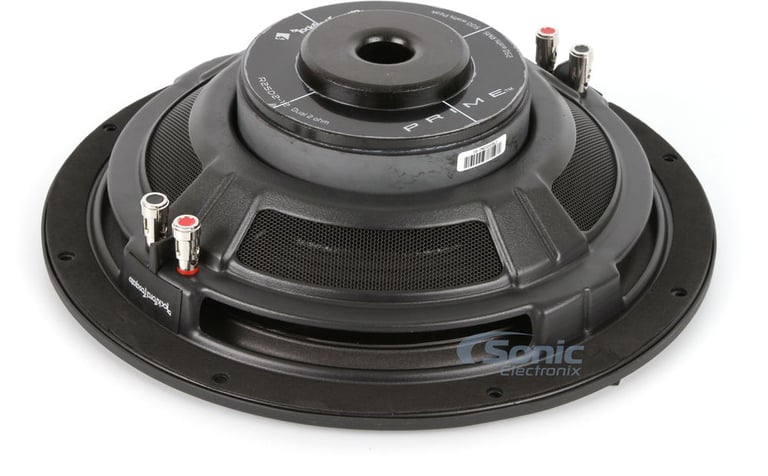

  • StampCast basket with integrated spider venting
  • 2" High Temperature Aluminum Voice coil
  • 10 mm Xmax
  • 51 oz. Double Stacked magnet motor structure
  • Frequency Response: 43 - 250 Hz
  • Resonance Frequency (Fs): 29.7 Hz
  • Sensitivity: 81 dB
  • Recommended sealed box volume: 0.9 cubic feet
  • Recommended ported box volume: 1.79 cubic feet
  • Top-mount depth: 3.602"
  • Cutout diameter: 11.25"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Prime R2SD2-12 (Open Box, Like New) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Prime R2SD2-12 (Open Box, Like New) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Prime R2SD2-12 (Open Box, Like New) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Prime R2SD2-12 (Open Box, Like New) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Prime Series
Subwoofer Size
12"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2"
Frequency Response
43 - 250 Hz
Sensitivity
81 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Magnet weight
51 oz.
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.9 cubic feet
Optimum Ported Box Volume
1.79 cubic feet
Top-Mount Depth (Mounting Depth)
3.602"
Cutout Diameter
11.25"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.7 Hz
Equivalent Compliance (Vas)
65.4 liters
Total Speaker Q Value (Qts)
0.66
Electrical Q Value (Qes)
0.71
Electrical Resistance of Voice Coil (Re)
3.80 ohm
Mechanical Q Value (Qms)
9.00
What is in the box?
Paperwork

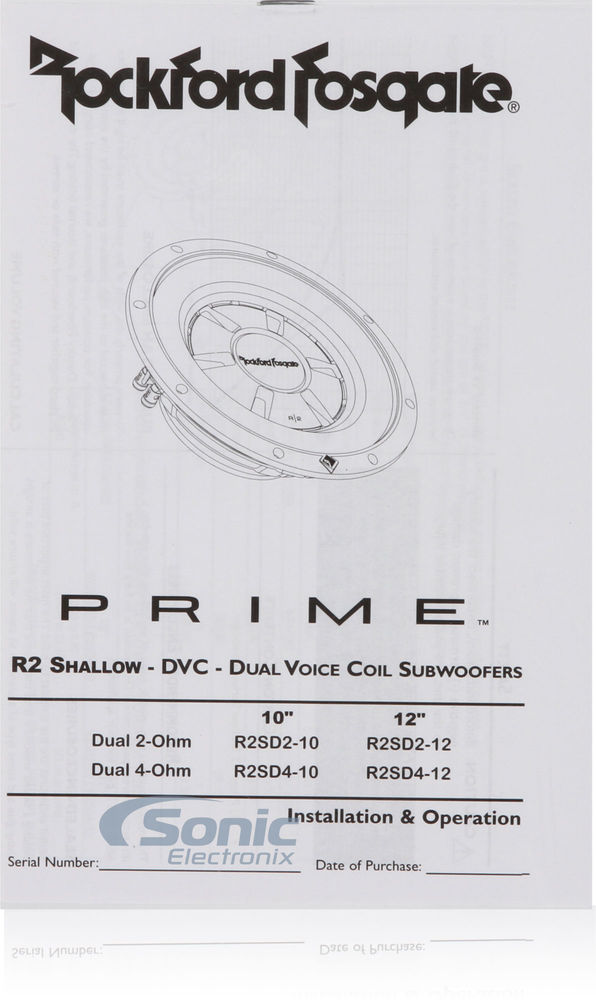

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2SD212_OBN

Weight:

11.00lbs

Internal SKU:

r2sd212_obn

Internal Product ID:

223729

Customer Ratings & Reviews


Rockford Fosgate Prime R2SD2-12 (Open Box, Like New) thumbnail image

5 star
43%
4 star
14%
3 star
29%
2 star
14%
1 star
0%



Durability
3.9
Value
4.4
Features
3.9
Design
4.2
Usability
4.2

Customer Reviews

Sort by:

Loading...

great sub for pickup truck

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

Works great for the application wired the coils in series for the bridged output on my amp and the whole truck shakes, sounds crisp too

By shetty on December 2, 2013

49 found this helpful


Disappointed...

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

I had 2 of these hooked up to a rockford fosgate p300 running at rms power and within a few hours, both subs were out of commision. the voice coil went out on one, and the other simply quit playing mid song. I was only listening to them at about half volume of my head unit. but for the time that it did work it sounded excellent. i just expected so much more from rockford fosgate.

By Colton on August 4, 2011

53 found this helpful


pontoon sub

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

I needed something that would fit in my pontoon under a seat so it was covered. this did the job. got it powered from a old RF amp and it did the trick. nice little thump for the money

By Riley on September 14, 2011

54 found this helpful


good truck sub

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

I installed 2 of these in a 99 chevy 2500 4 door they sound good for such a small sub. Depending on where and how you mout em ported/sealed depends on how they will sound in my case they added that extra low end fill i needed for great sound quailty.

By James on March 16, 2015

45 found this helpful


Louder than expected

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

My first shallow mount sub and I was worried it wouldn’t sound near as good as a standard depth subwoofer. That wasn't the case at all!

By PATRICK on June 18, 2020 Checkmark Icon Verified purchase

33 found this helpful


Good deal

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

This purchase was a great one! I will know more once installed

By Robert on February 16, 2023 Checkmark Icon Verified purchase

32 found this helpful


Nice Modest Sub!!!

The following review is for R2SD2-12, which is a part of the bundle you are viewing.

Purchased this Sub to put in my 09" Tundra. I've been running 300w @ 4 ohms to it four about a year in a sealed box. Sounds great for an entry level sub. Just remember, GOOD IS RELATIVE TO YOUR APPLICATION!!!!!. If you want bass below 40HZ this may no bet the sub for you. It has difficulty with most modern RAP music because of all of the 30Hz notes. However, this has been a good reliable sub and sounds great depending on the music your listening to and the environment you are putting it in!

By Arnige on February 21, 2016

30 found this helpful
