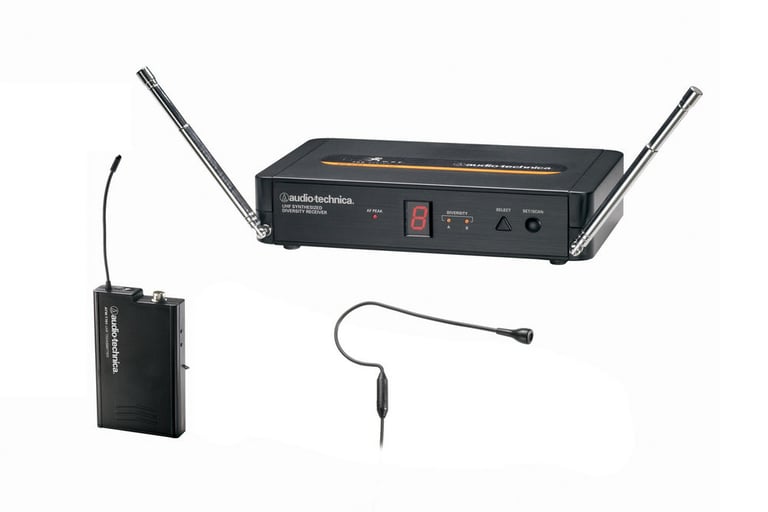

Audio Technica ATW-701/H92

700 Series Frequency Diversity UHF Wireless System w/ ATW-R700 & ATWT701 w/ PRO 92cW Microphone

Audio Technica
Shop all Audio Technica
highlight-star-icon

700 Series Frequency Diversity UHF Wireless System • 8 Selectable Frequency-Coordinated UHF Channels • Automatic Frequency Scanning • LED Channel Display • Balanced XLR and Unbalanced 1/4" Output Connectors

Learn more about the atw701h92

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

Add to cart
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Add to cart
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Add to cart

Description

Audio Technica brand icon

Authorized dealer

Wireless Professionalism

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock™ squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

General Features:
  • 700 Series Frequency Diversity UHF Wireless System
  • 8 selectable frequency-coordinated UHF channels
  • Use up to 8 simultaneous systems—all channels compatible
  • Automatic frequency scanning
  • Diversity operation for increased range/reliability
  • LED Channel display plus Antenna, AF Peak indicators
  • Balanced XLR and unbalanced 1/4" output connectors
  • Tone Lock squelch system eliminates interference when transmitter is off
  • UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation
  • Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials® microphones and cables
  • 1-year Manufacturer's warranty
Overall System Specifications:
  • Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz
  • Number of Channels: 8
  • Frequency Stability: ±0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: ±25 kHz
  • Operating Range: 200' typical
  • Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
  • Frequency Response: 100 Hz to 12 kHz
Receiver Specifications:
  • Receiving System: Antenna-switching diversity
  • Image Rejection: 55 dB minimum
  • Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
  • Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
  • Sensitivity: 25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
  • Audio Output: Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation)
  • Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
  • Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack
  • Balanced: XLRM-type
  • Power Supply: 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply
  • Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
  • Weight: 12.9 oz (365 g)
  • Accessory Included: Power supply
Body-Pack Transmitter Specifications:
  • RF Power Output: High: 10 mW; Low: 5 mW
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >100 dB, A-weighted
  • Input Connections: High impedance, low impedance, bias
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: High: 140 mA; Low: 130 mA, typical
  • Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
  • Dimensions: 2.56" (65.0 mm) W x 4.13" (105.0 mm) H x 0.73" (18.5 mm) D
  • Net Weight: 2.8 oz (80 g)
Audio Technica Authorized Reseller

Best selling similar products

JBLPBWIRELESSMICAM small

JBL PartyBox Two-Person Wireless Mic (JBLPBWIRELESSMICAM)

• Includes two wireless microphones and one dongle
• Compatible with all PartyBox speakers
• Rechargeable UHF dual channel wireless receiver
• High vocal quality and JBL Original Pro Sound
• Microphones come with replaceable AA batteries

$169.95

List price $204.00

Specifications & Details

Microphone Specifications
Microphone Type
Wireless Headset
Designed Applications
Vocals
Spoken Word
Public Address
Number of Microphones
1
Polar Patterns
Uni-directional
Transducer Type
Dynamic
Frequency Response
100 - 12000 Hz
Sensitivity
60 dB
Connection Type
XLR
Wireless Specifications
Carrier Frequency Range
542.125 - 561.250 MHz
Operating Range
200 feet
Number of Channels
8
Transmitter Type
Beltpack
Diversity
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Audio Technica

Model Number:

ATW-701/H92

Weight:

2.32lbs

Internal SKU:

atw701h92

Internal Product ID:

36586
