Alpine Speakers + Kicker Amplifier Bundle

5-1/4" SPR-50C Component Car Speakers + Kicker IX500.4 4-Channel Class D Amp + Kit + Sound Dampening

Alpine
Shop all Alpine
Product videos
highlight-star-icon

5-1/4" Type-R 2-Way Component System • 600W Max • 200W RMS • IX Series 4-Channel Class D Car Amplifier • MOSFET Power Supply • CEA-2006 Compliant Amplifier • Amplifier Kit • Sound Dampening Material

Learn more about the 11ix5004_spr50c

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

LPHCH41 main

PAC LPHCH41

Vehicle Specific Audio Integration T-Harness for select 2013-2024 vehicles from Ram, Jeep, Dodge

-43.41%

$73.00

List price $129.00

BE-DODCHA-G7 main

NVX Loaded BOOST Box - 2015-2023 Dodge Charger - BE-DODCHA-G7

For select 2015-2023 Charger - Single 10" 500W RMS Loaded BOOST Sealed Enclosure

3
-20.00%

$299.99

List price $374.99

Limited time!
KFC-X3C main

Kenwood eXcelon KFC-X3C

240W Peak (100W RMS) 3.5" Excelon Series 2-way 4-ohm Coaxial Car Speakers for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

2
-32.73%

$74.00

List price $110.00

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

95-6552B main

Metra 95-6552B Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2015-2023 Charger

-36.55%

$499.99

List price $787.99

RB10CHR15 main

Stinger HEIGH10 - RB10CHR15 for 2015-2023 Challenger/Charger/300

10.1" Direct Fit Stereo Upgrade for select 2015-2021 Charger and Challenger and 300. Plug-n-Play Kit with CarPlay, Android Auto, & Touchscreen (RB10CHR15)

-41.46%

$1,199.00

List price $2048.00

UBE-DOD-CHA-G7 main

NVX Empty BOOST Box - 2015-2023 Dodge Charger - UBE-DOD-CHA-G7

For select 2015-2023 Charger - Single 10" Empty BOOST Sealed Enclosure

-16.67%

$209.99

List price $251.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Product Highlights


5-1/4" Type-R 2-Way Component System • 600W Max • 200W RMS • IX Series 4-Channel Class D Car Amplifier • MOSFET Power Supply • CEA-2006 Compliant Amplifier • Amplifier Kit • Sound Dampening Material

Description


Alpine brand icon

Authorized dealer

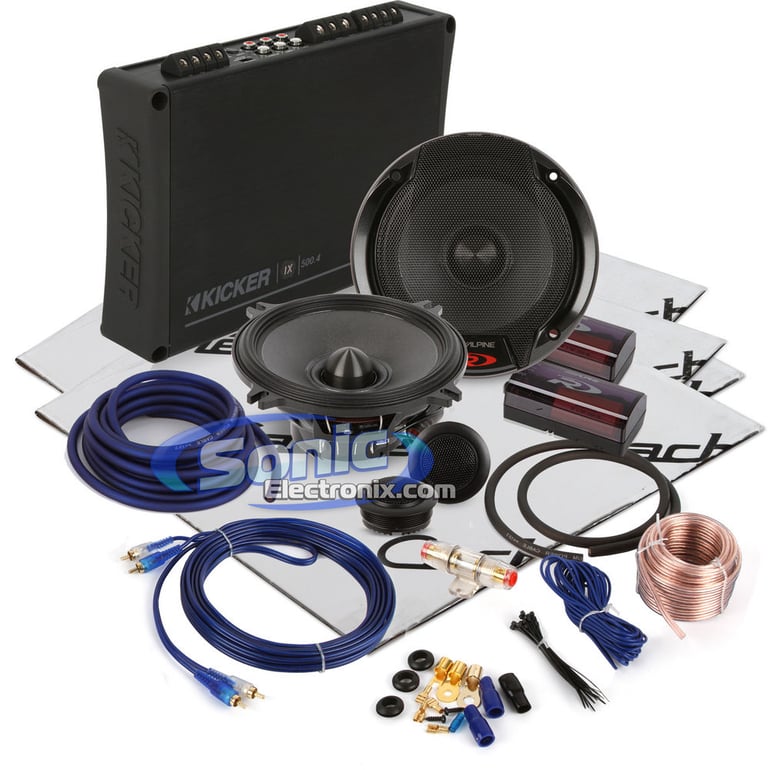

Kicker Amplifier and Alpine Speakers Bundle

This Sonic Electronix Exclusive offer showcases a pair of 5-1/4" Alpine Type-R Component Car Speakers. These speakers are rated at 600 watts Peak power per set, and 300 watts RMS per set. The speakers feature a Multi-Layer Hybrid Fiber cone and High Amplitude Multi Roll Santoprene surround for rigidity and optimum performance. The component system features high and low pass crossovers, that allow you to control your music more in depth. With a 4 Ohm impedance, 1" Silk ring-dome tweeter, and 7-level tweeter adjustment, these speakers are great if you are looking to improve that factory installed sound in your vehicle.

In order to provide the sufficient power to the Type-R speakers, this bundle will also include a Kicker IX500.4 4-Channel Class D IX Series Amplifier. This amplifier is rated at 75 watts x 4 Chan. @ 4 Ohms, 125 watts x 4 Chan. @ 2 ohms, and 250 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features Kicker's Fail Safe Technology, that helps to reduce noise or electrical interferences that are usually caused by engines, alternators or any other source throughout your vehicle. Also featured is variable high and low pass filters for complete control of your music. This CEA-2006 compliant amplifier will give true rated power each and every single time. In addition this bundle will include a complete 4 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes 2 10" x 10" Pieces of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

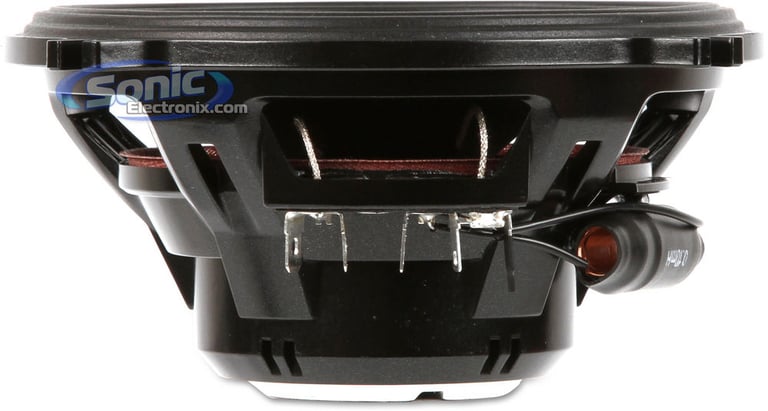

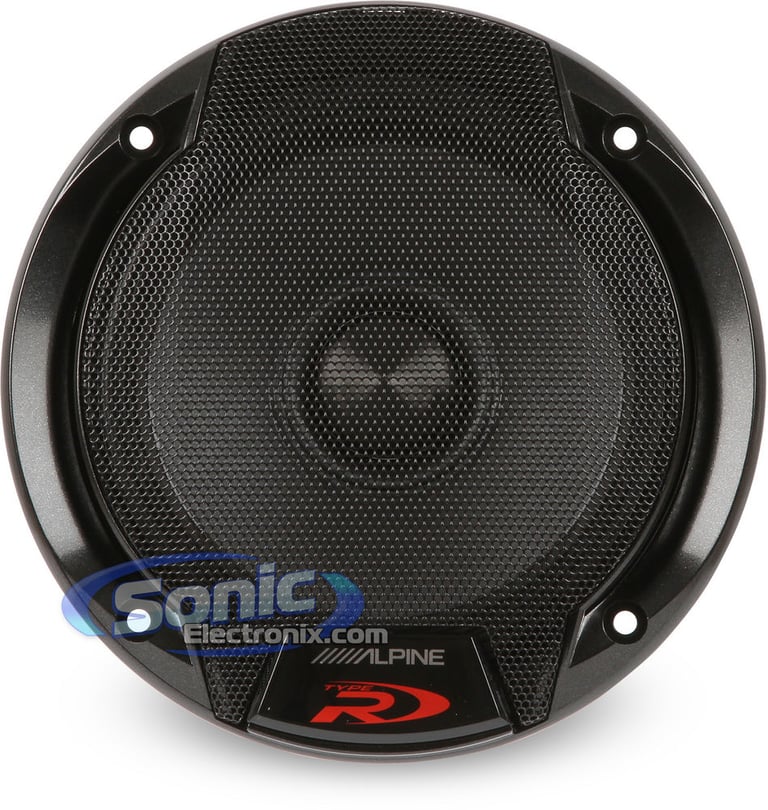

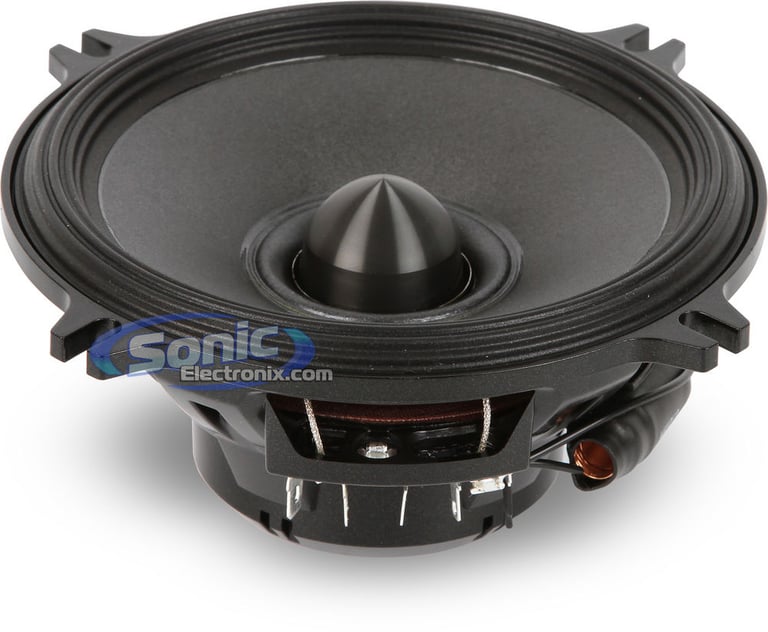

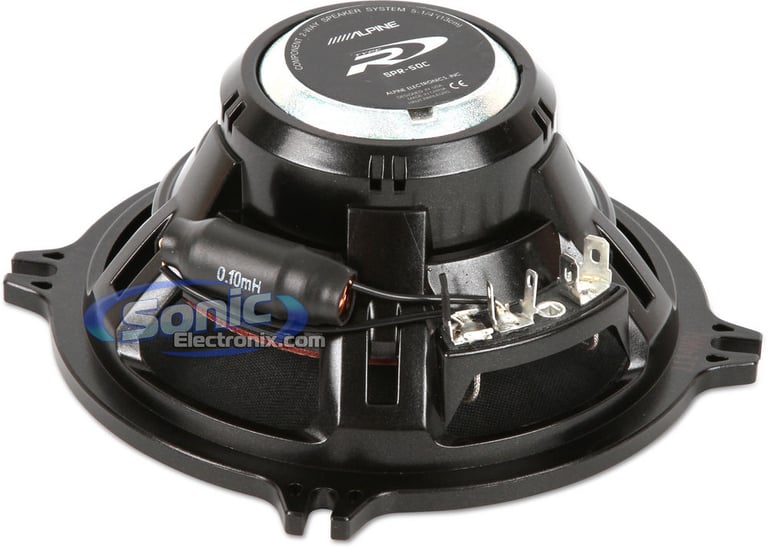

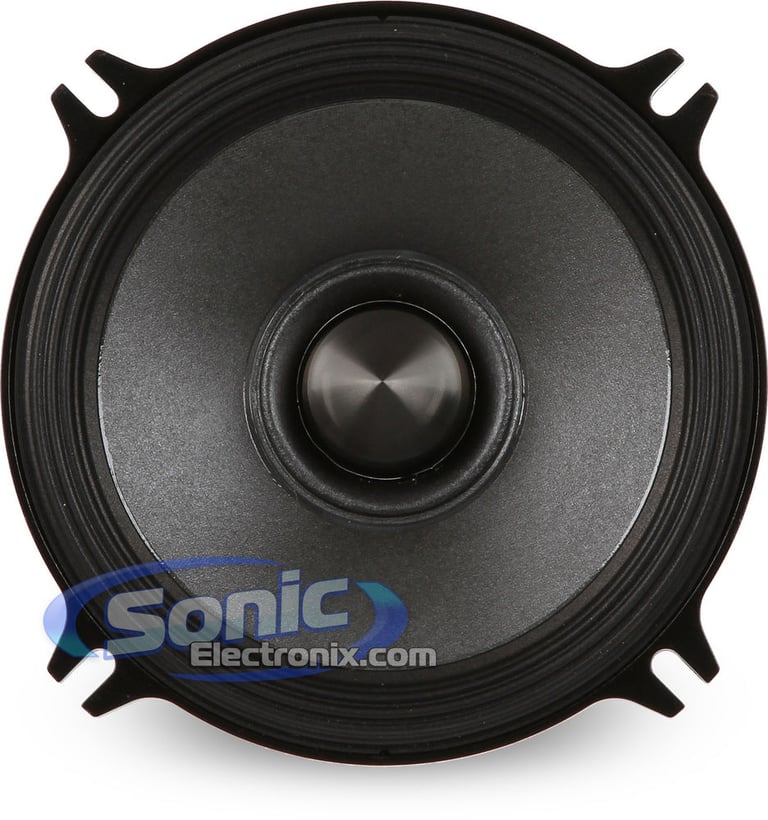

Alpine SPR-50C Features:
  • 5-1/4" Type-R 2-Way Component System
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • Impedance: 4 ohm

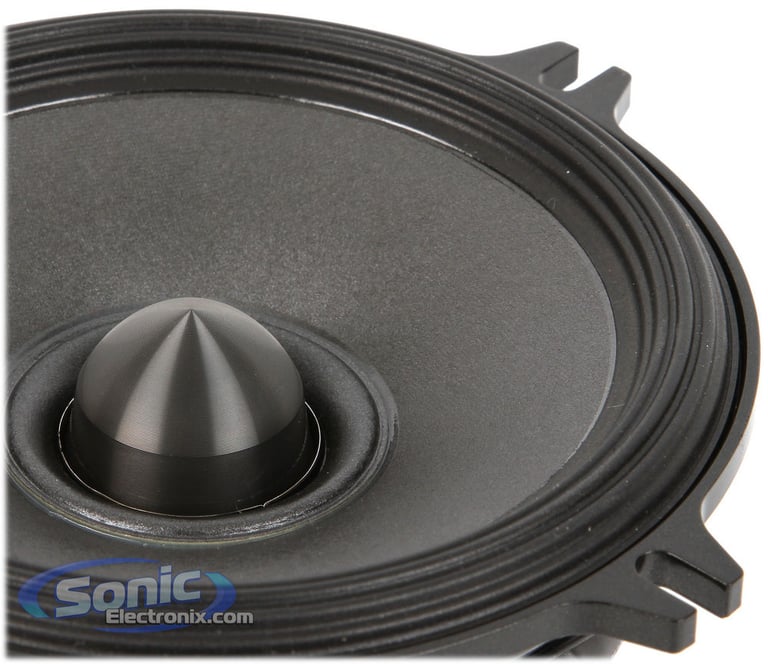

  • Multi-Layer hybrid fiber cone delivers a really strong bass response
  • High Amplitude Multi Roll (HAMR) Santoprene rubber surround provides consistent, extended cone movement

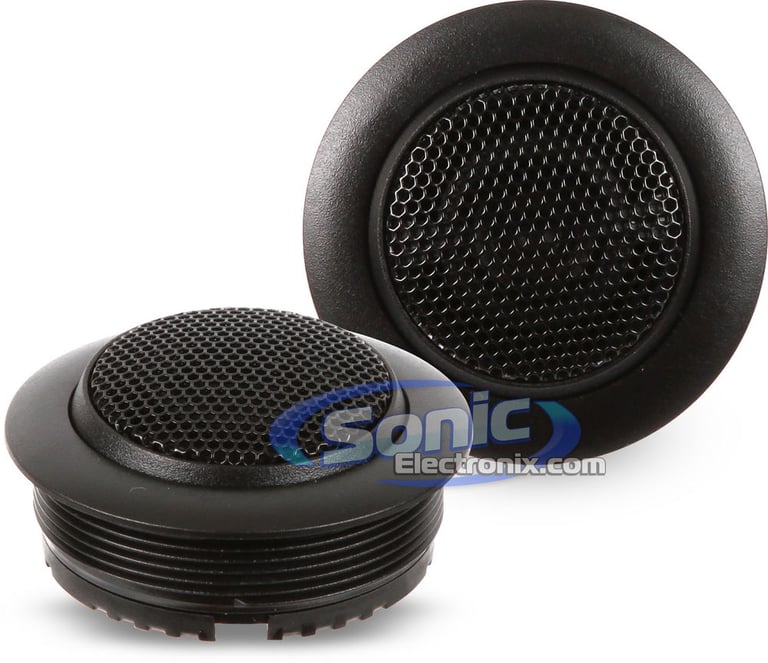

  • 1" Silk ring-dome tweeter produces smooth highs

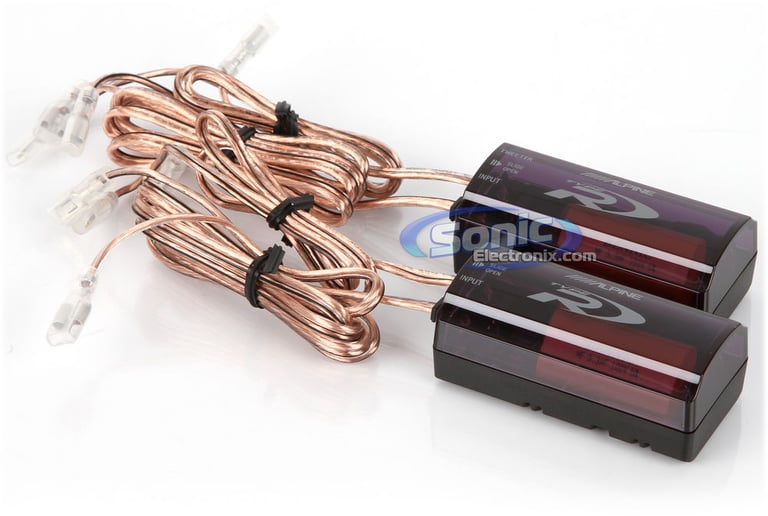

  • External crossovers — 12 dB per octave (high-pass) and 6 dB per octave (low-pass)
  • 7-Level tweeter adjustment
  • Powerful neodymium magnets
  • High-Density polymer frames
  • Frequency Response: 70 - 29,000 Hz
  • Sensitivity: 87 dB
  • Top-mount depth: 2-1/4"
  • Cutout Diameter: 4-11/16"
  • 1-year SonicElectronix.com warranty

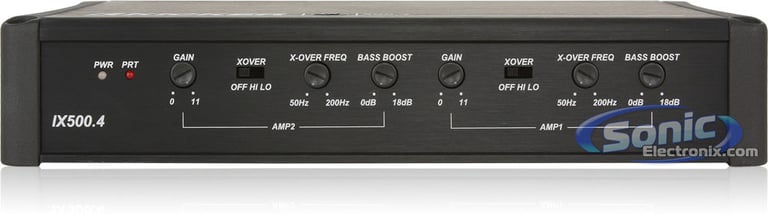

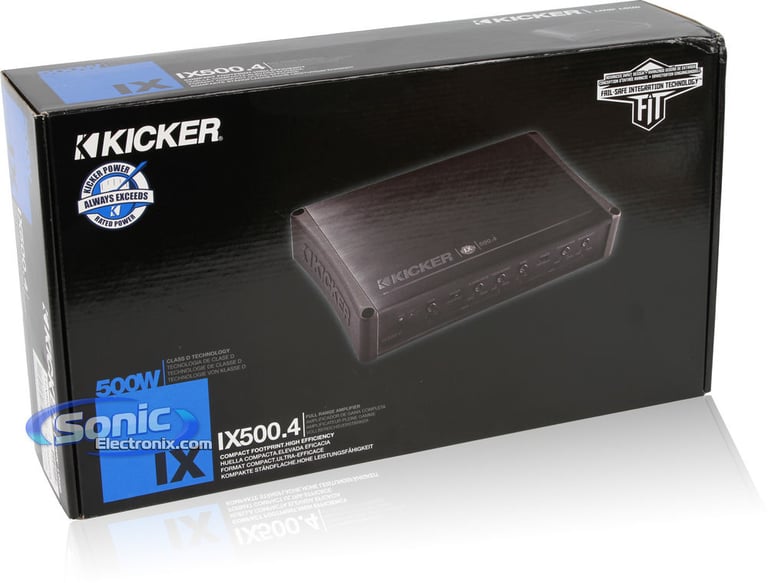

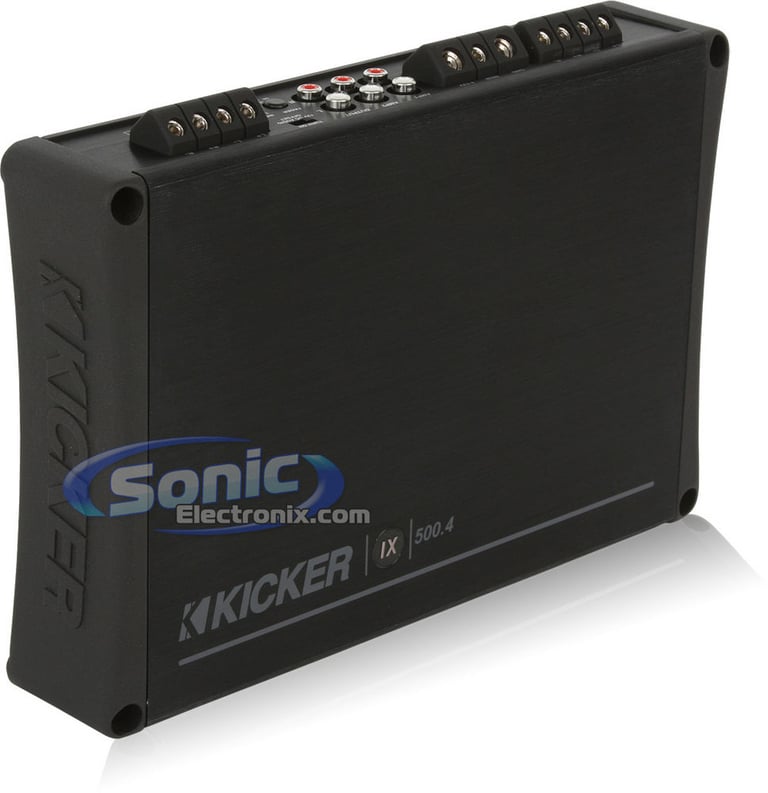

Kicker 11IX500.4 Features:
  • IX Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Total RMS power output: 500 watts
  • Max Power output: 1000 Watts
  • High-efficiency nonregulated MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
  • Optional Kicker 10IXSM stacking mounts available for a clean install
  • Optional vinyl skins for personalizing heat sinks available
  • Super-small footprint for easy mounting, decreased weight, and increased cargo space

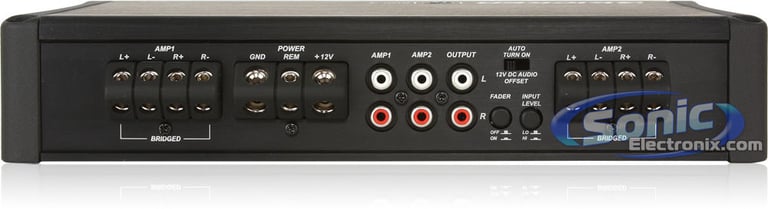

  • 4/3/2 channel operation
  • Preamp RCA outputs
  • 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, amd overvoltage)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Built-in electronic crossover for variable high-pass filters, low-pass filters, and off (bypass)
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 11-3/8"L x 7-7/8"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

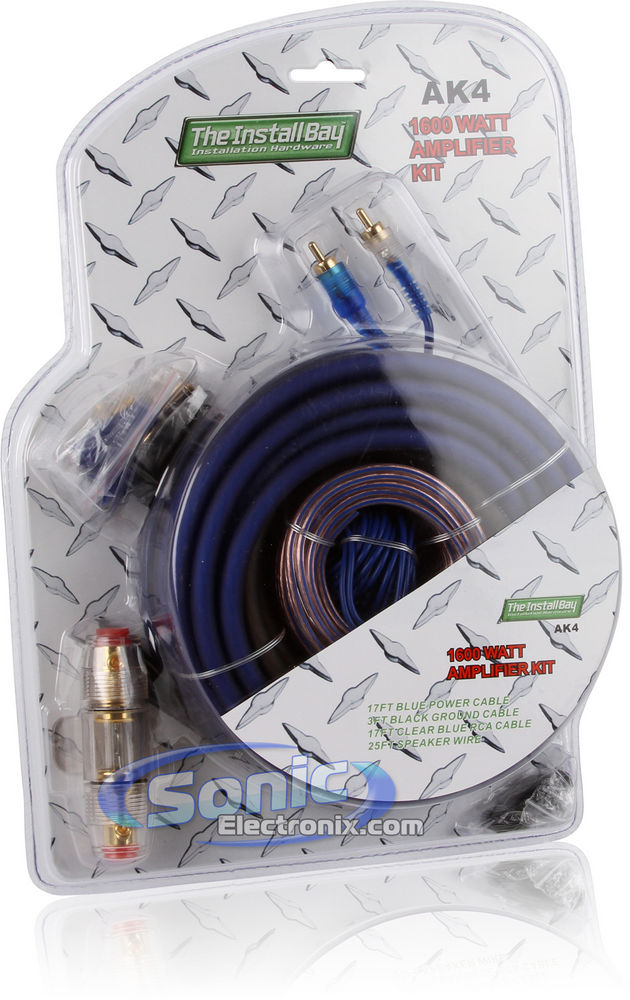

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

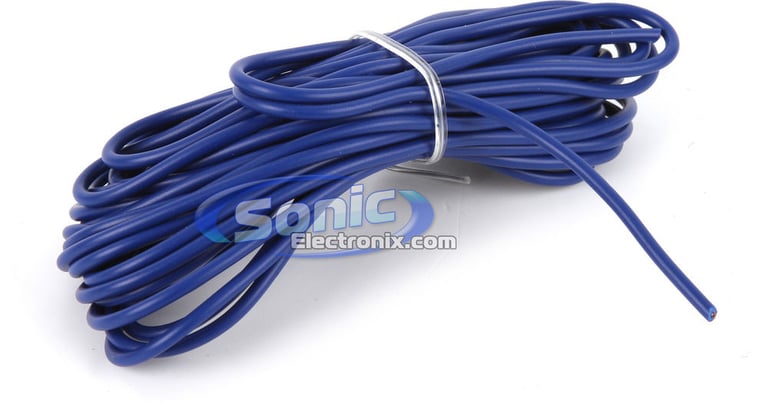

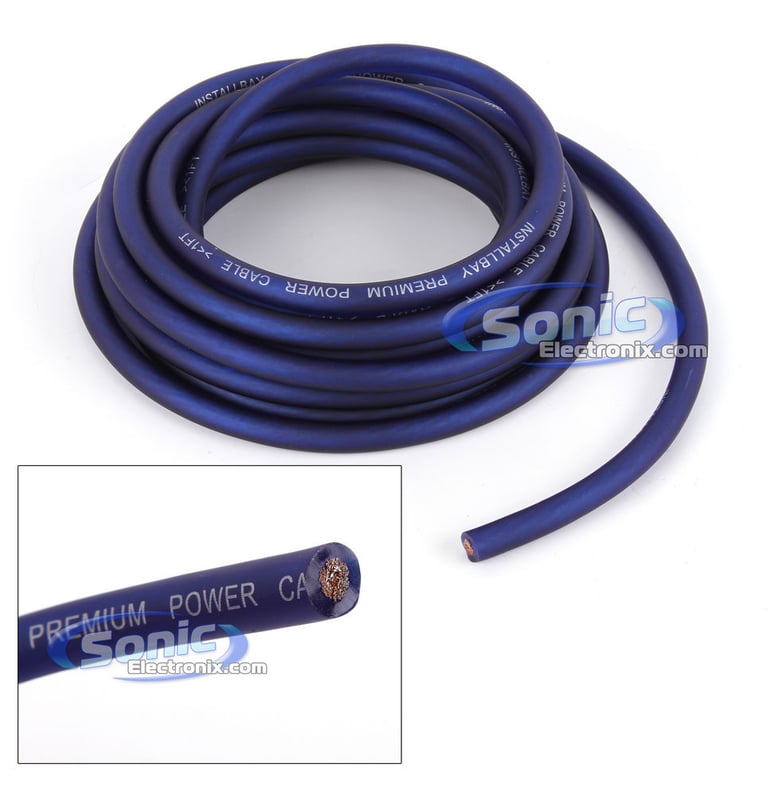

  1. 17 ft. of Blue power cable

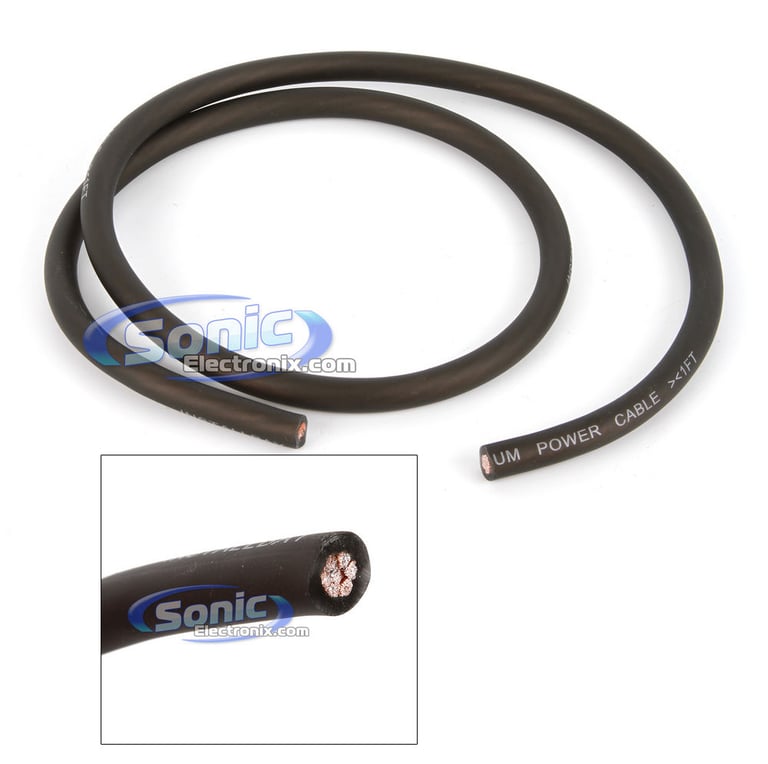

  2. 3 ft. of Black ground cable

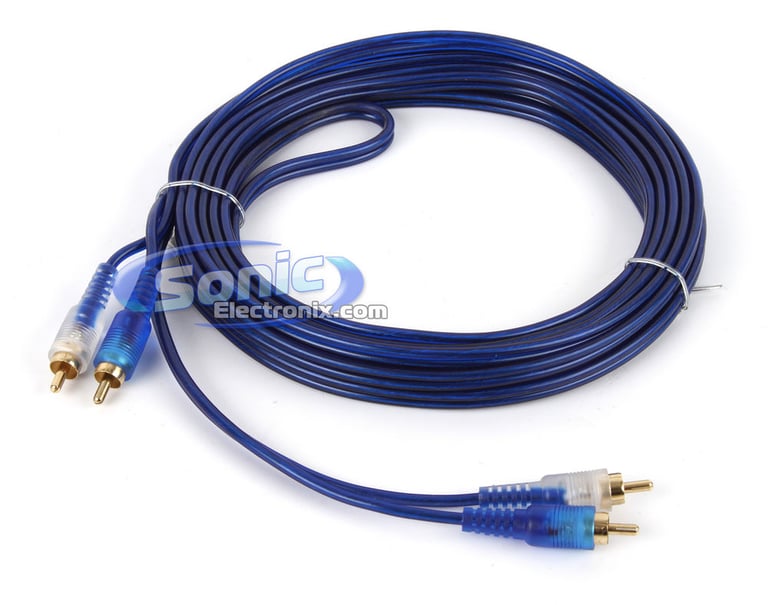

  3. 17 ft. of Clear/blue RCA cable

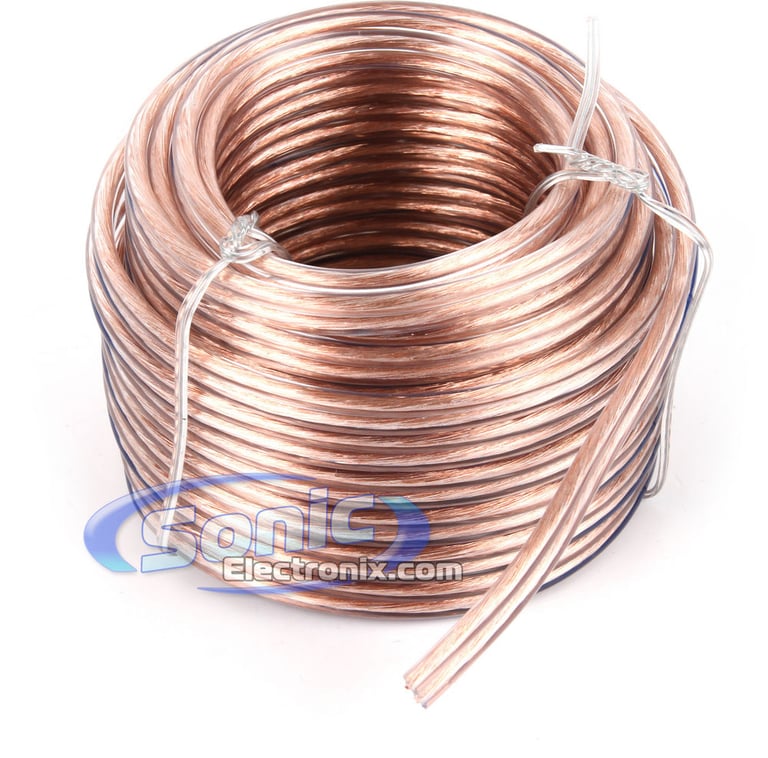

  4. 25 ft. of Speaker wire
  5. 17 ft. of Remote turn-on wire

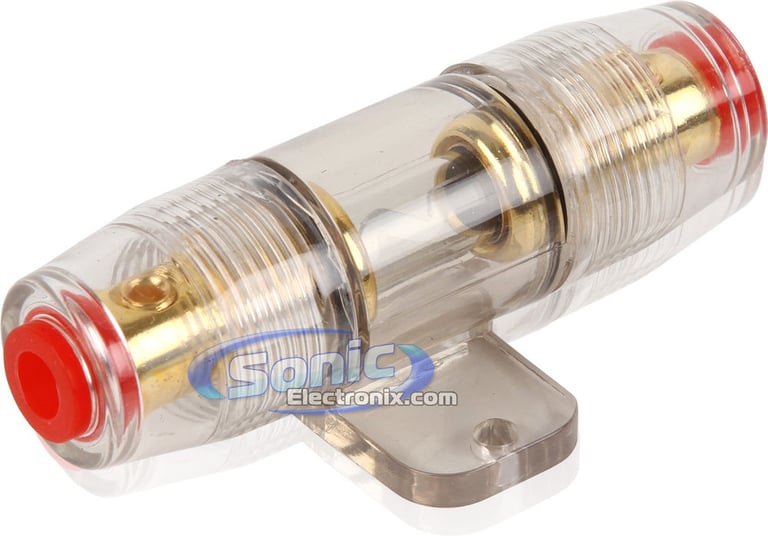

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse
  8. Installation hardware
Cache CSM Features:
  • Pair of Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Loading...
BE-DODCHA-G7 main

NVX Loaded BOOST Box - 2015-2023 Dodge Charger - BE-DODCHA-G7

For select 2015-2023 Charger - Single 10" 500W RMS Loaded BOOST Sealed Enclosure

3
-20.00%

$299.99

List price $374.99

KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

189
-38.14%

$255.32

List price $412.71

PBK-DODCHA-G7 main

NVX PBK-DODCHA-G7 - 2015-2023 Dodge Charger - Complete Bass Package

For select 2015-2023 Charger - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

92
-25.09%

$629.99

List price $840.96

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

Specifications & Details


Front Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Shallow Mount Installation
No
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Hybrid Fiber Pulp
Woofer Surround
Santoprene Rubber
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Sensitivity
87 dB
Frequency Response
70 - 29,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-11/16"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Peak Power Output
250 watts x 4 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11IX500.4_SPR-50C

Weight:

20.46lbs

Internal SKU:

11ix5004_spr50c

Internal Product ID:

36901

Product and How-to Videos


Customer Ratings & Reviews


Alpine Speakers + Kicker Amplifier Bundle thumbnail image

5 star
60%
4 star
28%
3 star
9%
2 star
2%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

has it all

The following review is for AK4, which is a part of the bundle you are viewing.

Kit has everything you need for a hassle free installation, I was thinking I wasn't going to need it, but was glad I had it after things got going.

By steven on September 10, 2012

110 found this helpful


Great Value!!!

The following review is for AK4, which is a part of the bundle you are viewing.

If your looking for an amp install kit with all of the necessities that doesn't cost and arm and a leg this is it. The kit came with everything needed to get power to my amp the length was perfect for a extended cab pickup. The RCA's lack a little but I just used these single channel RCA's to run my sub amp and I bought some Streetwire 4 ch RCA's for the 4 ch amp and it's turned out great. I've always had good luck with Install Bay products!!! I would recommend to any one in search of a good Amp Install Kit!!!

By Dalton on October 5, 2013

106 found this helpful


Love

The following review is for AK4, which is a part of the bundle you are viewing.

I bought this my my 2007 jetta. It work really good the it was easy to put on. I would buy this again.

By Kiera on February 1, 2013

109 found this helpful


2nd time with this install bay kit

The following review is for AK4, which is a part of the bundle you are viewing.

its a great kit for the price. I bought it once for a buddys Suby and then for my father in laws econoline van. never had a problem with either. sonic can be slow at shipping. but if on a budget this kit kicks butt for the price....not much online can compare for a 4 gauge and price. never a problem with feed back or crappy rca. might have to get a few better connectors but hey its a given. anyways great kit. also great for a basic systems. I wouldn't run more then 100 amps of power max.

By marklar on September 17, 2013

104 found this helpful


Does what its suppose to do!

The following review is for AK4, which is a part of the bundle you are viewing.

This product is exactly what it is, a kit! I LOVE IT, everything i needed was included and durable! the 4ga wire is true to size! (not just labeled 4ga IT REALLY IS!) if needed, id purchase again!

By Alex on August 14, 2012

103 found this helpful


New amp kit

The following review is for AK4, which is a part of the bundle you are viewing.

Not much to review, It works fine. The only issue is that the power cable doesn't fit into the fuse holder. The fuse glass and holder plastic actually cracked when trying to close it. I'm sure I'll have to replace them soon. Other then that, it's good enough to power my amp with no issues. Yes, I would recommend it to others, just be careful when connecting the fuse holder and power wire. Don't use force!

By Rey on November 12, 2013

103 found this helpful


Decent Install Kit

The following review is for AK4, which is a part of the bundle you are viewing.

This kit isn't too bad it does the job. The fuse holder seems a little bit cheap on the plastic material but it works. The power cable held up to my abuse when I ran it through my tight space trims in my vehicle and I had to really pull them hard to get through. The RCA cable is a bit thin but I used it for my subs anyways so no problems there.

By Michael on September 10, 2012

99 found this helpful


Decent for the money

The following review is for AK4, which is a part of the bundle you are viewing.

I originally bought and 8 gauge cuz that's what my amp called for, it was a joke so I returned it and got this 4. Easy return/ exchange. Sounds like it happens a lot...
I think these kits are measured on the outside including plastic diameter not the inside wire.

Anyways buy the next size down from what you need. Kit came with lots of little parts to make the install ez. Would buy again for a 200-400 watt amp

By Land rover on November 7, 2013

98 found this helpful


AK4

The following review is for AK4, which is a part of the bundle you are viewing.

Bought the Installbay AK4, pretty decent pricing although its wire is very brittle and falls apart when splicing it so be careful. Also remember your going to need a crimping tool so look for one before getting too excited. Overall good product, no problems encountered

By image on March 3, 2011

97 found this helpful


Great product!

The following review is for AK4, which is a part of the bundle you are viewing.

Now my 1993 honda accord sounds better than ever! Exellent product 100% recomended!

By Andres L. San Miguel on October 31, 2014

100 found this helpful




AK4 main

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

• 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
• Perfect for 1600 Watts Amplifier Setup
• 17ft. Blue Power Cable
• 3ft. Black Ground Cable
• 17ft. Blue RCA Cable

(119)

$57.99

List price $64.99


M500V-S-2M small

Monster Cable S-Video Cable (M500V S-2M)

6.56 ft. (2 meters) of 500cv High Performance S-Video Cable

$37.99

List price $49.99

AM22111-06 small

Belkin AM22111-06

6 ft. (1.8 Meters) of Component RCA Audio HDTV Cable Kit

$17.99

List price $39.99

No picture

iConnects Stage 3 iS3DC3

9.84 ft (3 meter) of Digital Coaxial Cable

$17.99

List price $24.99

AV21300-06 small

Belkin PureAV AV21300-06

6 ft. (1.8 Meters) of PureAV Blue Series RF Coaxial F-Pin Video Cable (Black)

$9.99

List price $12.99

89036J small

Motorola H500 (Pink)

Hands Free Bluetooth Headset with 10 Hours of Talk Time (89036J)

$29.99

List price $69.99

IHT-VGA3RCA-2 small

Icarus IHT-VGA3RCA-2

HD15 (VGA) to RCA Cable for HDTV's, LCD Displays and Plasma Screens

$8.99

List price $16.99

No picture

Monster Cable GA-PS3-CVA-8

$9.99

List price $0.00

M1000SV-4M small

Monster Cable S-Video Cable (M1000SV-4M)

13.12 ft. (4 Meters) of Ultra High-Resolution M 1000 Silver Video S-Video Cable (M1000sv)

$27.99

List price $99.99

USB1000 small

American International USB1000

Universal 0.25" to 1" Spacers for 6" to 6.75" Speakers

$18.99

List price $59.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Ram 3500

2018 Dodge Charger

1995 GMC K2500

2014 Lincoln Navigator

1998 Isuzu Oasis

2008 Audi TT

2016 Buick Regal

2018 Ram 2500

2023 Audi e-tron Quattro

1999 Chevrolet Blazer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
