Product Highlights


6" x 9" Punch Series 2-Way Car Speakers • 300W Max • 150W RMS • REN Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • 3-Way System Protection Circuitry • Amplifier Kit • Sound Dampening Material

Description


Rockford Fosgate brand icon

Authorized dealer

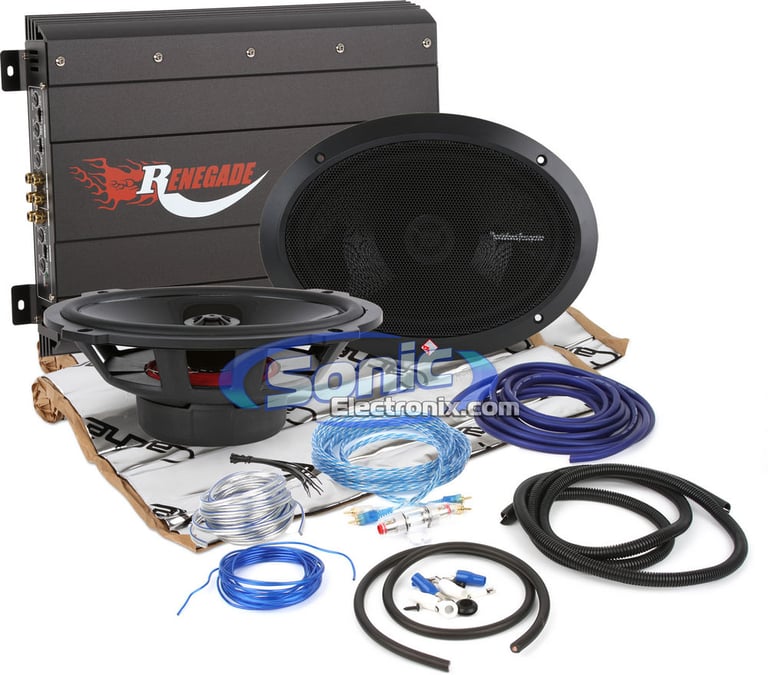

Rockford Fosgate Speakers and Renegade Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 6" x 9" Rockford Fosgate Punch Series Coaxial Car Speakers. These speakers are rated at 300 watts Peak power per set, and 150 watts RMS per set. The speakers feature a Injection Molded mineral filled Polypropylene cone and VAST butyl rubber surround for rigidity and optimum performance. With a 4 Ohm impedance, 3/4" treated PEI dome tweeter and stampcast frame structure, these speakers are great if you are looking to improve that factory installed sound in your vehicle.

In order to provide the sufficient power to the Punch Series speakers, this bundle will also include a Renegade REN1100S 4-Channel Renegade Series Amplifier. This amplifier is rated at 75 watts x 4 Chan. @ 4 Ohms, 135 watts x 4 Chan. @ 2 ohms, and 275 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features 3-Way System Protection Circuitry. Also featured is variable high and low pass filters for complete control of your music. With PWM MOSFET power supply and selectable bass boost, this amp will give you all the power you need. In addition this bundle will include a complete 4 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes one 18" x 32" Piece of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

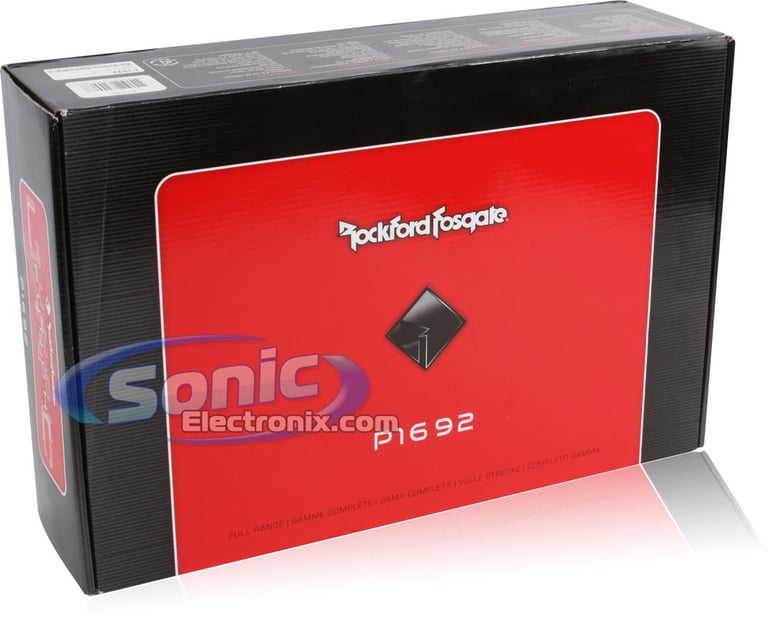

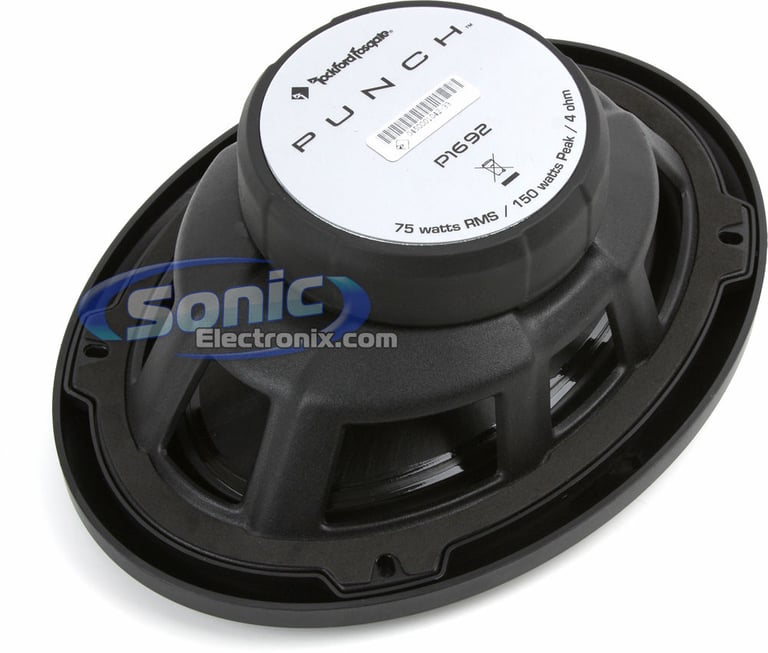

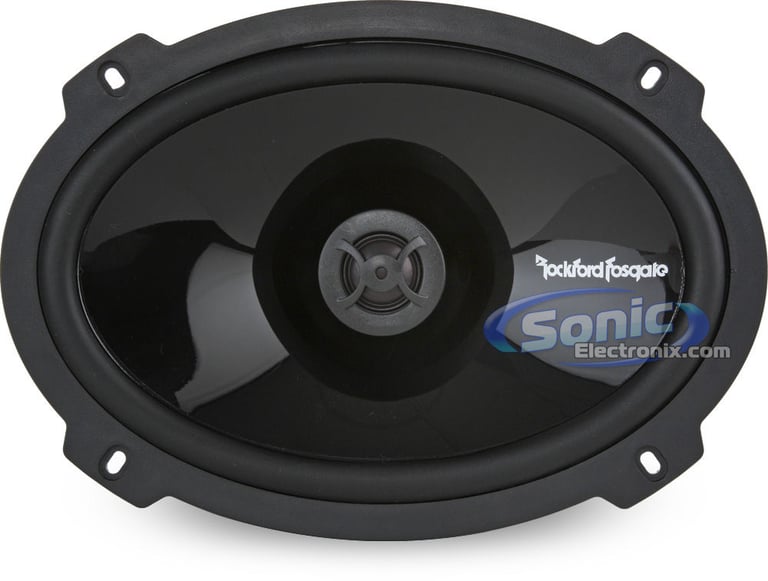

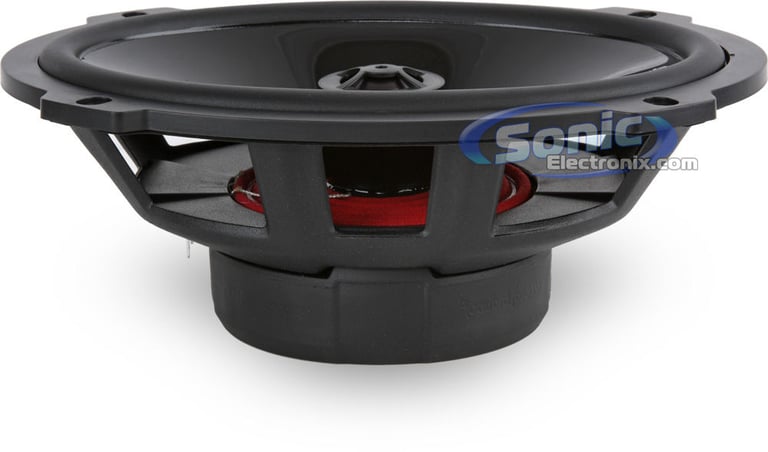

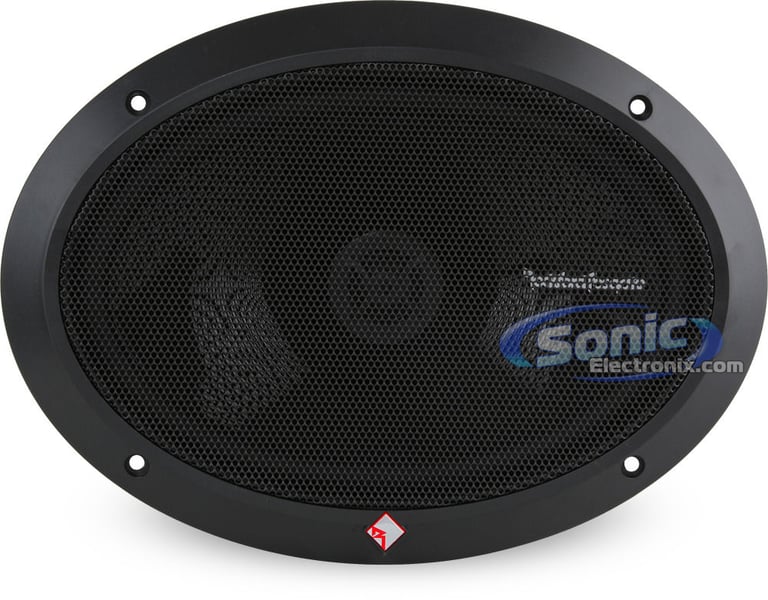

Rockford Fosgate P1692 Features:
  • 6" x 9" Punch Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 150 watts per pair / 75 watts each
  • Injection molded mineral filled polypropylene cone
  • VAST (Vertical Attach Surround Technique) butyl Rubber surround
  • 3/4" Treated PEI dome tweeter
  • StampCast frame structure
  • 4 ohm impedance

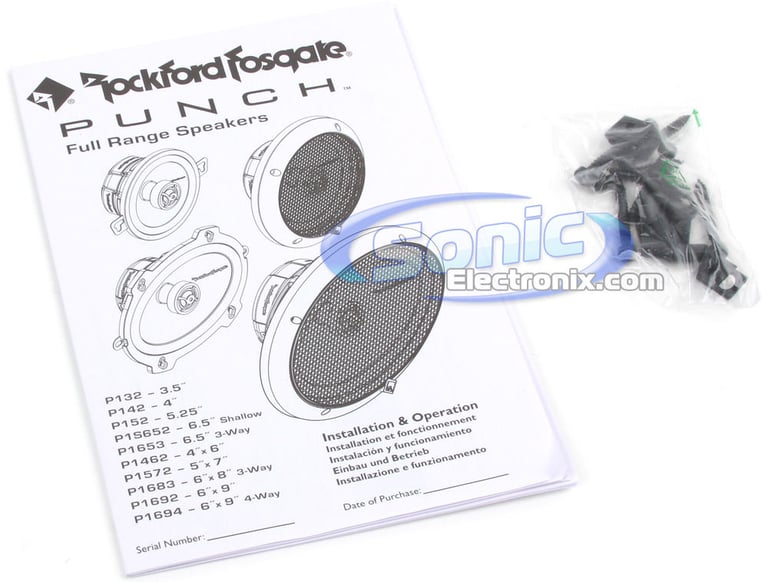

  • Includes grill and mounting hardware
  • Top-mount depth: 3"
  • 1-year SonicElectronix.com warranty

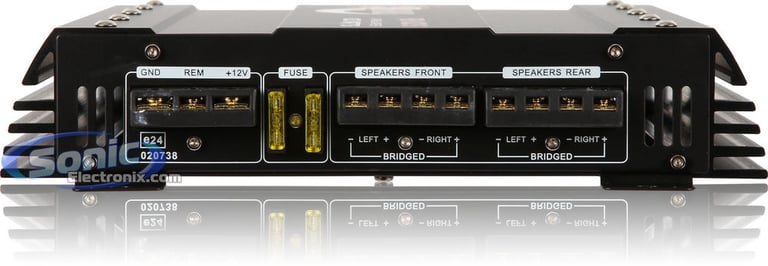

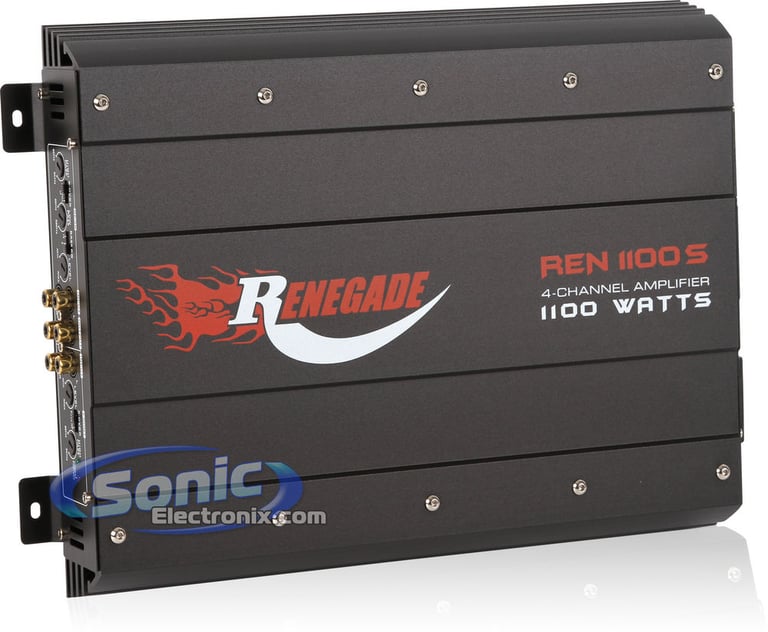

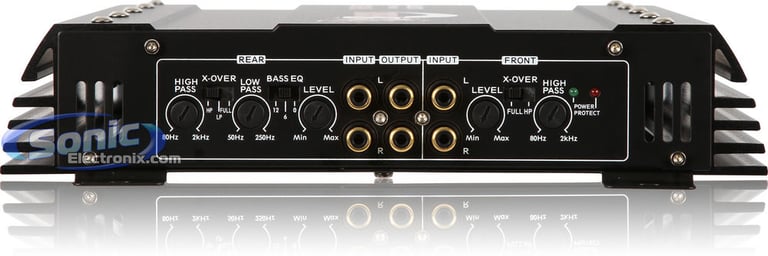

Renegade REN1100S Features:
  • REN Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 135 watts x 4 chan.
    • Bridged, 4 ohm: 275 watts x 2 chan.
  • MAX Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 275 watts x 4 chan.
    • Bridged, 4 ohm: 550 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Super selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level cinch inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 100mV-4V
  • Variable high-pass filter (80-2,000 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Frequency response: 20-30,000 Hz
  • Dimensions: 12-5/8"L x 10-1/16"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

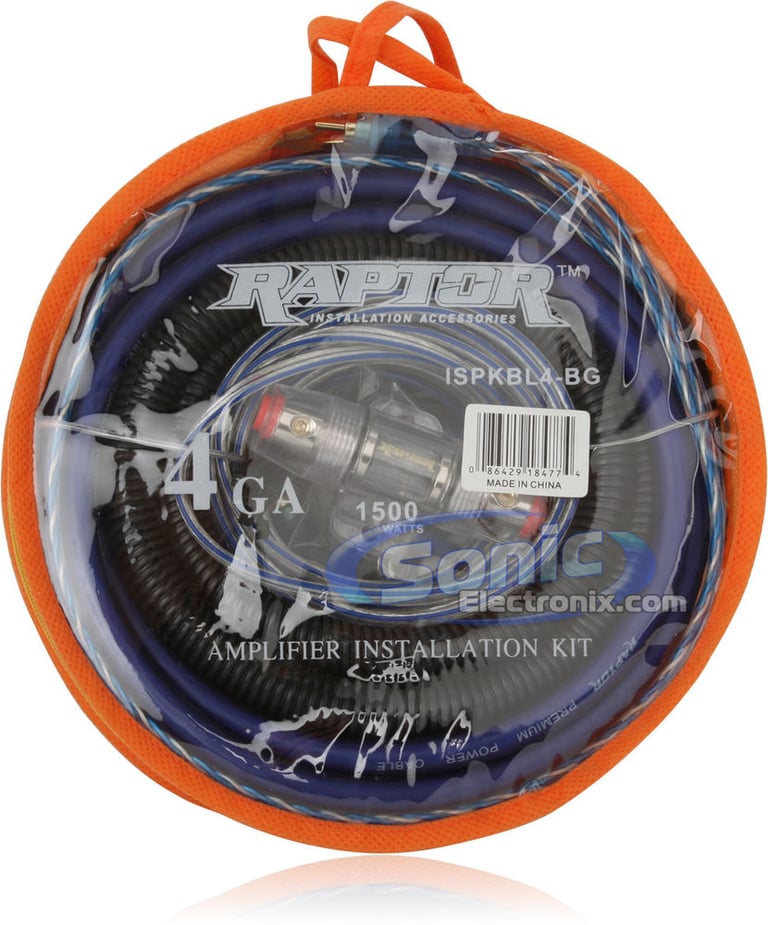

Raptor ISPKBL4-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier

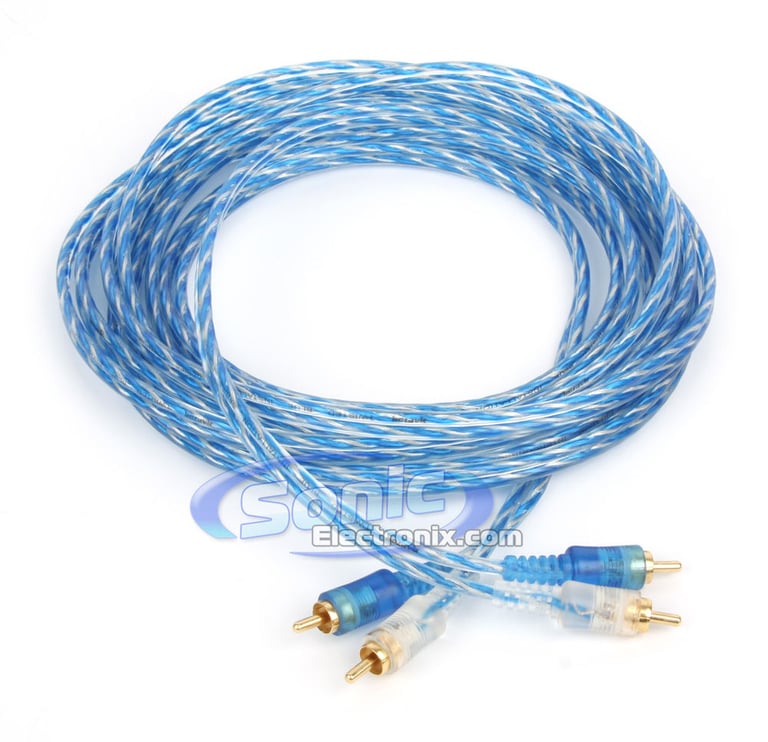

  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL4-BG Includes:

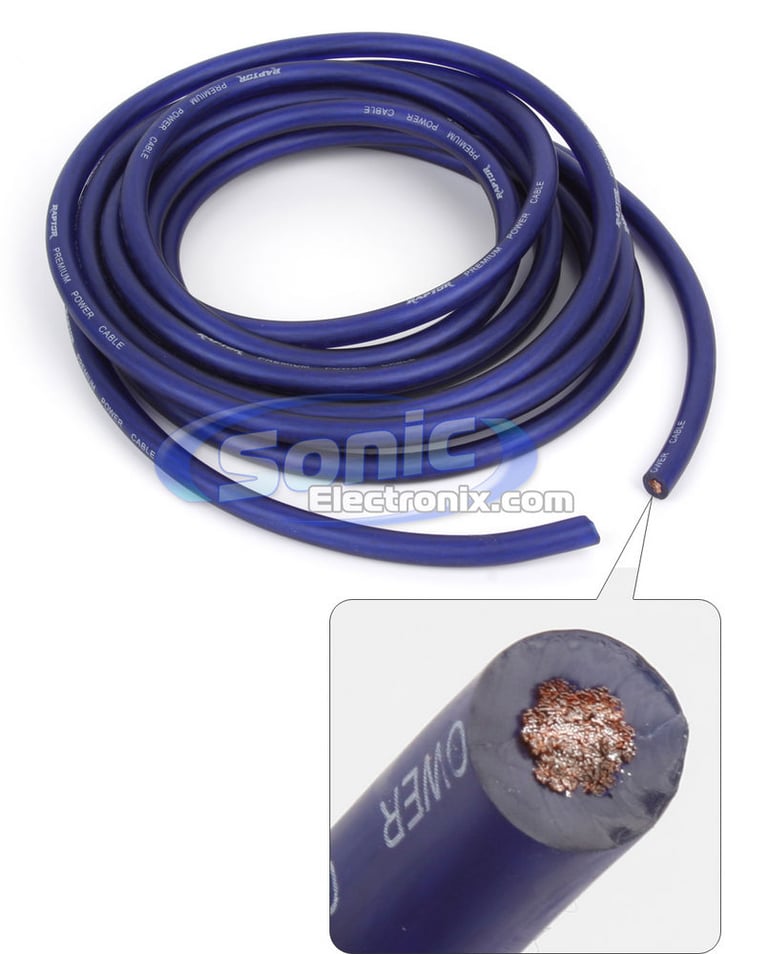

  1. 17 ft. of 4 Gauge blue power cable

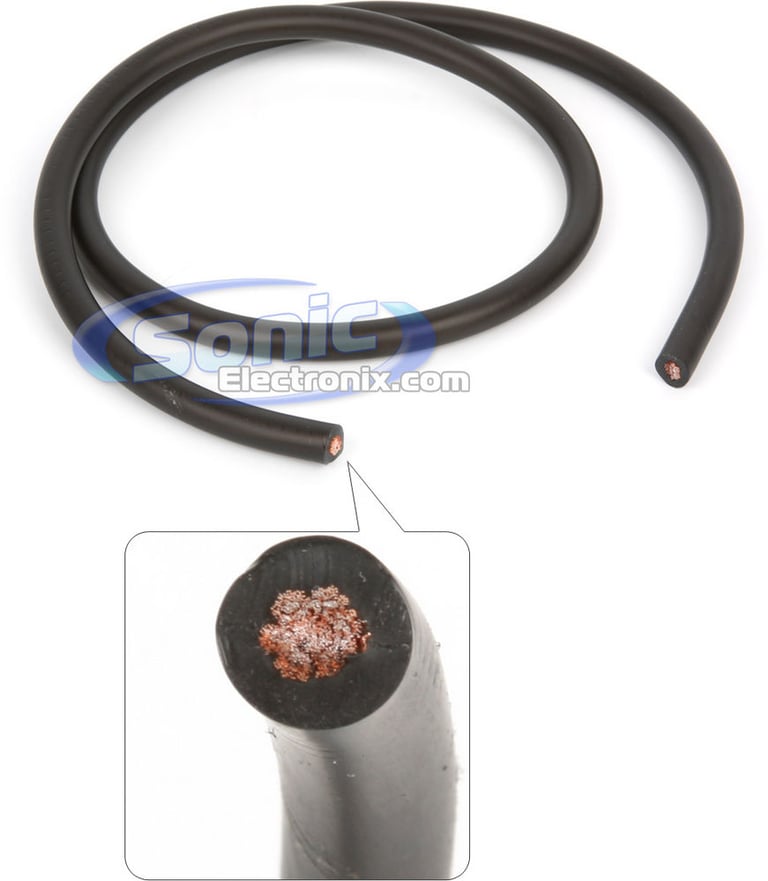

  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable

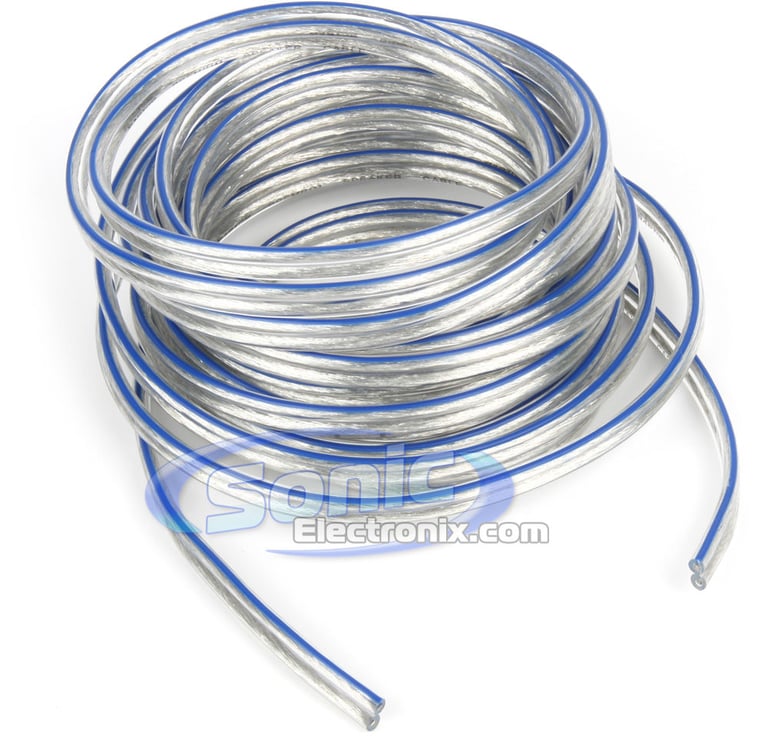

  4. 16 ft. of Speaker wire

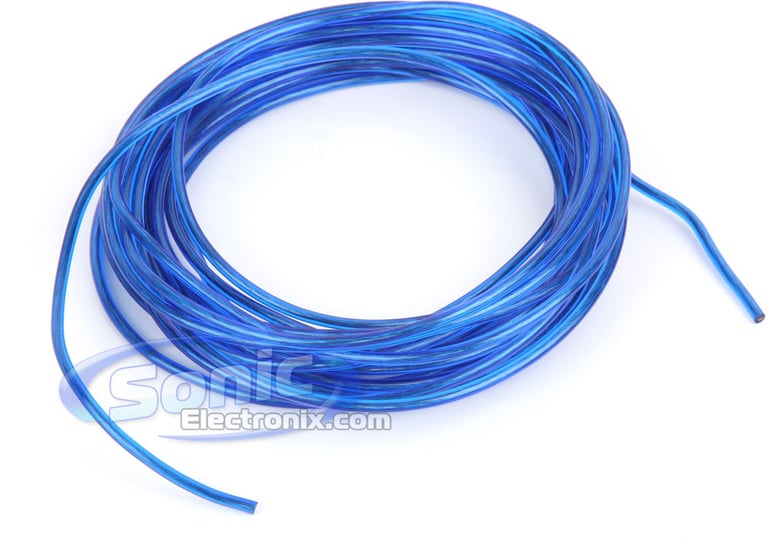

  5. 17 ft. of 18 Gauge blue remote turn-on wire

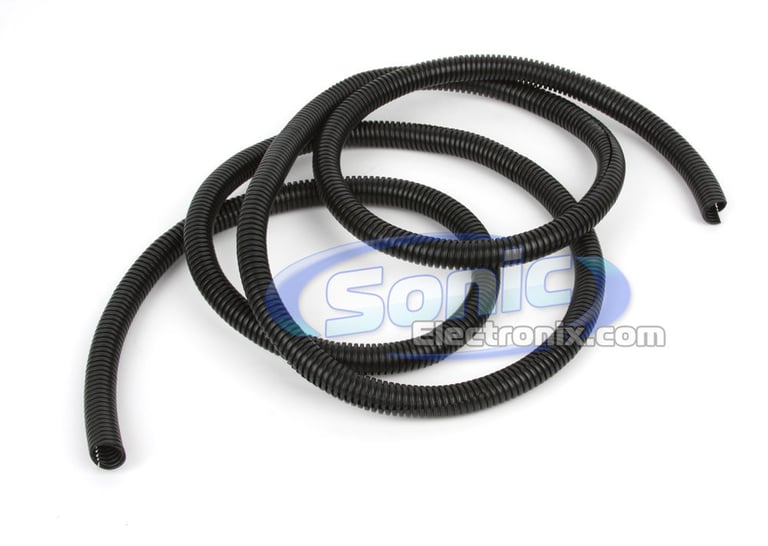

  6. 6 ft. of Split loom tubing

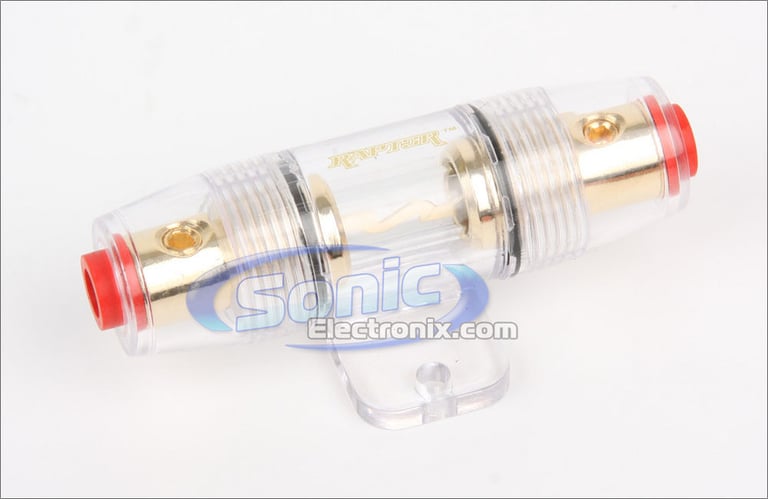

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

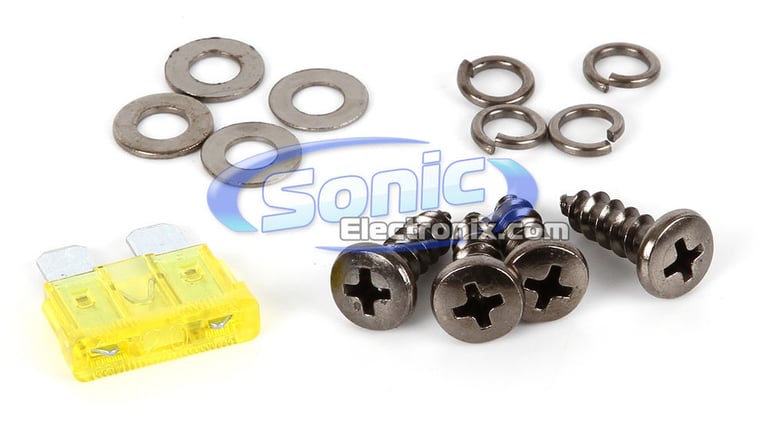

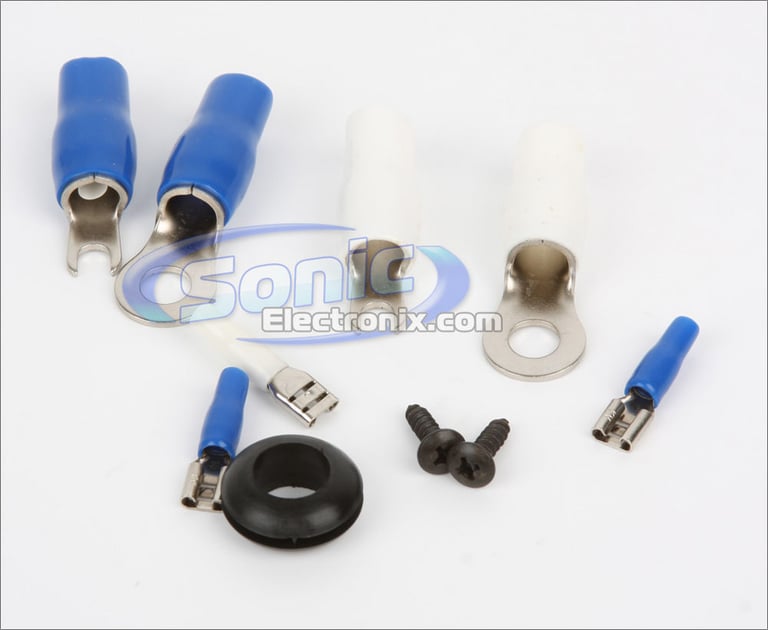

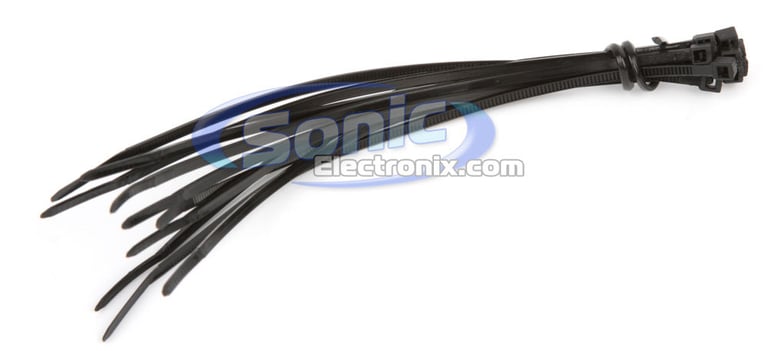

  9. All Necessary Hardware for Installation

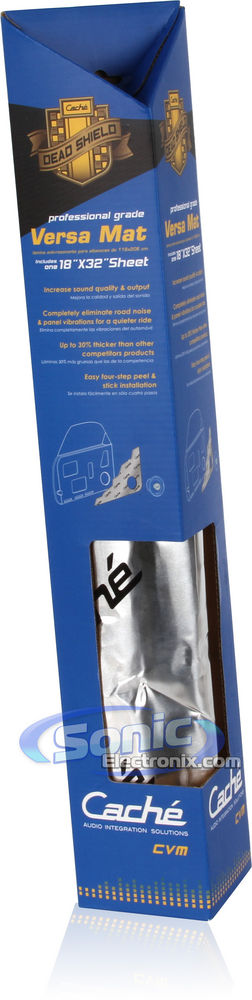

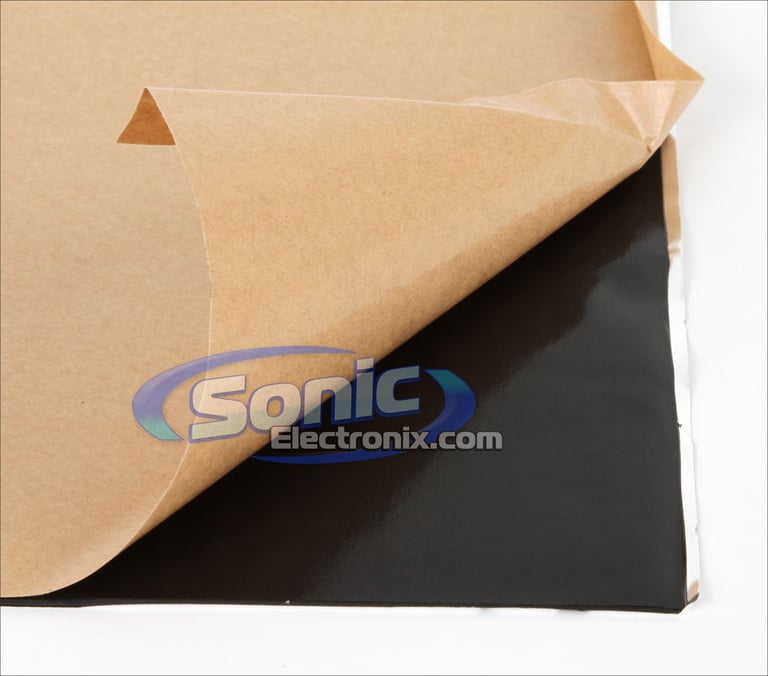

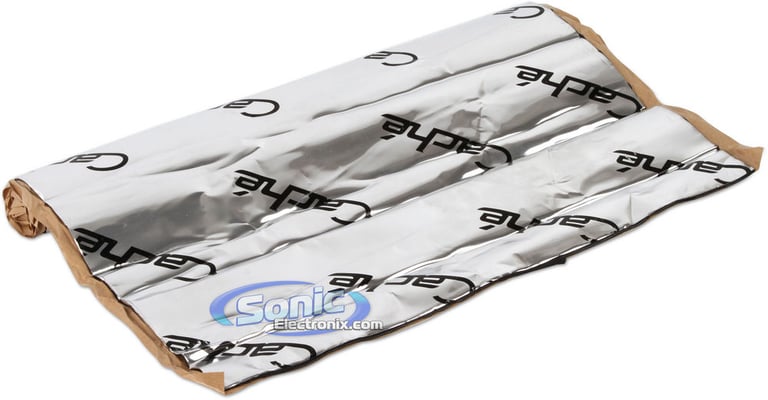

Cache CVM Features:
  • One 18" x 32" Piece of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions: 18"L x 32"W

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Specifications & Details


Front Speaker Specifications
Speaker Size
6" x 9"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
150 watts
RMS Power Handling
75 watts
Sensitivity
91 dB
Frequency Response
60 - 22,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
3"
Cutout Dimensions
8-1/4" x 5-5/8"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
135 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
275 watts x 2 channel
Peak Power Output
550 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1100 watts
Total RMS Power Output
550 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
>80 dB
Channel Separation
>50 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
20A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REN1100S_P1692

Weight:

28.26lbs

Internal SKU:

ren1100s_09-p1692

Internal Product ID:

36904
