See all parts that fit your 2014 GS350

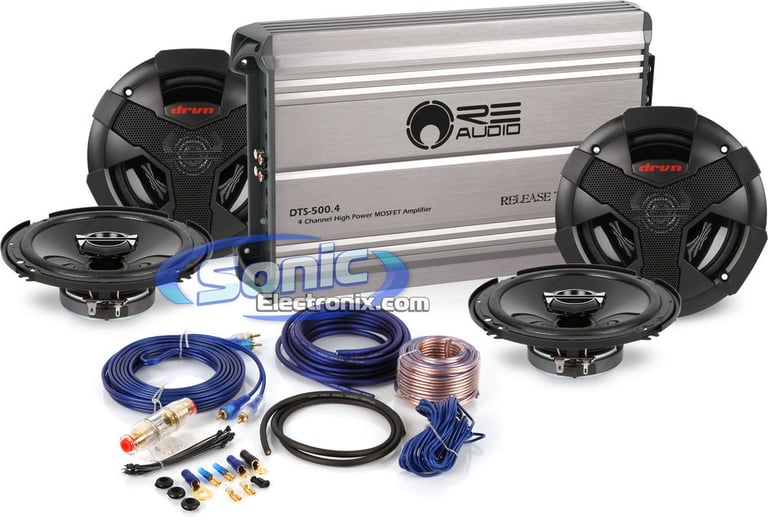

Combo: 2 Pairs of JVC CS-V627 + 1 RE Audio DTS-500.4

Two Sets of 6-1/2" Drvn Series Speakers and 400W RMS, DTS-500.4 Amp, Amp Kit, RCA Interconnects

JVC
Shop all JVC
EXCLUSIVE
Product videos
highlight-star-icon

6-1/2" Drvn Series Car Speakers • 2-Way Coaxial • 230W Max • 40W RMS • 4 ohm Impedance • Carbon Mica Woofer Cone • Hybrid Surround • 1" Midrange PEI • Amplifier, and Amp Wiring Kit Included!

Learn more about the dts5004_2-csv627

We apologize

This item has been discontinued


Loading...
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
P165-SI main

Rockford Fosgate Punch P1 P165-SI

240W Peak (120W RMS) 6.5" Punch Series 2 Way Component 4-ohm Speakers

9
K 170 main

Hertz K 170

560W Peak (140W RMS) 6.75” Uno Series 2-way 4-ohm Component Speaker

4
-33.34%

$99.99

List price $150.00

Product Highlights


6-1/2" Drvn Series Car Speakers • 2-Way Coaxial • 230W Max • 40W RMS • 4 ohm Impedance • Carbon Mica Woofer Cone • Hybrid Surround • 1" Midrange PEI • Amplifier, and Amp Wiring Kit Included!

Description


JVC brand icon

Authorized dealer

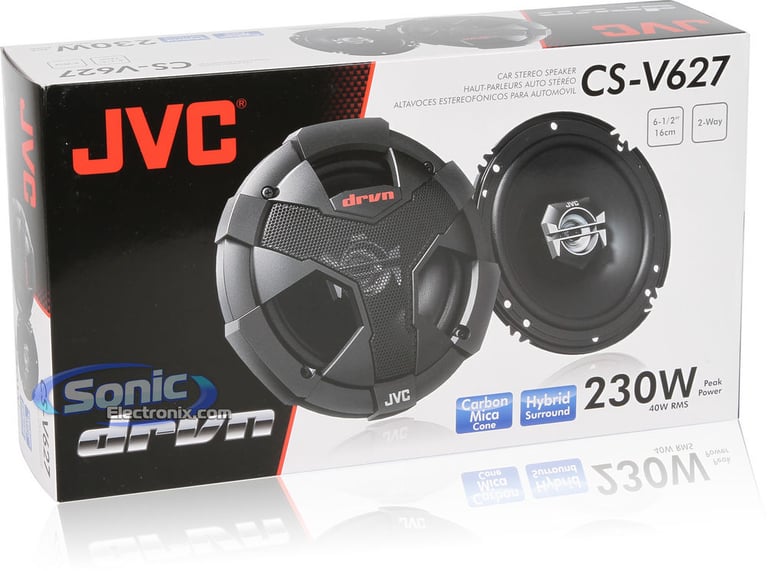

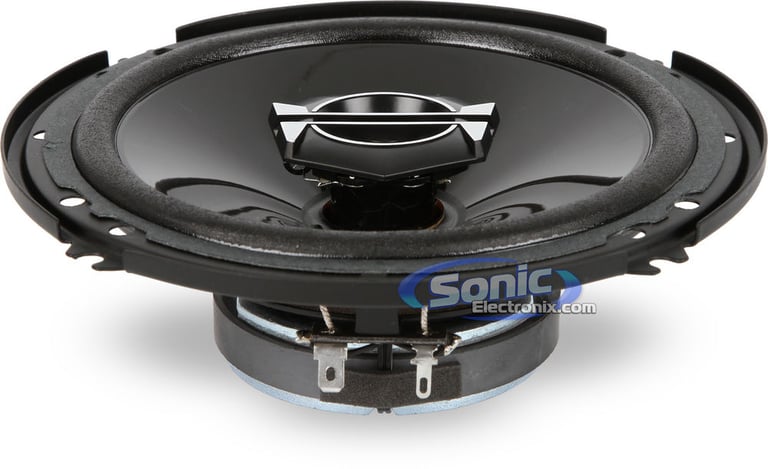

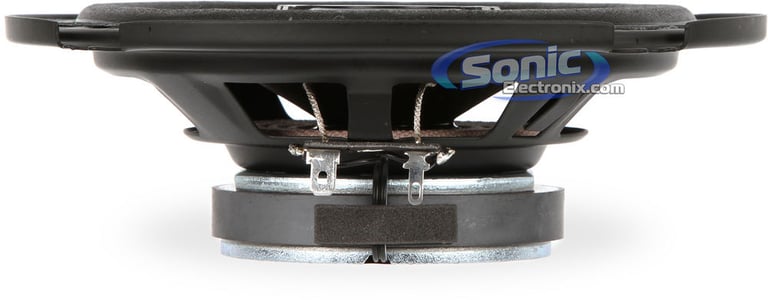

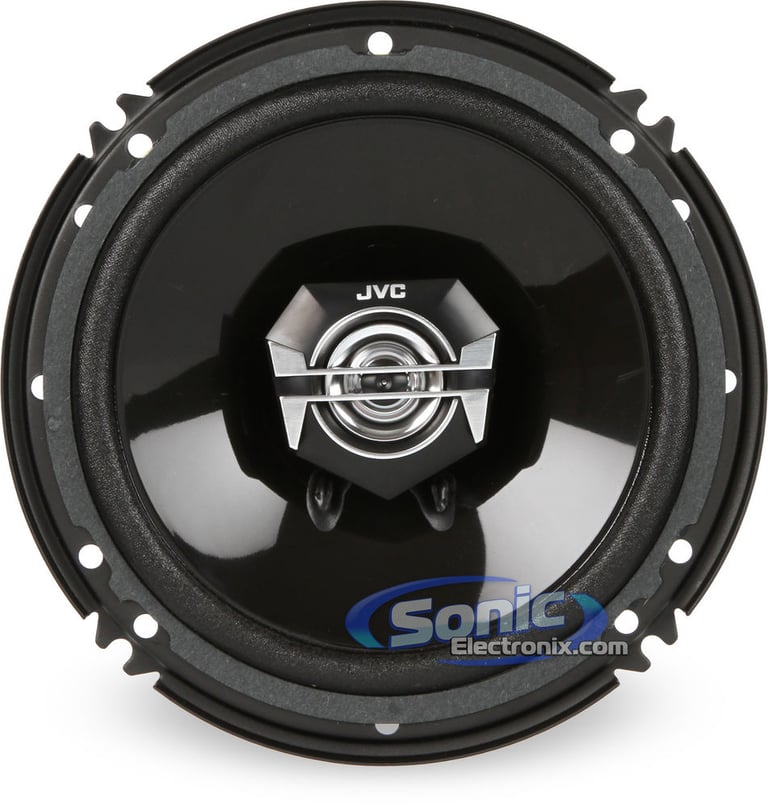

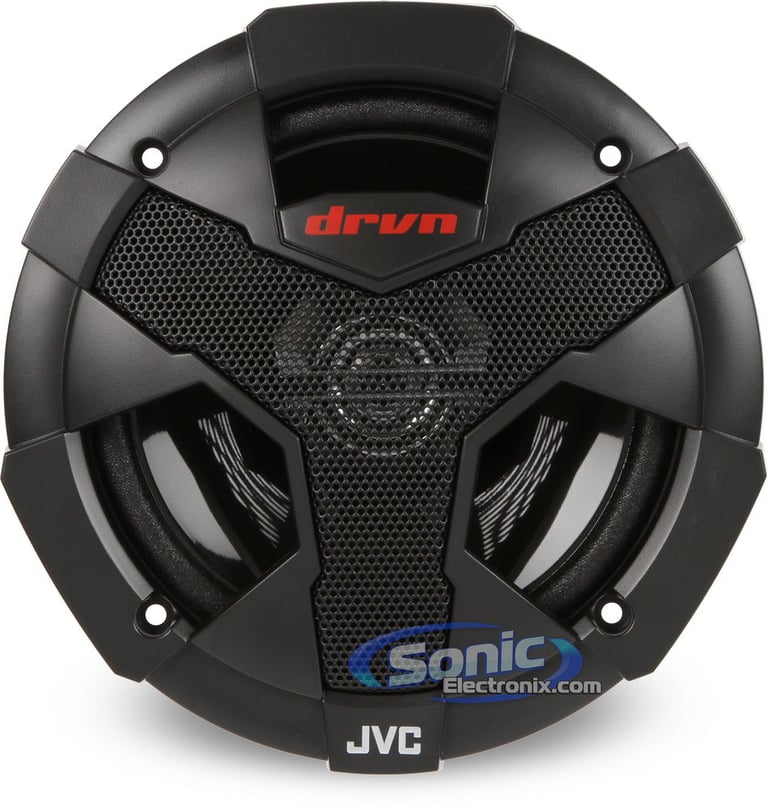

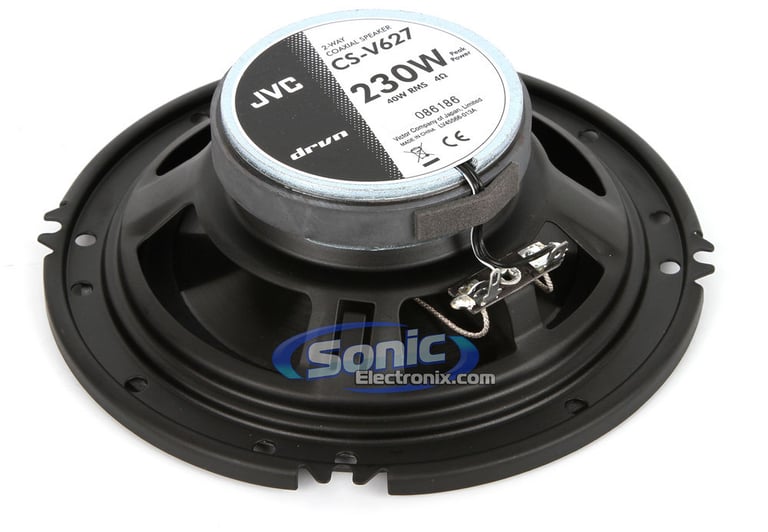

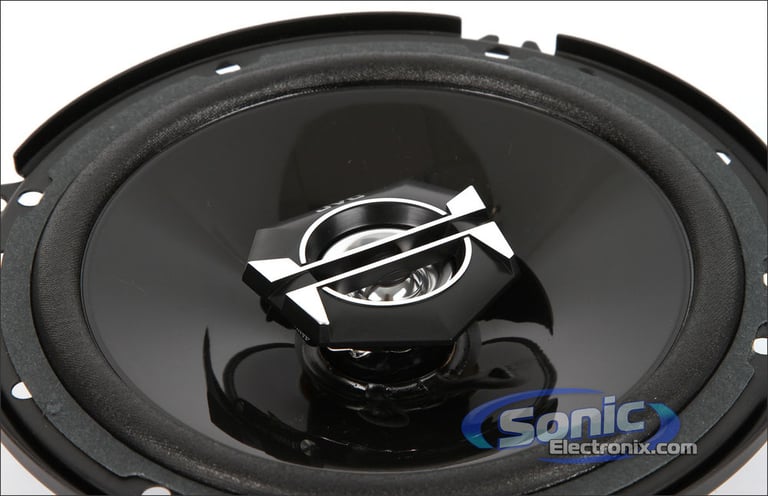

Speaker Features:
  • 6-1/2" 2-way Drvn Series Coaxial Speakers Speakers
  • Power Handling:
    • Peak: 260 watts per pair / 230 watts each
    • RMS: 80 watts per pair / 40 watts each
  • Carbon mica woofer cone
  • Hybrid cloth/rubber surround
  • 1" (2.5 cm) Midrange PEI balanced tweeter
  • Improved Crossover with enhanced mid range signals
  • Twin rubber edge enhances sound pressure with less distortion
  • 4 ohm impedance
  • Heat-resistant voice coil
  • Top-mount depth: 2-3/4" (43.5 mm)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

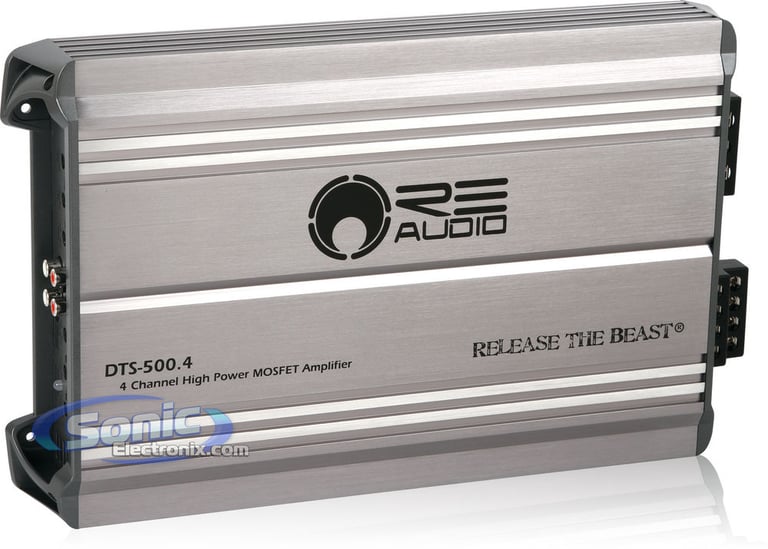

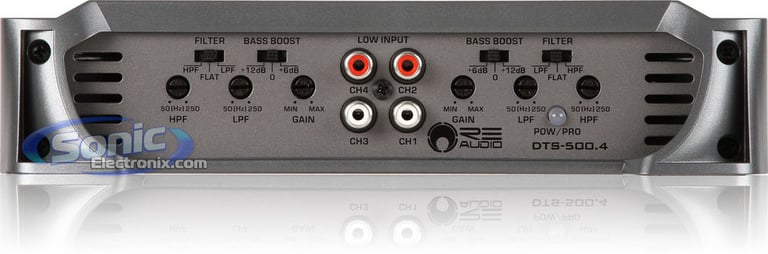

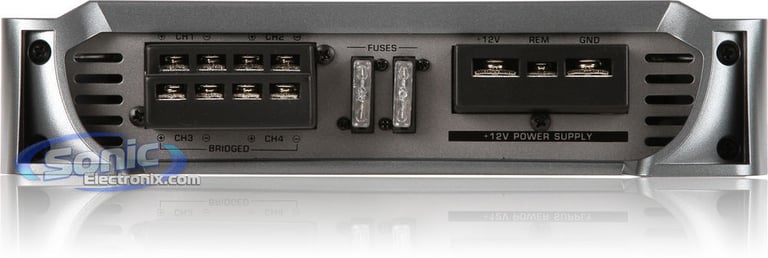

Amplifier Features:
  • DTS Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V)):
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • Dynamic power output: 400 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • 4/3/2 channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input Impedance: 22 K-Ohm
  • Input sensitivity:
    • Low level: 200mV-2V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • Effective damping factor: 300 @ 4 ohm
  • Frequency response: 20-36,000 Hz
  • Dimensions: 13-1/2"L x 8-11/16"W x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

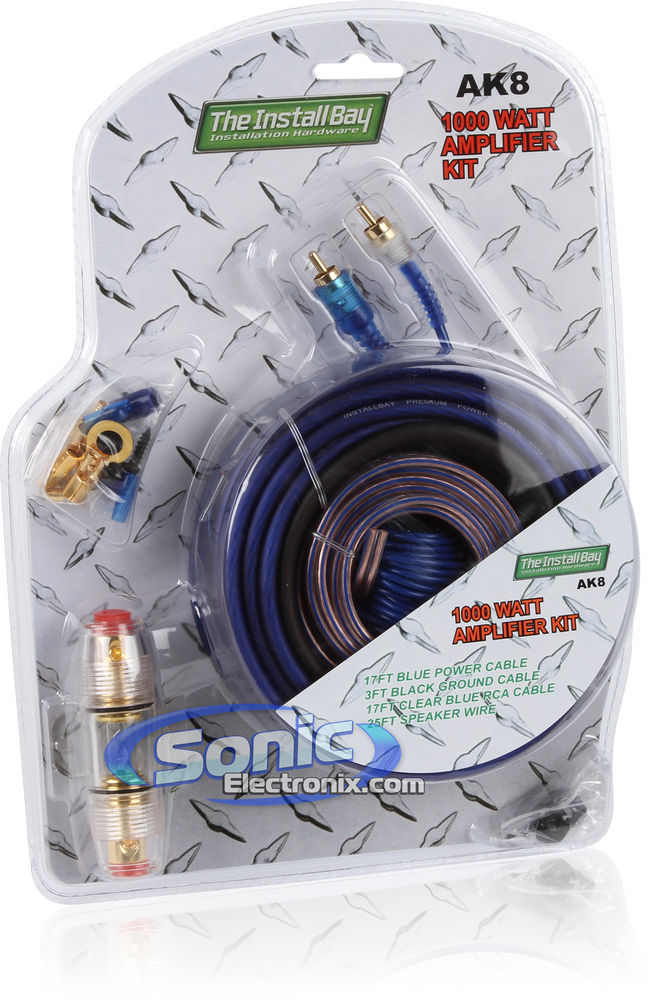

Amplifier Kit Features:
  • Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
  • Includes gold plated RCA interconnect cables
  • Designed by the manufacturer for systems up to 1000 watts max
  • Everything you need for an amplifier installation in one convenient package
  • 1-year Manufacturer's warranty

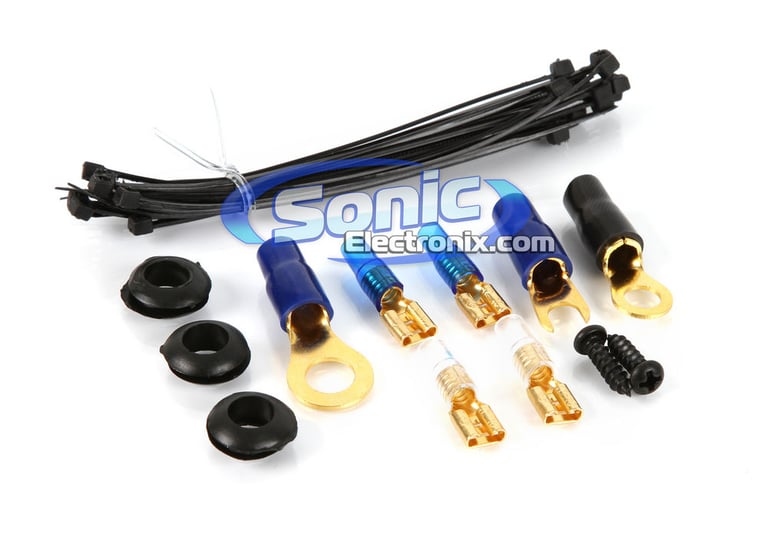

Amplifier Kit Includes:

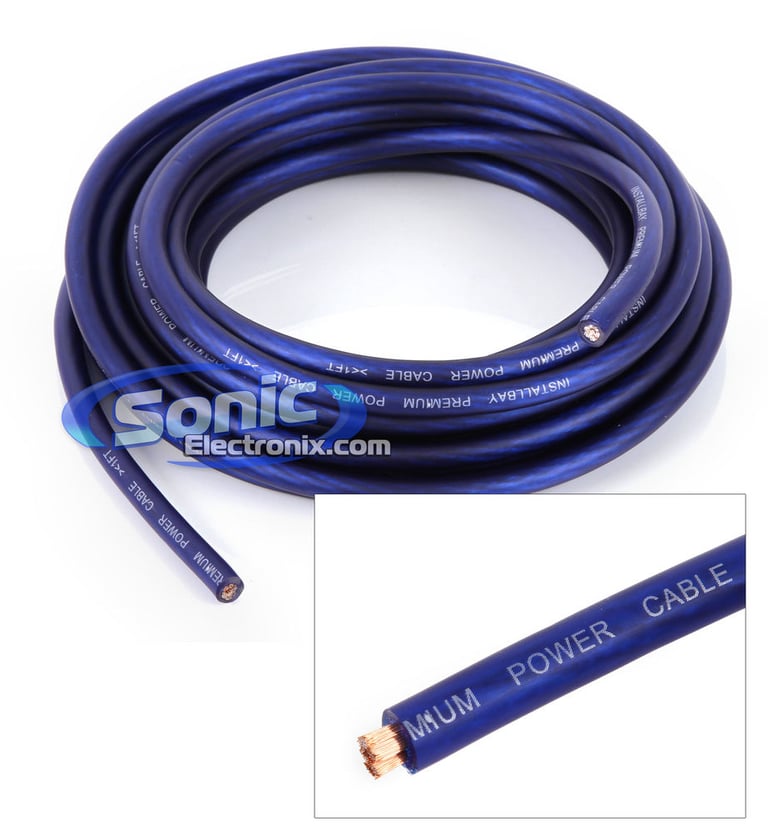

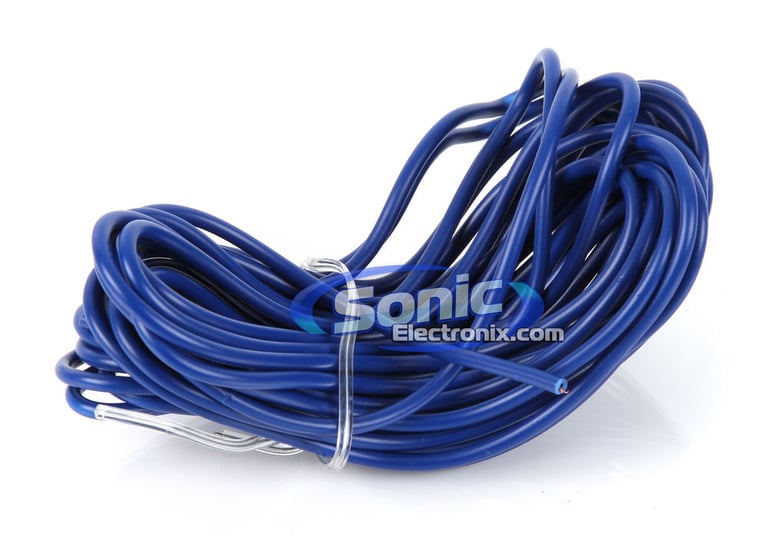

  1. 17 ft. of 8AWG Blue power cable

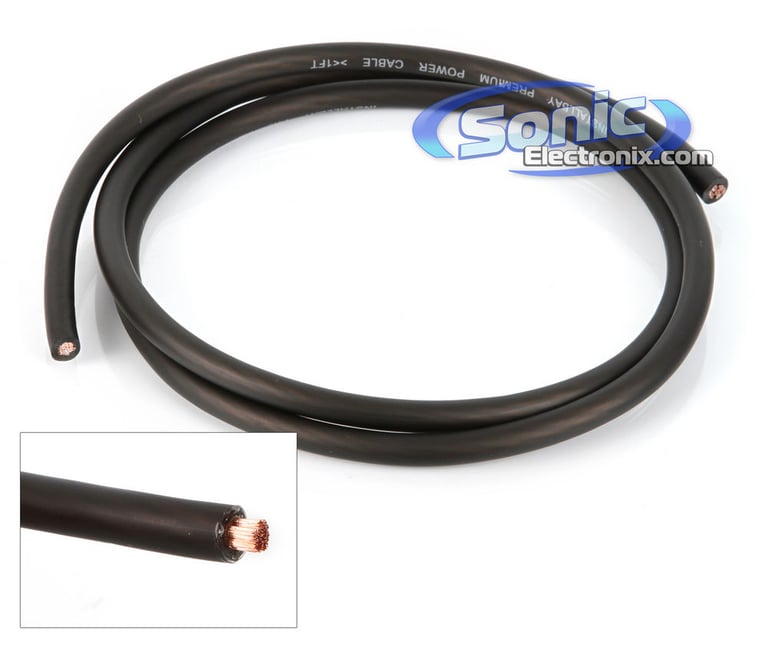

  2. 3 ft. of Black ground cable

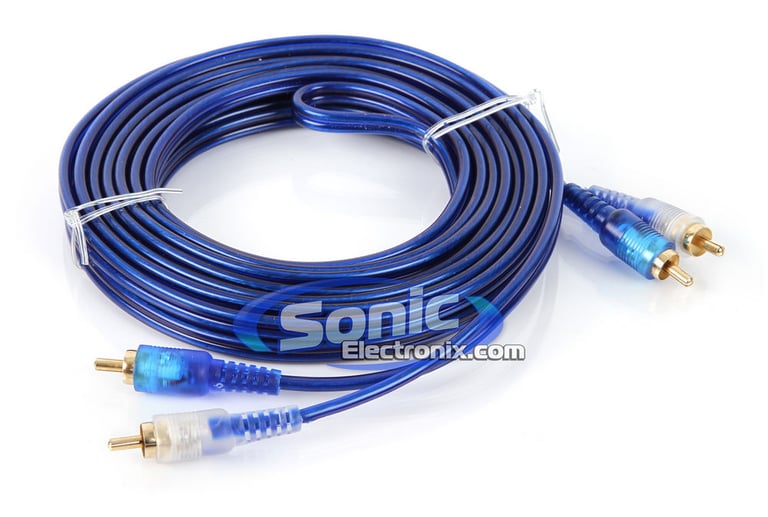

  3. 17 ft. of Clear blue RCA cable

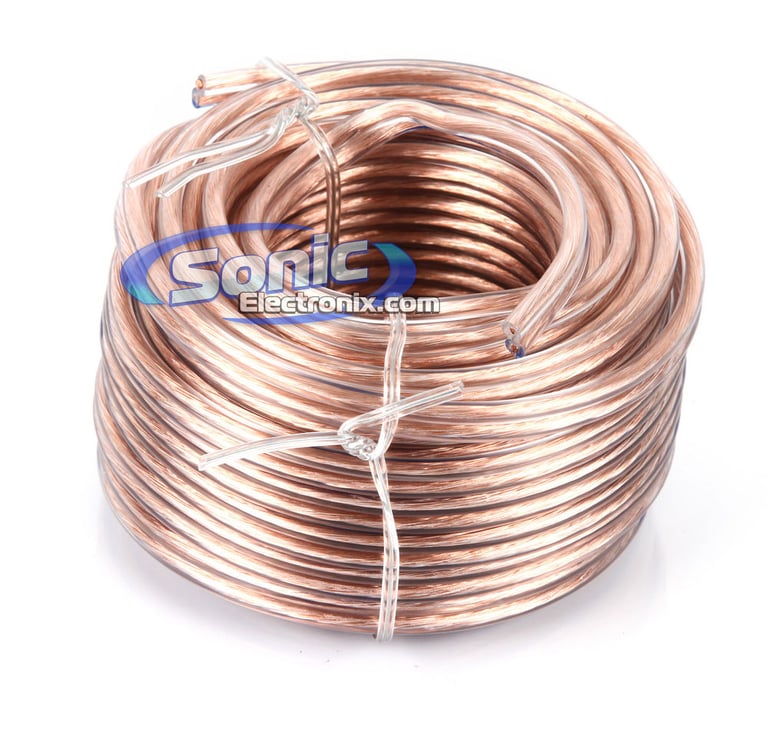

  4. 25 ft. Speaker wire
  5. 17 ft. of Clear blue remote turn-on wire

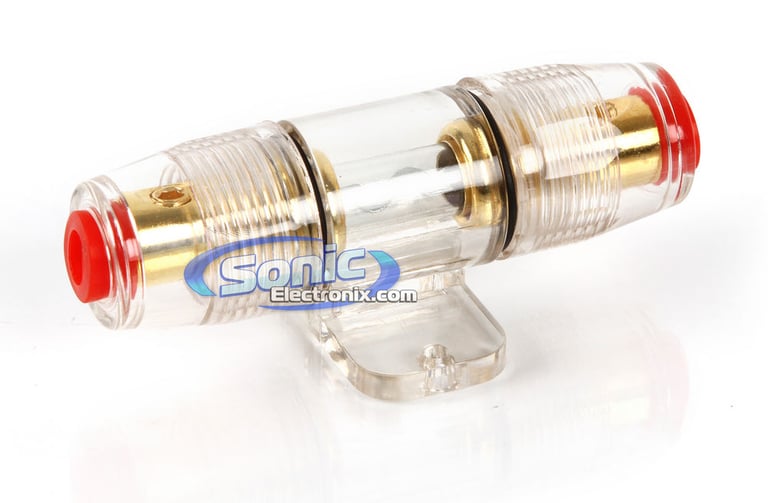

  6. 1 AGU fuse holder + 40AMP AGU fuse
  7. 5/16" Gold ring terminal
  8. 1/4" Gold ring terminal
  9. #10 Gold spade terminal
  10. 4 Gold speaker terminals
  11. 3 Grommets
  12. 20 4" cable ties

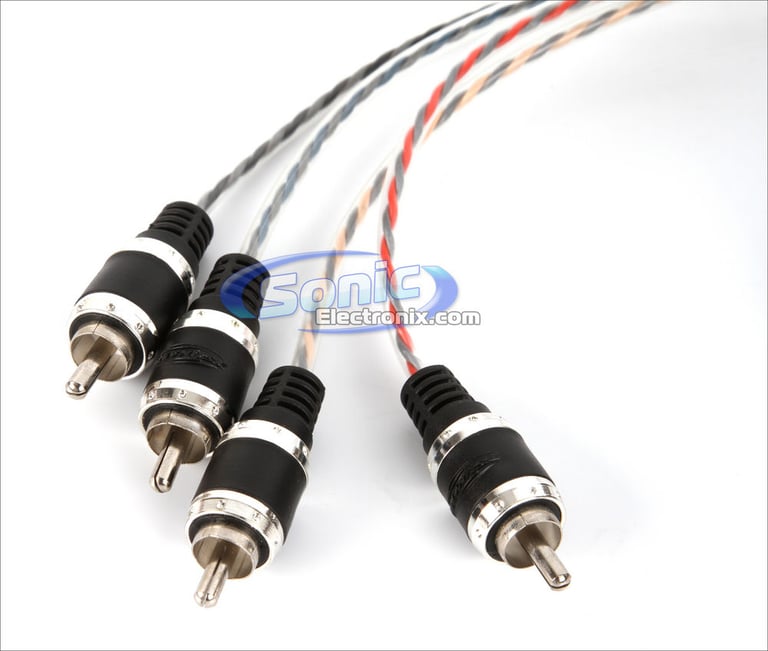

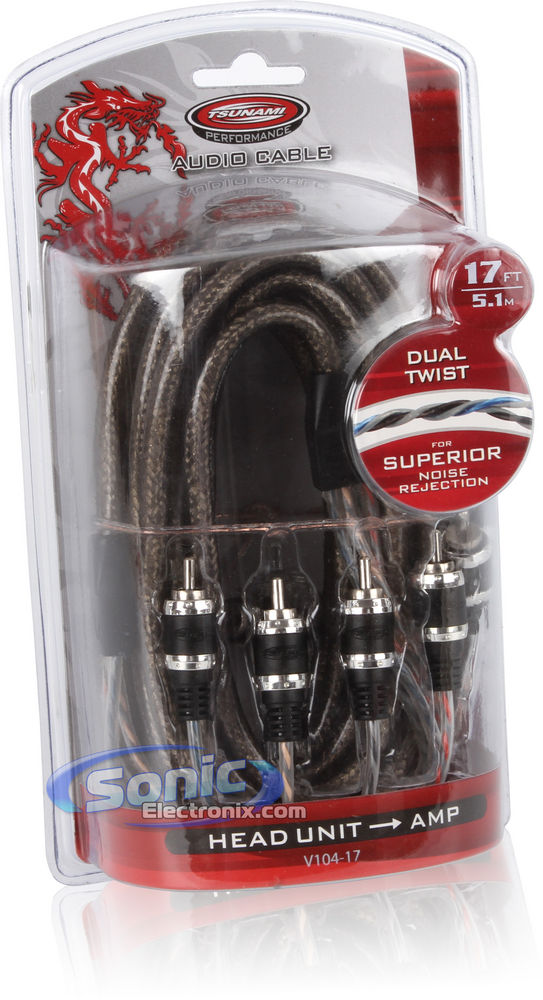

RCA Interconnect Cable Features:

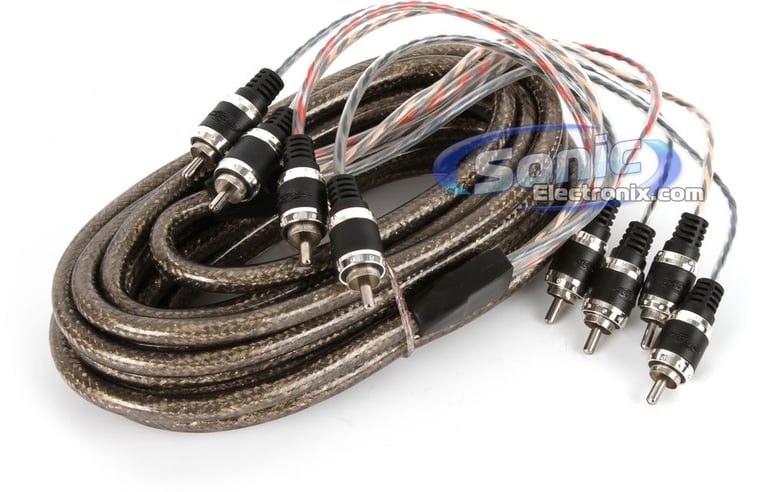

  • 17 ft. 4-Channel RCA Interconnect Cables
  • Two cut nickel-plated connectors for a tight and secure connection
  • Short connector design for easy installation
  • Protective Jacket minimizes friction for easy install
  • Dual twist construction provides protection against interference and noise
  • Provides signal from the car stereo to the amplifier
  • Color coded wires for channel identification
  • Audio RCA interconnect cable use
  • Cable Length: 17ft. (5.1 meters)
  • Color: Smoke Black
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Specifications & Details


Front Speaker Specifications
Speaker Size
6-1/2"
Design
2-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon Mica
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
230 watts
RMS Power Handling
40 watts
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
1-3/4"
Cutout Dimensions
4-15/16\" x 4-15/16\"
Speaker Grilles
Yes
Rear Speaker Specifications
Speaker Size (Rear)
6-1/2"
Design
2-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon Mica
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
230 watts
RMS Power Handling
40 watts
Impedance (per voice coil)
4 ohm
Top Mount Depth
1-3/4"
Cutout Dimensions
4-15/16 x 4-15/16
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Peak Power Output
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

DTS-500.4_2-CS-V627

Weight:

17.37lbs

Internal SKU:

dts5004_2-csv627

Internal Product ID:

37119
