Infinity BASSLINK Open Box Complete

200 Watt RMS 10" Self-Amplified Subwoofer Bass System with Remote Bass Control Included

Infinity
Shop all Infinity
highlight-star-icon

• Item Condition: Open Box Complete
• Basslink 10" 200 Watt Class D Powered Subwoofer Unique enclosure with one treated paper woofer and a passive radiator
• Class D 200-watt amplifier
• frequency response 20-120 Hz
• variable low-pass crossover
• adjustable bass boost
• phase switch

Learn more about the ls-basslink-obc6

We apologize

This item has been discontinued

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

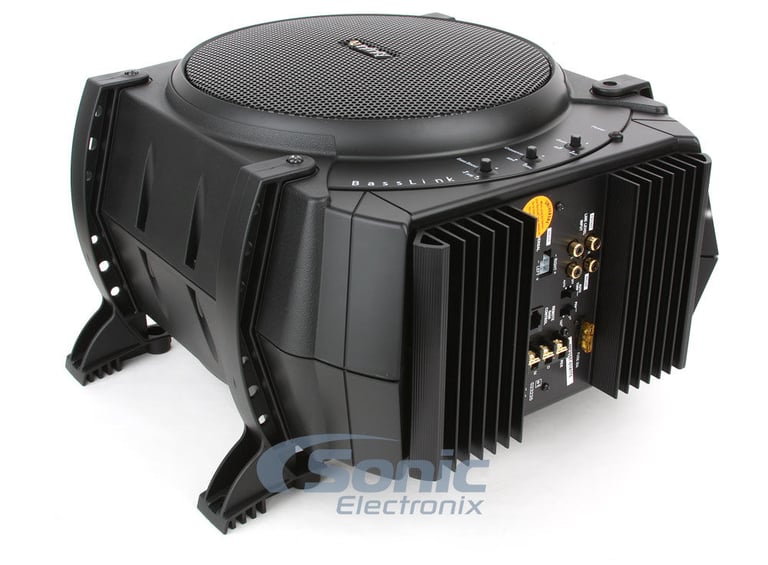

Infinity Basslink: 10-inch Space Saving, Amplified Subwoofer System

Take the headache out of putting together a bass system for your vehicle and save your trunk space with the groundbreaking Infinity Basslink. All the components that make up the Infinity Basslink were designed to go together, each component was purpose-engineered to optimize the bass your vehicle currently lacks. The result is great bass in a sleek-looking, space-saving package. Thanks to the Class D amplification included in Basslink, more of the power the amplifier extracts from the car’s charging system is converted into output to the speaker, and less is wasted as heat.

Infinity Basslink Self-Amplified Subwoofer Bass System


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

General Features

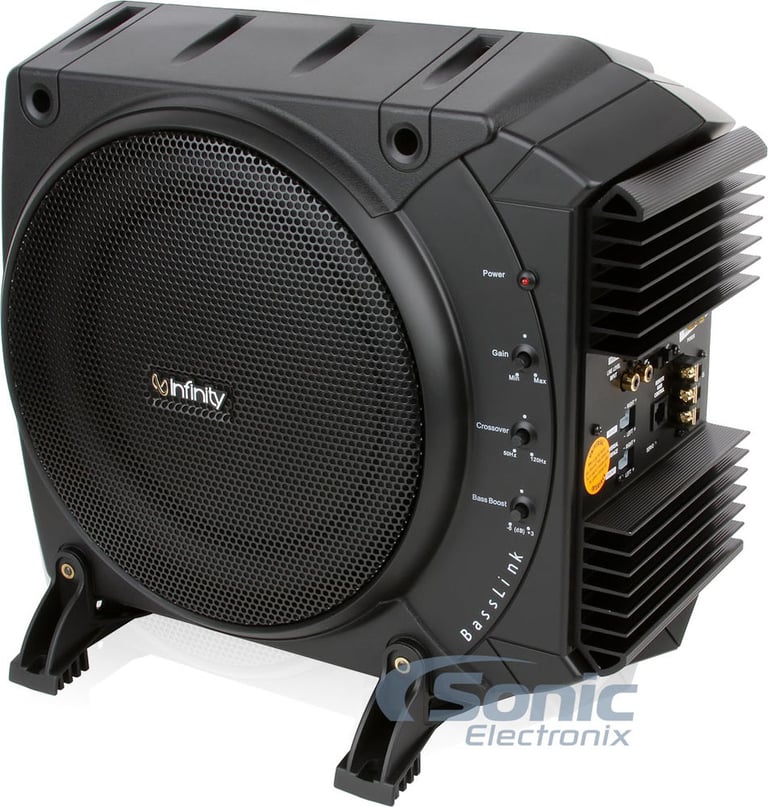

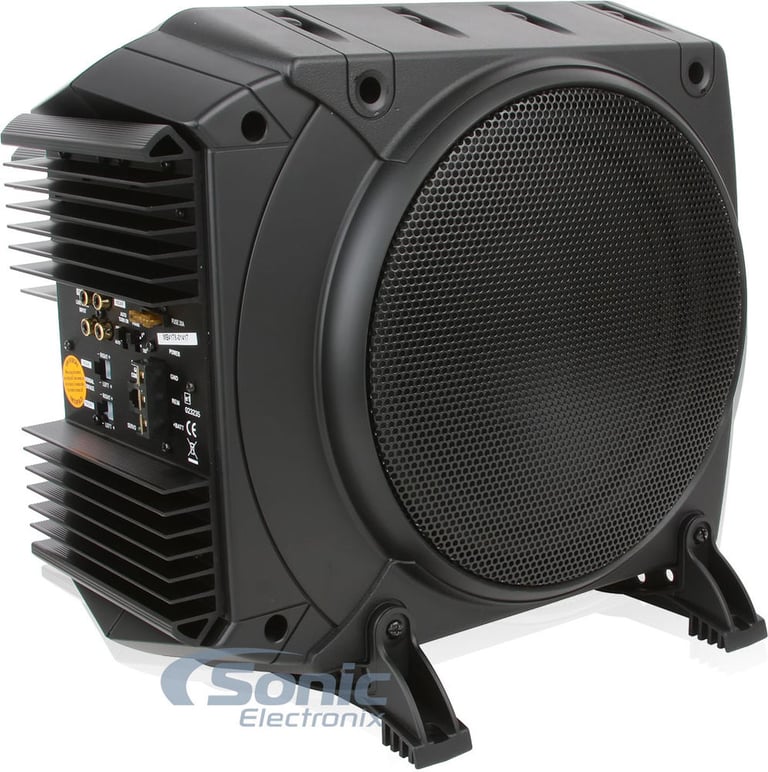

  • Powered 10" Subwoofer with 10" Passive Radiator
  • Built-in class D 200-watt amplifier
    • RMS: 200 watts

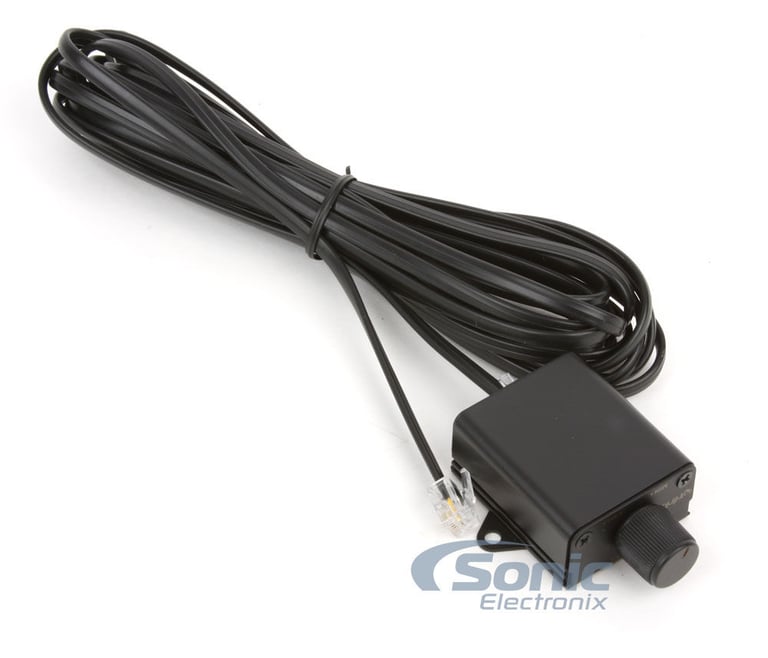

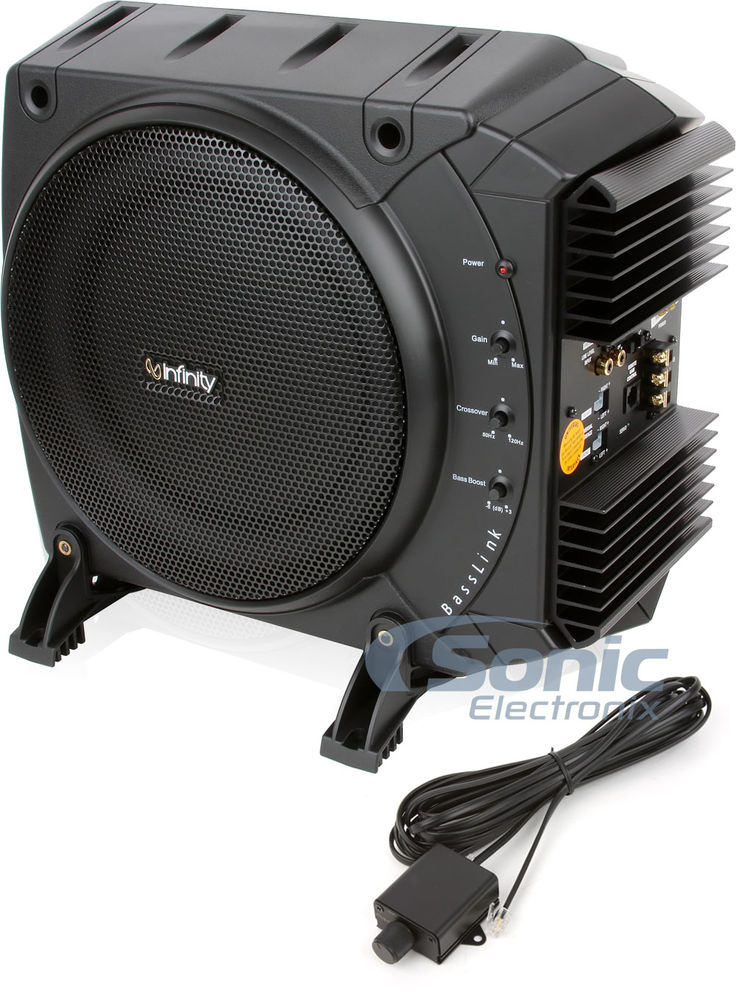

  • Wired remote bass level control included
  • LED power indicator
  • Soft start turn-on

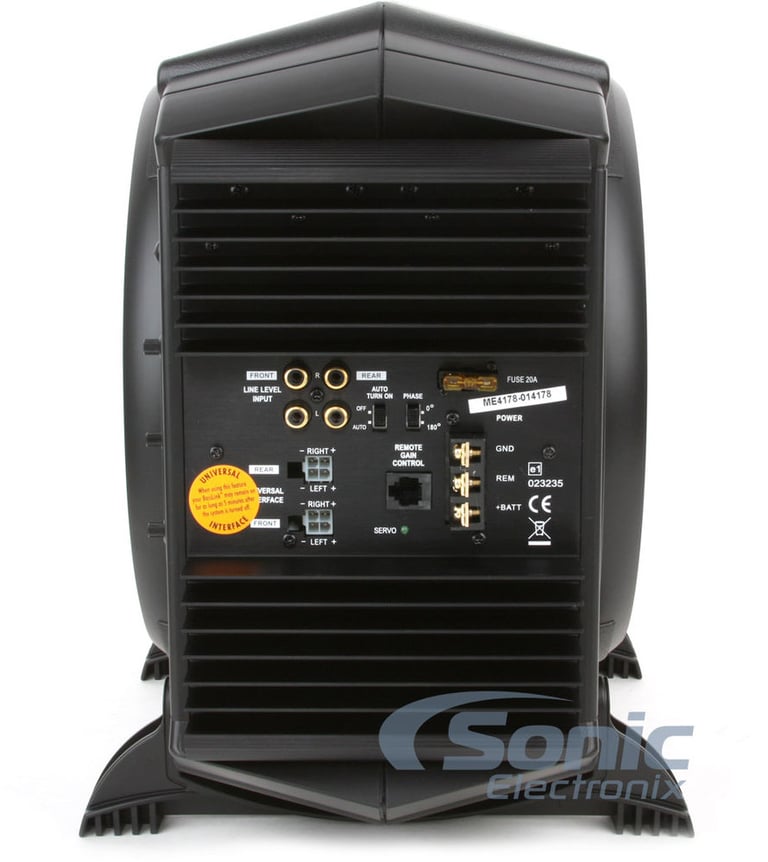

  • Speaker and line-level inputs

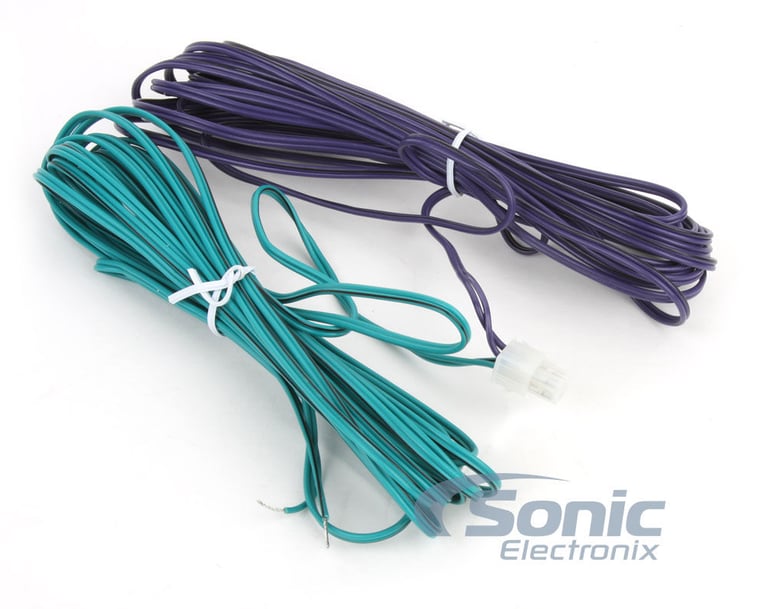

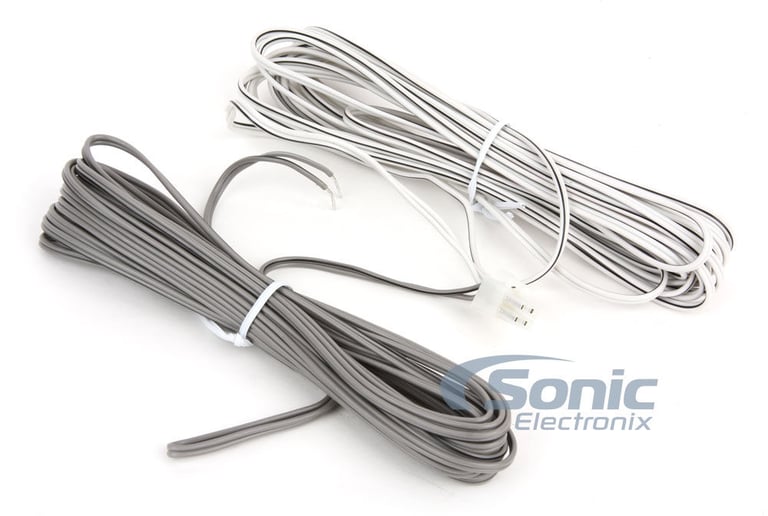

    • 19' speaker-level input wires with plug-in harness included
    • Auto turn-on with speaker-level inputs
    • Remote turn-on lead (12V) required for use with RCA inputs
  • Input sensitivity:
    • Low level: 50mV - 4V
    • High level: 1V - 16V
  • Frequency Response: 20 - 120 Hz
  • Variable low-pass filter: 50 - 120 Hz, 12 dB/octave
  • Variable Bass Boost: -6 to +3 dB bass boost at 40 Hz
  • Selectable Phase: 0°/180°
  • Fuse Rating: 20A x 1
  • Maximum Current Draw: 12A
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

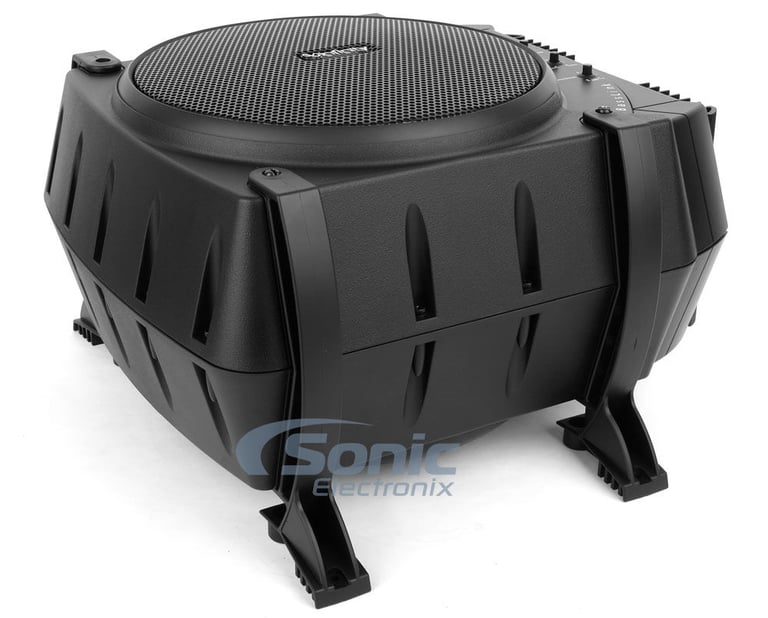

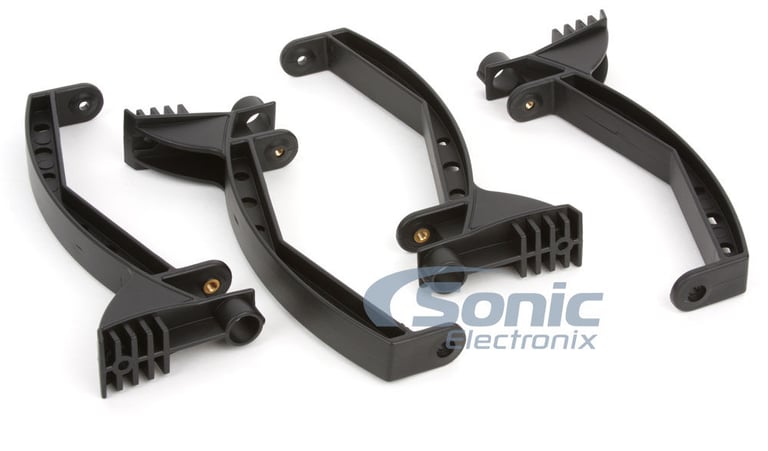

  • 14-1/2"W x 13-3/8"H x 9-7/8"D (vertical mount); 14-1/2"W x 9-1/2"H x 15-3/16"D (horizontal mount)
  • Also referred to as the Infinity Bass Link Sub System
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 120 Hz
Bass Boost
-6 - +3 dB
Remote bass/level controller
Yes
Fuse Rating
20A x 1
Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
200 watts
Total Peak Power Handling
200 watts
Woofer Composition
Reinforced Paper
Frequency Response
50 - 120 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Height
13-3/8"
Width
14-1/2"
Depth
9-7/8"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Paint
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BASSLINK Open Box Complete-4

Weight:

23.00lbs

Internal SKU:

ls-basslink-obc6

Internal Product ID:

129773
