  6. Infinity LS-BASSLINK-OBC

See all parts that fit your 2003 S80

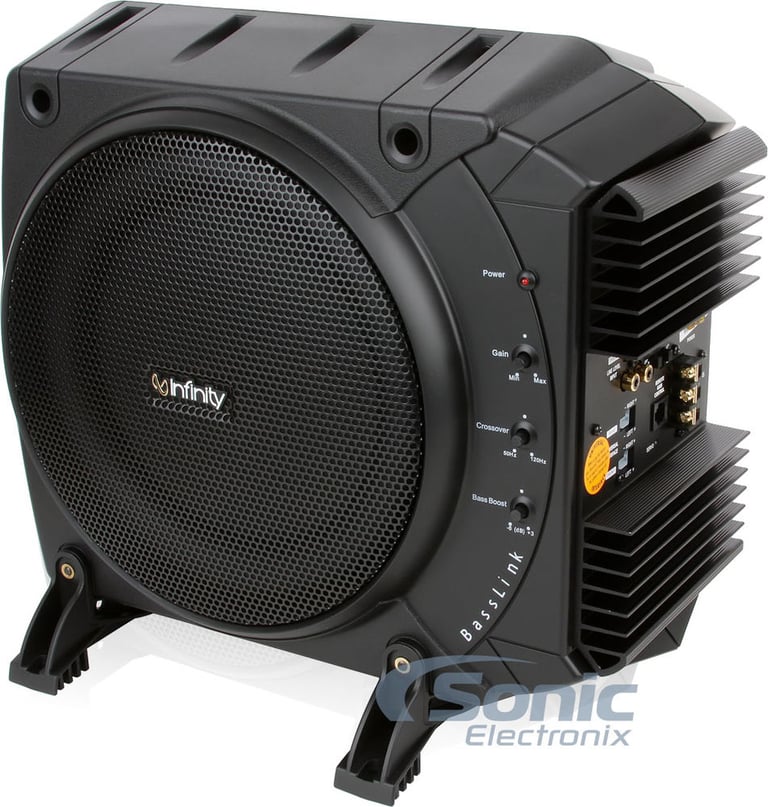

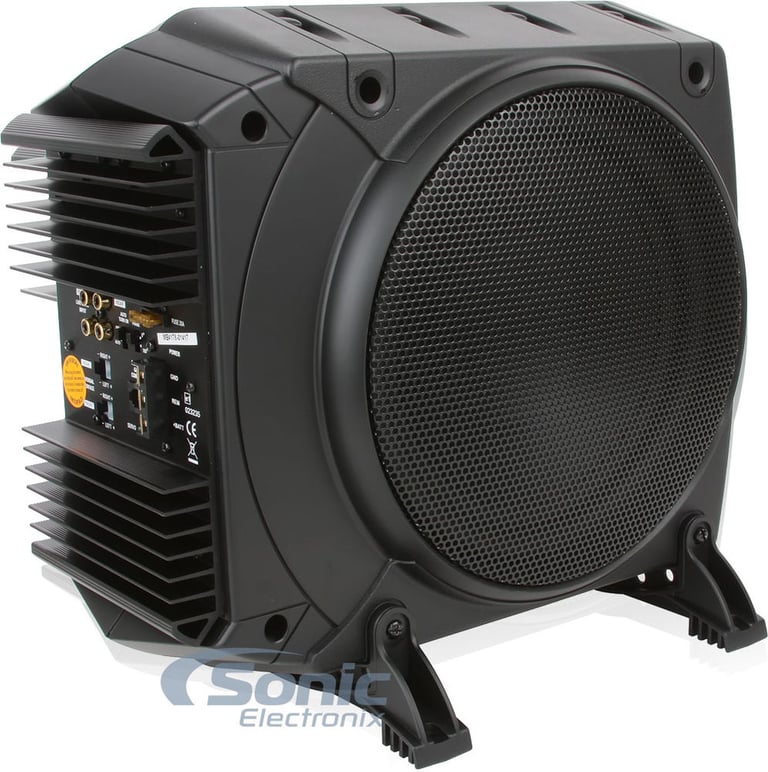

Infinity BassLink OPEN BOX COMPLETE

200W 10" Class D Powered Subwoofer System

Infinity
Shop all Infinity
Product videos
highlight-star-icon

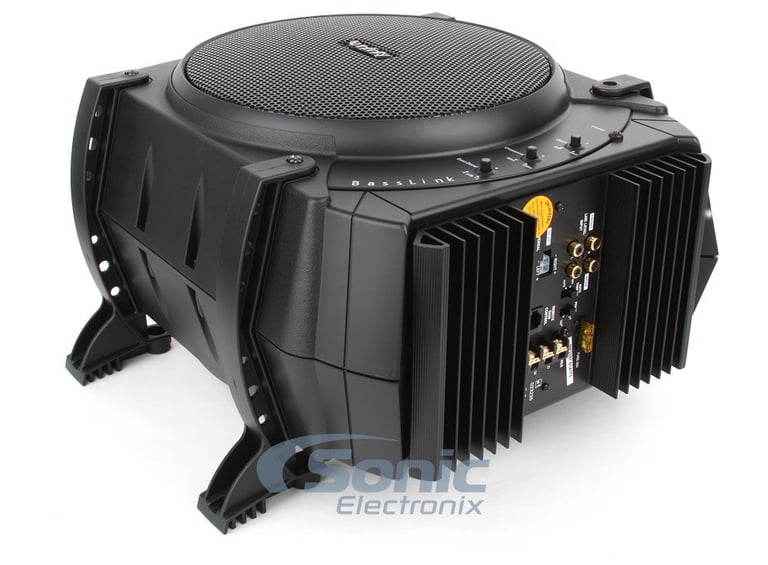

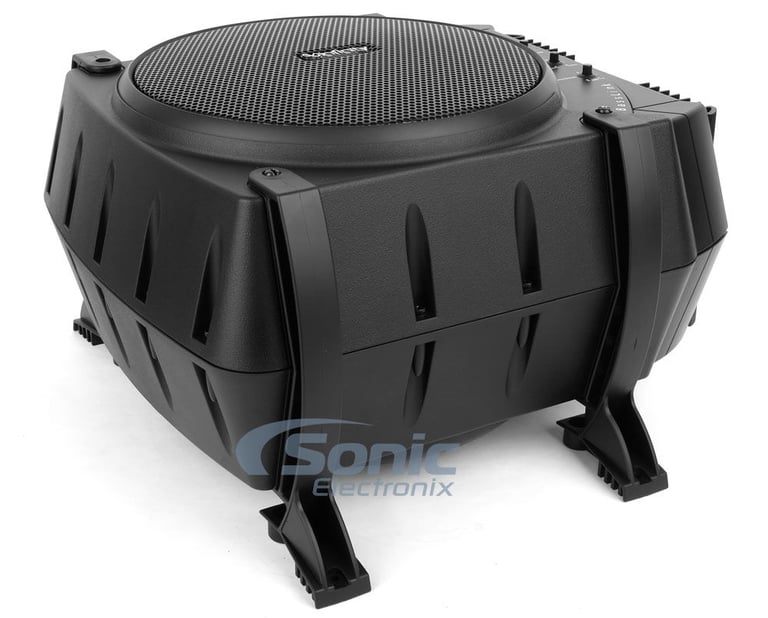

• BassLink 10" 200 Watt Class D Powered Subwoofer Unique enclosure with one treated paper woofer and a passive radiator
• Class D 200-watt amplifier
• frequency response 20-120 Hz
• variable low-pass crossover
• adjustable bass boost
• phase switch

Learn more about the LS-basslink-OBCra222808

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• BassLink 10" 200 Watt Class D Powered Subwoofer Unique enclosure with one treated paper woofer and a passive radiator
• Class D 200-watt amplifier
• frequency response 20-120 Hz
• variable low-pass crossover
• adjustable bass boost
• phase switch

Description

Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

General Features

  • Item Condition: Open box Complete
    • Item has been installed and used

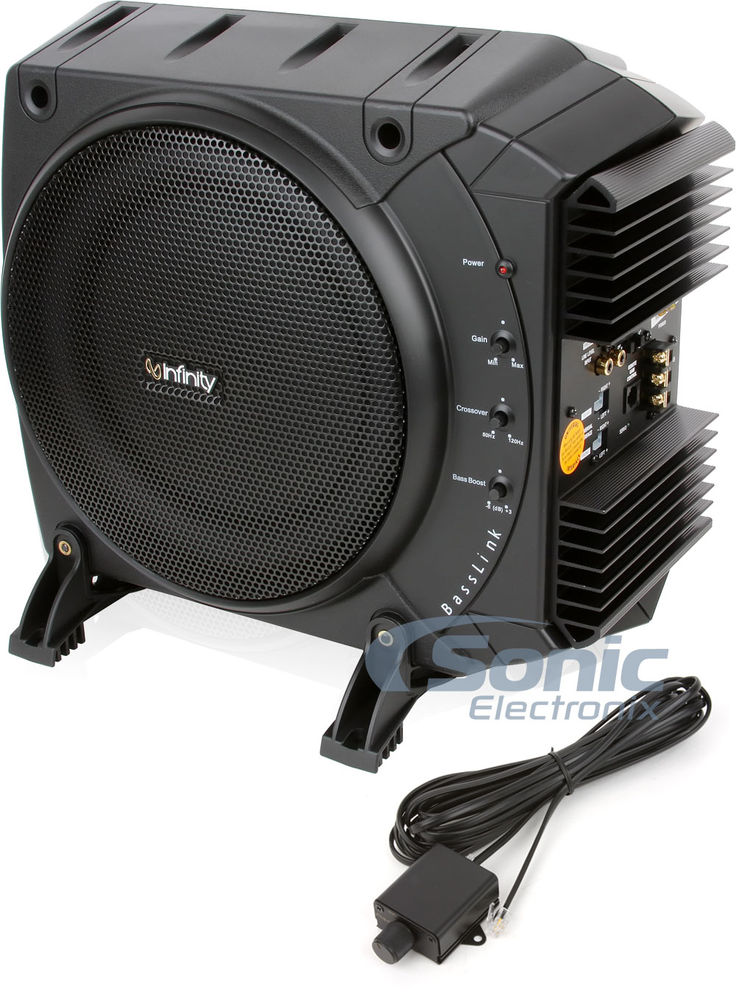

    • Powered 10" Subwoofer with 10" Passive Radiator
    • Built-in class D 200-watt amplifier

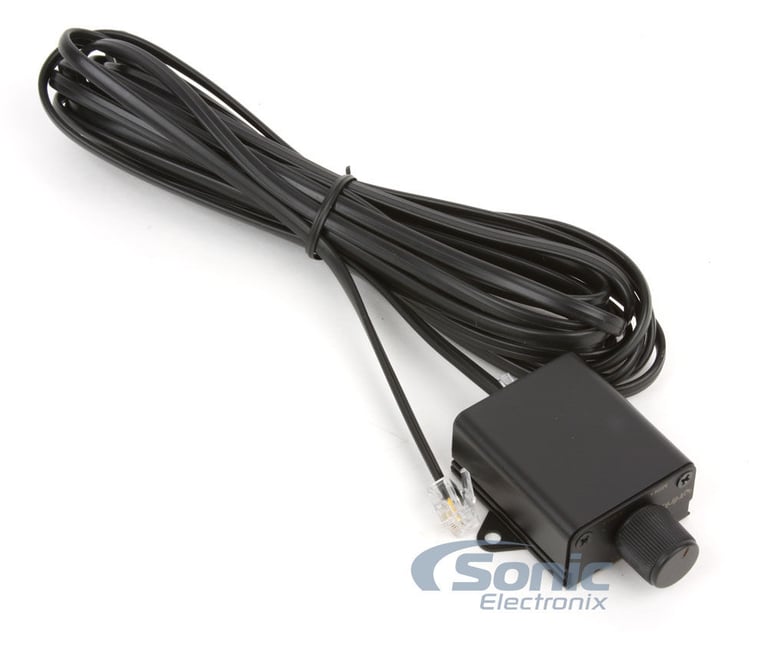

    • Wired volume control with 16-foot cable
    • Frequency response 20-120 Hz
    • Low-pass crossover variable from 50-120 Hz at 12 dB per octave

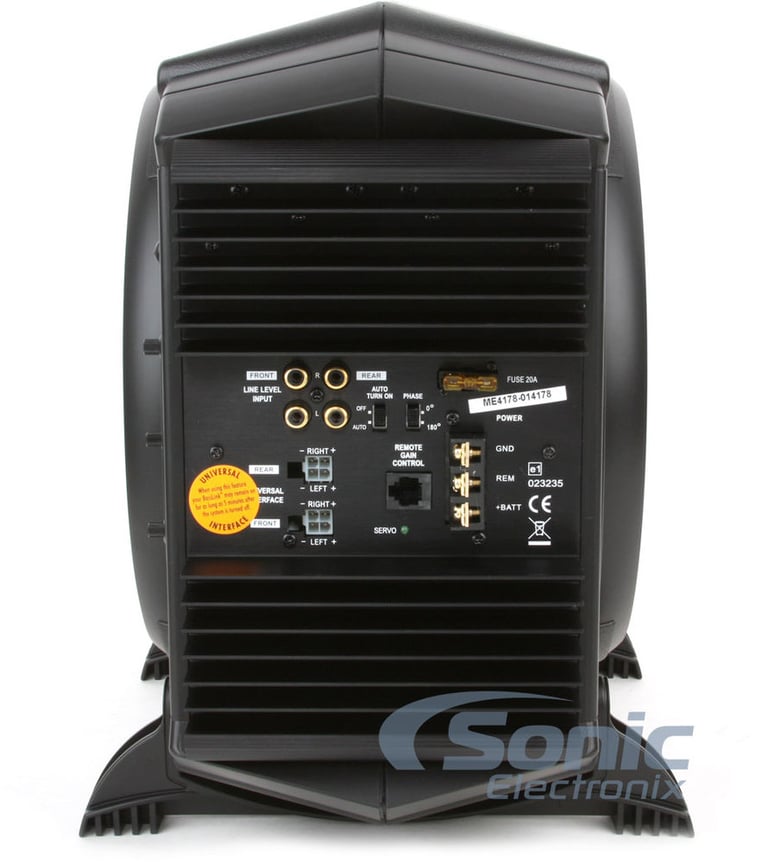

    • Speaker and line-level inputs
    • Phase switch
    • Bass boost adjusts from -6 dB to +3 dB at 40 Hz
    • 25-amp fuse
    • Auto turn-on with speaker-level inputs
    • Remote turn-on lead (12V) required for use with RCA inputs

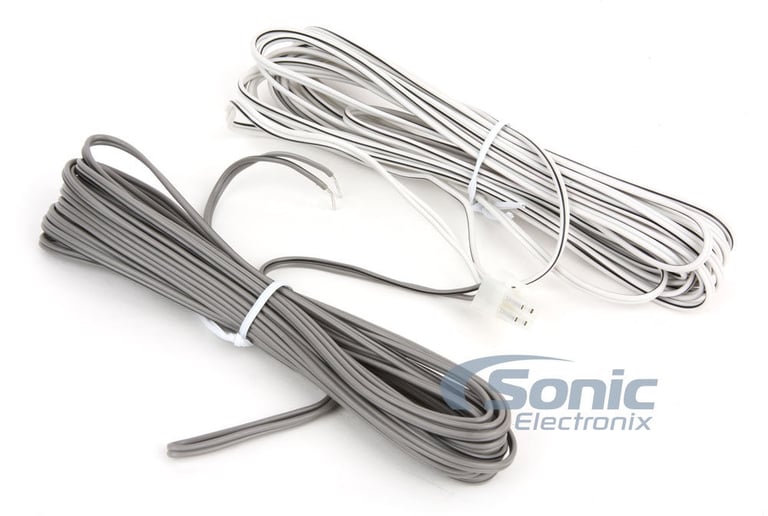

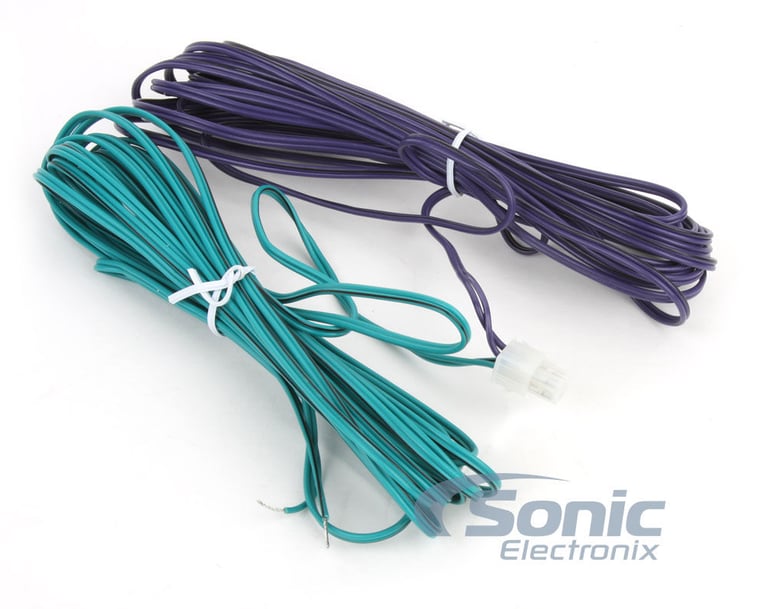

    • 19' speaker-level input wires with plug-in harness included
    • 14-1/2"W x 13-3/8"H x 9-7/8"D (vertical mount); 14-1/2"W x 9-1/2"H x 15-3/16"D (horizontal mount)
    • Also referred to as the Infinity Bass Link Sub System
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

    Specifications & Details

    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Speaker Level Inputs
    Yes
    Built-in Crossover
    Low-Pass (LP)
    Low-Pass Crossover Frequency
    50 - 120 Hz
    Bass Boost
    -6 - +3 dB
    Remote bass/level controller
    Yes
    Fuse Rating
    25A x 1
    Subwoofer Specifications
    Subwoofer Size
    10"
    RMS Power Handling
    100 watts
    Total RMS Power Handling
    100 watts
    Peak Power Handling
    200 watts
    Total Peak Power Handling
    200 watts
    Woofer Composition
    Reinforced Paper
    Frequency Response
    50 - 120 Hz
    Enclosure Specifications
    Box Type
    Sealed
    Number of Subwoofers
    1
    Height
    13-3/8"
    Width
    14-1/2"
    Depth
    9-7/8"
    Number of Terminals
    1
    Box Exterior Color
    Black
    Box Finish
    Paint
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details

    Manufacturer:

    Infinity

    Model Number:

    LS-BASSLINK-OBC

    Weight:

    23.00lbs

    Internal SKU:

    LS-basslink-OBCra222808

    Internal Product ID:

    97784
