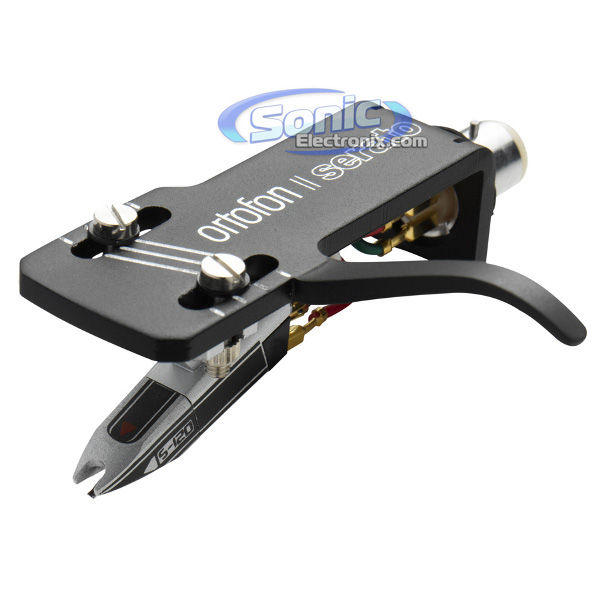

Ortofon, Inc. OM S120 Single

Pro DJ Cartridge & Stylus Mounts on SH-4 Headshell

Ortofon
Shop all Ortofon
highlight-star-icon

Pro DJ Cartridge & Stylus • Mounts on an Ortofon SH-4 Headshell with One Attached Stylus • Asymmetric Suspension Innovative Technology • Superior Tracking • Low Level of Record Wear • Low Tracking Force

Learn more about the oms120single

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Add to cart
Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

Add to cart
CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3

$99.99

Add to cart
KW-R950BTS main Out of stock

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Notify Me

Description

Ortofon brand icon

Authorized dealer

Product Features
  • Pro DJ Cartridge & Stylus
  • Cartridge mounts on an Ortofon SH-4 headshell with one attached stylus
  • Asymmetric suspension innovative technology allows the diamond to more effectively trace the groove
  • Superior tracking allows it to stay in the groove even under extreme live performance conditions
  • Provides a low level of record wear
  • Extremely low tracking force
  • Engineered to work perfectly with both Serato SL1 and Serato SL3 interfaces
  • 1-year Manufacturer's warranty
Product Specifications
  • Output Voltage: 10 mV @ 1000Hz, 5cm/sec
  • Channel Balance: 1.5 dB @ 1 kHz
  • Channel Separation: 20 dB @ 1 kHz
  • Channel Separation: 15 dB @ 15 kHz
  • Frequency Range: 20-18,000 Hz @ -3 dB
  • Frequency Response: 20-18,000 Hz @ -2 dB
  • Tracking Ability: 120 μm @ 315 Hz
  • Compliance Dynamic Lateral: 11 μm/mN
  • Stylus Type: Spherical
  • Stylus Tip Radius: R 18 μm
  • Tracking Force Range: 1,5-10,0 g (15-100 mN)
  • Tracking Force Recommended: 4.0 g (40 mN)
  • Tracking Angle: 20°
  • Internal Impedance, DC Resistance: 1680 Ohm
  • Internal Inductance: 920 mH
  • Recommended Load Resistance: 47k Ohm
  • Recommended Load Capacitance: 200-600 pF
  • Cartridge Height: 5.5 g
  • Dimensions: 3-1/2"D x 4-1/2"W x 1-1/4"H
LVE-GM-SLVECG1-D12S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D12S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.86%

$369.99

List price $455.99

Add to cart
LVE-GM-SLVECG1-D10S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D10S

For select 1999-2006 Silverado 2500 HD / 1500 / 3500 / 2500 and Sierra 1500 / 3500 / 2500 / 2500 HD and SIerra 2500 HD Extended Cab - Dual 10" 700W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

Add to cart
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Add to cart
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Add to cart
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Add to cart
Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Add to cart
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Add to cart

Specifications & Details

Stylus Specifications
Frequency Response
20 - 18,000 Hz
Output Voltage (@ 1 kHz)
10 mV
Channel Separation (@ 1 kHz)
20 dB
Channel Balance (@ 1 kHz)
1.5 dB
Load Impedance
1680 ohm
Weight
5.5 g
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Ortofon

Model Number:

OM S120 Single

Weight:

0.04lbs

Internal SKU:

oms120single

Internal Product ID:

37296
