See all parts that fit your 1987 B700

Alpine Speakers + Kicker Amplifier Bundle

5-1/4" Alpine SPS-510 Type S Series Speakers + Kicker 11DX400.4 4 Chan. Amp + Kit + Sound Dampening

Alpine
Shop all Alpine
EXCLUSIVE
Product videos
highlight-star-icon

5-1/4" Type S Series Car Speakers • 340W Max • 110W RMS • DX Series 4-Channel Class AB Car Amplifier • MOSFET Power Supply • Fail-Safe Integration Technology • Amplifier Kit • Sound Dampening Material

Learn more about the 11dx4004_sps510

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


5-1/4" Type S Series Car Speakers • 340W Max • 110W RMS • DX Series 4-Channel Class AB Car Amplifier • MOSFET Power Supply • Fail-Safe Integration Technology • Amplifier Kit • Sound Dampening Material

Description


Alpine brand icon

Authorized dealer

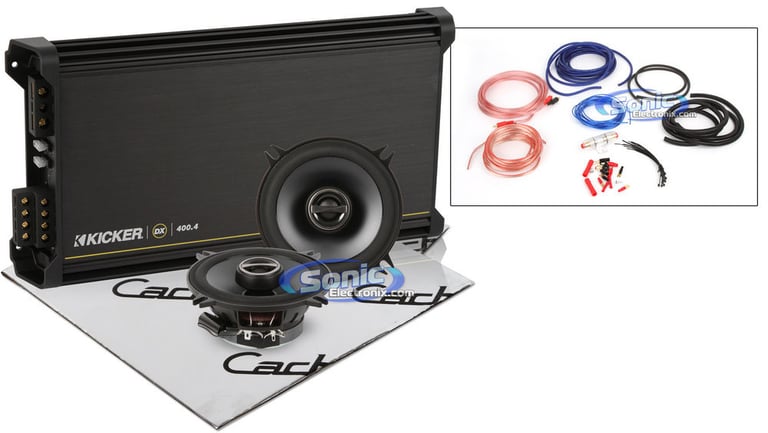

Alpine Speakers and Kicker Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 5-1/4" Alpine Type S Series Coaxial Car Speakers. These speakers are rated at 340 watts Peak power per set, and 110 watts RMS per set. The speakers feature a poly-mica cone and a rubber surround for rigidity and optimum performance. With a 4 Ohm impedance, 3/4" silk dome tweeter and optimized air flow design, these speakers are great if you are looking to improve that factory installed sound.

In order to provide the sufficient power to the Type-S Series speakers, this bundle will also include a Kicker 11DX400.4 4-Channel DX Series Amplifier. This amplifier is rated at 50 watts x 4 Chan. @ 4 Ohms, 100 watts x 4 Chan. @ 2 ohms, and 200 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features Fail-Safe Integration Technology. Also featured is variable high and low pass filters for complete control of your music. With MOSFET power supply and selectable KickEQ bass boost, this amp will give you all the power you need. In addition this bundle will include a complete 8 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes two 10" x 10" Piece of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

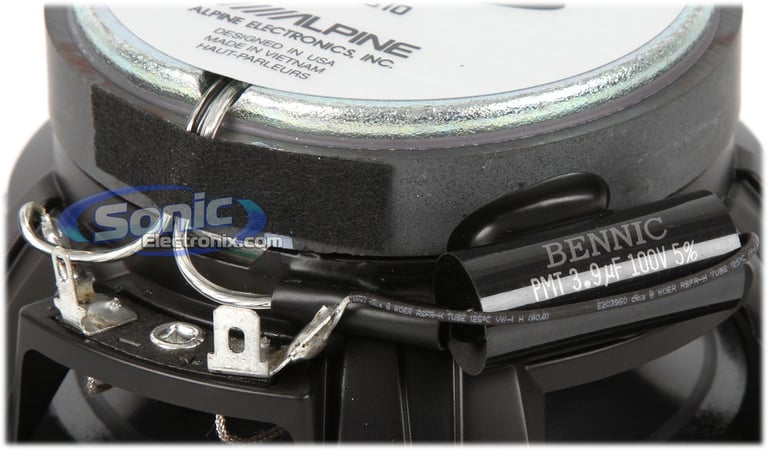

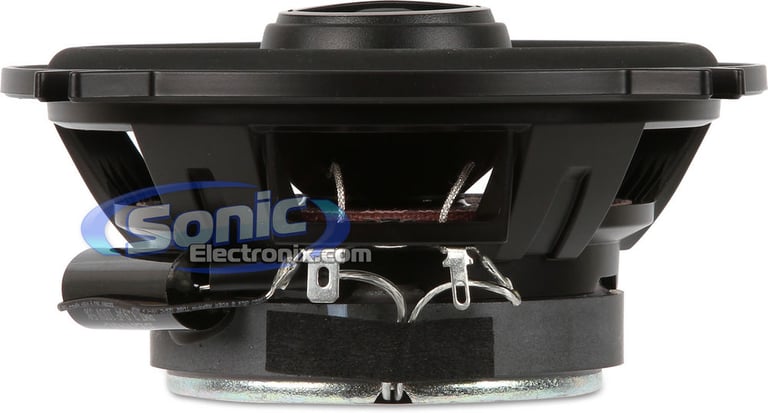

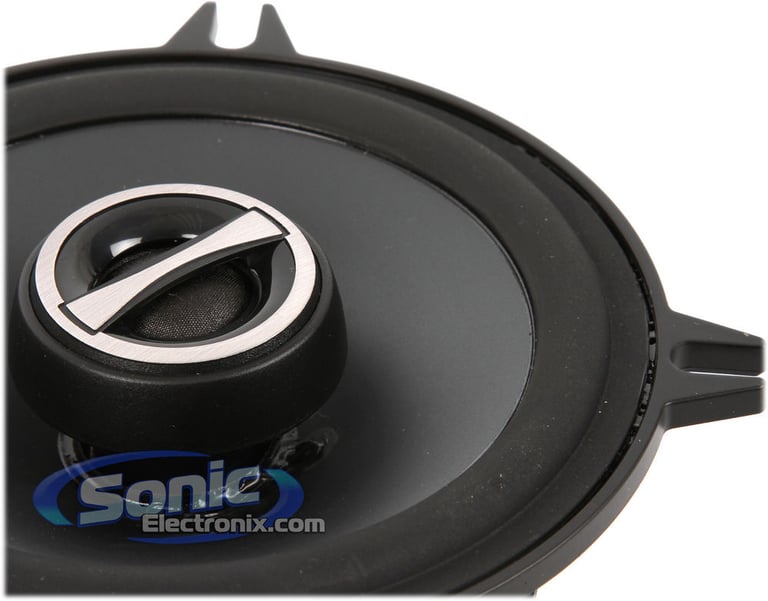

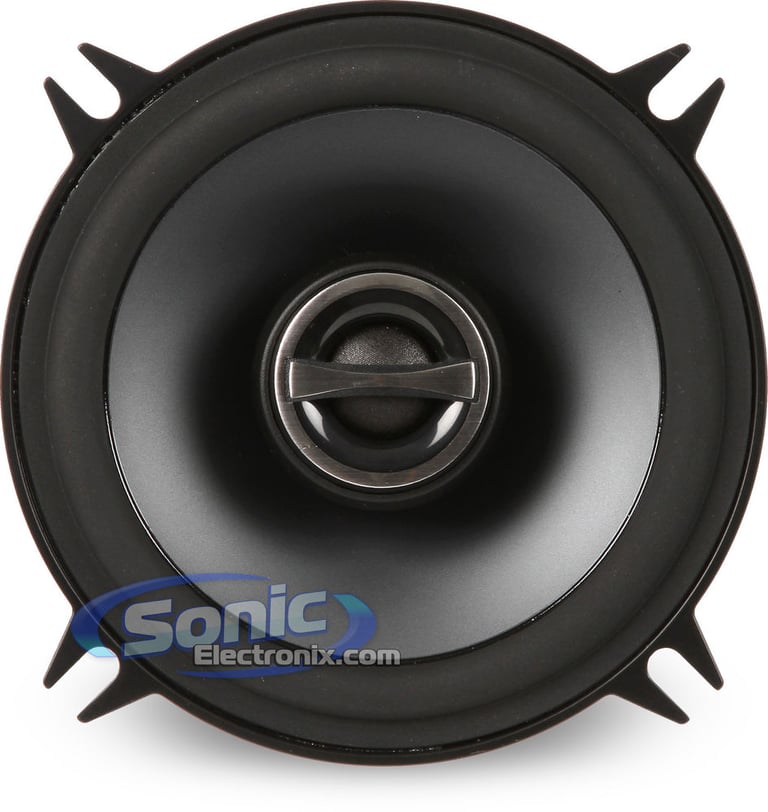

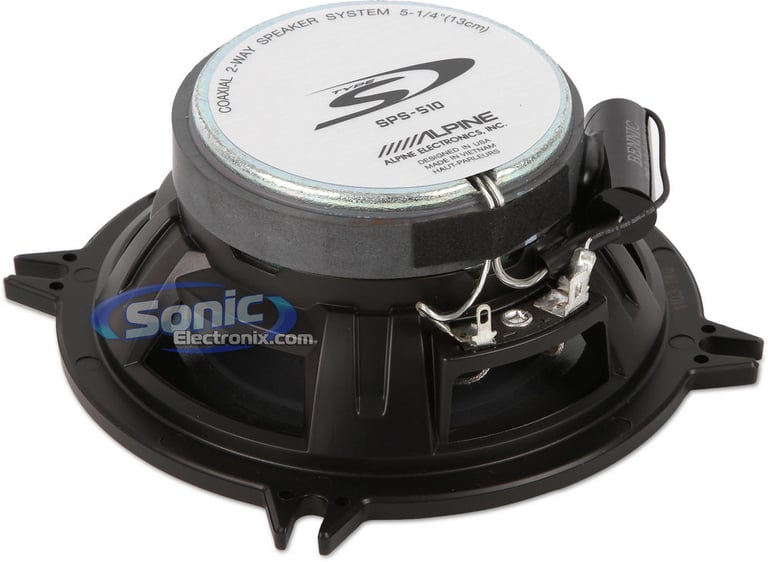

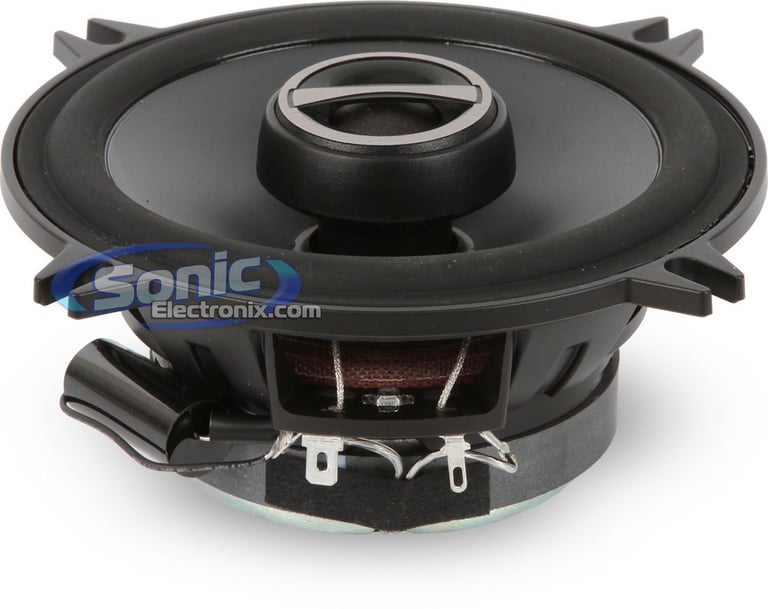

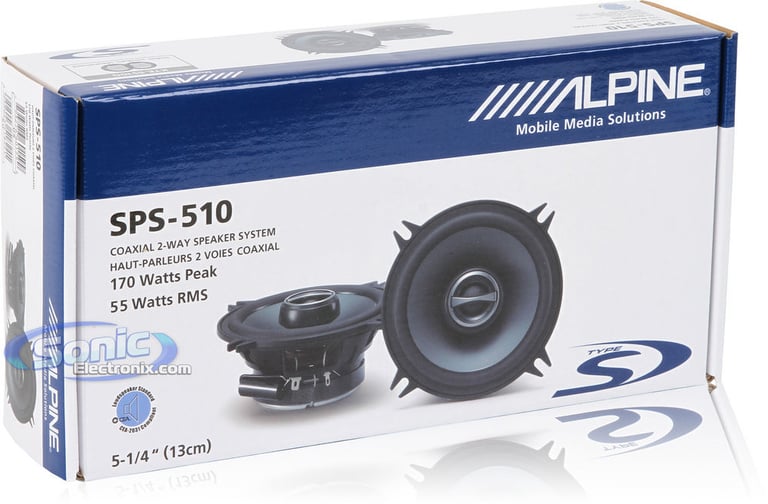

Alpine SPS-510 Features:
  • 5-1/4" Type S Series Car Speakers
  • Power Handling:
    • Peak: 340 watts per pair / 170 watts each
    • RMS: 110 watts per pair / 55 watts each
  • Poly-mica cone woofer
  • Rubber surround
  • 3/4" Silk dome tweeter
  • Optimized air-flow design
  • Stamped steel basket frame
  • Affordable premium quality upgrade to your factory audio system
  • Great power-efficient speakers
  • 4 ohm impedance
  • Square-wire short voice coil
  • Low distortion strontium magnet
  • Speaker grilles KTE-S510G optional and sold separately
  • Top-mount depth: 2"
  • Cutout diameter: 4-1/2"
  • 1-year SonicElectronix.com warranty

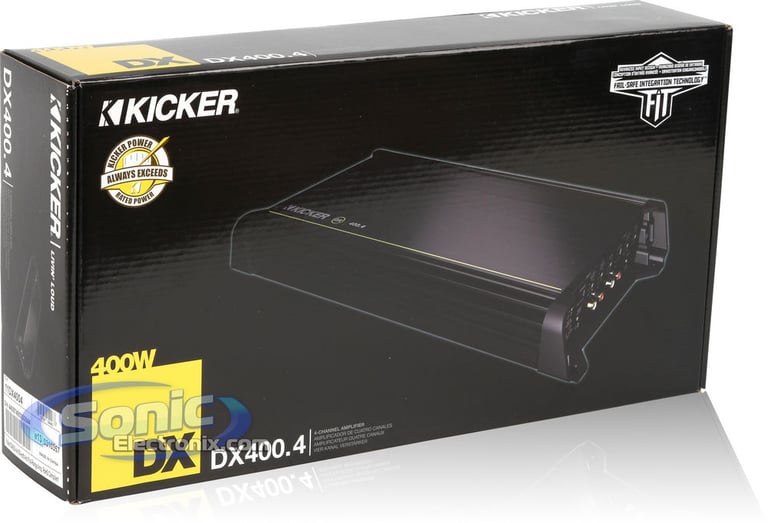

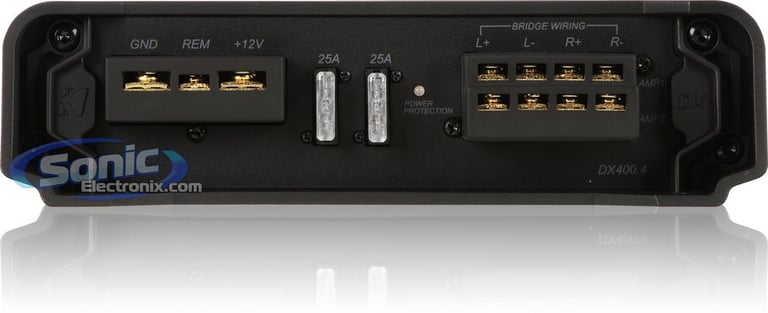

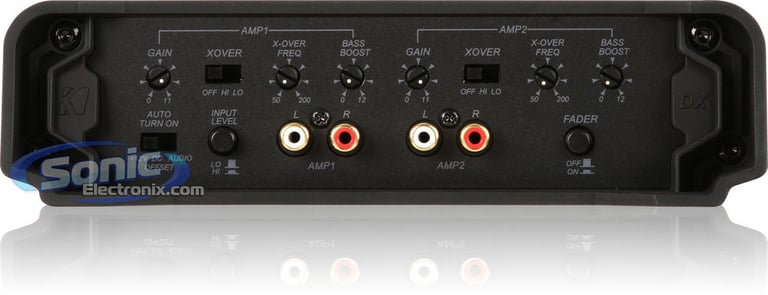

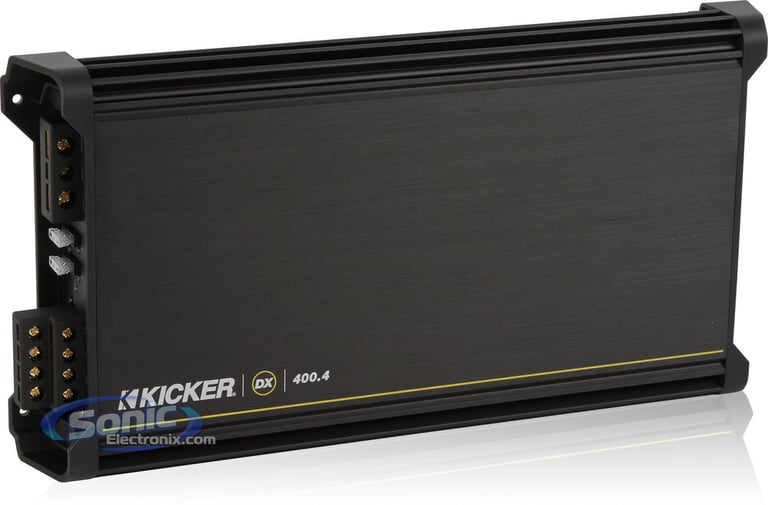

Kicker Kicker 11DX400.4 Features:
  • DX Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Total RMS power output: 200 watts x 2 chan.
  • High efficiency MOSFET power supply
  • LED power and protect indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 40 Hz)
  • Mono channel operation
  • Preamp RCA outputs
  • Selectable KickEQ bass boost (0 or +9 dB at 40 Hz)
  • FIT (Fail-Safe Integration Technology) utilizes differential inputs to reject noise and electrical interference for the quietest operation possible and ultimate audio clarity
  • Muting circuit cancels out unwanted noise
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Fixed high-pass filter (100 Hz, 18 dB/octave)
  • Fixed low-pass filter (80 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 16-1/8"L x 8-5/16"W x 2-1/4"H
  • Actual power exceeds rated power, documented inside each carton
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

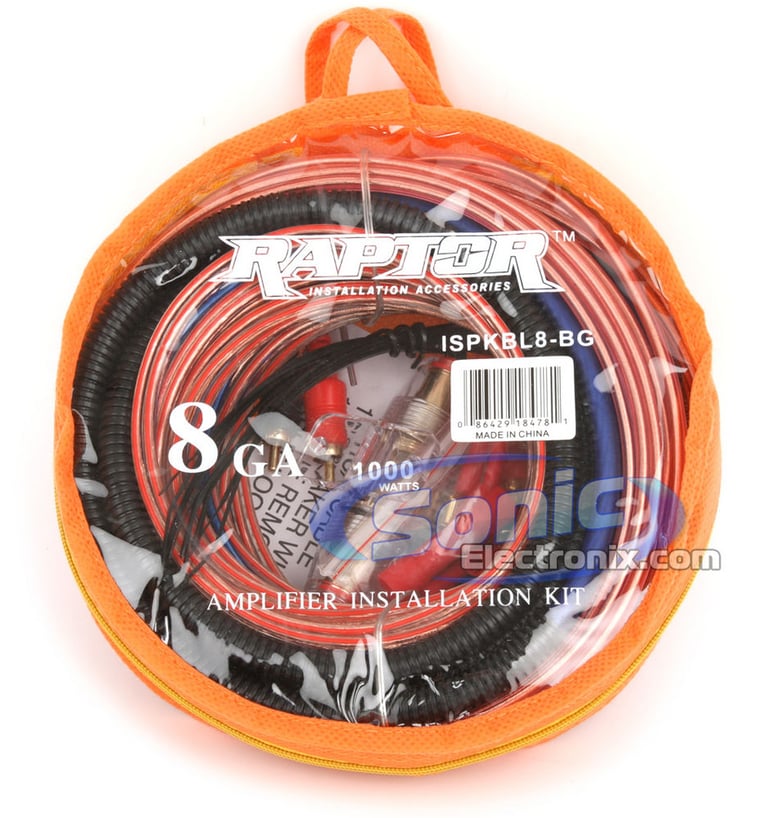

Raptor ISPKBL8-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier

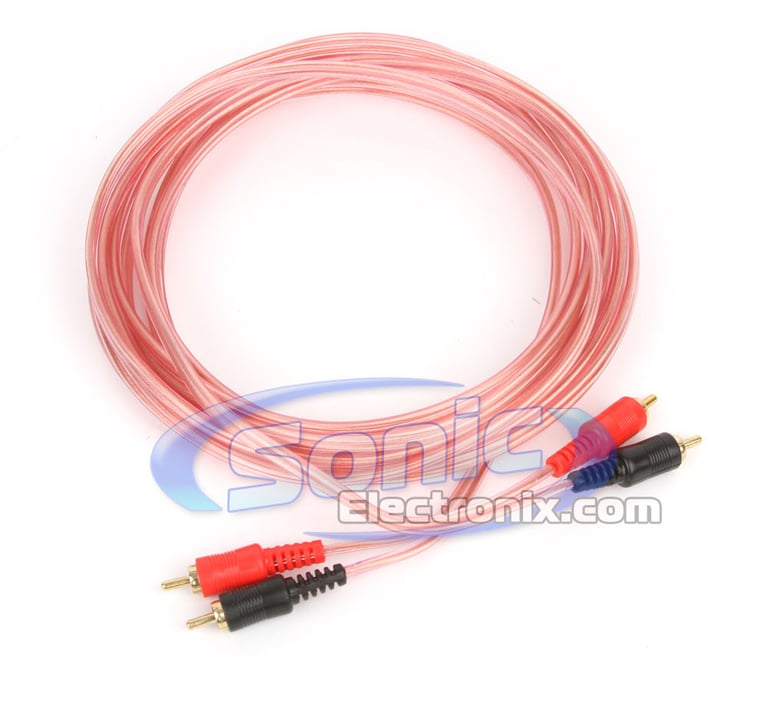

  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL8-BG Includes:

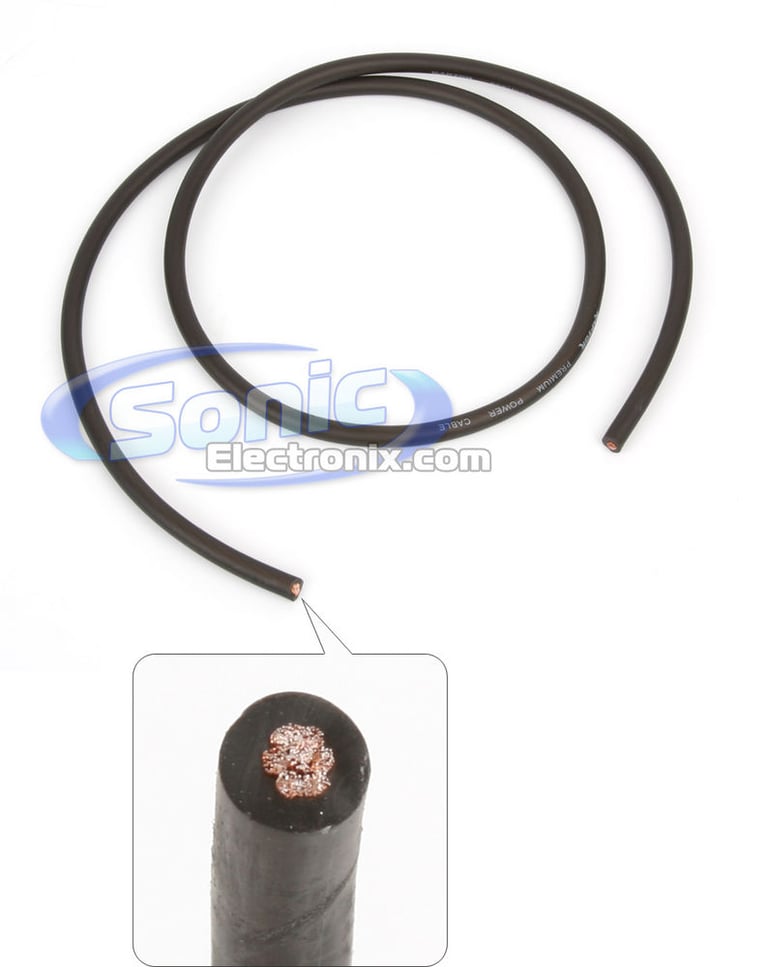

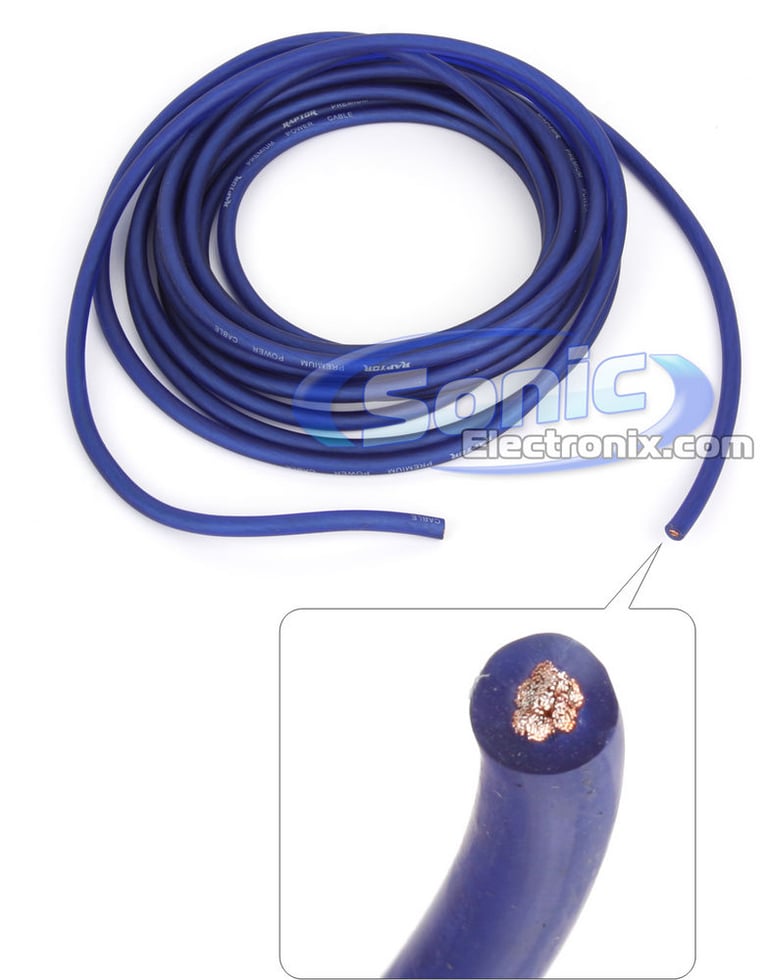

  1. 17 ft. of 8 Gauge blue power cable
  2. 3 ft. 8 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable

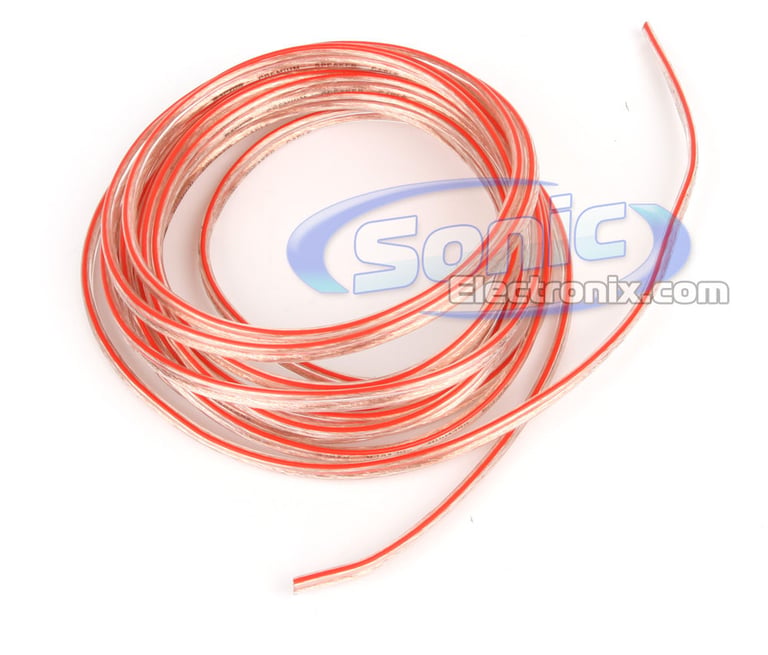

  4. 16 ft. of Premium speaker cable

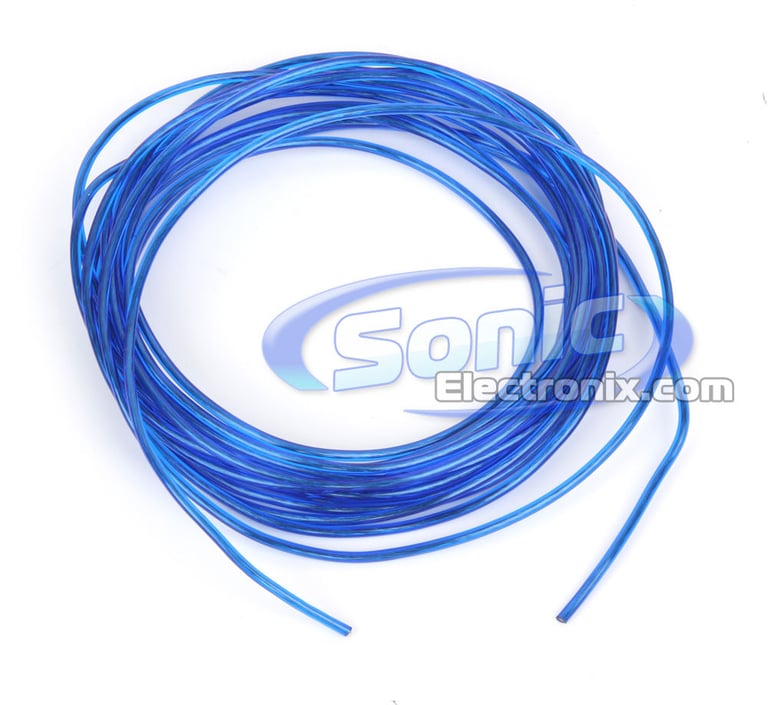

  5. 17 ft. of 18 Gauge blue remote turn-on wire

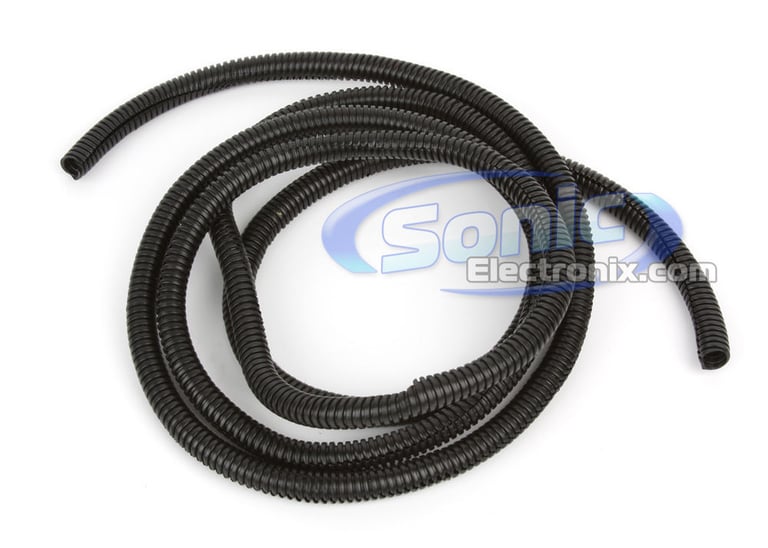

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

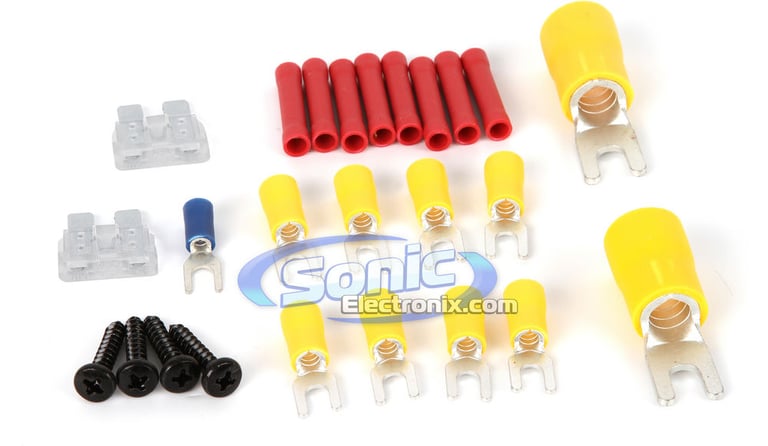

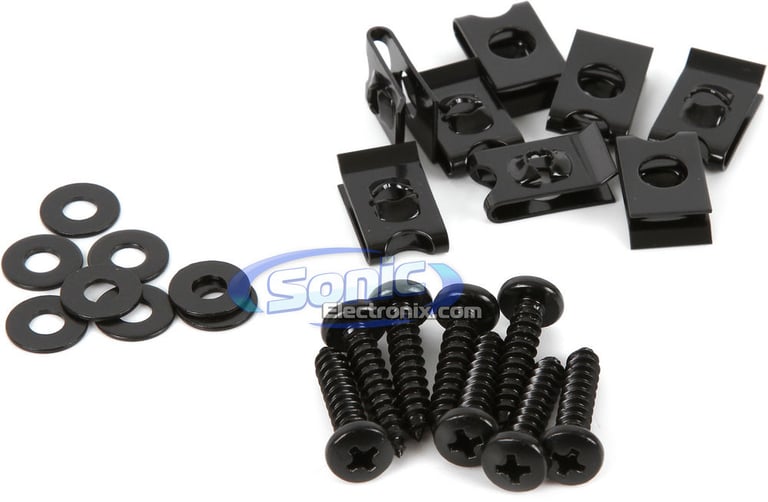

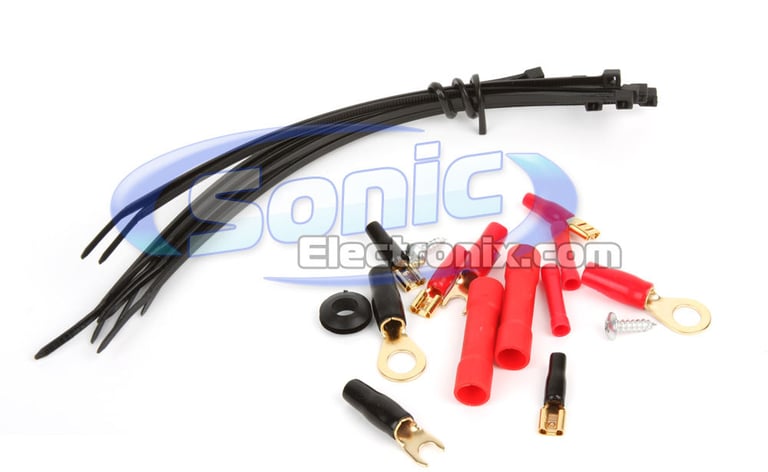

  9. All Necessary Hardware for Installation

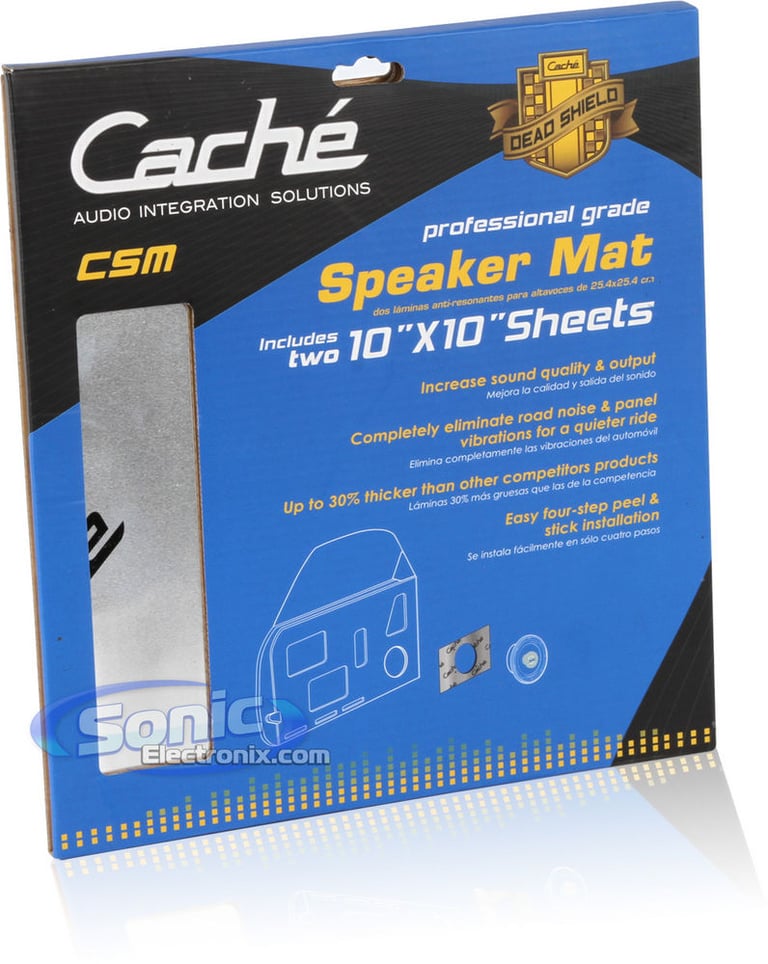

Cache CSM Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Specifications & Details


Front Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Polymer/Mica Composite
Woofer Surround
Rubber
Peak Power Handling
170 watts
RMS Power Handling
55 watts
Sensitivity
87 dB
Frequency Response
80 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2"
Cutout Dimensions
4-1/2" x 4-1/2"
Speaker Grilles
Optional (Accessory Required and Sold Separately)
Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
100 Hz
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11DX400.4_SPS-510

Weight:

16.51lbs

Internal SKU:

11dx4004_sps510

Internal Product ID:

37382
