MTX Audio Speakers + RE Audio Amplifier Bundle

5" x 7" MTX TN573 Terminator Series Speakers + RE Audio DTS-500.4 4-Channel Amp + Kit + Dampening

MTX
Shop all MTX
EXCLUSIVE
Product videos
highlight-star-icon

5" x 7" / 6" x 8" Terminator Series 3-Way Car Speakers • 220W Max • 110W RMS • DTS Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • 2-Way Protection Circuitry • Amplifier Kit • Sound Dampening Material

Learn more about the dts5004_tn573

We apologize

This item has been discontinued


Loading...
XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

SA69CXV2 main

Sundown Audio SA-69CX v.2 (SA69CX)

250W RMS 6x9" SA Series 2 Way Coaxial 4-ohm Speakers (S-SA69CXV2)

-16.67%

$259.99

List price $311.99

Product Highlights


5" x 7" / 6" x 8" Terminator Series 3-Way Car Speakers • 220W Max • 110W RMS • DTS Series 4-Channel Class A/B Car Amplifier • PWM MOSFET Power Supply • 2-Way Protection Circuitry • Amplifier Kit • Sound Dampening Material

Description


MTX brand icon

Authorized dealer

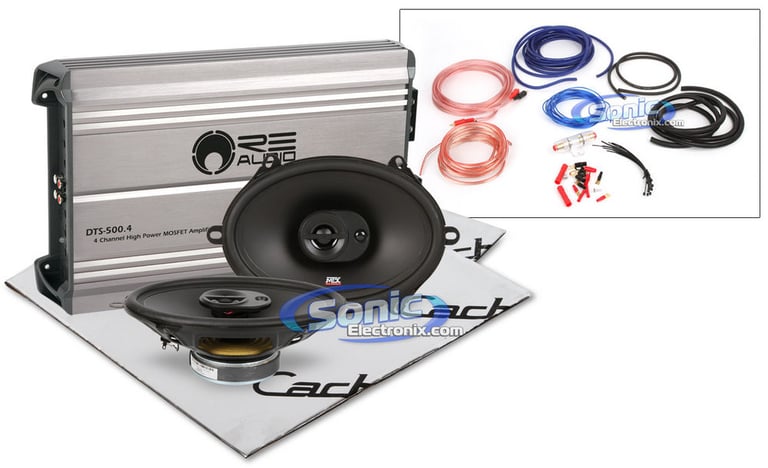

MTX Audio Speakers and RE Audio Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 5" x 7" / 6" x 8" MTX Terminator Series Coaxial Car Speakers. These speakers are rated at 220 watts Peak power per set, and 110 watts RMS per set. The speakers feature a polypropylene midwoofer cone material and a rubber midwoofer surround for rigidity and optimum performance. With a 4 Ohm impedance, 1/2" Mylar tweeter and Nomex poly-cotton spider design , these speakers are great if you are looking to improve that factory installed sound.

In order to provide the sufficient power to the Terminator Series speakers, this bundle will also include a RE Audio DTS-500.4 4-Channel DTS Series Amplifier. This amplifier is rated at 50 watts x 4 Chan. @ 4 Ohms, 80 watts x 4 Chan. @ 2 ohms, and 160 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features a 2-way System Protection Circuitry. Also featured is variable high and low pass filters for complete control of your music. With a MOSFET power supply and selectable bass boost, this amp will give you all the power you need. In addition this bundle will include a complete 8 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes two 10" x 10" pieces of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

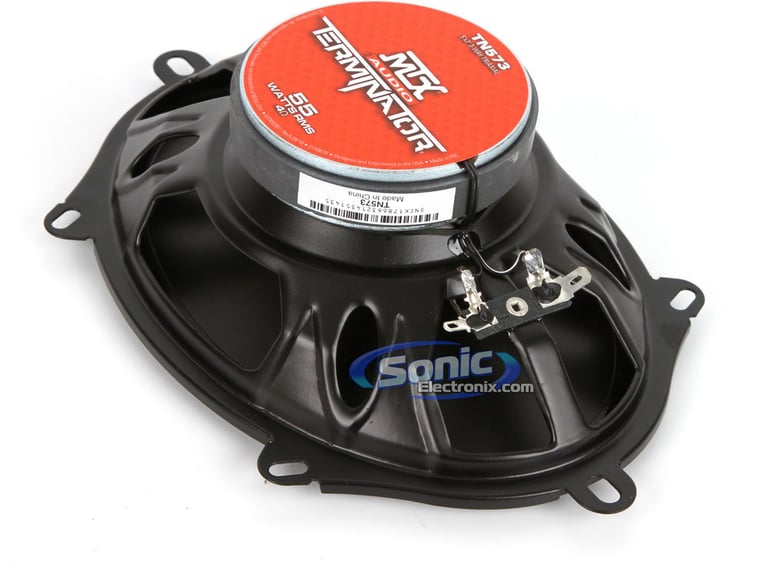

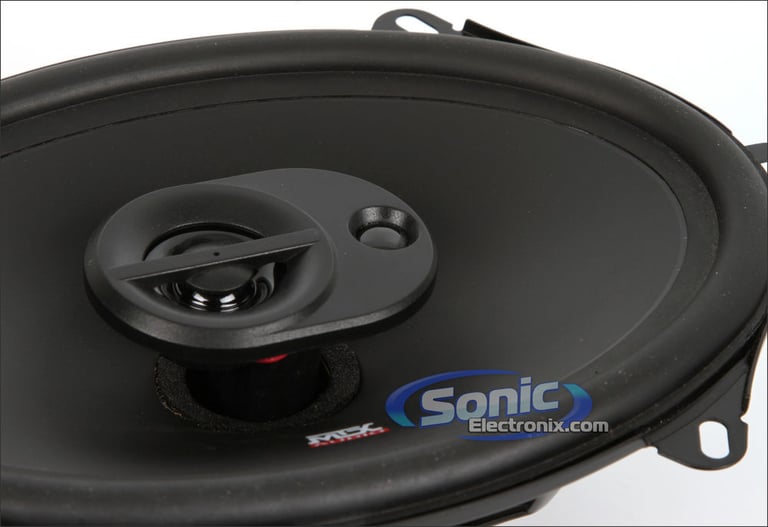

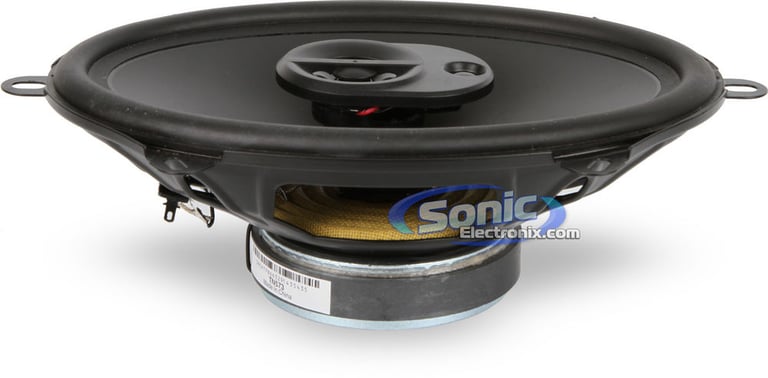

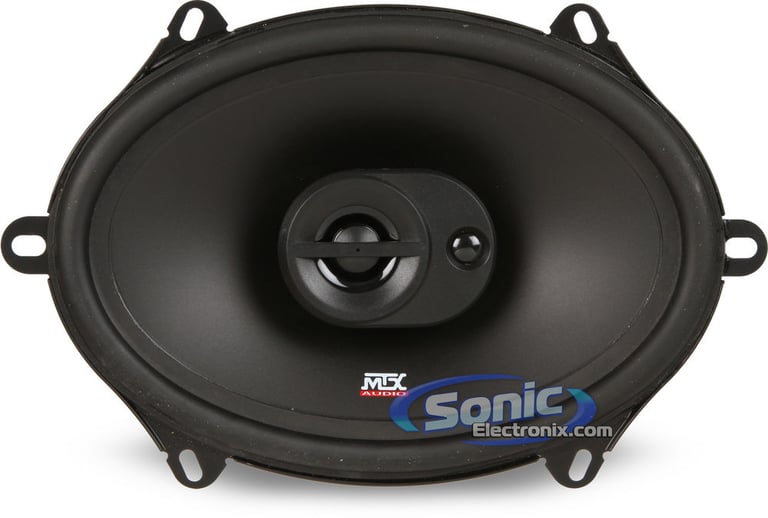

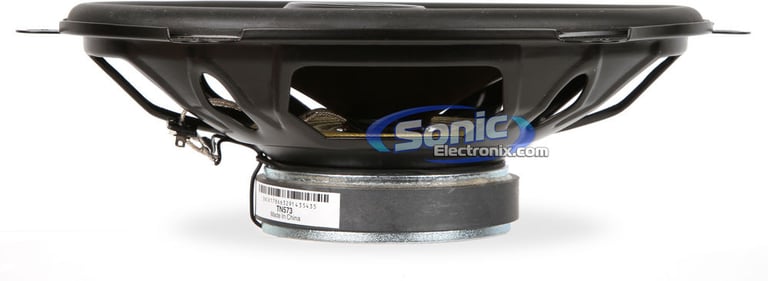

MTX Audio TN573 Features:
  • 5" x 7" / 6" x 8" Terminator Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 220 watts per pair / 110 watts each
    • RMS: 110 watts per pair / 55 watts each
  • Polypropylene midwoofer cone material
  • Rubber midwoofer surround type
  • 13mm Mylar tweeter
  • Nomex/polycotton spider design controls movement
  • Ideal factory replacement speakers
  • 4 ohm impedance
  • Top-mount depth: 2-5/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

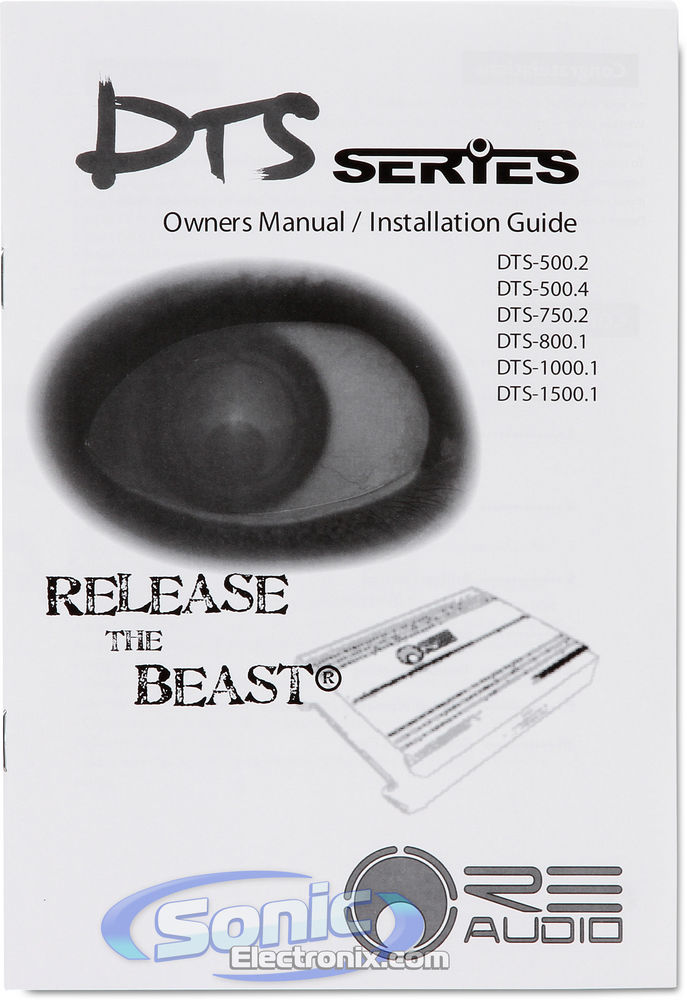

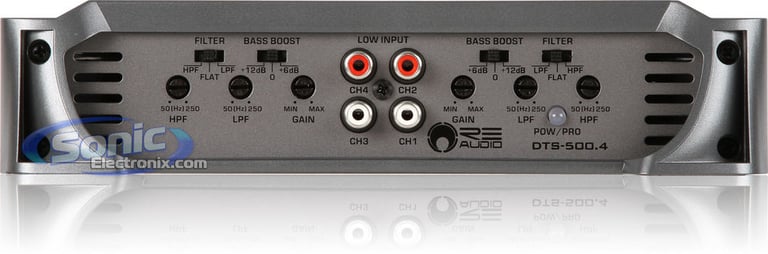

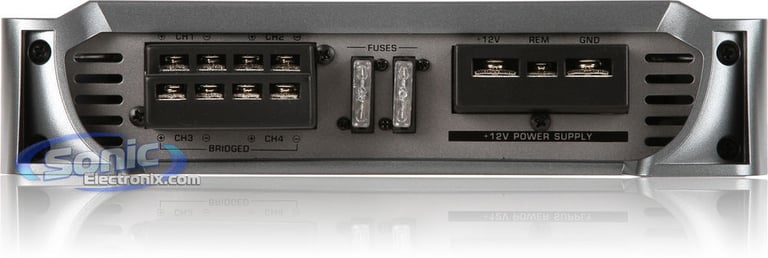

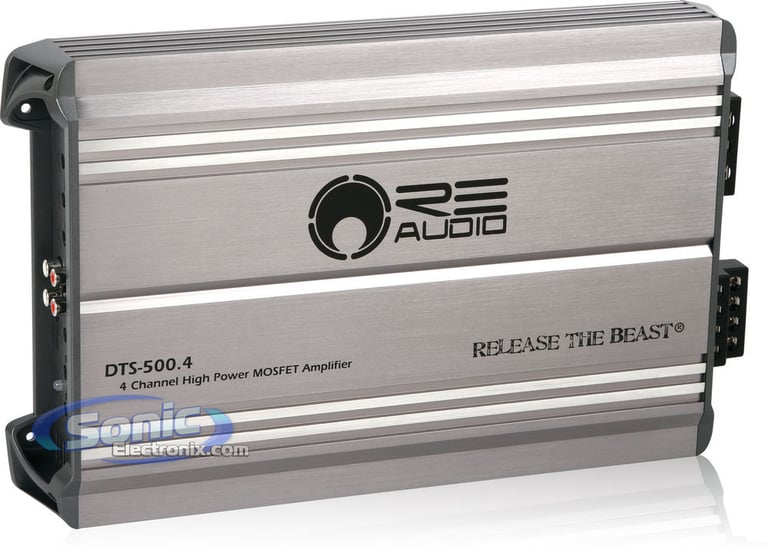

RE Audio DTS-500.4 Features:
  • DTS Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V)):
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • Dynamic power output: 400 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • 4/3/2 channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input Impedance: 22 K-Ohm
  • Input sensitivity:
    • Low level: 200mV-2V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • Effective damping factor: 300 @ 4 ohm
  • Frequency response: 20-36,000 Hz
  • Dimensions: 13-1/2"L x 8-11/16"W x 2"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

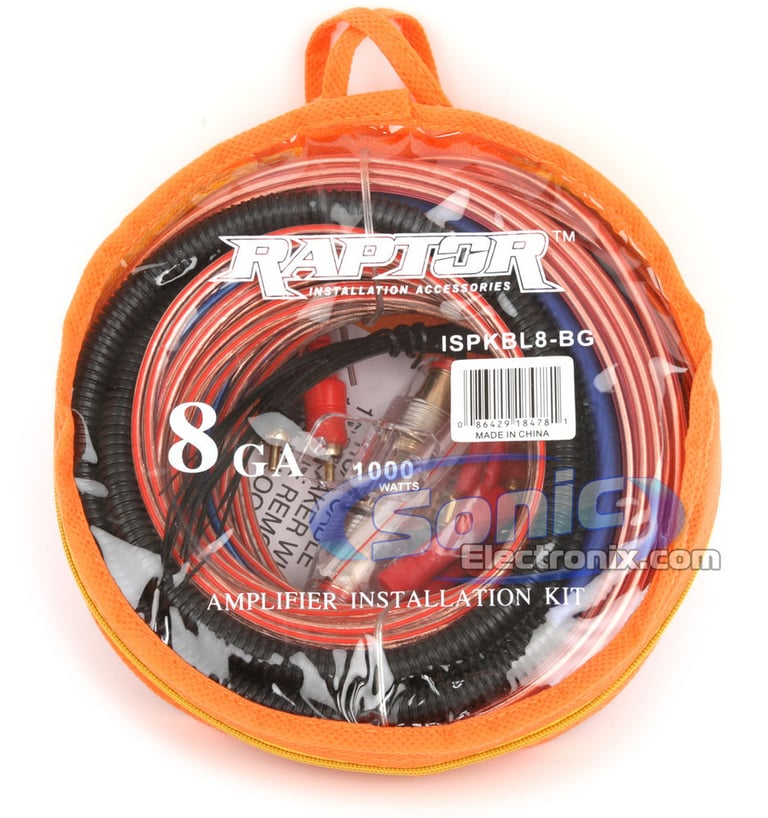

Raptor ISPKBL8-BG Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor ISPKBL8-BG Includes:

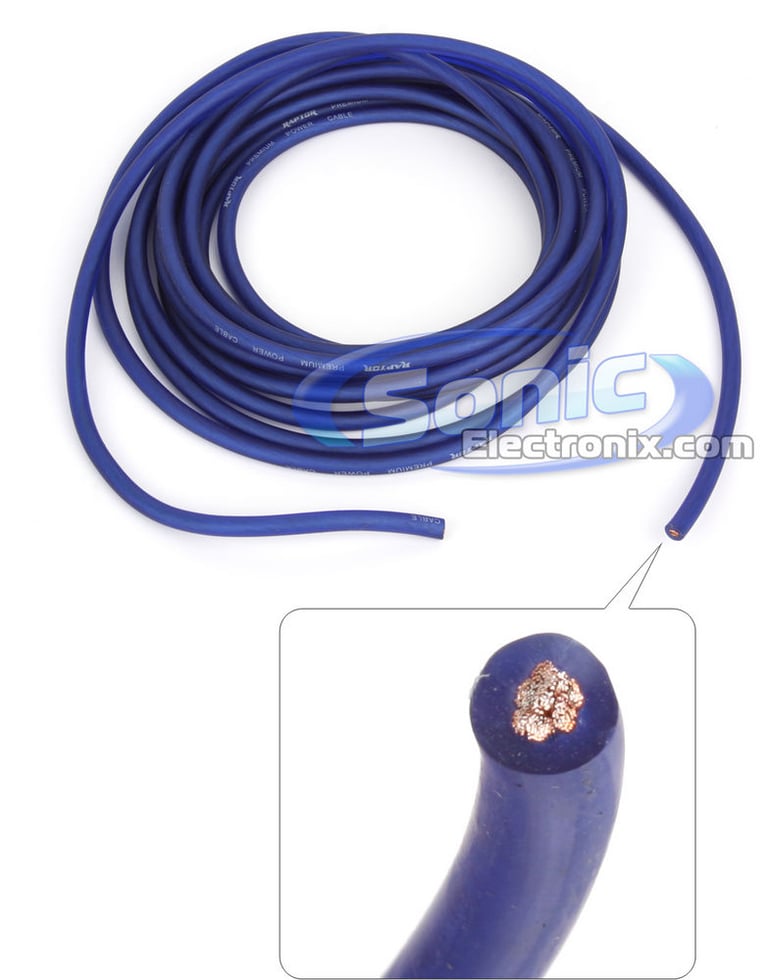

  1. 17 ft. of 8 Gauge blue power cable

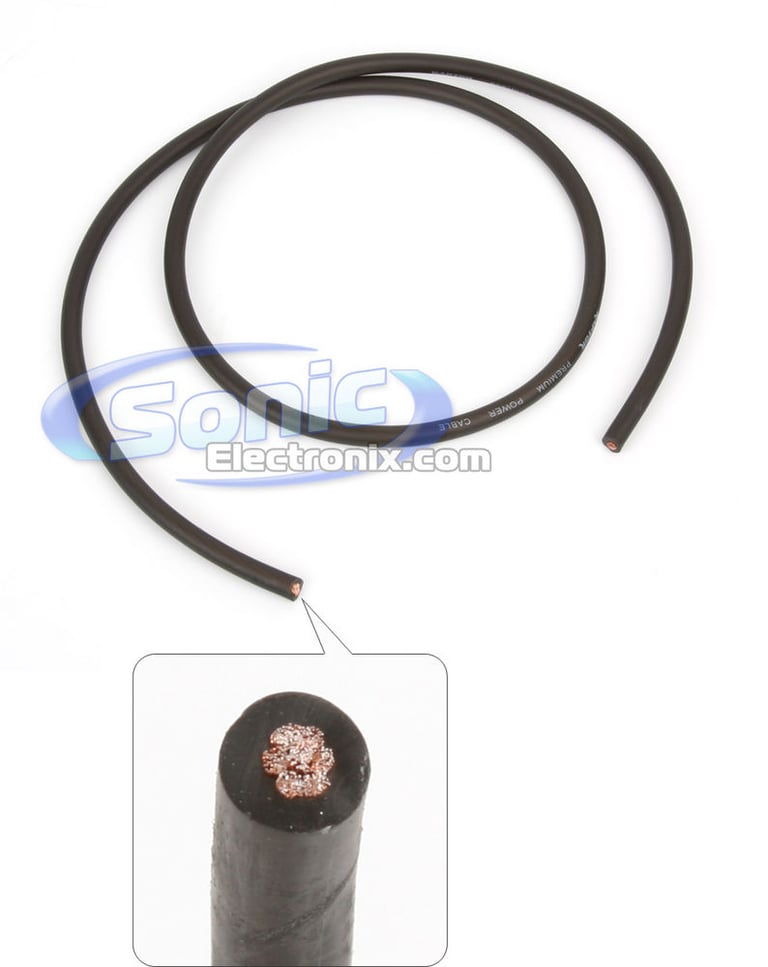

  2. 3 ft. 8 Gauge black ground cable

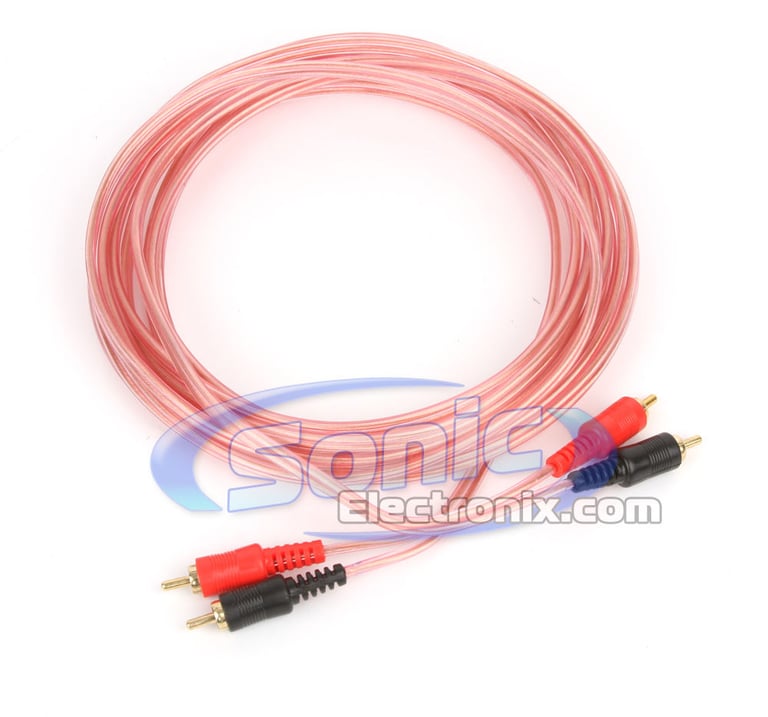

  3. 17 ft. Neon blue series RCA cable

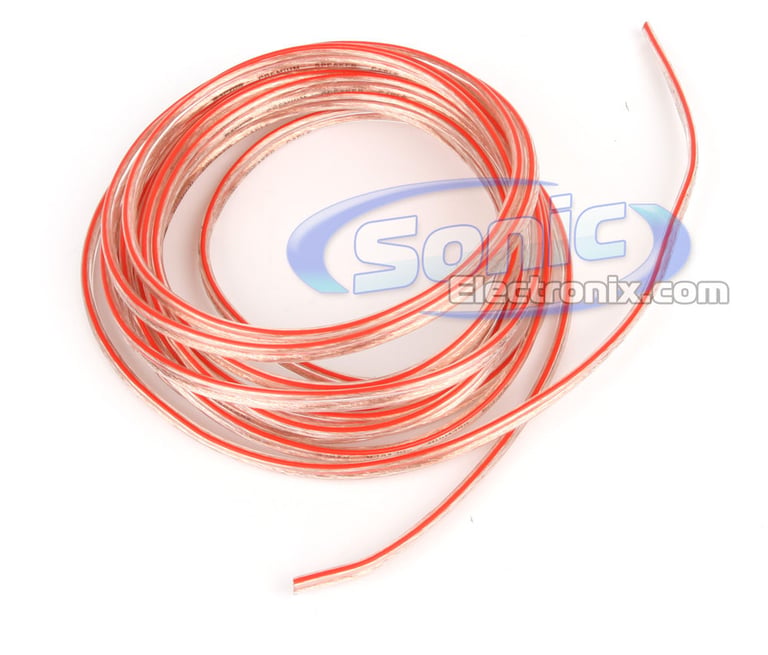

  4. 16 ft. of Premium speaker cable

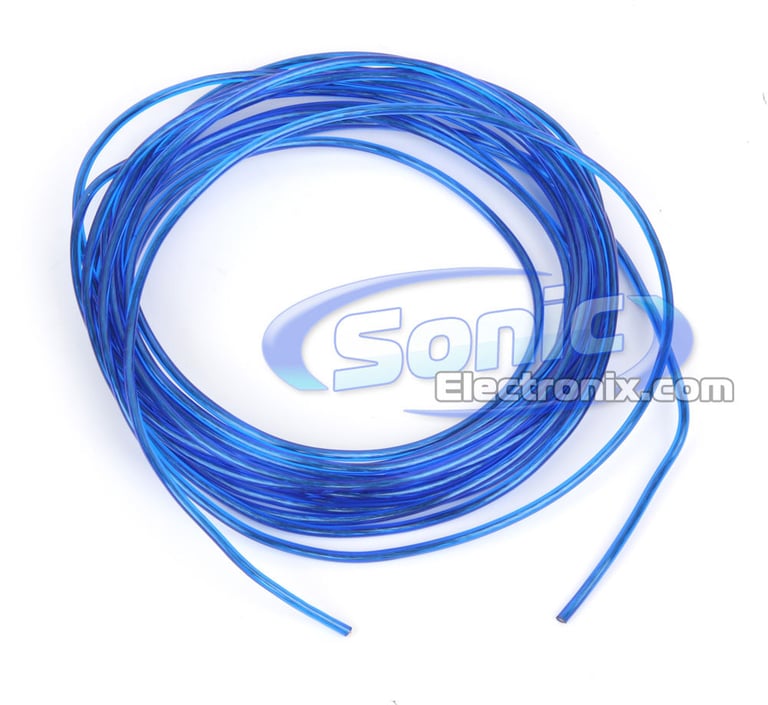

  5. 17 ft. of 18 Gauge blue remote turn-on wire

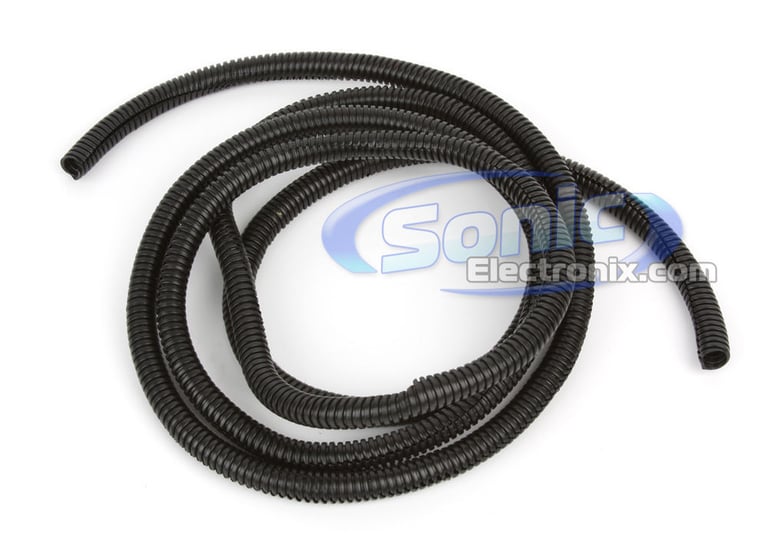

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

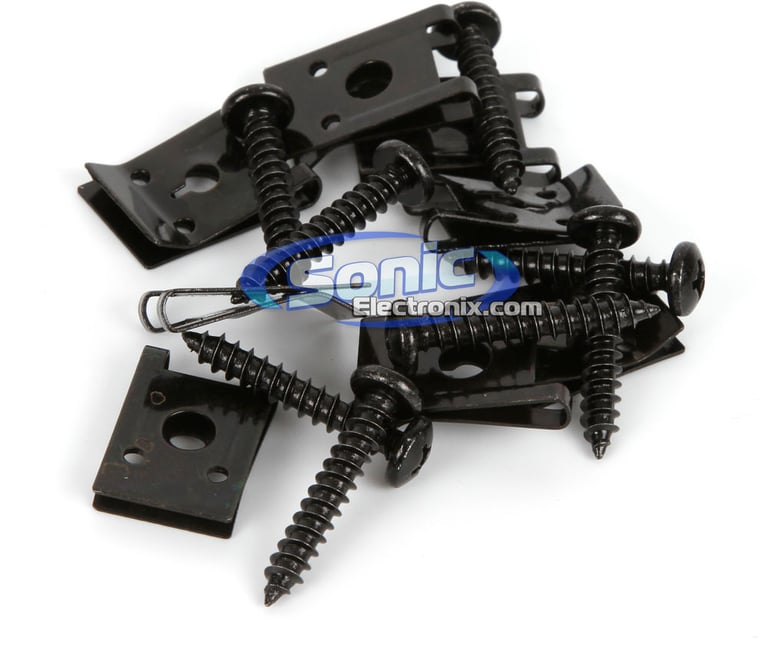

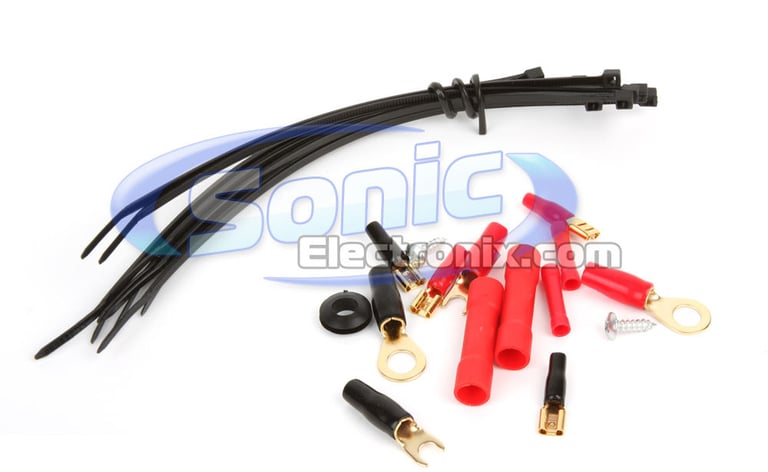

  9. All Necessary Hardware for Installation
Cache CSM Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Specifications & Details


Front Speaker Specifications
Speaker Size
5" x 7" (also mounts in most 6" x 8" locations)
Design
3-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Dome
Tweeter Composition
Mylar
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
110 watts
RMS Power Handling
55 watts
Sensitivity
87.8 dB
Frequency Response
46 - 20,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-5/16"
Cutout Dimensions
4-15/16 x 7-3/16
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Peak Power Output
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

DTS-500.4_TN573

Weight:

14.88lbs

Internal SKU:

dts5004_tn573

Internal Product ID:

37387
