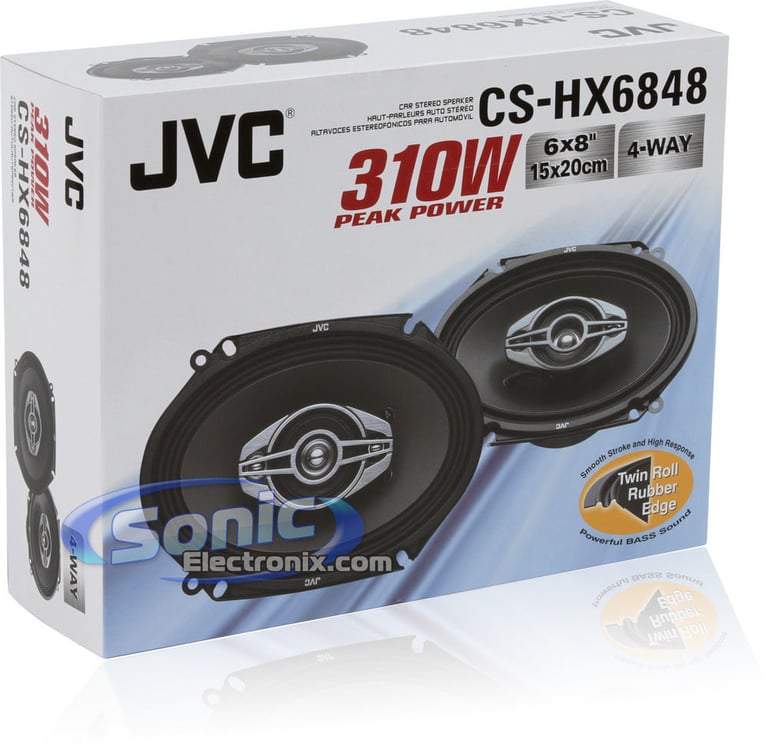

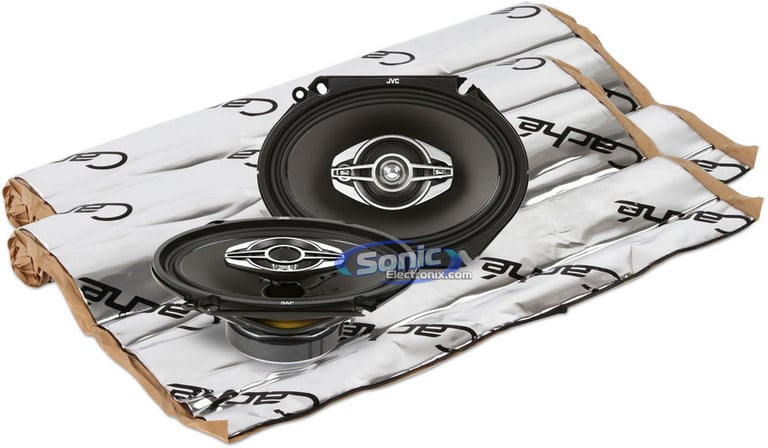

JVC CS-HX6848 + Sound Dampening

6" x 8" 4-Way HX Series Coaxial Speakers with Four 18" x 32" Pieces of Sound Dampening Material

JVC
Shop all JVC
EXCLUSIVE
Product videos
highlight-star-icon

6" x 8" 4-Way Coaxial Speakers • 310 Watts Max • 50 Watts RMS • Mica Aramid Fiber Cone Woofer • Twin Roll Rubber Surround • 4 ohm • 85 dB Sensitivity • Heat-Resistant Voice Coil • Sound Dampening Features

Learn more about the cshx6848_2-cvm

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


6" x 8" 4-Way Coaxial Speakers • 310 Watts Max • 50 Watts RMS • Mica Aramid Fiber Cone Woofer • Twin Roll Rubber Surround • 4 ohm • 85 dB Sensitivity • Heat-Resistant Voice Coil • Sound Dampening Features

Description


JVC brand icon

Authorized dealer

Why Sound Dampening?

The JVC CS-HX6848 speakers along with the Cache CVM Sound Dampening is a great package that can help improve the sound quality from the speakers as well as overall output. Not only will the Dampening benefit your speakers, but you can also benefit your entire vehicle and it's overall road noise isolation. Adding Sound Dampening can help make your car quieter and more comfortable while improving the sound quality.

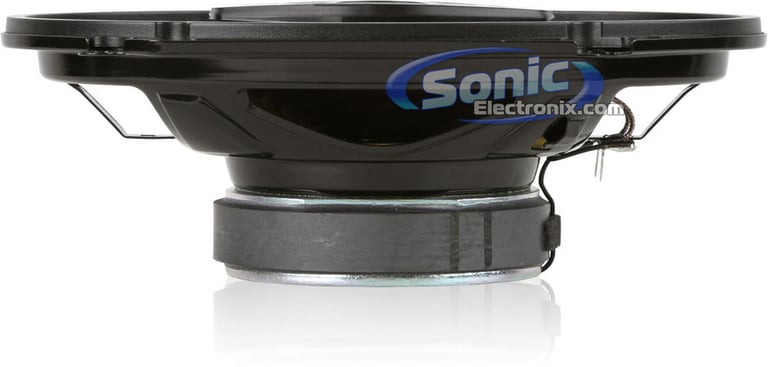

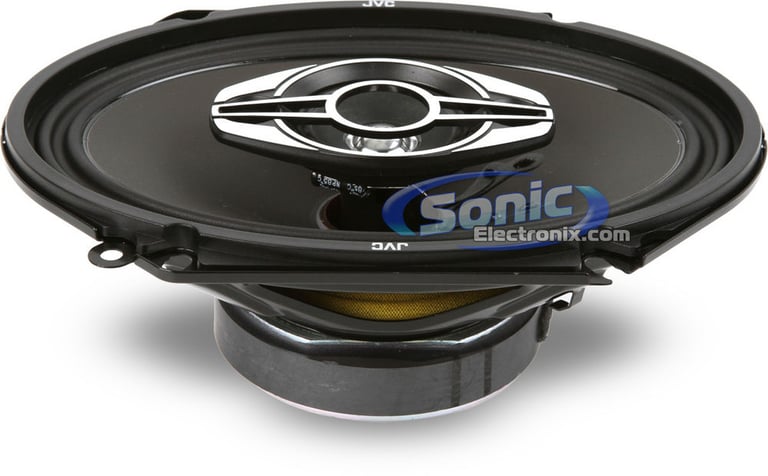

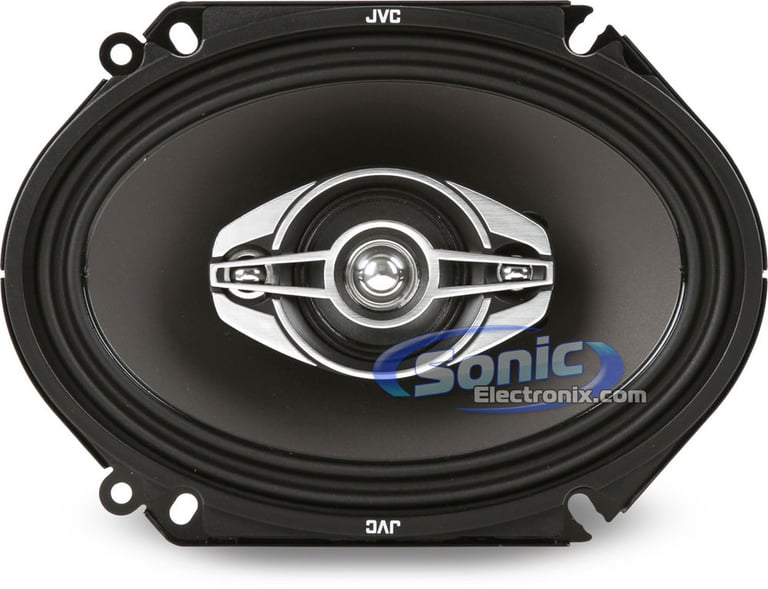

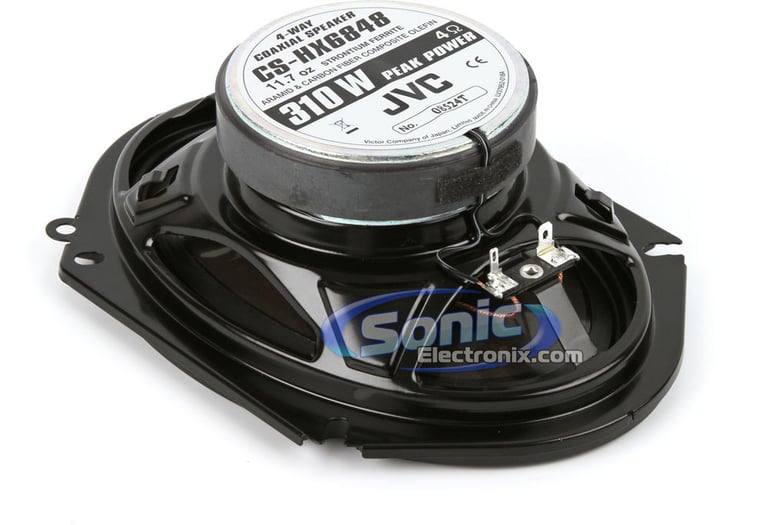

Speaker Features:
  • 6" x 8" 4-Way HX Series Coaxial Speakers
  • Power Handling:
    • Peak: 620 watts per pair / 310 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Mica aramid fiber with carbon fiber composite olefin cone woofer
  • Twin roll rubber surround
  • 1-31/32" (5 cm) midrange tweeter with HHC cone and neodymium magnet
  • 19/32" (1.5 cm) Metal coated poly-ether imide tweeter
  • 1/2" (1.2 cm) Metal coated poly-ether imide supertweeter
  • Large magnets handle greater power for lower frequency response
  • Twin rubber edge enhances sound quality and response with smooth and linear movement
  • Mica reinforced cone provides strength and stability for deeper bass response
  • 4 ohm impedance
  • Frequency response: 30-25,000 Hz
  • Sensitivity: 85 dB
  • Crossover frequency: 4, 8, 12 kHz
  • Heat-resistant voice coil
  • 11.7 oz strontium magnet
  • Top-mount depth: 2-13/32" (61 mm)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

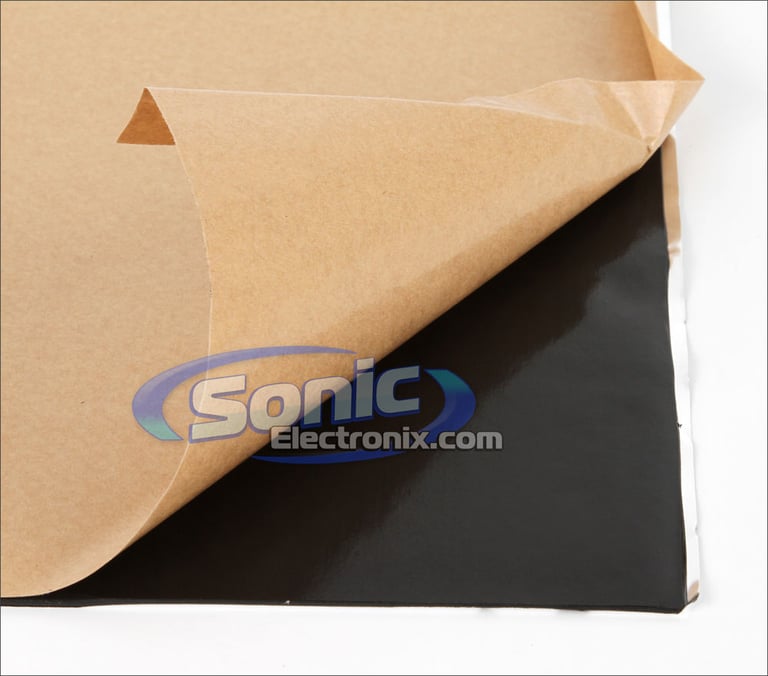

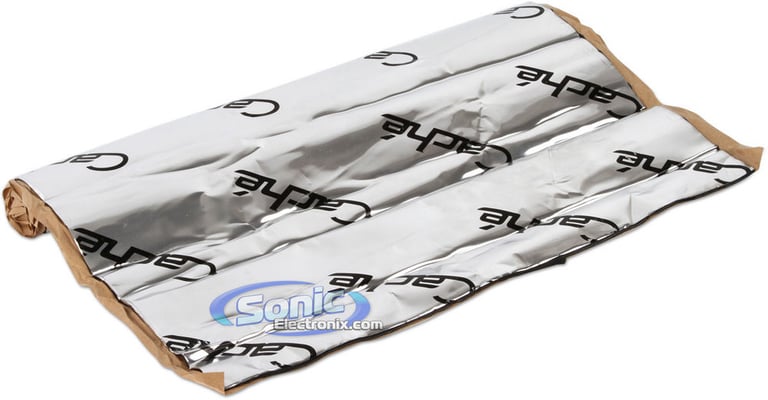

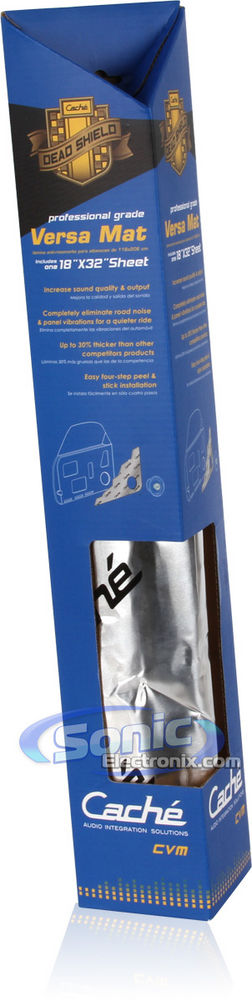

Sound Dampening Features:
  • Four 18" x 32" Piece of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions: 18"L x 32"W

Speakers Priced Per Pair


Best selling similar products

JS68K small

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $167.99

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

V68 small

Cerwin-Vega V68

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(29)

$139.99

List price $139.99

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(86)

$109.99

List price $109.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$99.99

List price $119.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(23)

$79.96

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 8"
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Aramid-Carbon Fiber Olefine
Woofer Surround
Rubber
Peak Power Handling
310 watts
RMS Power Handling
50 watts
Sensitivity
85 dB
Frequency Response
30 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-13/32"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-HX6848_2-CVM

Weight:

15.46lbs

Internal SKU:

cshx6848_2-cvm

Internal Product ID:

37416
