Product Highlights


6-1/2" Punch Series 3-Way Car Speakers • 240W Max • 120W RMS • BMF Series 4-Channel Class A/B Car Amplifier • MOSFET Power Supply • 5-Way System Protection Circuitry • Amplifier Kit • Sound Dampening Material

Description


Rockford Fosgate brand icon

Authorized dealer

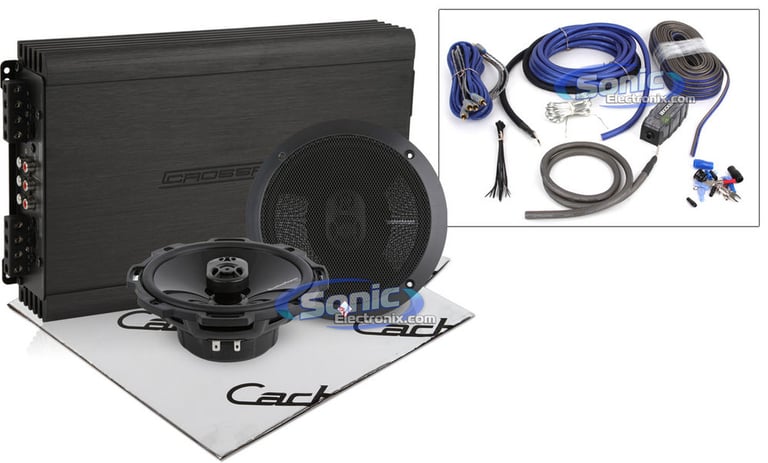

Rockford Fosgate Speakers and Crossfire Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 6-1/2" Punch Series 3-Way Car Speakers. These speakers are rated at 240 watts Peak power per set, and 120 watts RMS per set. The speakers feature an injection molded mineral filled Polypropylene cone and VAST Butyl rubber surround for rigidity and optimum performance. With a 4 Ohm impedance, PEI dome tweeter and CEA-2031 compliance, these speakers are great if you are looking to improve that factory installed sound in your vehicle.

In order to provide the sufficient power to the Punch Series 3-way speakers, this bundle will also include a Crossfire BMF 400.4 4-Channel BMF Series Amplifier. This amplifier is rated at 50 watts x 4 Chan. @ 4 Ohms, 100 watts x 4 Chan. @ 2 ohms, and 200 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features 5-Way System Protection Circuitry. Also featured is variable high and low pass filters for complete control of your music. With MOSFET power supply and variable bass boost, this amp will give you all the power you need. In addition this bundle will include a complete 4 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes two 10" x 10" pieces of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

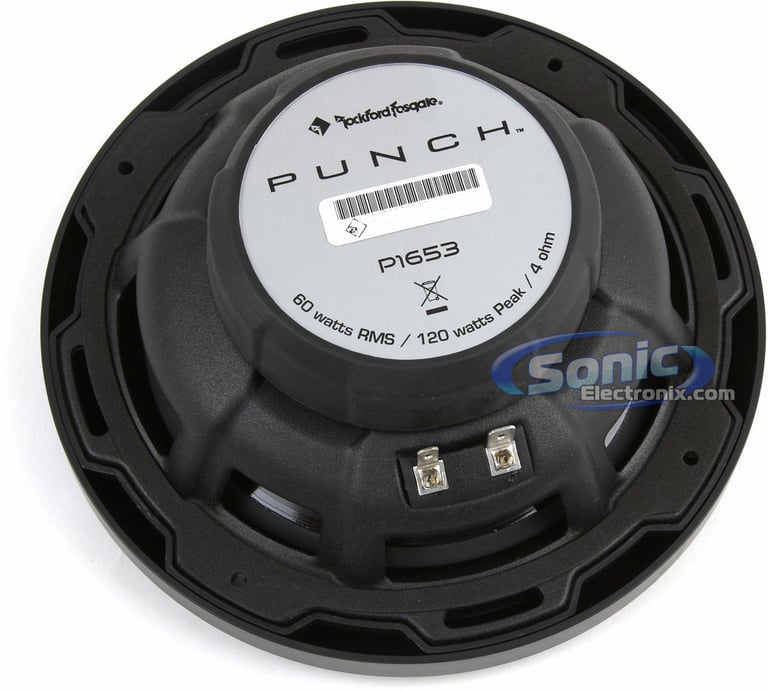

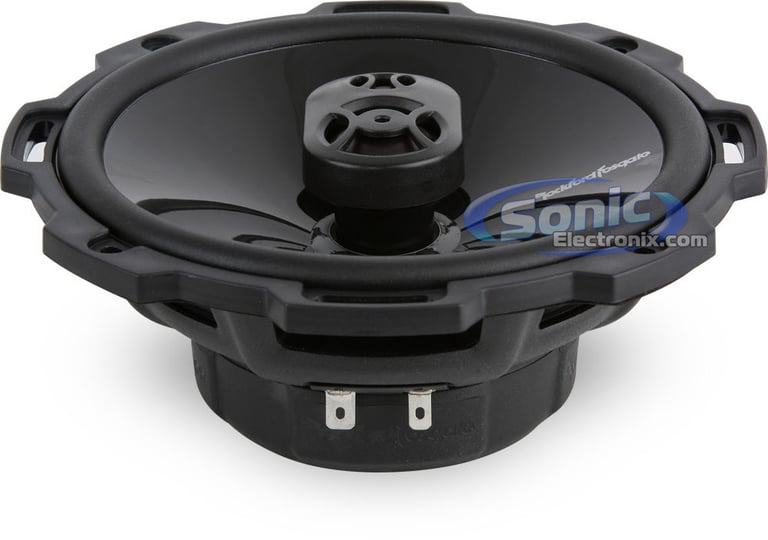

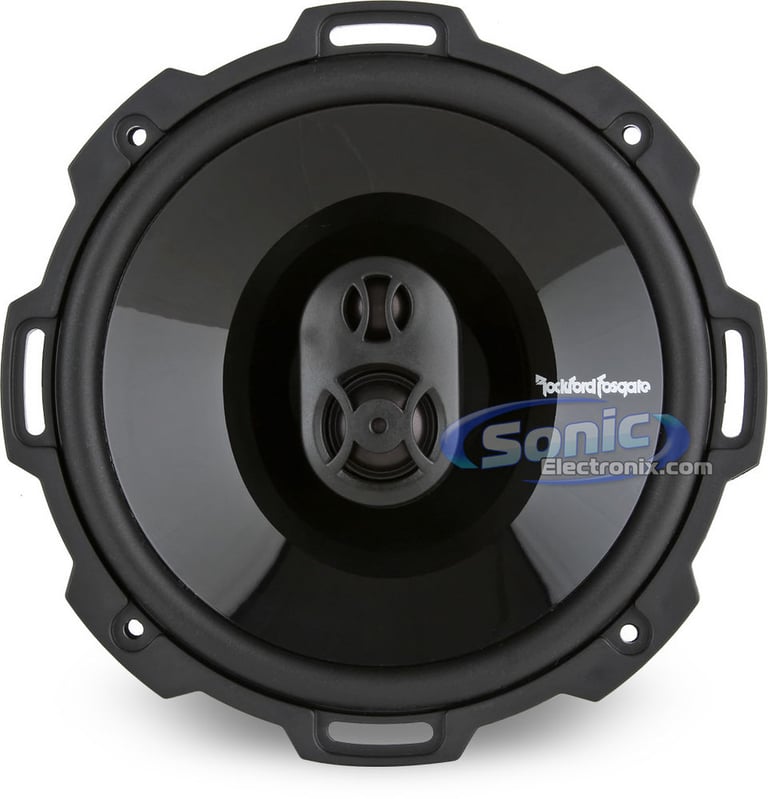

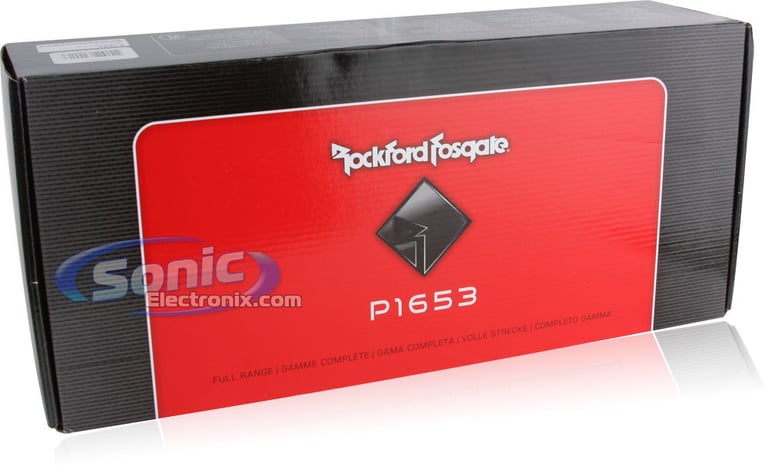

Rockford Fosgate Punch P1653 Features:
  • 6-1/2" Punch Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 240 watts per pair / 120 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Injection molded mineral filled polypropylene cone
  • VAST Butyl rubber surround
  • PEI Dome tweeter

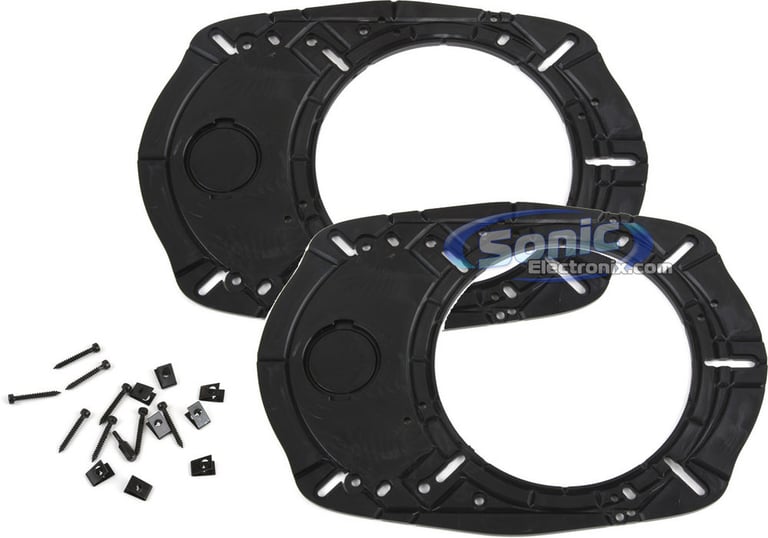

  • OEM adapter plate included
  • FlexFit basket design
  • 4 ohm impedance

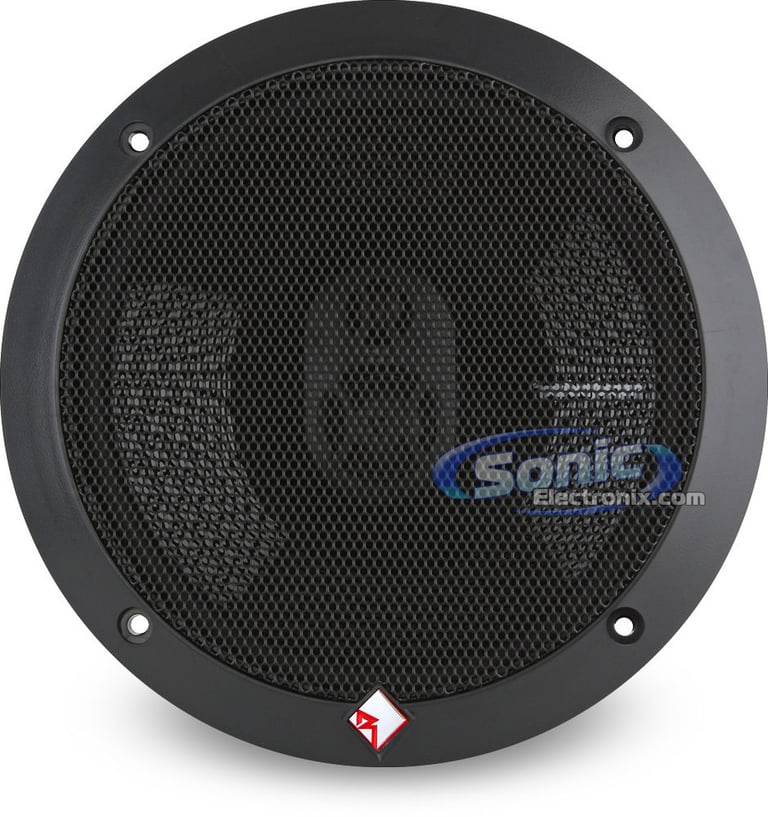

  • Includes grill and mounting hardware
  • Top-mount depth: 2"
  • CEA-2031 Compliant
  • 1-year SonicElectronix.com warranty

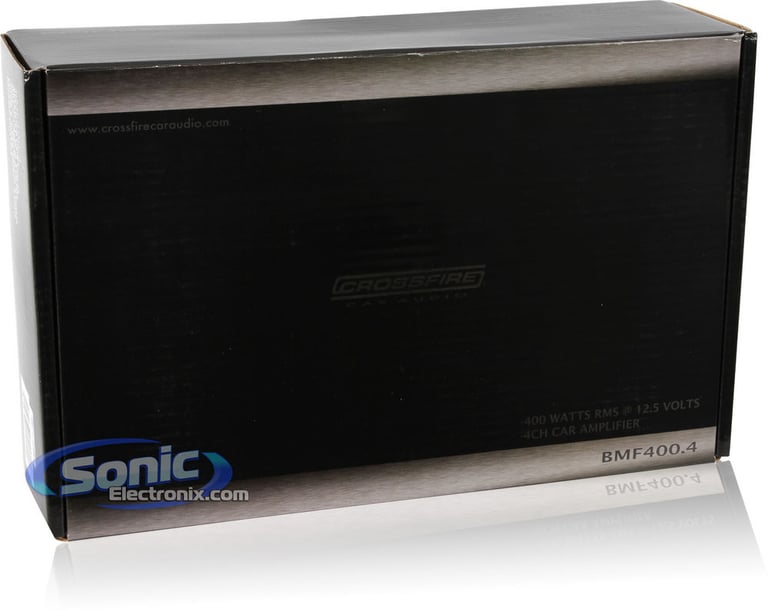

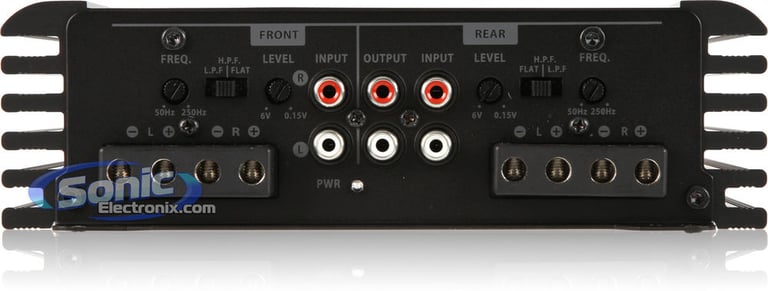

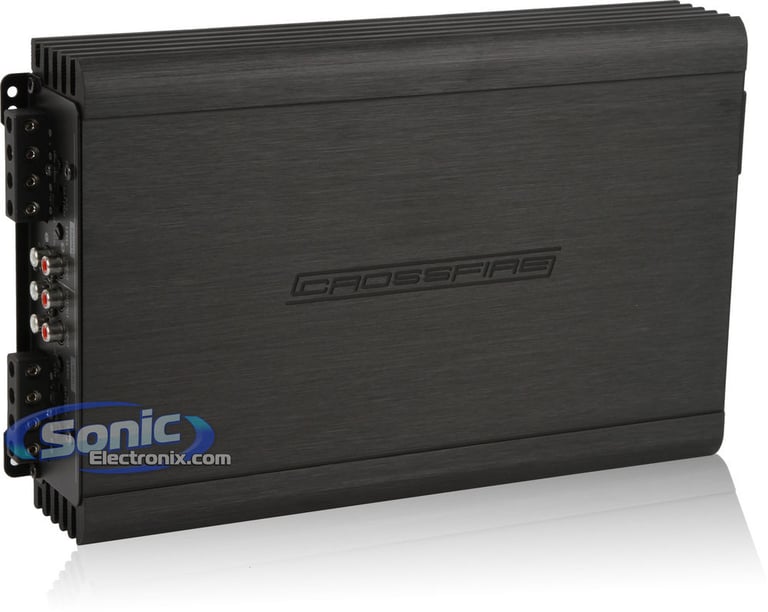

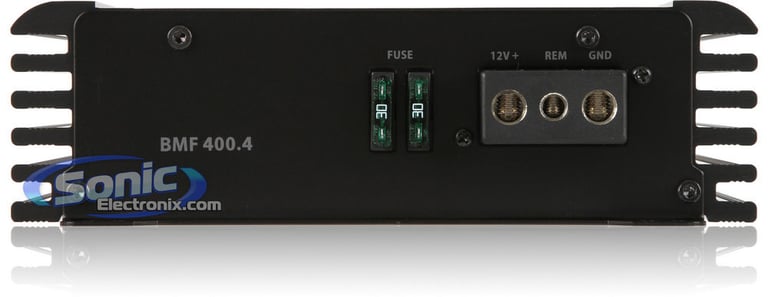

Crossfire BMF 400.4 Features:
  • BMF Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating: (12.5V)
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Total power output: 400 watts RMS.
  • High efficiency MOSFET power supply
  • LED power (green) indicator
  • Variable Bass Boost (0 to +12 dB at 45Hz)
  • Soft Start, on/off circuitry
  • Simultaneous Mono/Stereo operation capability
  • Military spec. audiophile grade components
  • Multi-stranded power toroid
  • High-efficiency Bipolar output transistors
  • Wire free PC Board layouts
  • Over-sized capacitor bank
  • Variable high-pass and low-pass electronics crossovers
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-6V
  • Full-range crossover filter
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Dimensions: 12-3/16"L x 8"W x 2-3/8"H
  • 4 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

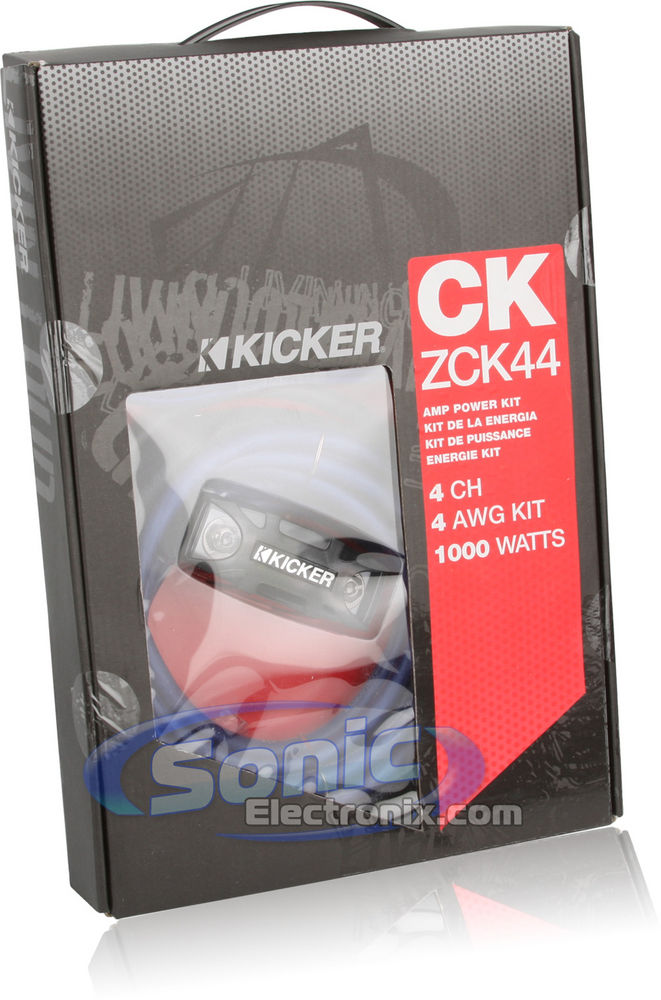

Kicker ZCK44 Features:
  • Complete 4 Gauge Z-Series 4-Channel Amplifier Installation Kit
  • 1000 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker ZCK44 Includes:

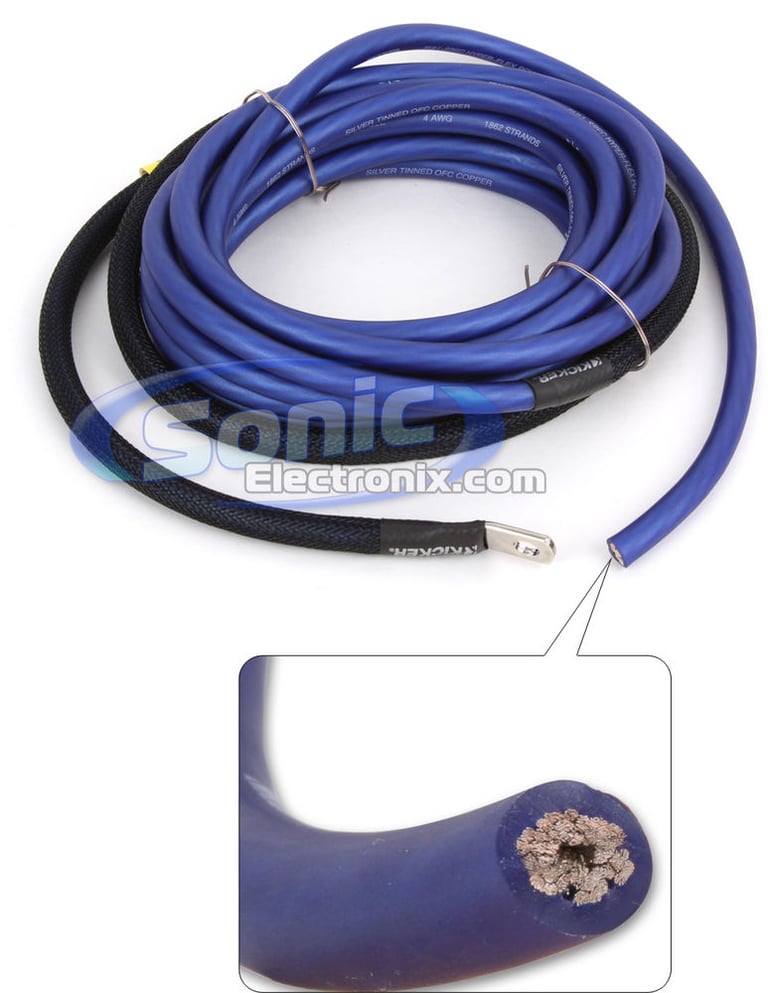

  1. 20ft(6.1m) Blue 4AWG power wire

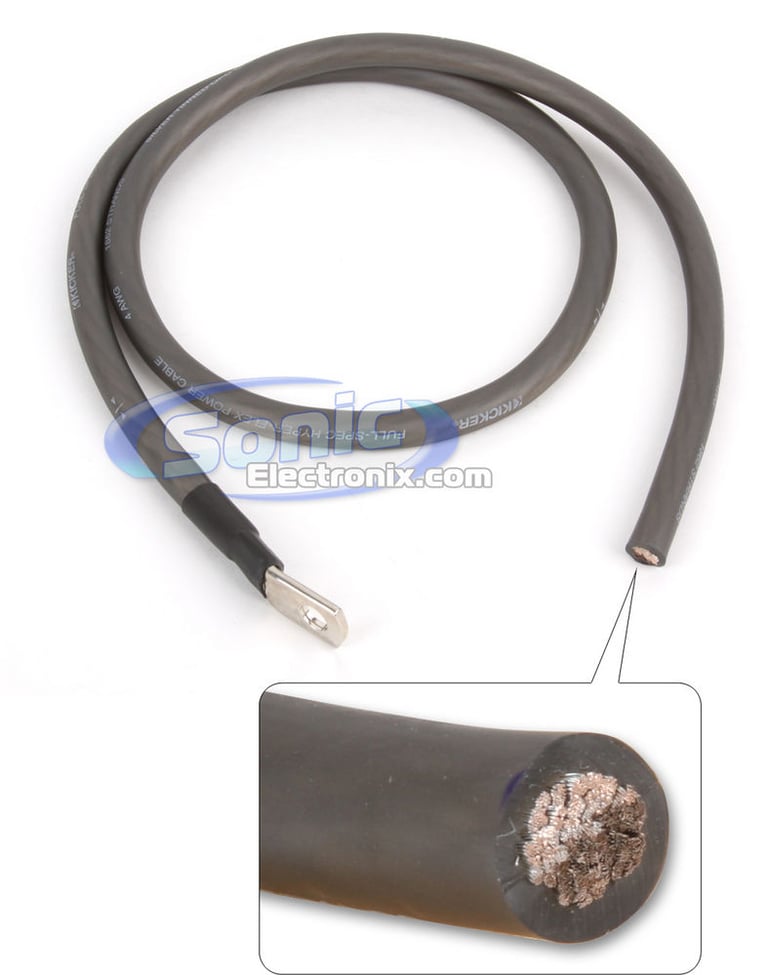

  2. 3ft(0.9m) Black 4AWG ground wire

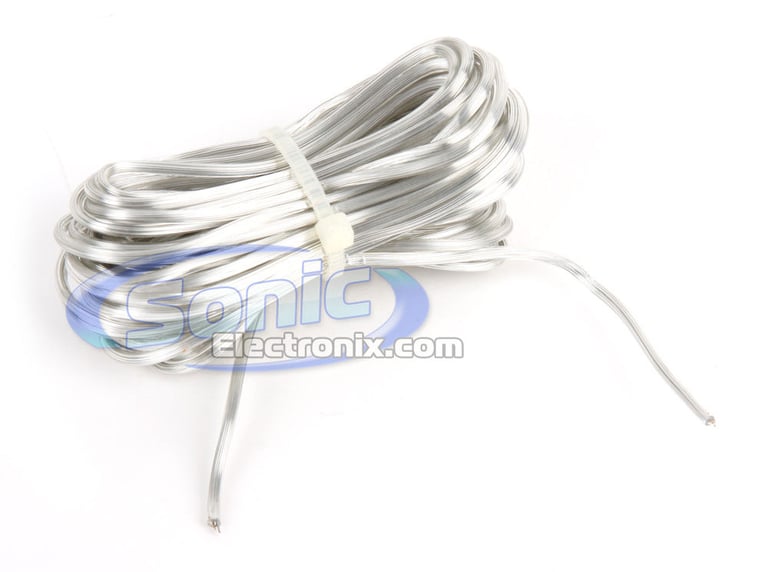

  3. 20ft(6.1m) Silver 18AWG remote lead wire

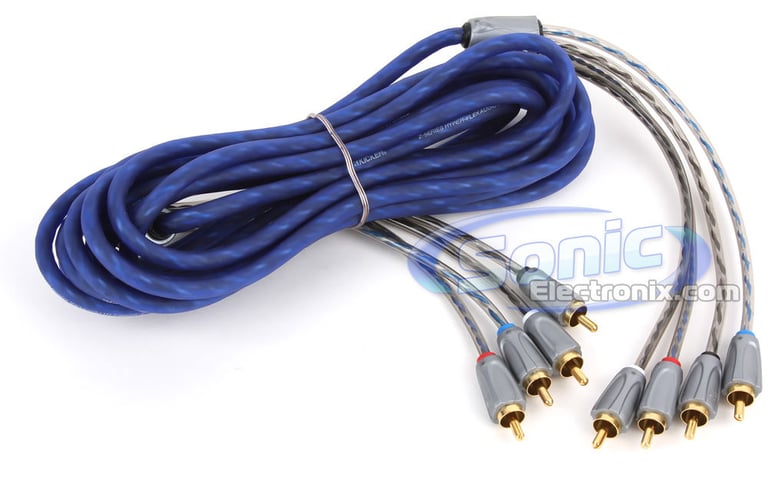

  4. 16.4(5m) Blue, black, and gray 4 Channel RCA cable

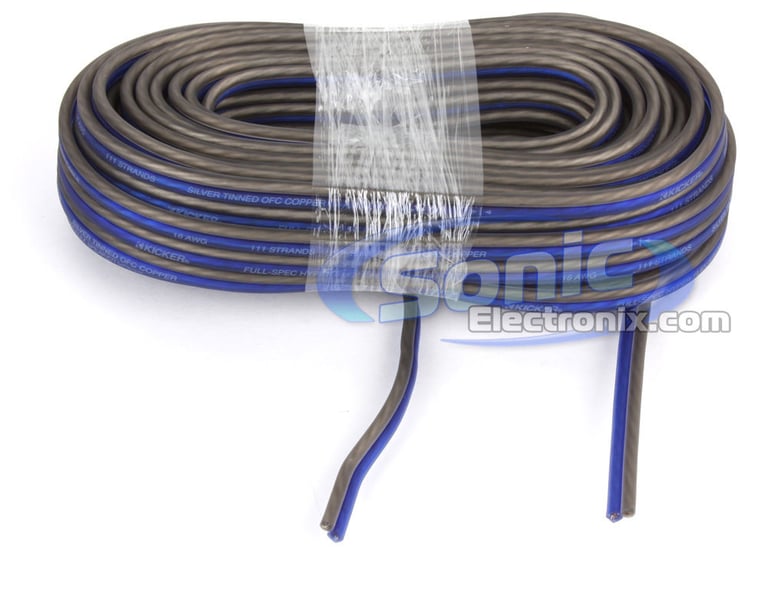

  5. 60ft(18.2m) Blue and gray 16AWG speaker cable

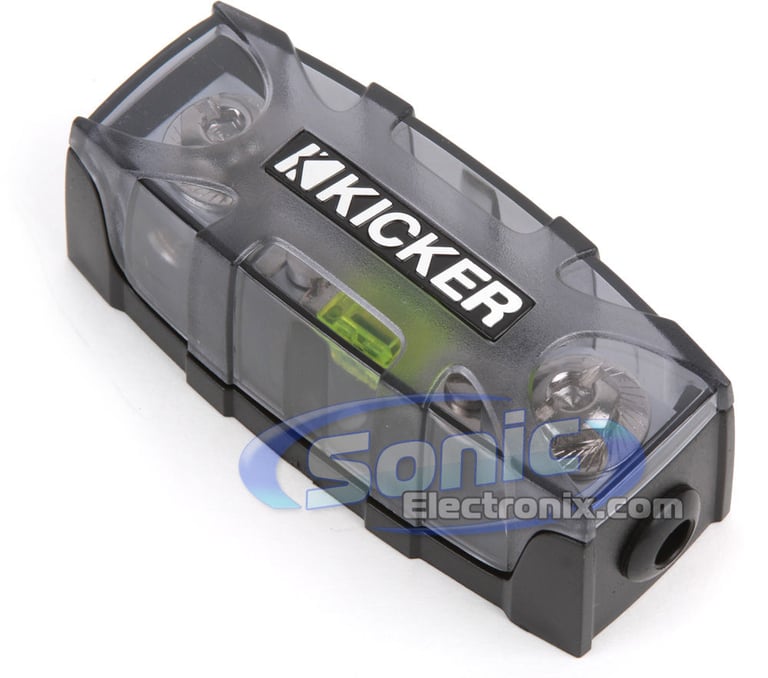

  6. 1 Kicker 09FHS Fuse holder with 100 amp AFS fuse
  7. Black rubber firewall grommet
  8. 2 4AWG Spade terminals
  9. 5 16AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector
Cache CSM Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Specifications & Details


Front Speaker Specifications
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Sensitivity
89 dB
Frequency Response
60 - 24,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
5-1/2" x 5-1/2"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No

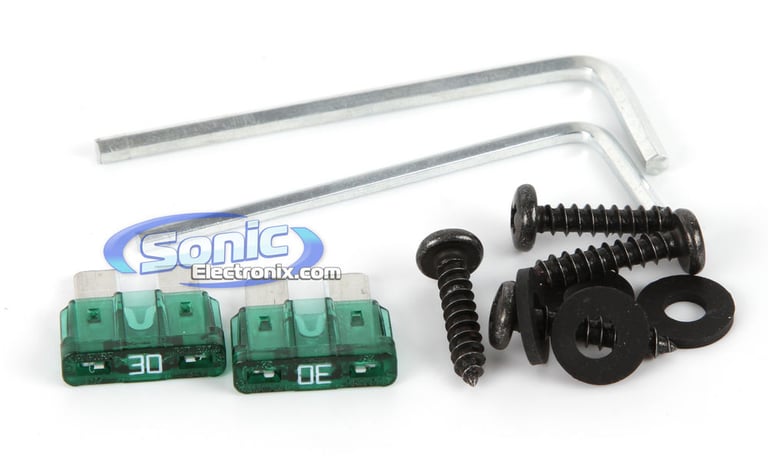

Fuse Rating
30A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF400.4_P1653

Weight:

24.98lbs

Internal SKU:

bmf4004_09-p1653

Internal Product ID:

37456
