See all parts that fit your 2013 Crosstour

1200W Crossfire + Sound Dampening Material Bass Bundle

15" Crossfire BMF1528 Dual 4 ohm BFM Series Subwoofer + Cache CDM Sound Dampening Material

Crossfire
Shop all Crossfire
EXCLUSIVE
Product videos
highlight-star-icon

15" Dual 4 Ohm BMF Series Car Subwoofer • 1200W Max • 600W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Learn more about the bmf1528_cdm

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Product Highlights


15" Dual 4 Ohm BMF Series Car Subwoofer • 1200W Max • 600W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Description

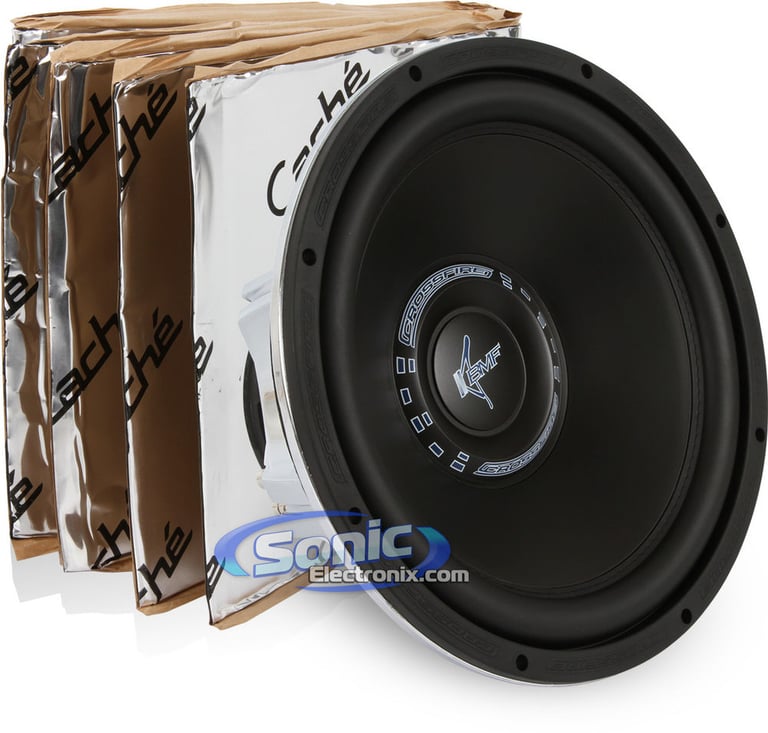

Crossfire plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 15" Dual 4 Ohm Crossfire BMF series Subwoofer. This subwoofer is rated at 600 watts RMS of continues power and 1200 watts of Max power. The subwoofer is equipped with a co-polymer cone material and stitched rubber surround for rigidity and performance. It is also equipped with spring loaded terminals for a secure installation. Along with Flexible Impedance Technology (FIT), dual stacked 85 oz magnet structure, and 2-1/2" voice coil, make this Crossfire BMF series subwoofer the perfect solution when adding bass to your audio system. In order to improve the all around sound of your audio car system, this bundle also includes four 12" x 36" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

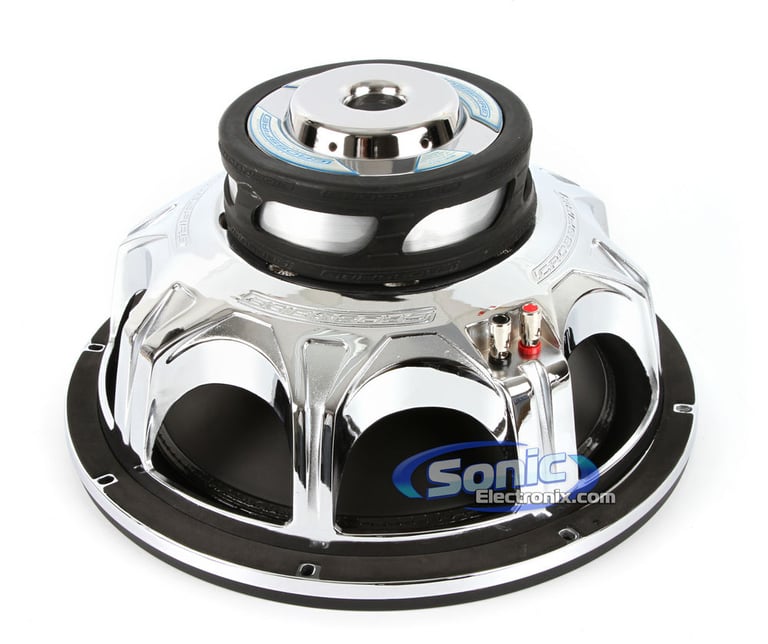

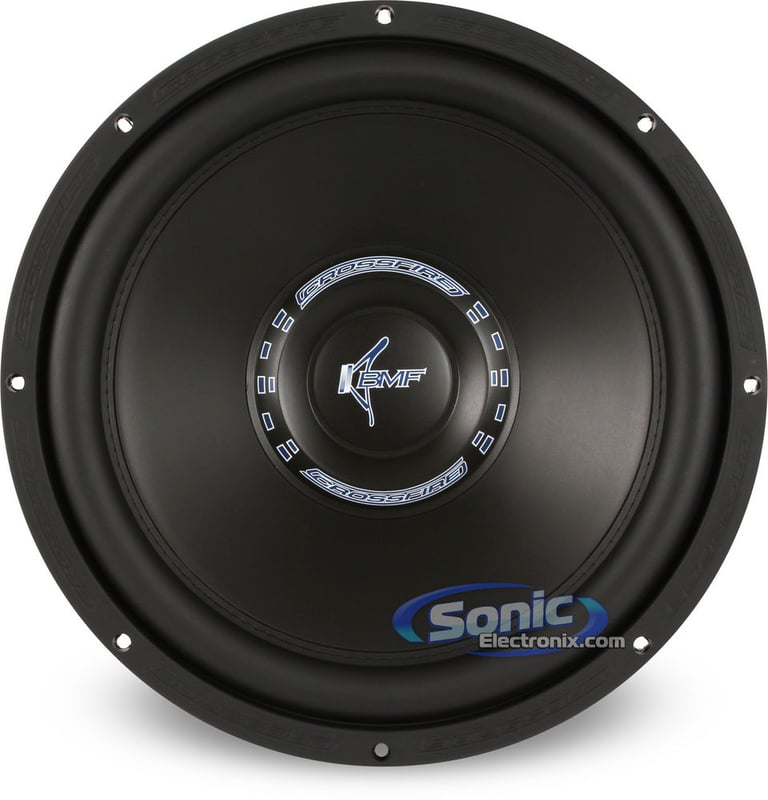

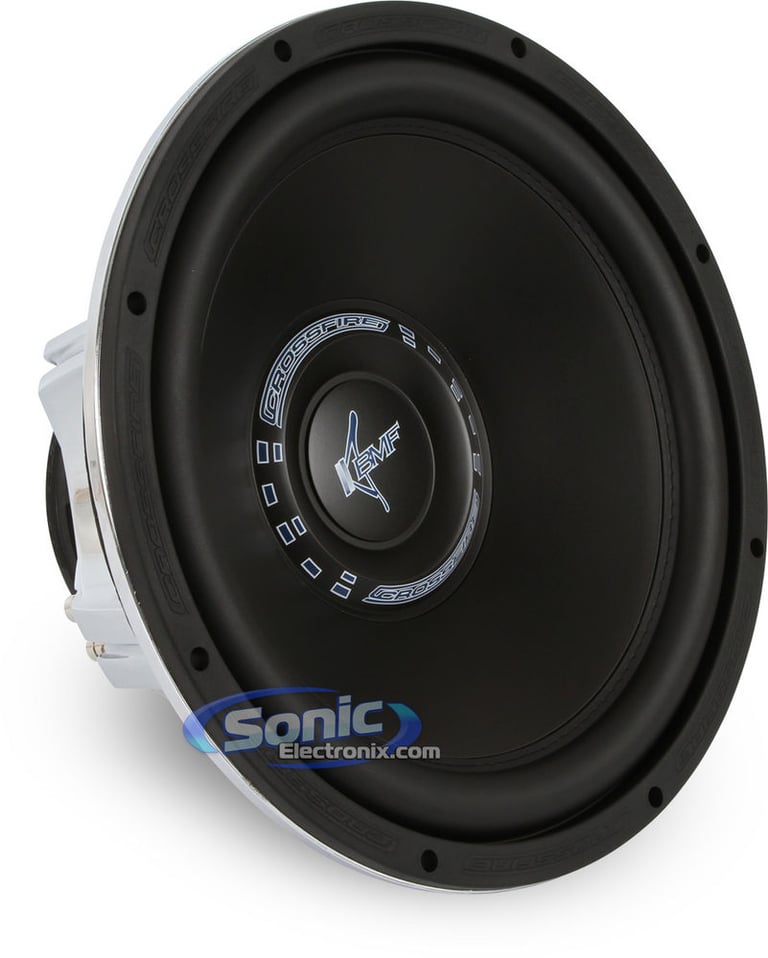

Crossfire BMF1528 Features:
  • 15" Dual 4 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: 4 Ohm

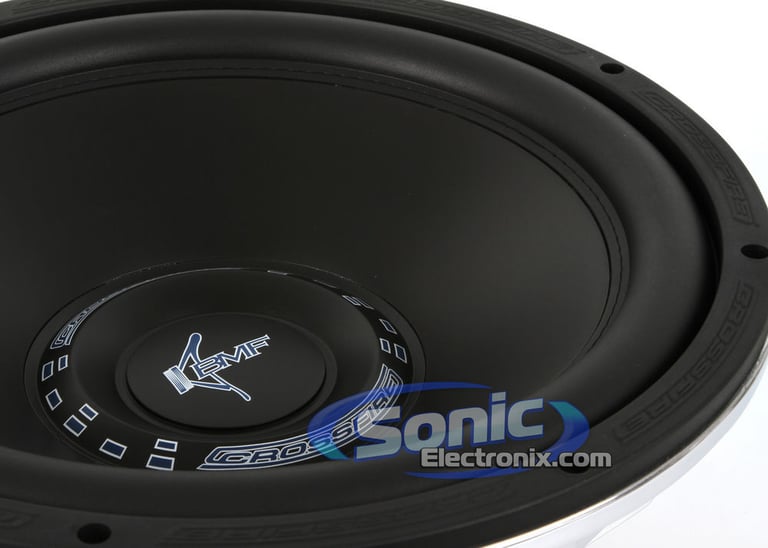

  • Co-polymer cone material
  • Stitched rubber surround
  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

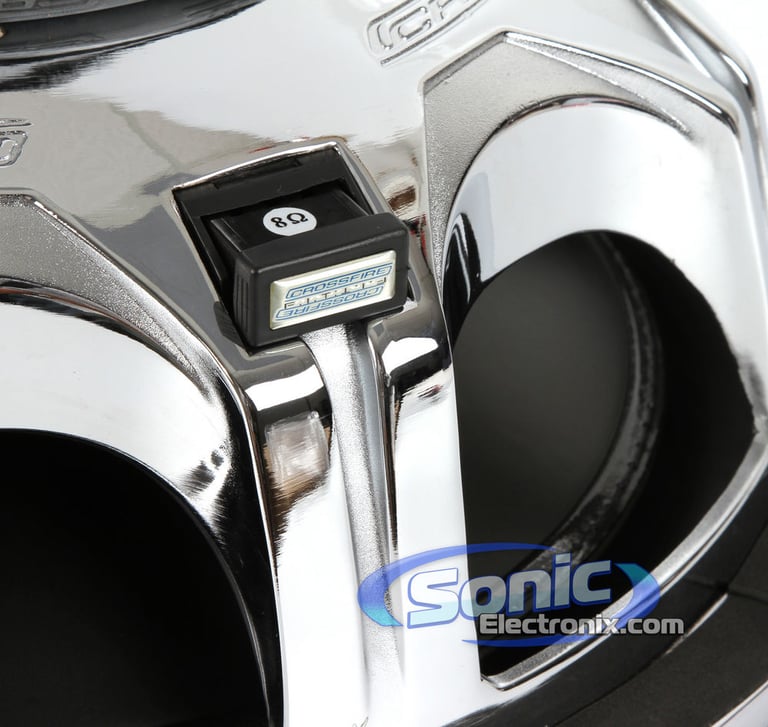

  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

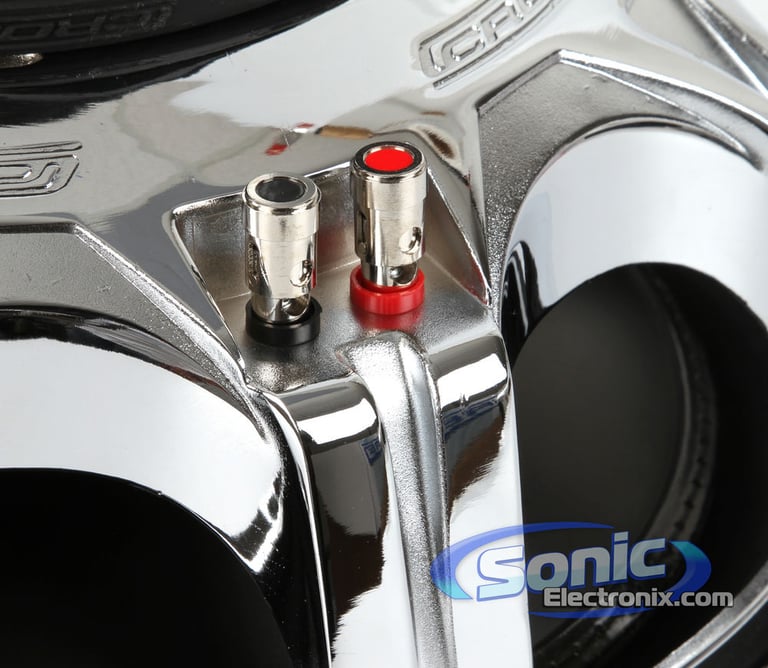

  • Compression nickel-plated spring loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 4 Ohm Kapton voice coil

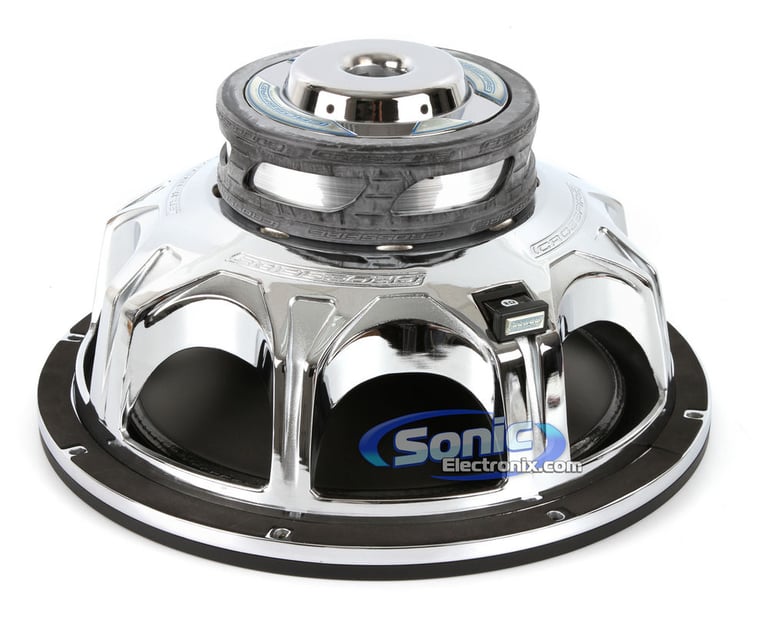

  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 85.8 dB
  • Xmax: 14mmm
  • Mounting depth: 7-1/2"
  • Cutout dimensions: 13-3/4"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

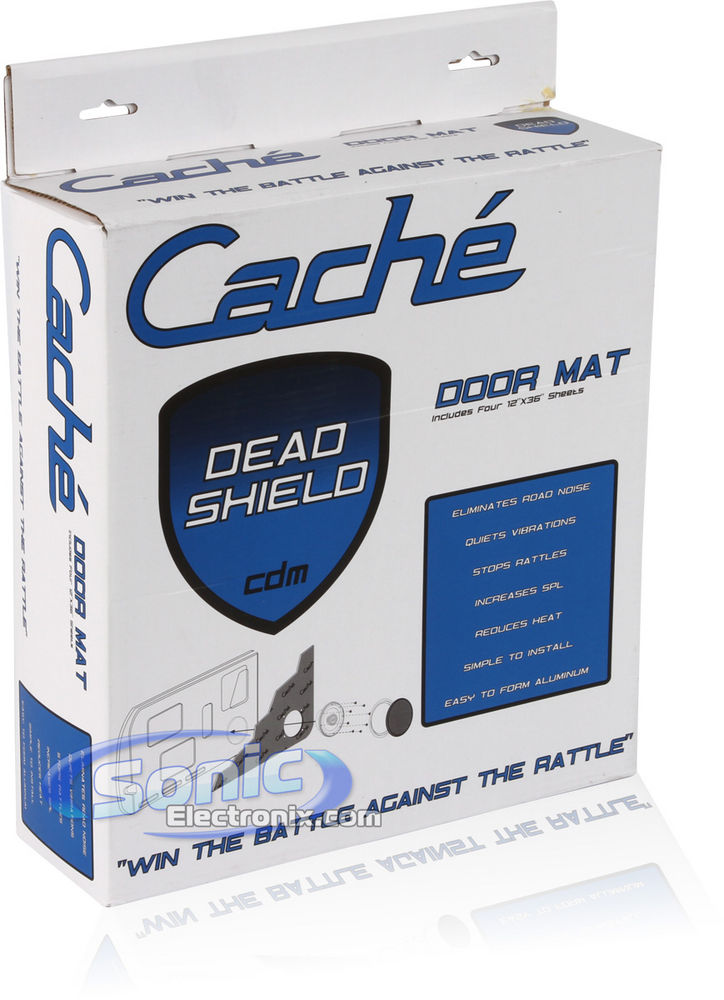

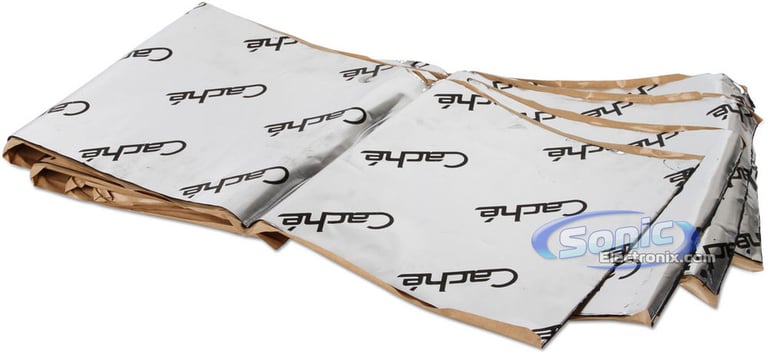

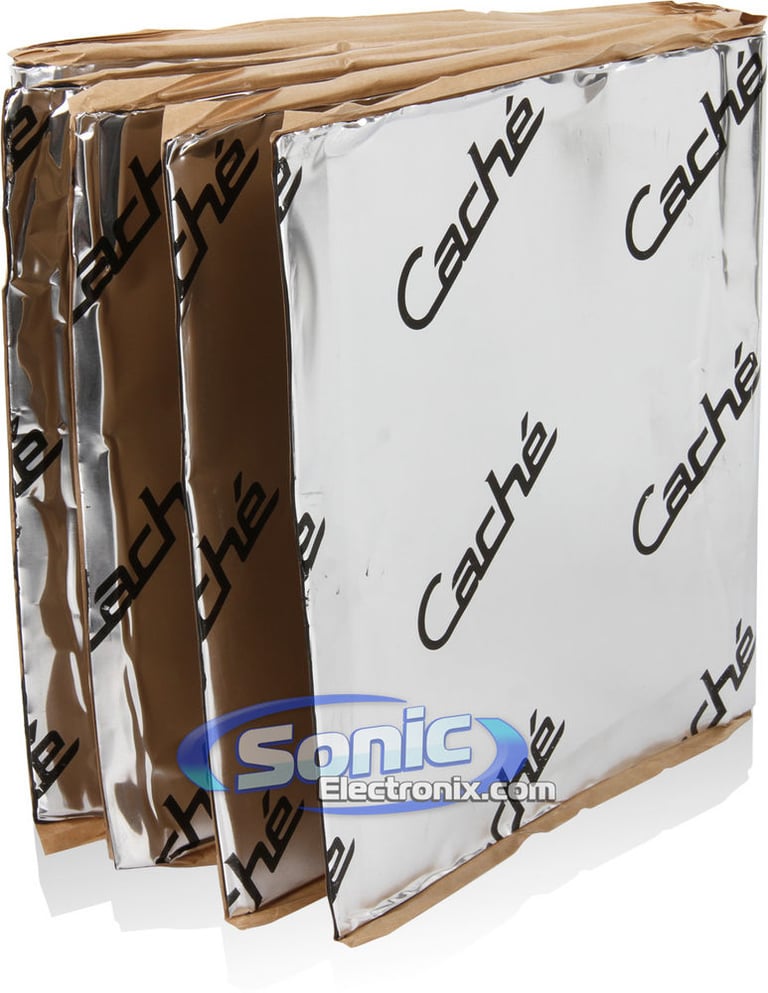

Cache CDM Features:

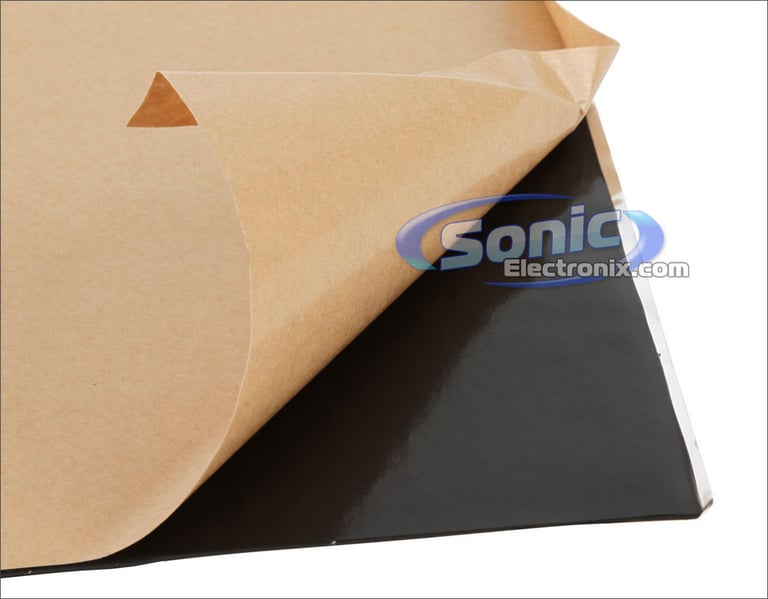

  • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 12"L x 36"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

KWZ1000AW_MRR_FLCH2_D small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2013-2022 vehicles from Ram, Jeep, Dodge
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1883.97

List price $2228.97

DAX1050XR_MRR_FLFO1 small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1913.97

List price $2509.97

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

Specifications & Details


Subwoofer Specifications
Series
BMF Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 250 Hz
Sensitivity
85.8 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Copolymer
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.6 cubic feet
Maximum Sealed Box Volume
2.6 cubic feet
Minimum Ported Box Volume
2.2 cubic feet
Maximum Ported Box Volume
4 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/2"
Cutout Diameter
13-3/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1528_CDM

Weight:

34.80lbs

Internal SKU:

bmf1528_cdm

Internal Product ID:

37473

Product and How-to Videos


Customer Ratings & Reviews


1200W Crossfire + Sound Dampening Material Bass Bundle thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Excellent product

The following review is for CDM, which is a part of the bundle you are viewing.

This is great material and is very easy to put on with a heat gun!

By Matt on May 23, 2012

24 found this helpful


Great package deal value.

The following review is for CDM, which is a part of the bundle you are viewing.

I recieved this as part of a package deal. It is enough to cover the lid of my 98 Civic sedan trunk. This will clean up the sound of your lows by decreasing noise (rattles, distortion of sound, etc). This is the first step in noise reduction and everybody should start here.

I doubt it will create a noticable increase in sound from your speakers.

Very flexible, sticks like crazy! Easy to work with.

By Tyler on December 21, 2011

23 found this helpful


Great Price and Product

The following review is for CDM, which is a part of the bundle you are viewing.

I found the price great for the product I got. Installation was very easy, product sticks very well (Remember to clean/prep the surface). I noticed a difference right away in my music as well as overall noise level while driving on the highway (Doors done - trunk is next). Not the thickest sound dampening out there but it def. helps :)

By Jeremy on April 2, 2012

24 found this helpful


The battle against rattle

The following review is for CDM, which is a part of the bundle you are viewing.

Got the sound dampening door kit with some speakers, the installer put it on the rear deck of my vehicle where my two rear speakers and factory sub are. The difference is night and day, expensive but quality, good to get with speakers or a sub.

By robert paulson on July 14, 2011

22 found this helpful


BUY!! GREAT SOUNDING SUBS PLAYS LOW CLEAN & LOUD!!!!

The following review is for BMF1528, which is a part of the bundle you are viewing.

Got 1 in neon with 1000watt Kicker amp running it with a parametric eq play the lows great shakes the seats like crazy! Remember thats just 1-15? Just think what 2 or more would do? Buy! You won't regret it plus here your getting 4 like half price!!!!!!!

By DIExNxRAGE on May 24, 2011

2 found this helpful




ZOMM (White) small

ZOMM Z2010WEN0323-AM (White)

Compact Wireless Leash for Mobile Phones w/ Built-In Noise Cancelling Microphone

$49.99

List price $99.99

SWS-12D2 BBX212BK TC4SW1625 small

(2) Alpine Type-S SWS-12D2 3000w Car Subwoofers+Vented Sub Box Enclosure

1500W Peak 12" Type-S Series Dual 2-Ohm High Performance Subwoofer Package

(71)

$327.90

List price $569.98

SQ65CB small

American Bass SQ65CB (SQ65CB-X)

300W Peak (150W RMS) 6-1/2" Single 8-Ohm Midrange/Midbass/Midwoofer Driver

$24.99

List price $39.99

DVH-885AVBT small

Pioneer DVH-885AVBT

Single DIN Bluetooth In-Dash DVD/CD/AM/FM/Digital Media Car Stereo Receiver w/ 3.5" TFT Display

$199.95

List price $299.95

N2, XKIT42 small

Massive Audio N2 Ultra-Compact Class-D Monoblock Amplifier w/ 4 AWG OFC Amp Kit

1600W Max (800W RMS) Nano Block Series Class-D Monoblock 1-Ohm Stable Amplifier with Adjustable Bass Boost w/ 100% OFC 4 AWG Amp Wiring Kit

$169.99

List price $514.94

GT5-10D_BB15002v2_MDFD10 small

JBL 500 Watt Dual 10" Complete Bass Package

Dual 250W 10" GT Series Dual 4 ohm Subwoofers with Sealed Enclosure and 600W RMS Class A/B 2-Channel Amplifier with Installation Kit

$250.99

List price $549.87

MOTION UC with Travel & Charge Kit MS small

Jabra MOTION UC with Travel & Charge Kit MS

Unified Communications Wireless Bluetooth Headset with Earset and Travel Kit for Microsoft LYNC

$139.95

List price $219.95

SWS-12D2 BBX212BL TC4SW1625 small

(2) Alpine Type-S SWS-12D2 3000w Car Subwoofers+Vented Sub Box Enclosure

1500W Peak 12" Type-S Series Dual 2-Ohm High Performance Subwoofer Package

(52)

$347.90

List price $569.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Oldsmobile Bravada

2021 Nissan Maxima

2013 Honda Crosstour

1989 Audi 100 Quattro

2014 Chevrolet Volt

2015 Nissan Leaf

2011 Lexus LS600hL

2014 Chevrolet Impala

2012 BMW 335is

2016 GMC Savana 2500

Vehicle
Store
Delete

2000 Harley Davidson FLTR Road Glide

2011 Harley Davidson FLSTSB Cross Bones

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
