1200W Crossfire + Sound Dampening Material Bass Bundle

15" Crossfire BMF1514 BFM Series Subwoofer + Cache CDM Dead Shield Sound Dampening Material

Crossfire
Shop all Crossfire
EXCLUSIVE
Product videos
highlight-star-icon

15" Dual 2 Ohm BMF Series Car Subwoofer • 1200W Max • 600W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Learn more about the bmf1514_cdm

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00

Product Highlights


15" Dual 2 Ohm BMF Series Car Subwoofer • 1200W Max • 600W RMS • Co-Polymer Cone • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Increases sound quality and output

Description

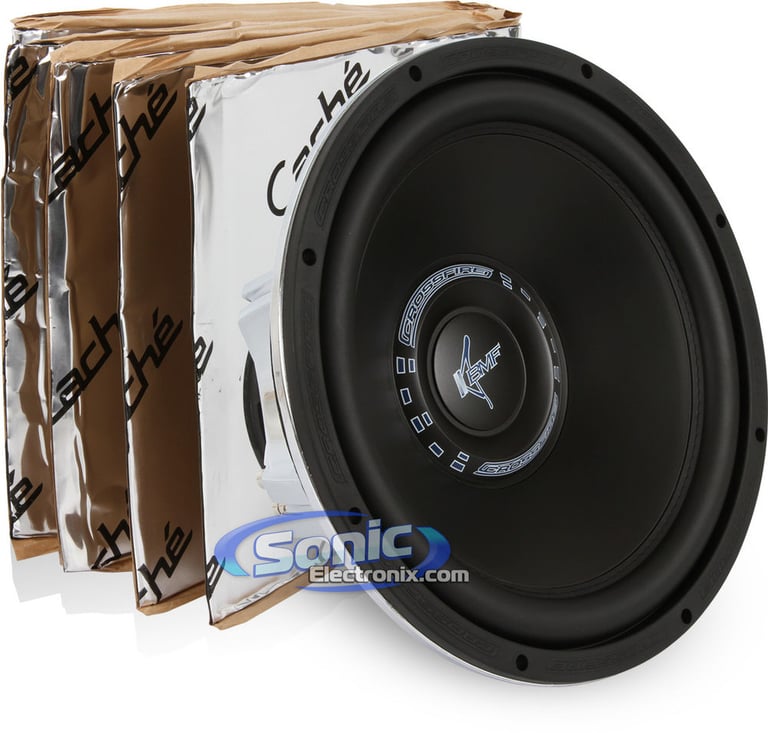

Crossfire plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 15" Dual 2 Ohm Crossfire BMF series Subwoofer. This subwoofer is rated at 600 watts RMS of continues power and 1200 watts of Max power. The subwoofer is equipped with a co-polymer cone material and stitched rubber surround for rigidity and performance. It is also equipped with spring loaded terminals for a secure installation. Along with Flexible Impedance Technology (FIT), dual stacked 85 oz magnet structure, and 2-1/2" voice coil, make this Crossfire BMF series subwoofer the perfect solution when adding bass to your audio system. In order to improve the all around sound of your audio car system, this bundle also includes four 12" x 36" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

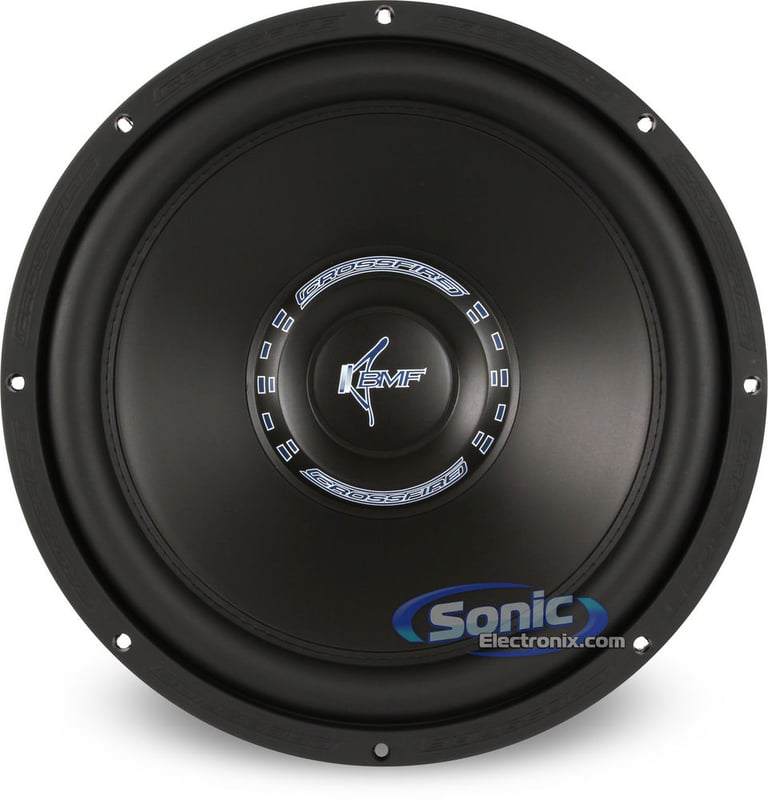

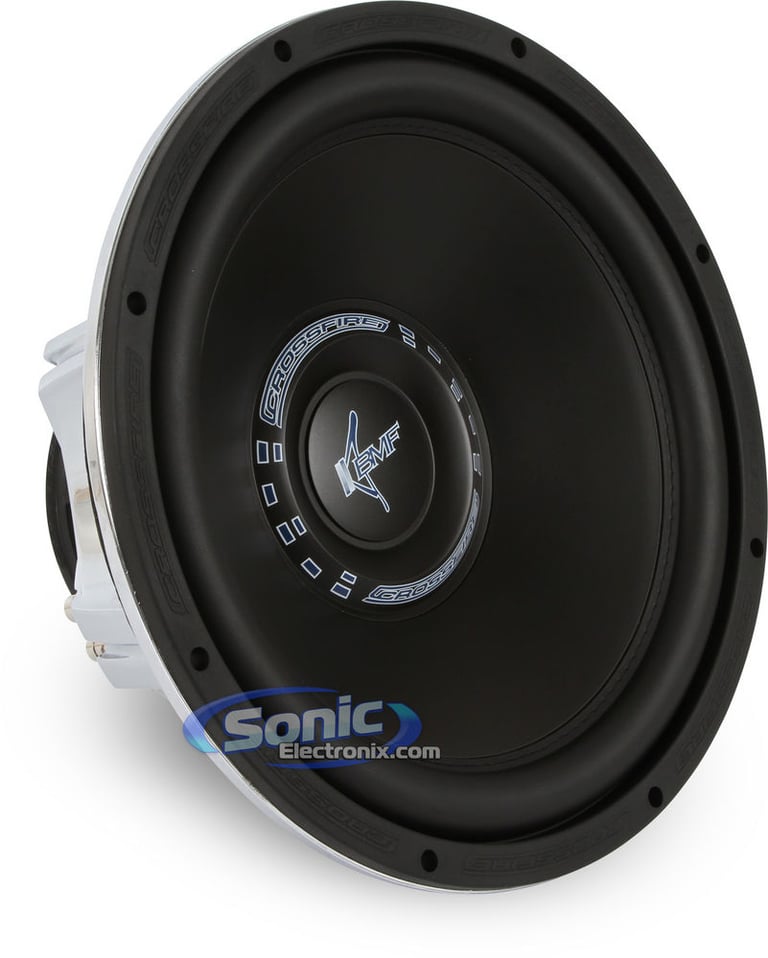

Crossfire BMF1514 Features:
  • 15" Dual 2 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: 2 Ohm

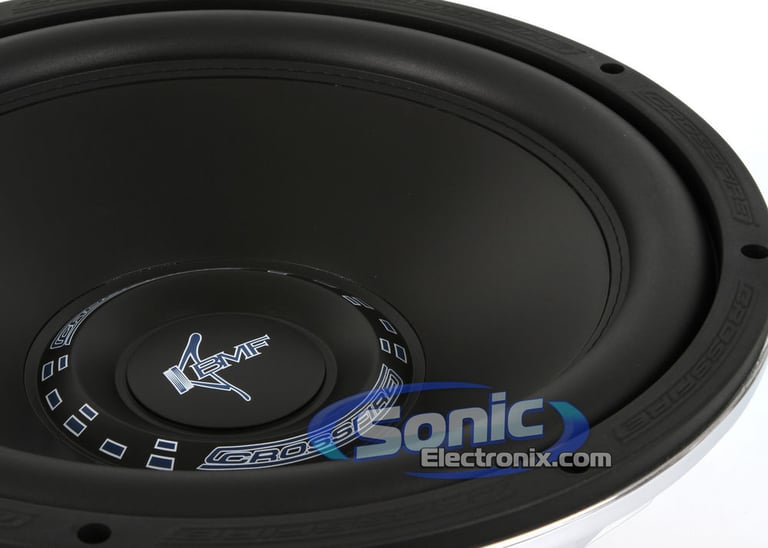

  • Co-polymer cone material
  • Stitched rubber surround

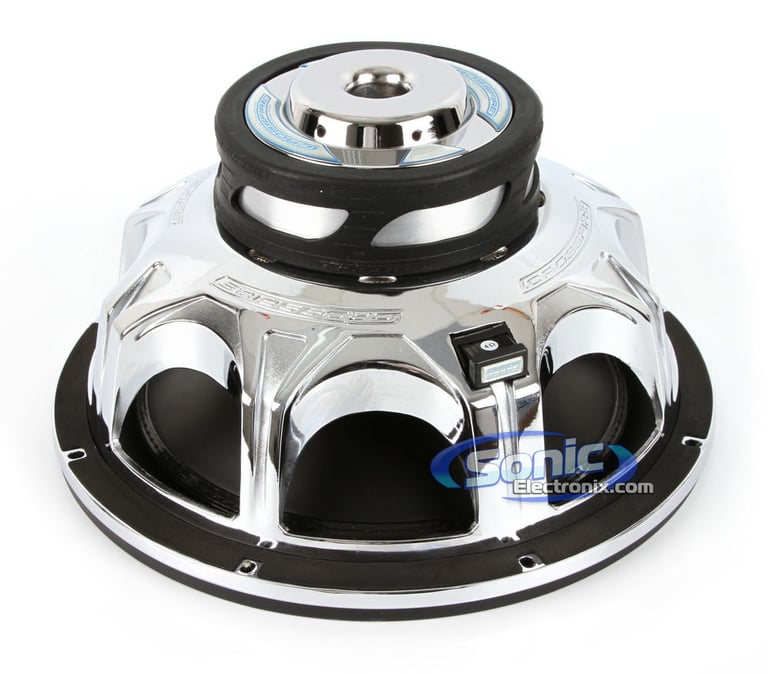

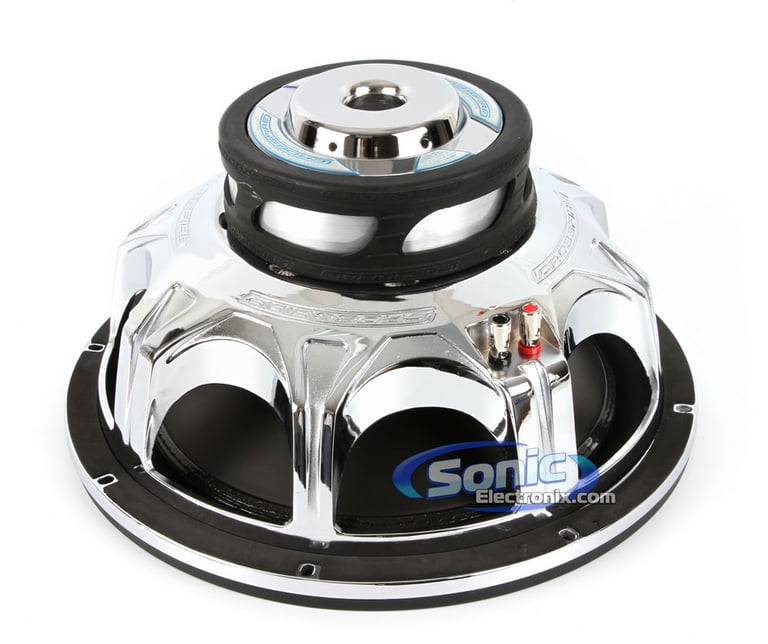

  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

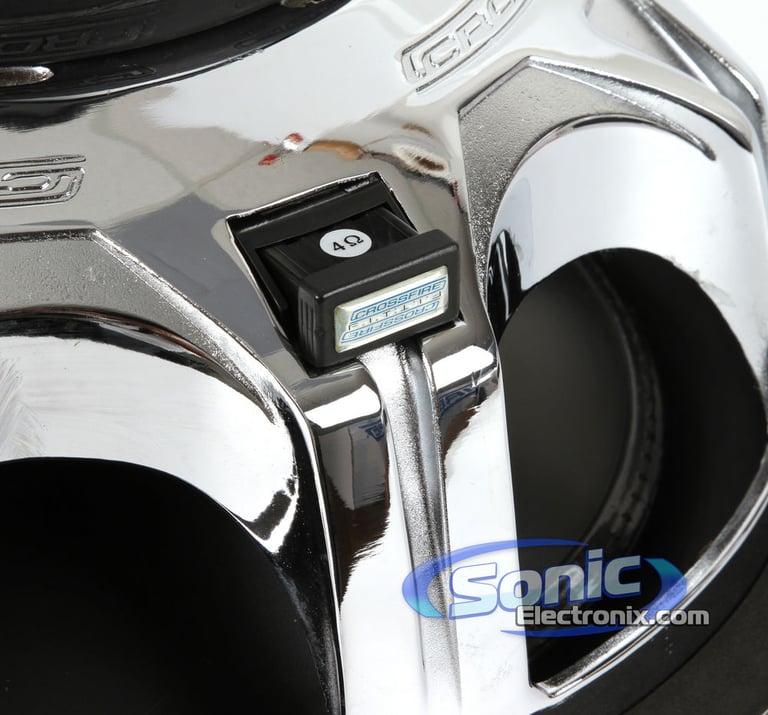

  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

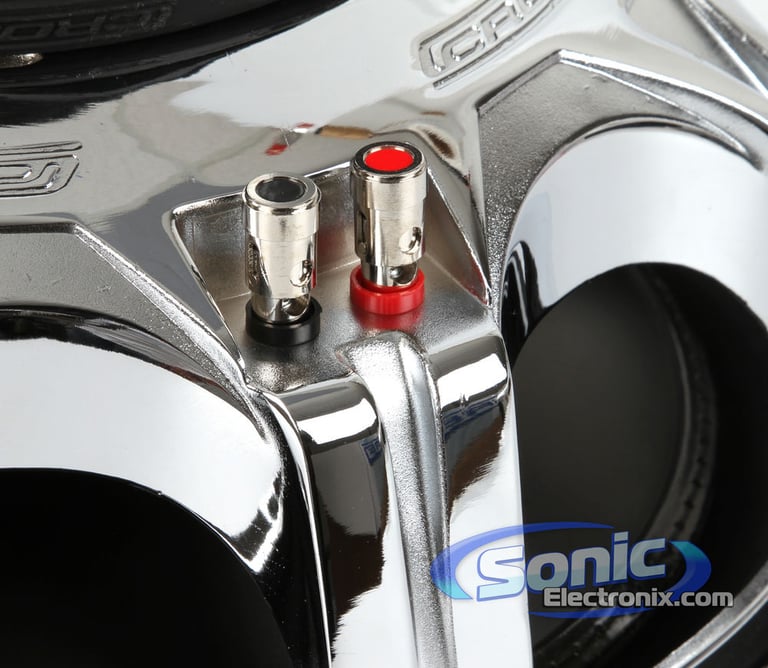

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 2 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 86 dB
  • Xmax: 14mmm
  • Mounting depth: 7-1/2"
  • Cutout dimensions: 13-3/4"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

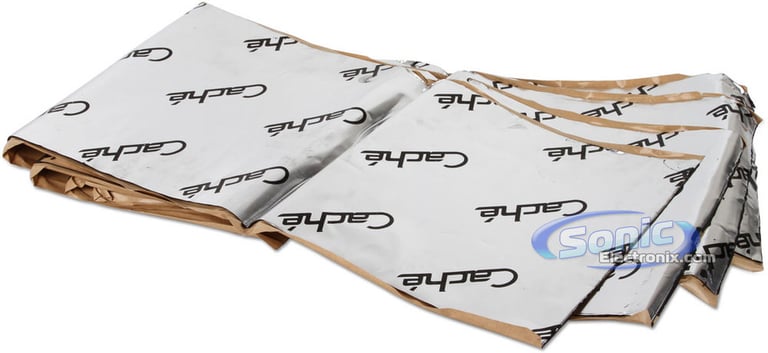

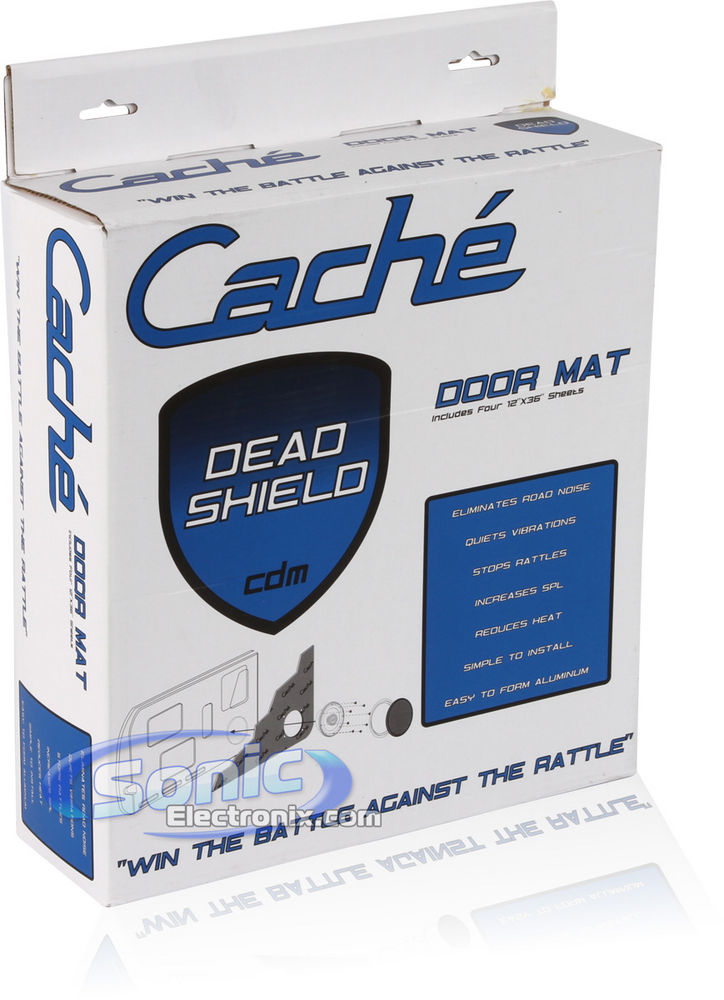

Cache CDM Features:

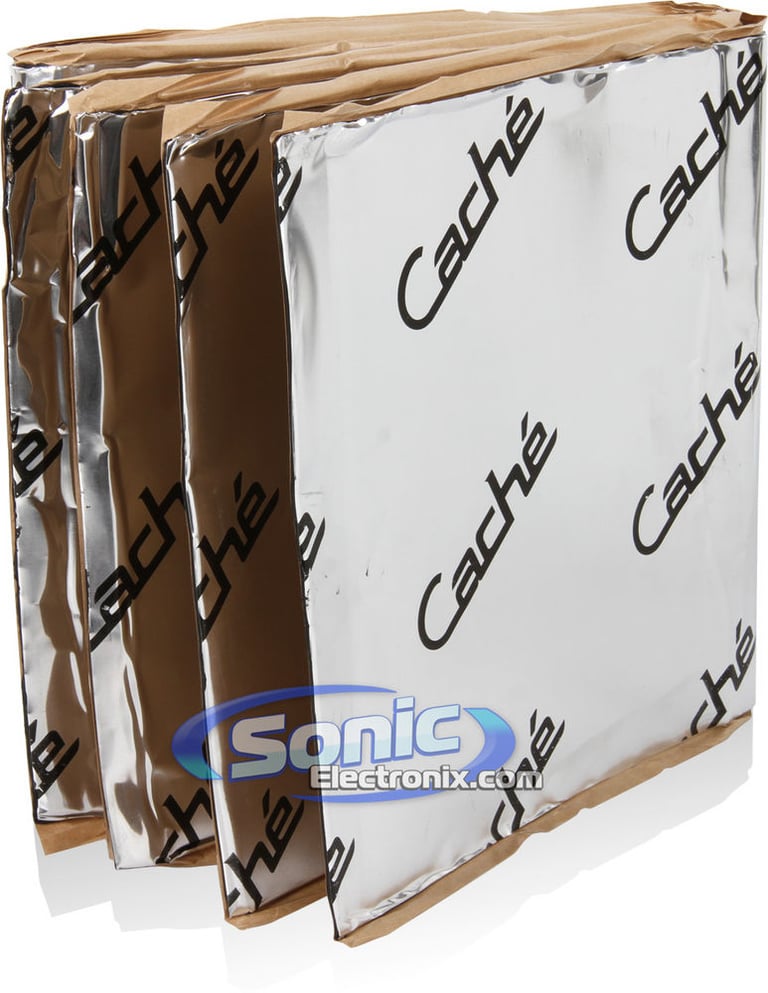

  • Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum

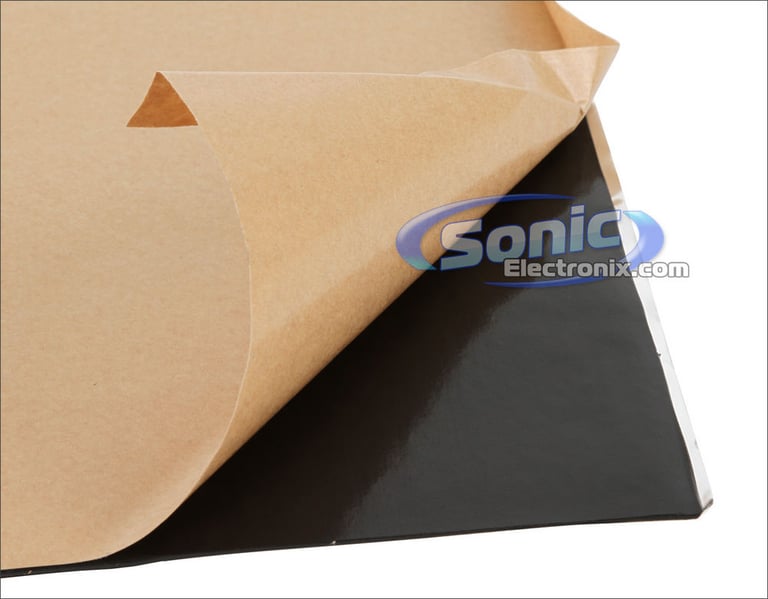

  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 12"L x 36"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 1200W Crossfire + Sound Dampening Material Bass Bundle Subwoofers

2 Channel Amp

4 Channel Amp
