VIBE Audio SPACEV12-V1

12" Space Series Loaded Non- Amplified Ported Subwoofer Car Enclosure

VIBE
Shop all VIBE
highlight-star-icon

12" Space Series Loaded Non-Amplified Ported Subwoofer Car Enclosure • 3000W Peak • 1000W RMS • PressureWedgeTM 2 Design • Dual Flared VIBE TurboPorts • Anti Resonance Bass Support System • Includes PortPlugs

Learn more about the spacev12v1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
R2-S65 main

Alpine R2-S65

600W Peak (200W RMS) 6.5" R-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

115
-34.01%

$263.95

List price $400.00

Description


VIBE brand icon

Authorized dealer

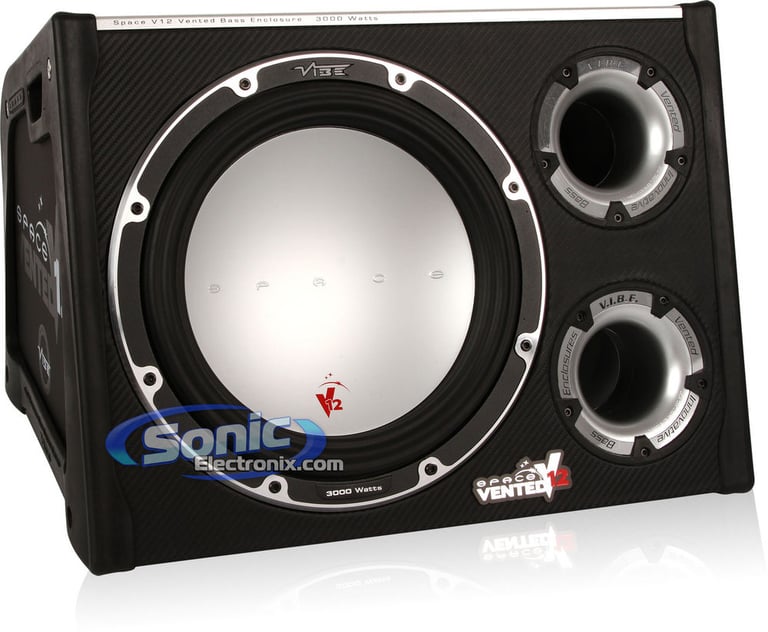

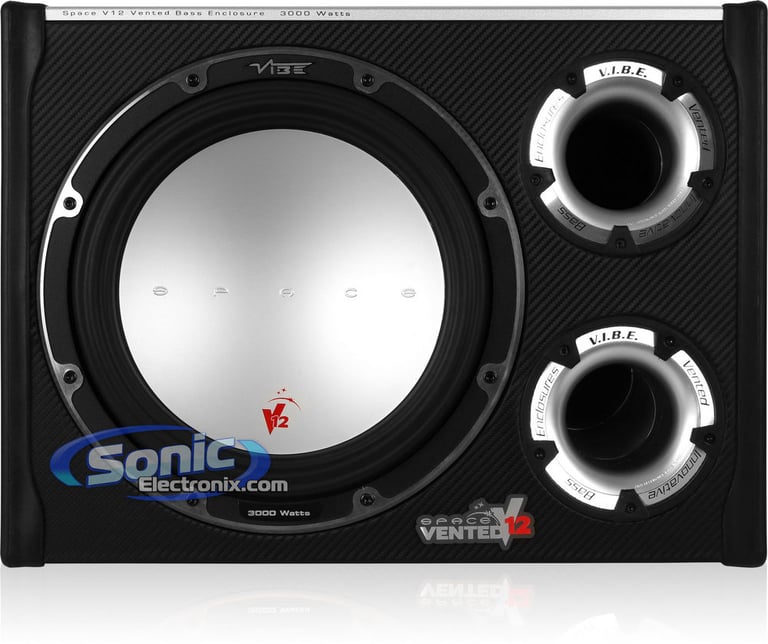

Vibe Space Series Loaded Ported Subwoofer Enclosure

Vibe Audio's ported subwoofer enclosure is loaded with the Space Series SPACE12D4-V4 12" Subwoofer. The Vibe woofer features a peak power rating of 3000 watts and a continuous RMS rating of 1000 watts. This sub will produce some ground shaking bass and is constructed with a one piece aluminum cone for ultimate bass clarity and a multi-roll rubber surround for excellent excursion and accuracy. It's mechanical thermal unity increases heat dissipation keeping this space series subwoofer operating at a safe temperature at all times. It is also equipped with a 3" aluminum 4 layer voice coil and a 120 oz Y30 rated double stacked ferrite magnet structure.

The subwoofer is loaded into high quality MDF ported enclosure that features Vibe Audio's PressureWedgeTM 2 design. This unique design creates internal pressure to assist cone control and enhanced enclosure porting, which in turn creates a tighter, more controlled bass output. Vibe has also integrated their cutting edge Anti Resonance Bass Support System (A.R.B.S.S.). This innovative system eliminates unwanted vibrations for a more defined, clean punchy bass. This enclosure comes equipped with dual flared TurboPorts and includes Vibe Audio's own PortPlugs. These PortPlugs will provide you with different sound characteristics and allow you to easily convert this enclosure from a bass reflex to acoustic suspension enclosure.

Subwoofer Features:
  • 12" Dual 4 Ohm Space Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 Ohm
  • One piece aluminum cone for increased depth and bass clarity
  • Single spider provides control and stability for the woofer cone
  • Specially designed cone support adds rigidity without excessive weight
  • Cone designed using Finite Element Analysis to ensure maximum rigidity to weight ratio
  • Moving parts of the subwoofer can be replaced
  • Multi-roll surround achieves better linearity throughout the woofers excursion range
  • Heavy gauge cable connects directly to the voice coil for easy wiring
  • Alloy gasket made from high quality machined aluminum
  • Machined cast aluminum basket for high rigidity and support
  • Mechanical thermal unity increases heat dissipation
  • 3" Aluminum 4 layer voice coil
  • 120oz Y30 rated double stacked ferrite magnet for immense power handling
  • Removable rubber boot for magnet protection
  • Frequency response: 25-500 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Enclosure Features:
  • 12" Loaded Space Series Ported Enclosure
  • PressureWedgeTM 2 design creates internal pressure to assist cone control and enhanced enclosure porting
  • Dual flared VIBE TurboPorts for smoother airflow and cleaner bass
  • Included PortPlugs allows for 3 different variable tuning options (high or low tuned bass reflex design to a sealed enclosure)
  • Designed to mount either away from or facing the passenger compartment
  • Anti Resonance Bass Support System (A.R.B.S.S.) eliminates unwanted vibrations
  • Built-In box grip carry handle allows you to easily remove enclosure from trunk if needed

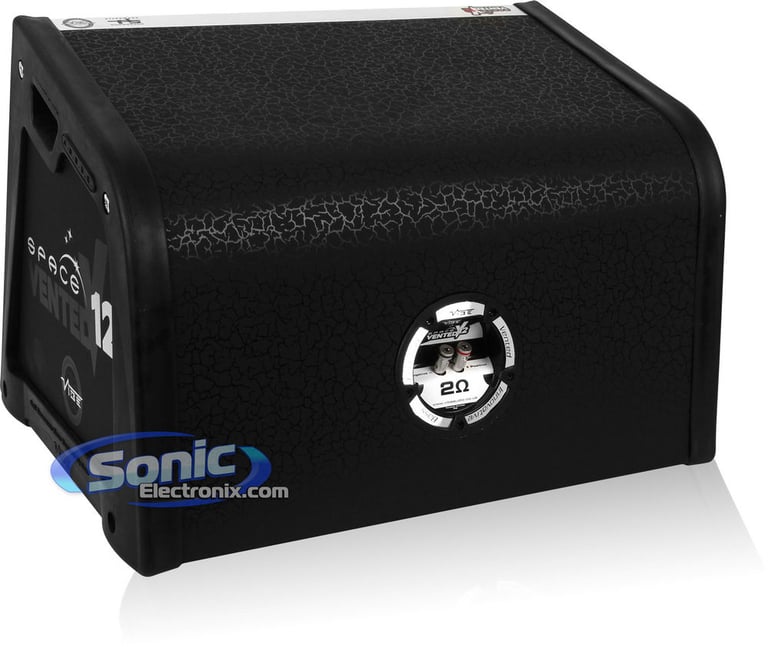

  • High quality spring terminal connections
  • 2 or 8 ohm impedance
  • Dimensions: 16-5/16"D x 20-5/16"W x 14-5/8"H

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$274.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
1000 watts
Peak Power Handling
3000 watts
Woofer Composition
Aluminum
Woofer Surround
Rubber
Sensitivity
89 dB
Frequency Response
25 - 500 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Wood Thickness
Not specified by manufacturer
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Black
Box Finish
Coated Tough Guard
Second Width
Not specified by manufacturer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SPACEV12-V1

Weight:

43.00lbs

Internal SKU:

spacev12v1

Internal Product ID:

37559
