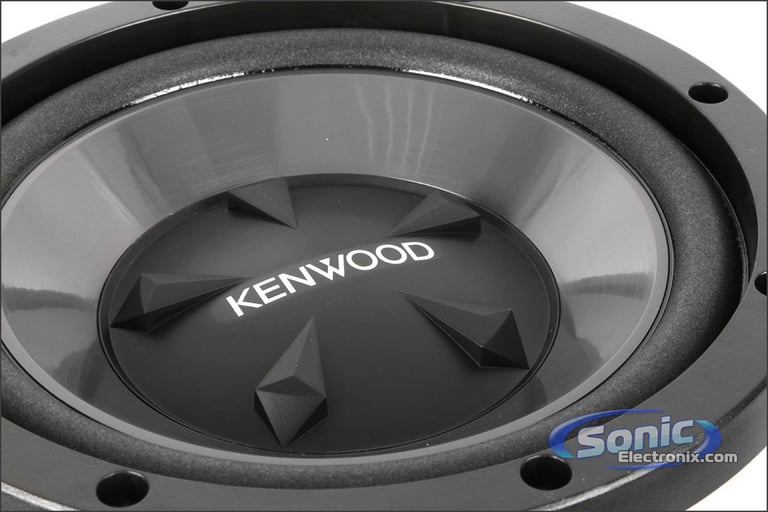

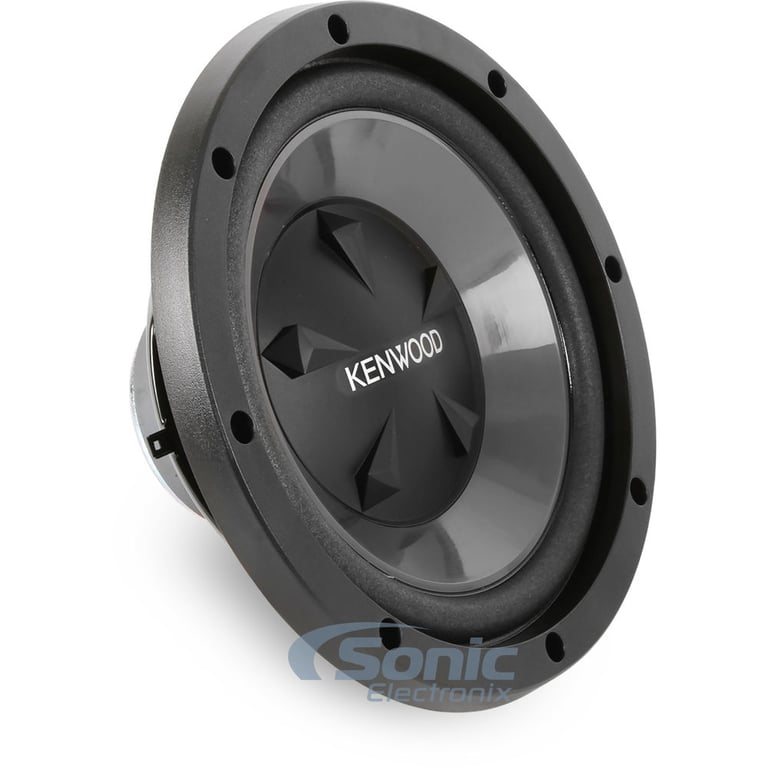

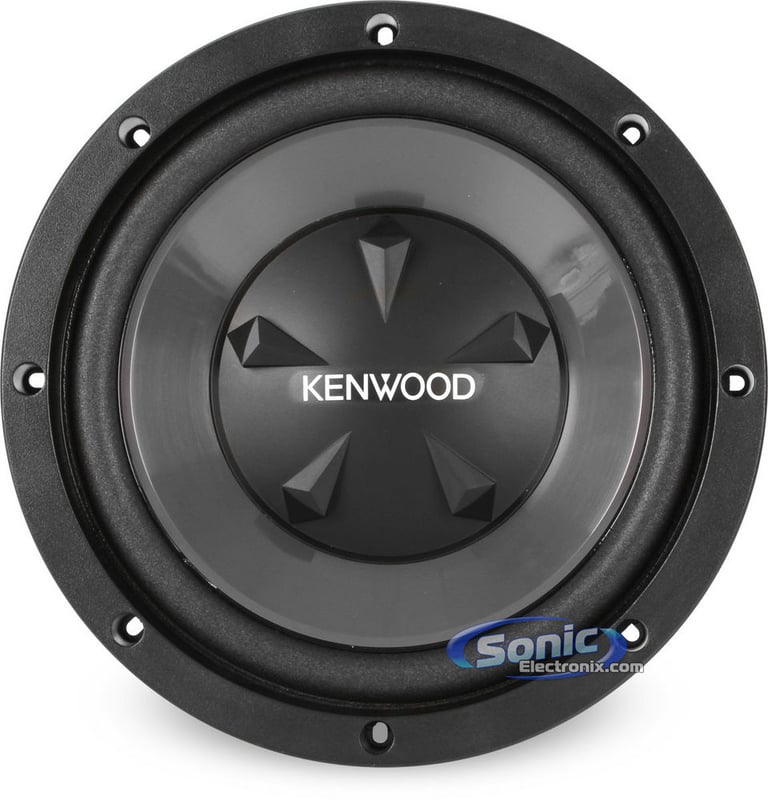

Kenwood KFC-W112S (Open Box, Complete)

200W 12" Performance Series Single 8 ohm Subwoofer

Kenwood
Shop all Kenwood
highlight-star-icon

• 800W Peak
• 200W RMS

Learn more about the ls-kfcw112s-obc7

We apologize

This item has been discontinued

Description


Kenwood brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!



Good Quality Bass
with the Kenwood KFC-W112S

Not everyone is looking for window shattering bass, some of us just want enough bass to enhance the all around sound of our car audio systems. Kenwood's KFC-W112S 12" Single 8-ohm subwoofer allows you to do just that. This subwoofer is meant to be paired up with a second KFC-W112S subwoofer, and wired in parallel to a final impedance of 4 ohms. The advantage here is that you are able to run two subs at a 4 ohm impedance which is more stable and produces a cleaner output with less thermal discharge from the amplifier. Also by having this subwoofer paired with a second you increase the amount of air that is being moved which in turn creates a deeper sounding bass. The polypropylene injection molded woofer cone and urethane surround provide rigidity and stability. So if you are looking to add some bass at a stable impedance, without spending a bundle, then two of these subwoofers are the perfect match for you.



General Features:

  • 12" Single 8-Ohm KFC Series Subwoofers
  • Power Handling:
    • Peak: 800 watts each
    • RMS: 200 watts each
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: Single 8-Ohm
  • Polypropylene injection-molded woofer cone
  • High-roll urethane surround
  • Silver-plated terminals

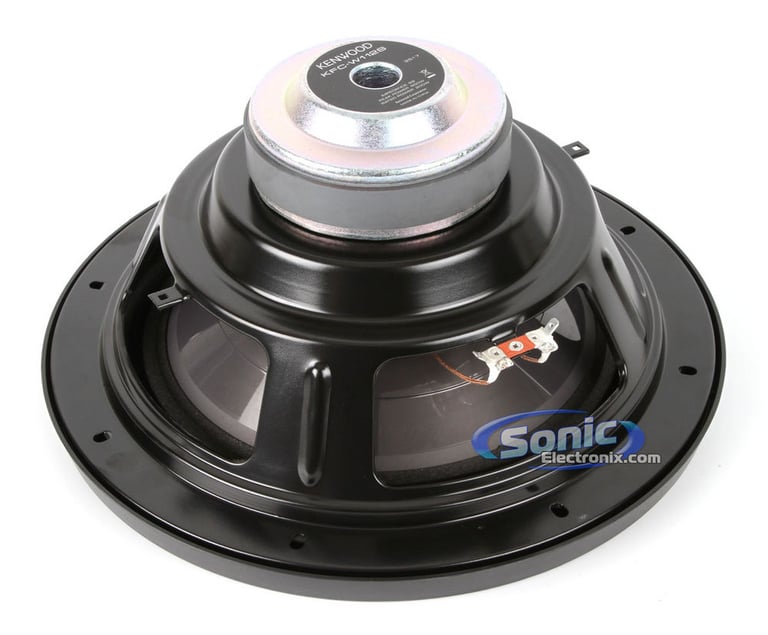

  • Steel frame basket
  • Ferrite magnet
  • 2" high temperature voice coil
  • 28.9 oz. ferrite magnet structure
  • Frequency response: 28 - 800 Hz
  • Sensitivity: 90 dB
  • Mounting depth: 5-9/16"
  • Cutout dimensions: 10-13/16"
  • 30 Day Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood KFC-W112S (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood KFC-W112S (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood KFC-W112S (Open Box, Complete) Subwoofers

Mono Amp

Wiring Guide to Wire 4 Kenwood KFC-W112S (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Specifications & Details


Subwoofer Specifications
Series
Performance Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Frequency Response
28 - 800 Hz
Sensitivity
90 dB
Xmax (millimeters)
7.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Urethane
Magnet Structure
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
95.4 liters
Total Speaker Q Value (Qts)
0.457
Electrical Q Value (Qes)
0.48
Electrical Resistance of Voice Coil (Re)
3.7 ohm
Mechanical Q Value (Qms)
9.49
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-W112S-4

Weight:

10.50lbs

Internal SKU:

ls-kfcw112s-obc7

Internal Product ID:

182467
