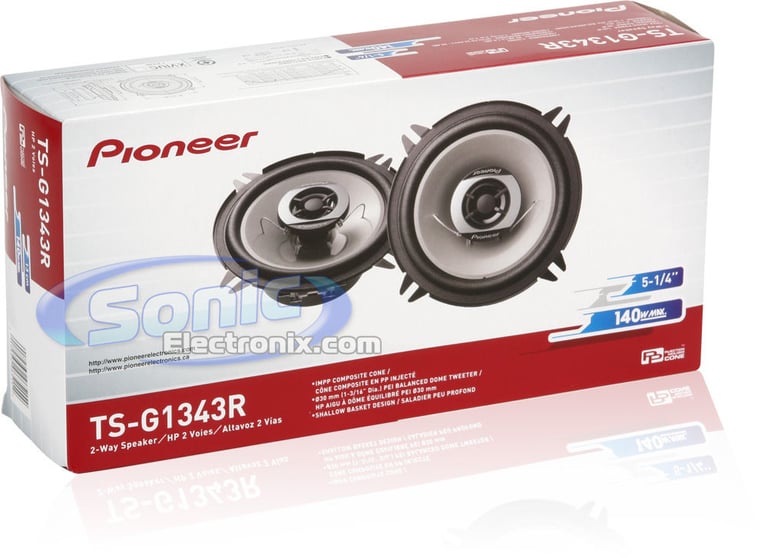

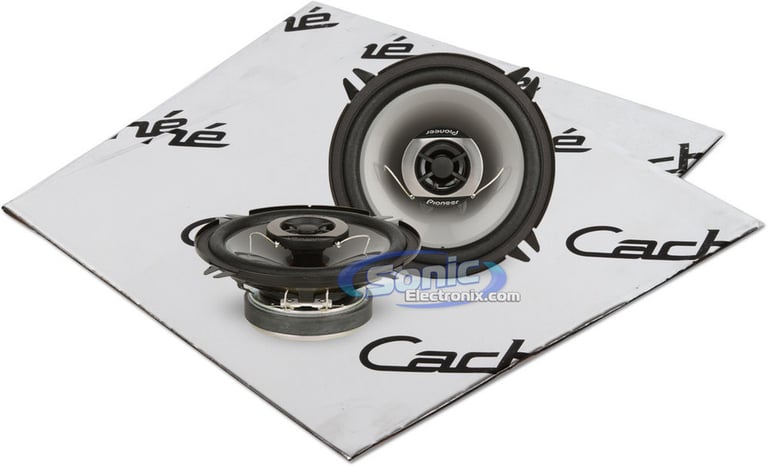

Pioneer TS-G1343R w/ Sound Dampening

5-1/4" 2-way G-Series Coaxial Car Speakers with Two 10" x 10" Pieces of Sound Dampening Material

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

5.25" 2-Way G-Series Car Speakers • 140W Max • 25W RMS • Composite IMPP Cone Woofer • Cloth Surround • 1-3/16" Balanced Dome Tweeter • Poly-Imide Voice Coil • Top-Mount Depth: 1-3/16" • Included Sound Dampening!

Learn more about the tsg1343r_csm

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

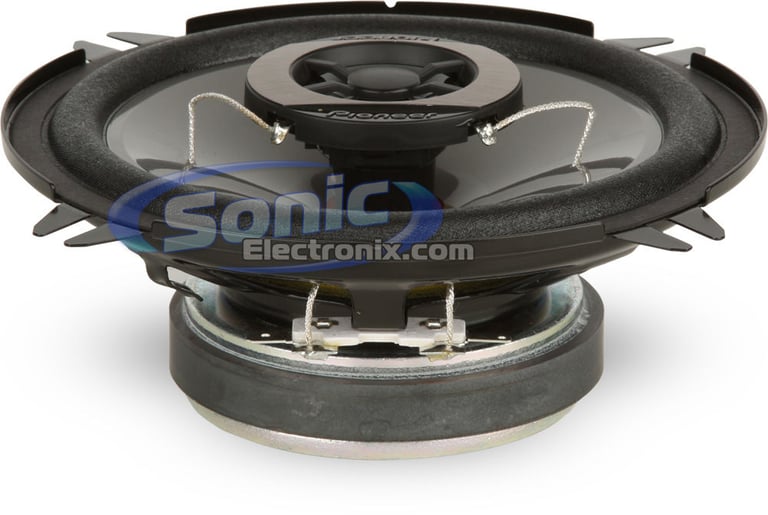

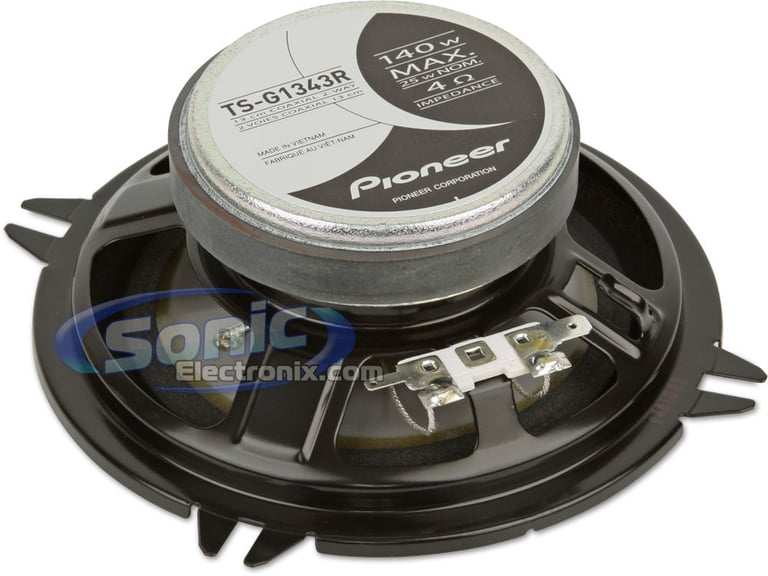

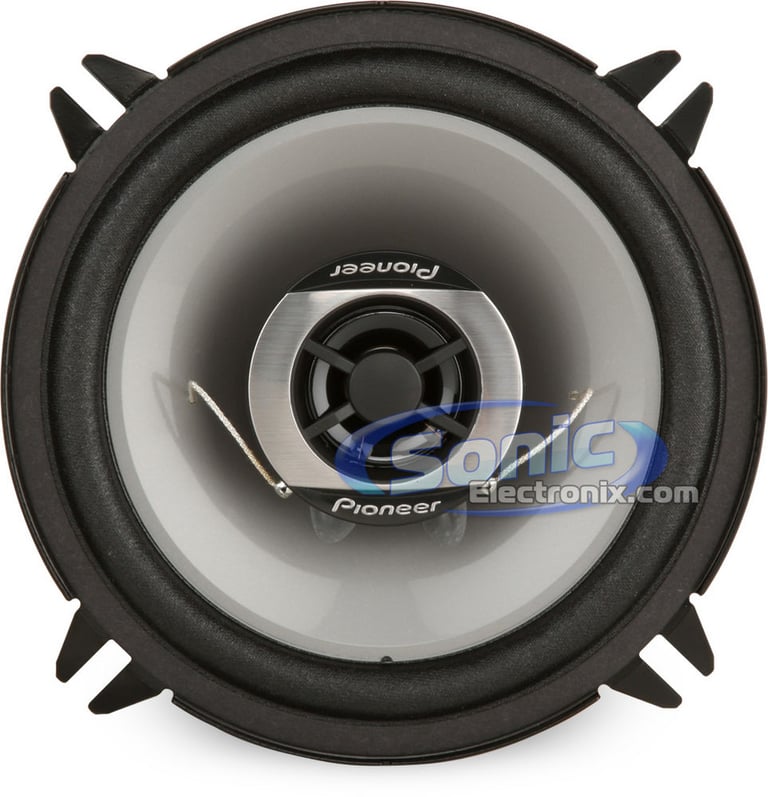

Speaker Features:
  • 5-1/4" 2-Way G-Series Car Speakers
  • Power Handling:
    • Peak: 280 watts per pair / 140 watts each
    • RMS: 50 watts per pair / 25 watts each
  • Composite IMPP Cone woofer
  • Cloth surround
  • Conex damper for improved bass response
  • 1-3/16" PEI Balanced dome tweeter with neodymium magnet
  • Poly-imide voice coil bobbin
  • Sensitivity: 89 dB
  • Frequency response: 40-26,000 Hz
  • Top-mount depth: 1-13/16"
  • 1-year Sonic Electronix warranty
Sound Dampening Material Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Speakers Priced Per Pair


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$74.99

List price $129.95

PNW-525 small

AudioControl PNW-525

• 75 watts Peak Each, 50 watts RMS Each
• Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.41 dB

(1)

$239.00

List price $259.00

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(15)

$79.96

List price $119.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Cloth
Peak Power Handling
140 watts
RMS Power Handling
25 watts
Sensitivity
89 dB
Frequency Response
40 - 26,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-13/16"
Bottom-Mount Depth
2"
Cutout Dimensions
4-3/4" x 4-3/4"
General specifications
Speaker Grilles
No

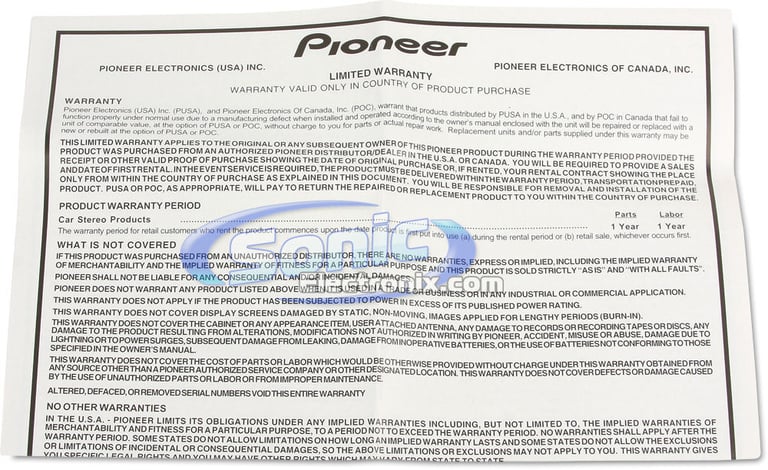

Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-G1343R_CSM

Weight:

2.33lbs

Internal SKU:

tsg1343r_csm

Internal Product ID:

37698
