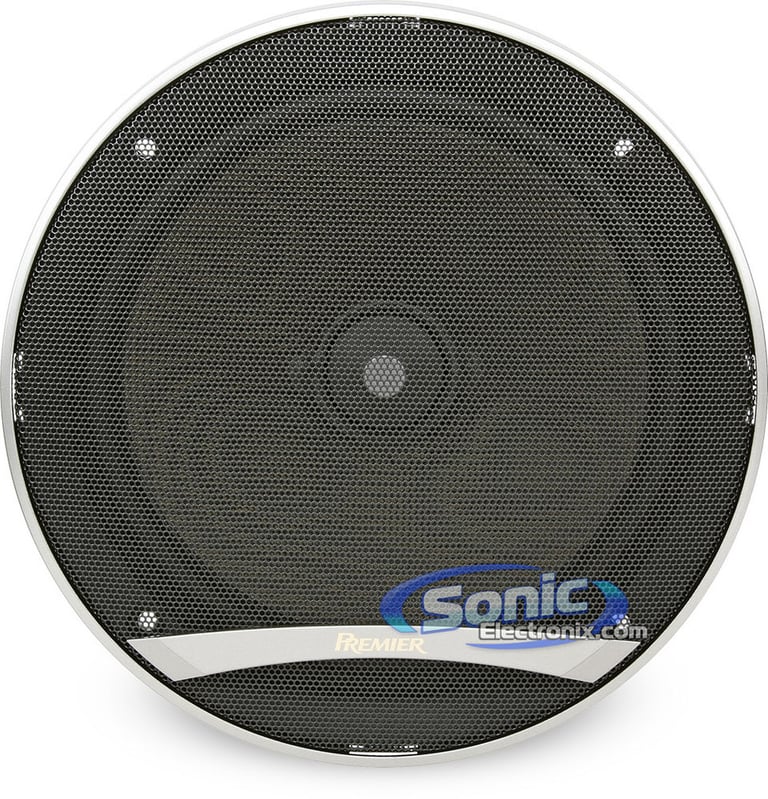

Pioneer TS-D1320C w/ Sound Dampening

5-1/4" 2-way D-Series Component Speakers System w/ Two 10" x 10" Pieces of Sound Dampening Material

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

5.25" D Series Component System • 180W Max • 35W RMS • Dual layer IMX aramid-basalt fiber Composite Cone Woofer • Butyl Rubber Surround • 1-1/8" Soft Dome Tweeter with Magnetic Fluid and Neodymium Magnet • High-Quality External Crossover • Sound Dampening Material Included!

Learn more about the tsd1320c_csm

We apologize

This item has been discontinued


Loading...
Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Description


Pioneer brand icon

Authorized dealer

Speaker Features:
  • 5-1/4" 2-Way D Series Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 70 watts per set / 35 watts each side

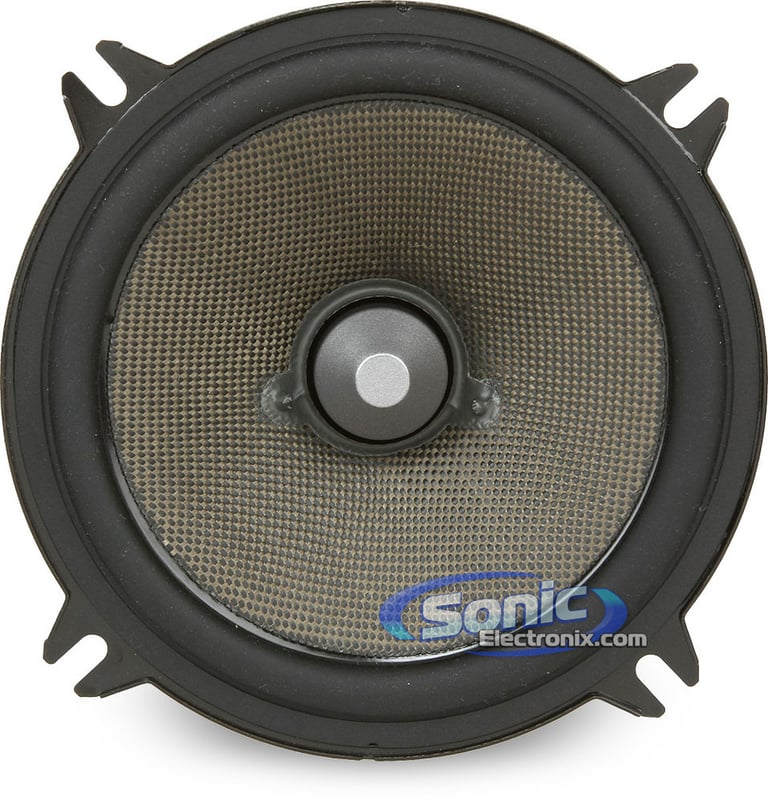

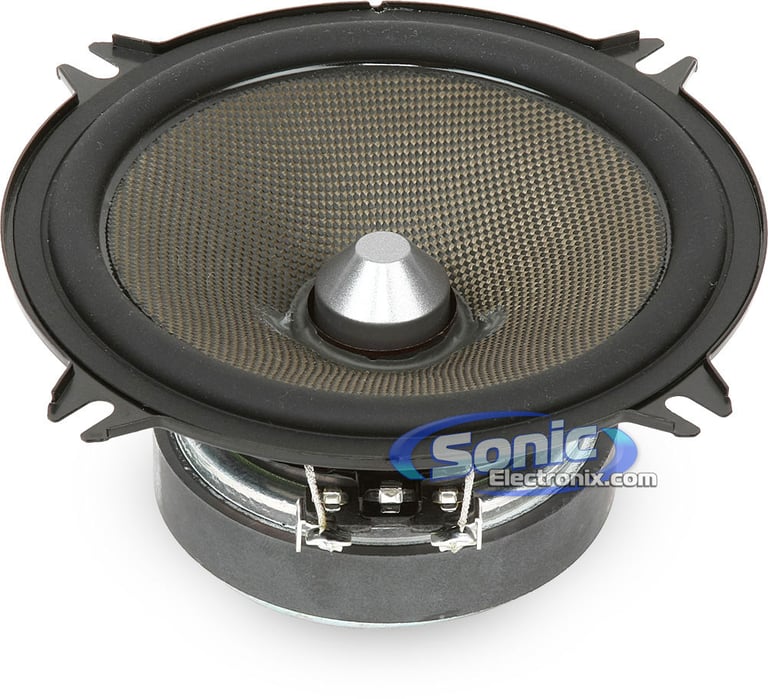

  • Dual layer IMX aramid-basalt fiber composite cone woofer
  • Butyl rubber surround

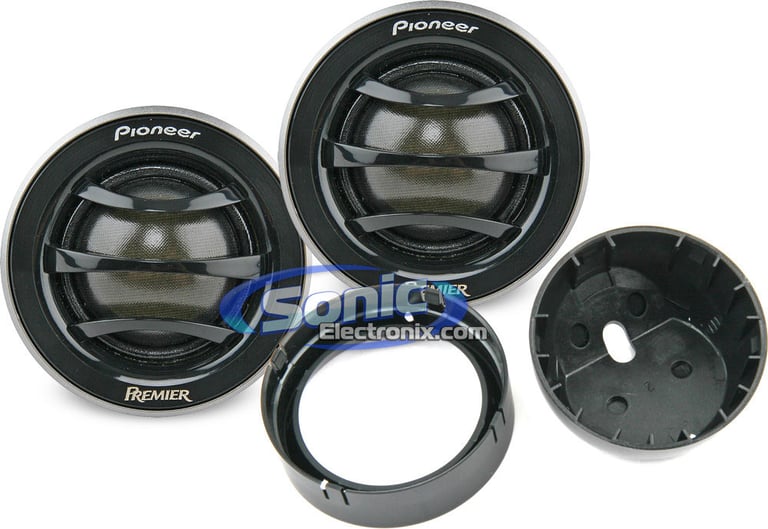

  • 1-1/8" Soft dome tweeter with magnetic fluid and neodymium magnet
  • Rear chamber design for lower crossover frequency
  • Surface/angled, flush, or invisible tweeter mounting options

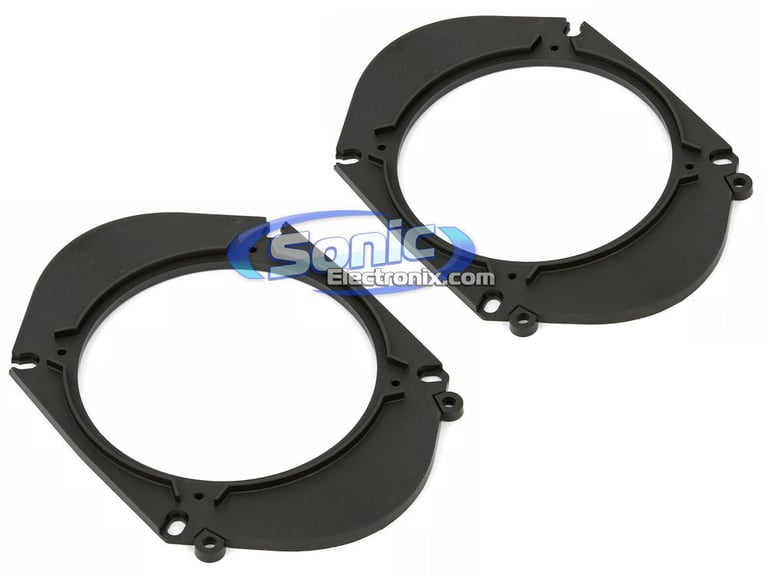

  • 6" x 8" Installation adapter and grille included
  • Deep basket for better bass reproduction
  • Glass-imide voice coil bobbin

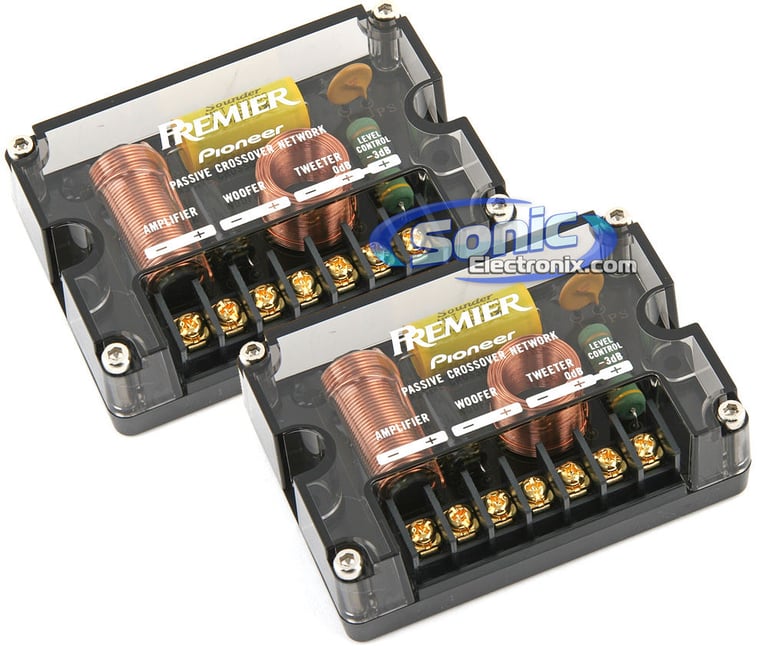

  • High-quality external crossover with 12 dB/octave high and low pass filters
  • 4 ohm impedance
  • OFC copper voice coil wire
  • Top-mount depth: 2-1/4"
  • 1-year SonicElectronix.com warranty

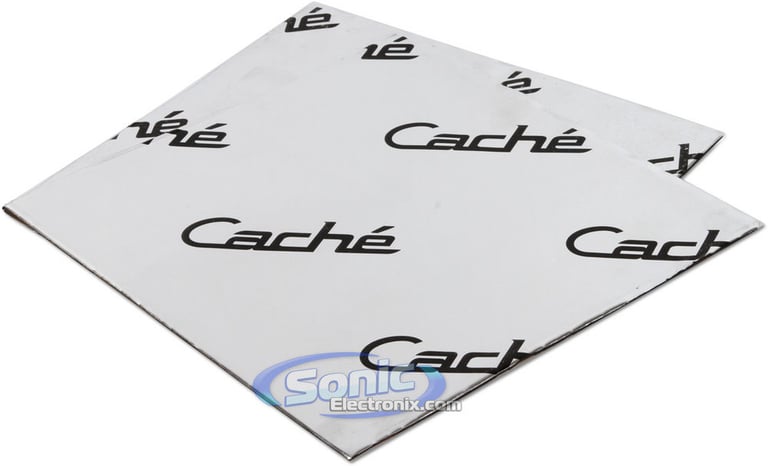

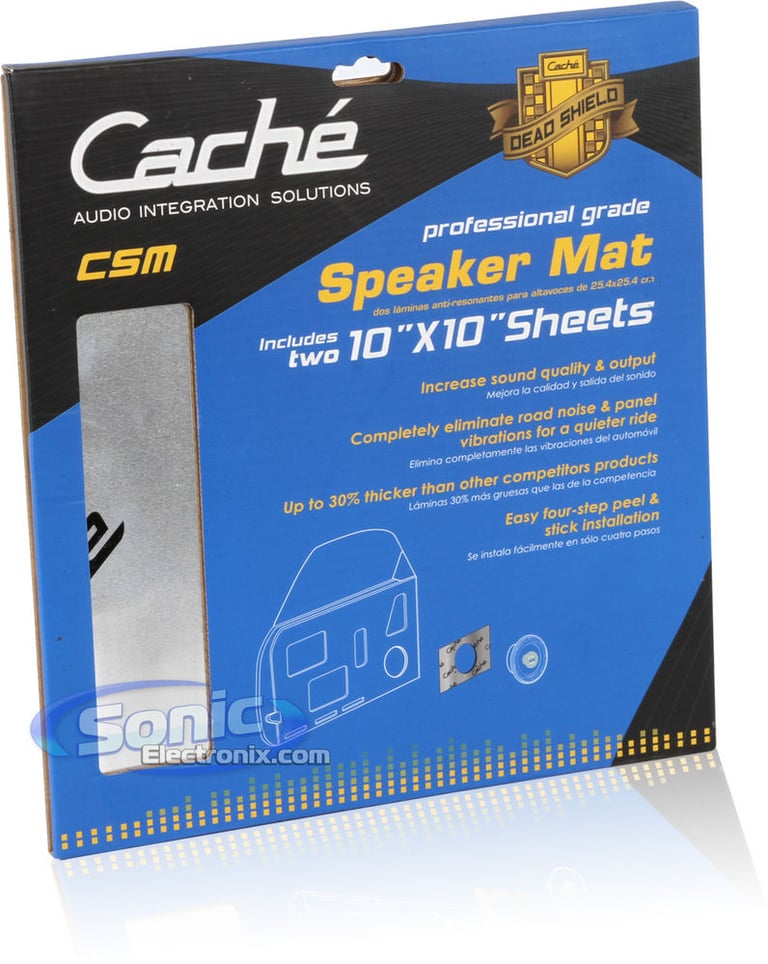

Sound Dampening Features:

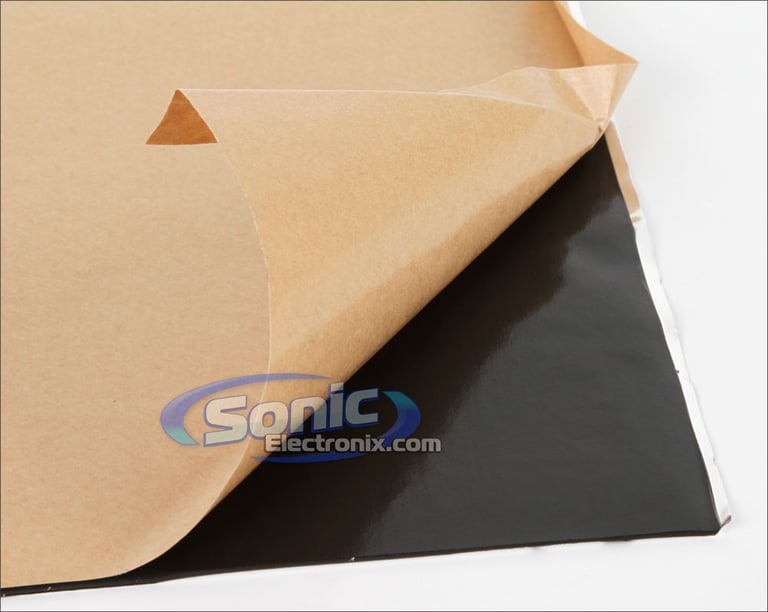

  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

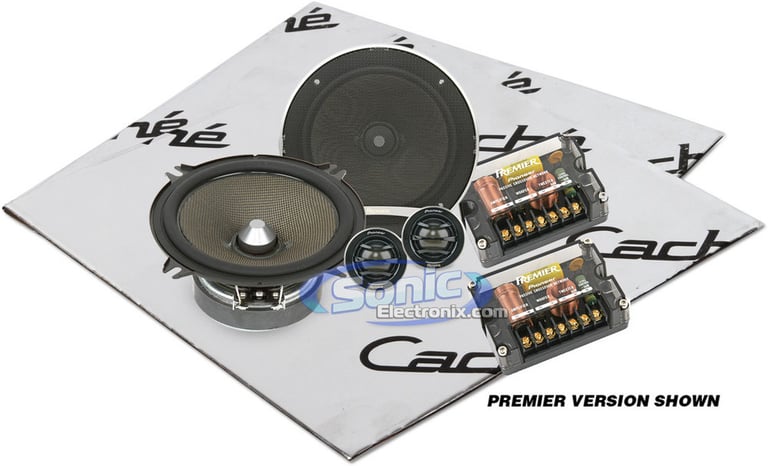

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

Specifications & Details

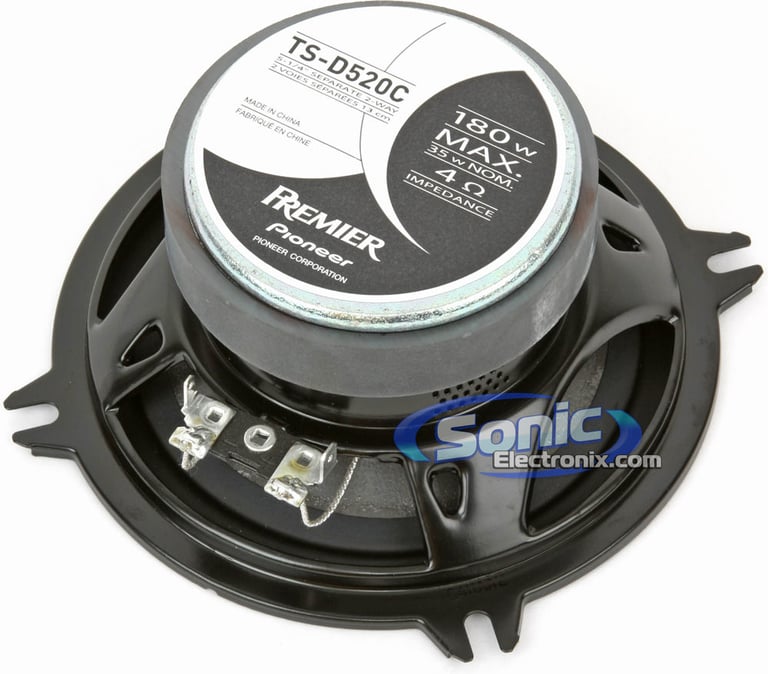

Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Woofer Composition
Injection Molded Polypropylene with Aramid Fiber Composite
Peak Power Handling
180 watts
RMS Power Handling
35 watts
Sensitivity
88 dB
Frequency Response
35 - 33000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-3/4" x 4-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-D1320C_CSM

Weight:

7.98lbs

Internal SKU:

tsd1320c_csm

Internal Product ID:

37704

Customer Ratings & Reviews


Pioneer TS-D1320C w/ Sound Dampening thumbnail image

5 star
91%
4 star
9%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.8
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

BANG 4 BUCK

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

Great product. Cheap, durable, sounds great. Great price. I was hooking these up and i dropped one crossover splitter. Everything still worked!!! Great product. Pioneer is stepping it up very well. I would recommend these because the value, design, and quality.

By Francisco on April 6, 2010

36 found this helpful


good product

The following review is for CSM, which is a part of the bundle you are viewing.

Really stops the rattling that comes from having the punch from the kiker speakers i have installed in the doors of my car.

By george on December 7, 2011

32 found this helpful


Easy to use and apply

The following review is for CSM, which is a part of the bundle you are viewing.

I used this product in my rear component speakers (Alpines) for the mid-range woofers in the doors to shield against vibration and they do a good job and the speakers sound great for it!

By Aaron on November 25, 2011

31 found this helpful


Clear, full sound

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

Currently using a 52 W peak / 17 W RMS (per channel) head unit with these in the front dash (tweeters in pillars), and Alpine 6 X 9s in the rear in a 1998 Dodge Caravan. Sound clear and with a lot of fullness. [Ordered 125 RMS (per channel amp) and will update review once installed.] Mounted the tweeters near the bottom of the front window pillars (flush mount); was concerned about sound direction (they point inward, towards each other), but they are crisp and provide great sound staging (used the -3 db crossover poles, otherwise a little too much highs); low bass is there, but can't drive it hard without distortion (will see if the amp improves that); but a normal listening levels, e.g., with other folks in the car, the low frequency bass really comes through which surprised me in a 5.25" woofer; also, I put polyfill around the woofers which seemed to tighten up the bass and stop a little buzzing I heard in the dash. Pioneer's web site said these would not fit the 1998 Dodge Caravan, and they are not a direct replacement as you need to raise the left side speaker up about 3/8" to prevent it from touching (washers under the mounting screws worked), and the right side speaker needed one mounting screw to be off-set to prevent the side of the magnet from touching (small 1" by 1/2" flat aluminum with 2 holes drilled in it worked); no interference with the top dash panel, which was easy to remove (it has 5 clips in the front; side pillars have 3 clips - remove them first; just pull carefully).

Sonic's shipping via OnTrac is EXCELLENT (much better than UPS), ordered them Christmas eve (Thursday), and I received them Monday morning - Thank you Sonic! I'll be back!

By TucsonJoel on December 30, 2009

34 found this helpful


Cache CSM

The following review is for CSM, which is a part of the bundle you are viewing.

These came in a package deal from Sonic
with JBL GTO series speakers one of the decisions why I bought the GTO speakers, easy to use. Currently installing the sound system but having used similar products before these will make a good speaker sound better.

By Doc on September 26, 2012

30 found this helpful


2009 Scion XB

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

I have two sets of Pioneer component speaks in my XB powered by JVC amp (800w). They sound awsome and matched up very well with stock Pioneer HU. There very crisp at the high end and have excellent low end sound.

By Seadog on June 1, 2009

33 found this helpful


Great product

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

I've always loved pioneer and this is no different. Great item and great seller. Thanks again

By Cartidream on November 19, 2014

31 found this helpful


Good clean sound

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

Got these to replace the stock door speakers in my 2010 Focus. Good clean sound. these were sensitive enough to run on my stock deck and still handle well off of a new more powerful one.

By Bob on July 21, 2011

32 found this helpful


Great sound for great price

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

I am very happy with the sound from this component set. My 5 series sounded like crap until I added these speakers & replaced my factory amp. The service & delivery from sonic was great. thanks again guys!

By Timeplt on July 10, 2011

31 found this helpful


best speakers i have ever used

The following review is for TS-D1320C, which is a part of the bundle you are viewing.

i installed these speakers in my hardbody kingcab attached to an old head unit running 50 watt x4. currently they are unamplified and they sound amazing. As the only speakers in the truck they produce great sound. as i've just installed them i cant rate durability, but i would suggest them to any one who want great quality sound. as a component system it is a little more work than a 2-way or 3-way so i cant say they were easy to install. i had to modify the plastic mounting plates to make them fit in my door panels but it was very minor.

By seth on March 21, 2010

31 found this helpful
