500W Massive Audio + Crossfire Bass Bundle

Massive Audio V122 12" V Series Subwoofer + Crossfire BMF200.2 Amplifier + Amp Installation Kit

EXCLUSIVE
Product videos
highlight-star-icon

12" Dual 2 ohm V Series Subwoofer • 500W MAX • 250W RMS • BMF Series 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • Complete 8 Gauge Amp Kit

Learn more about the bmf2002_v122

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

PNW-525 main

AudioControl PNW-525

150W Peak (100W RMS) 5.25″ PNW Series 2-way 3-ohm Coaxial Car Speakers

1
-7.72%

$239.00

List price $259.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

59
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

34
-23.09%

$49.99

List price $65.00

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

68
-9.08%

$100.00

List price $109.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Limited time!
DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

-20.00%

$127.99

List price $159.99

Product Highlights


12" Dual 2 ohm V Series Subwoofer • 500W MAX • 250W RMS • BMF Series 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • Complete 8 Gauge Amp Kit

Description


Massive Audio brand icon

Authorized dealer

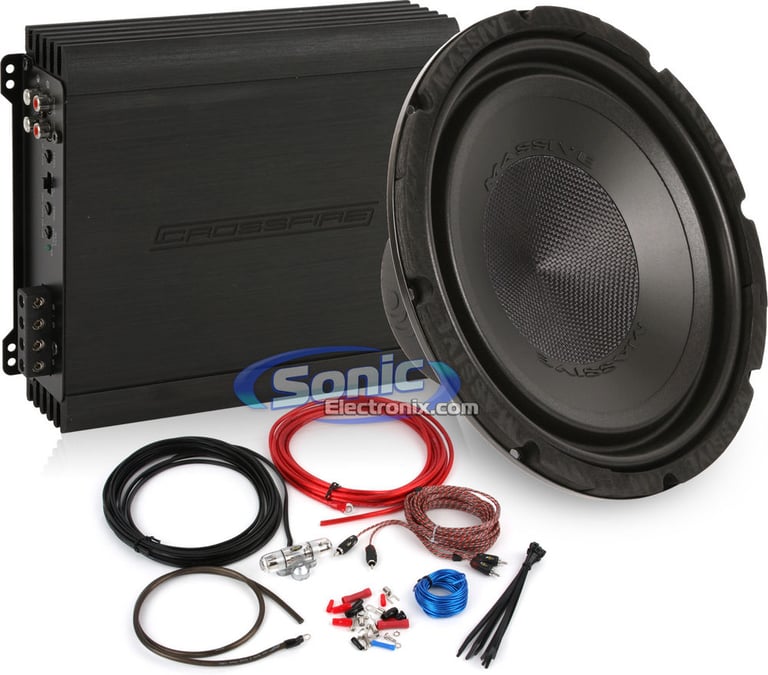

Massive Audio and Crossfire Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Crossfire BMF200.2 amplifier along with a 12" V Series Massive Audio Subwoofer. This excellent bass package pushes 250 watts of clean, continuous RMS power. The Massive Audio Subwoofer has Dual 2 Ohm Voice Coils; meant to be wired in series, to a final impedance of 4 Ohms Bridged. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Massive Audio V122 12" V Series subwoofer requires 250 watts of RMS power. The included Crossfire BMF200.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 8 gauge amplifier kit, which is perfect to supply power to the amplifier. With the Massive Audio subwoofer, Crossfire amplifier, and Stinger amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

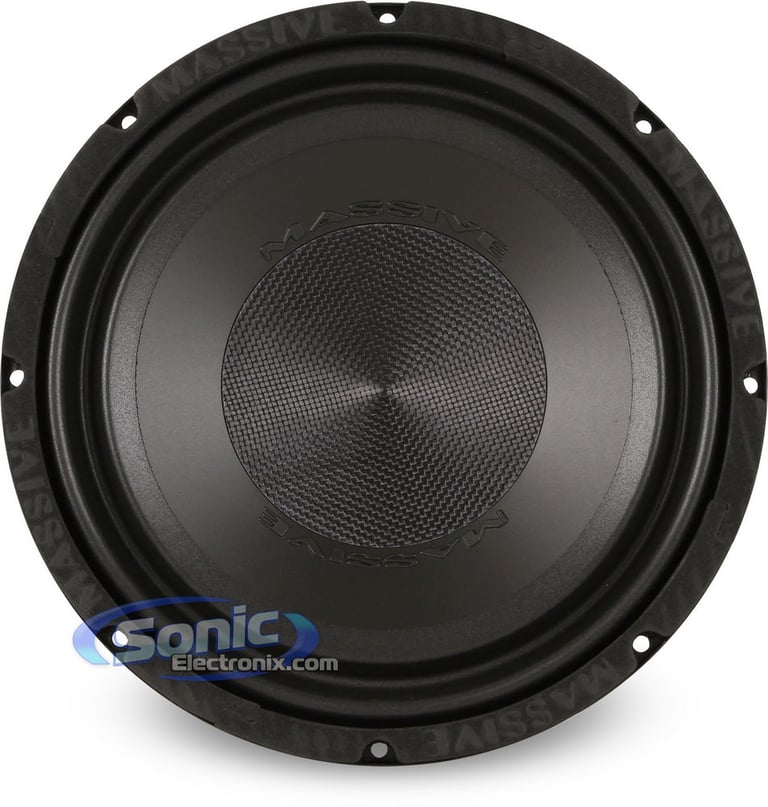

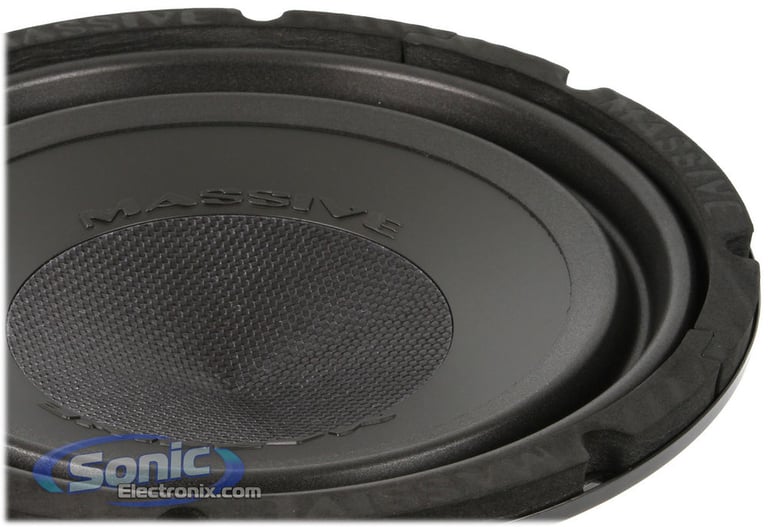

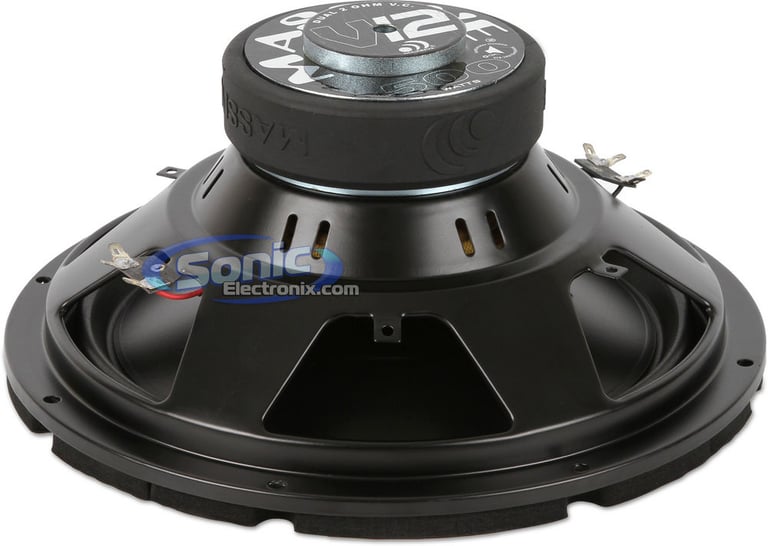

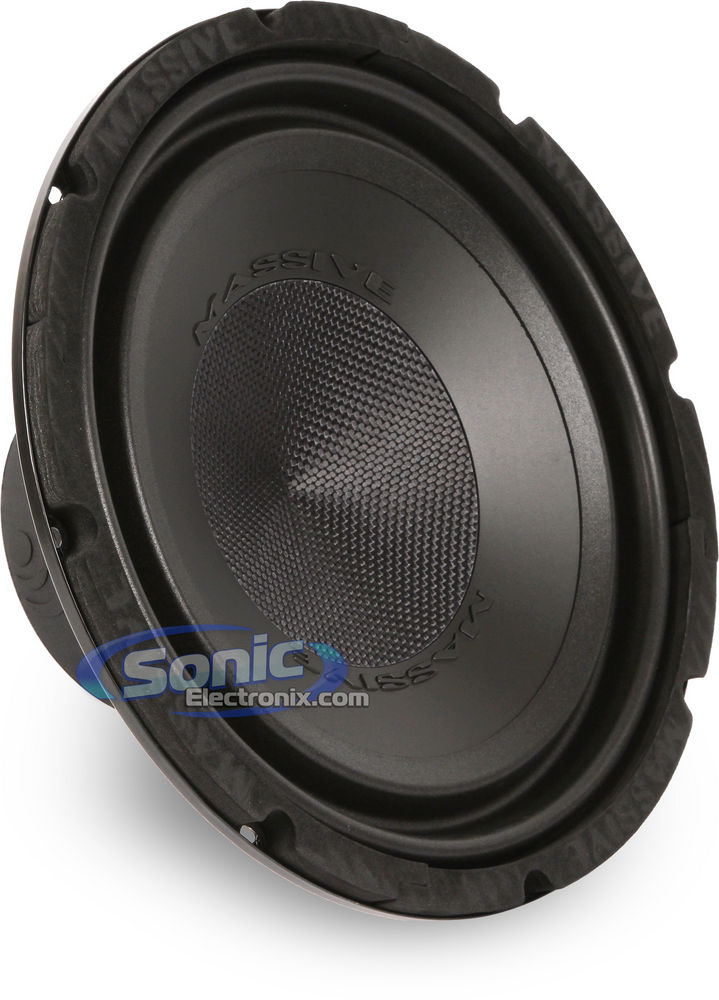

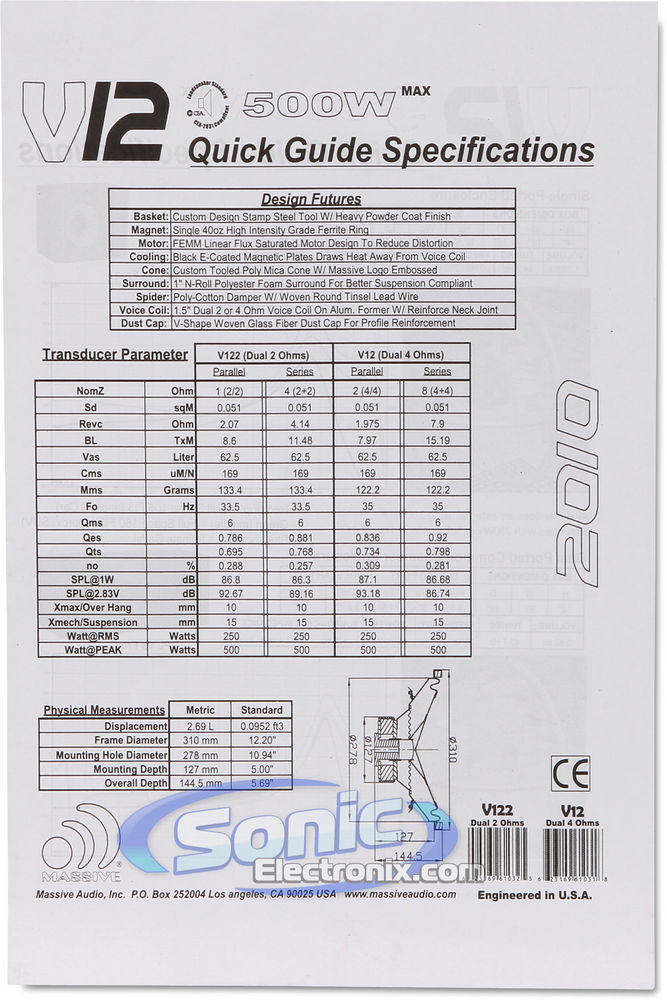

Massive Audio V 122 Features:
  • 12" Dual 2 ohm V Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: 2 ohm
  • Custom tooled poly mica woofer cone provides accurate and high quality sound reproduction
  • 1" N-Roll polyester foam surround allows for high amounts of excursion
  • Custom designed stamp steel basket with heavy powder coat finish minimizes vibrations
  • Cone woven silver-plated tinsel leads

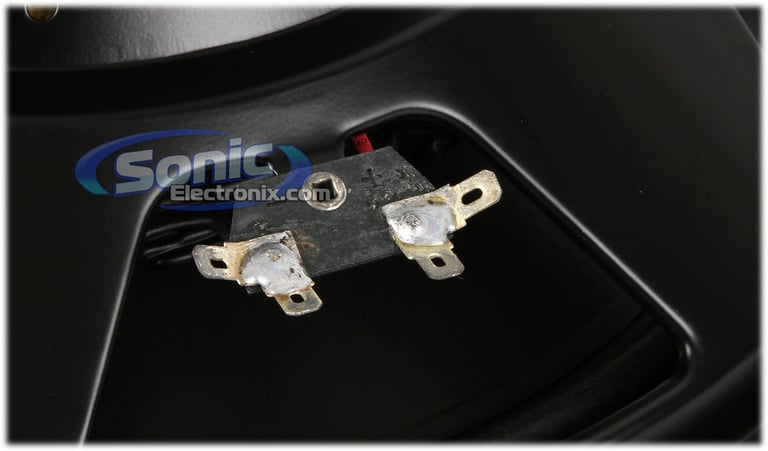

  • Nickel-Plated spade terminals
  • FEMM Linear flux saturated motor design to reduce distortion
  • Black E-coated magnetic plates draws heat away from voice coil
  • Poly cotton damper for a more linear diaphragm motion
  • V-Shape woven glass fiber dust cap for profile reinforcement
  • Reinforced aluminum former
  • 1-1/2" Dual 4 ohm voice coil
  • 40 oz Flux ferrite Y40 double stacked magnet structure
  • 15mm peak-to-peak excursion
  • Frequency Response: 20-250 Hz
  • SPL: 93.18 dB
  • Mounting Depth: 5"
  • Cutout Diameter: 10-15/16"
  • 1-year Manufacturer's warranty

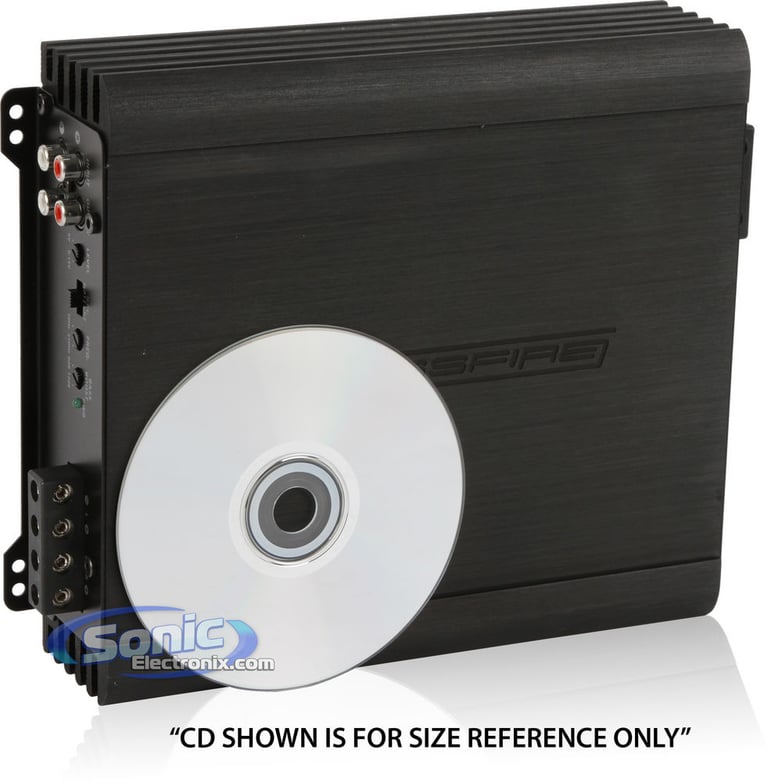

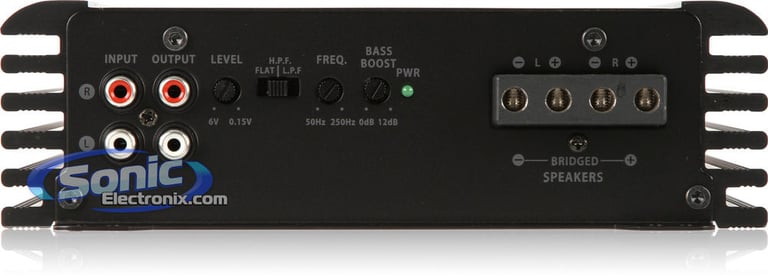

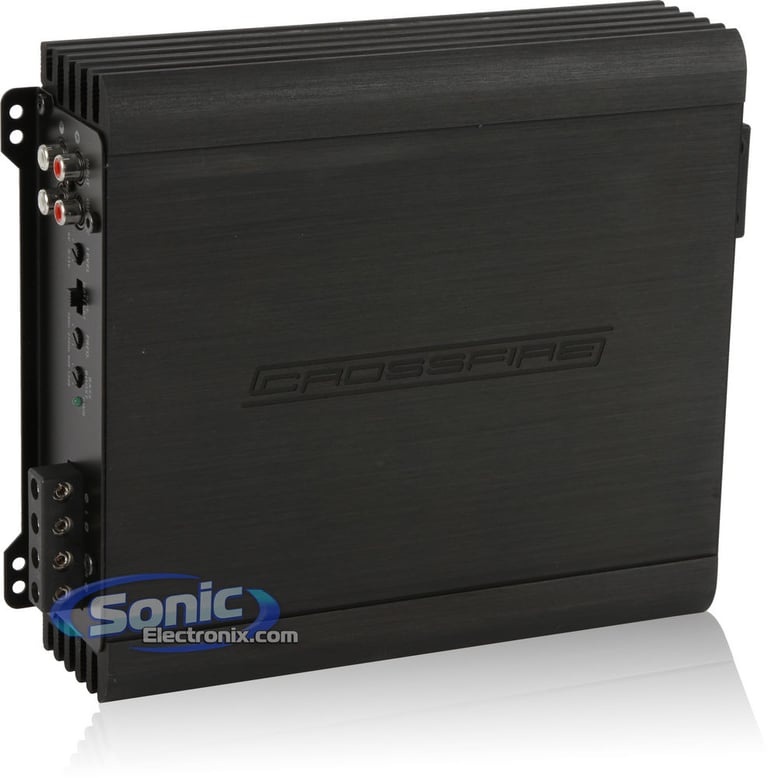

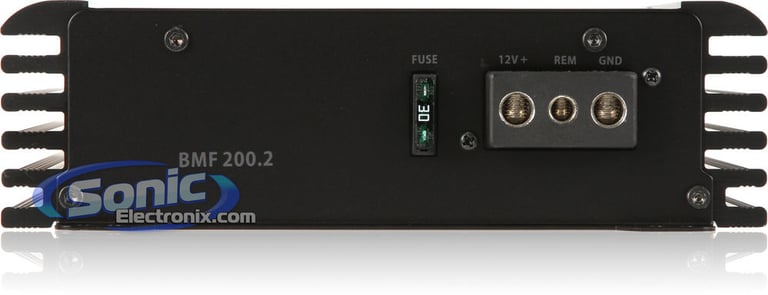

Crossfire BMF200.2 Features:
  • BMF Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating: (12.5V)
    • 4 ohm: 50 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • Total power output: 200 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power (green) indicator
  • Variable Bass Boost (0 to +12 dB at 45Hz)
  • Soft Start, on/off circuitry
  • Military spec. audiophile grade components
  • Multi-stranded power toroid
  • High-efficiency Bipolar output transistors
  • Wire free PC Board layouts
  • Over-sized capacitor bank
  • Variable high-pass and low-pass electronics crossovers
  • 2/1 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-6V
  • Full-range crossover filter
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Dimensions: 8-11/16"L x 8"W x 2-3/8"H
  • 8 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

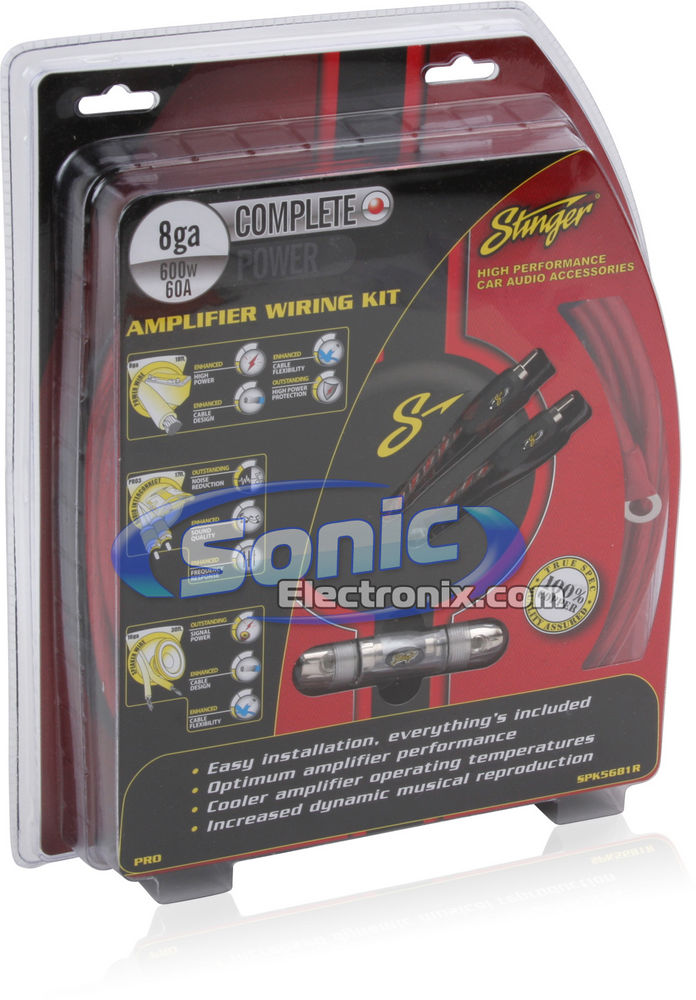

Stinger SPK5681R Features:
  • 8 Gauge PRO Series Complete Amplifier Wiring Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Stinger SPK5681R Includes:

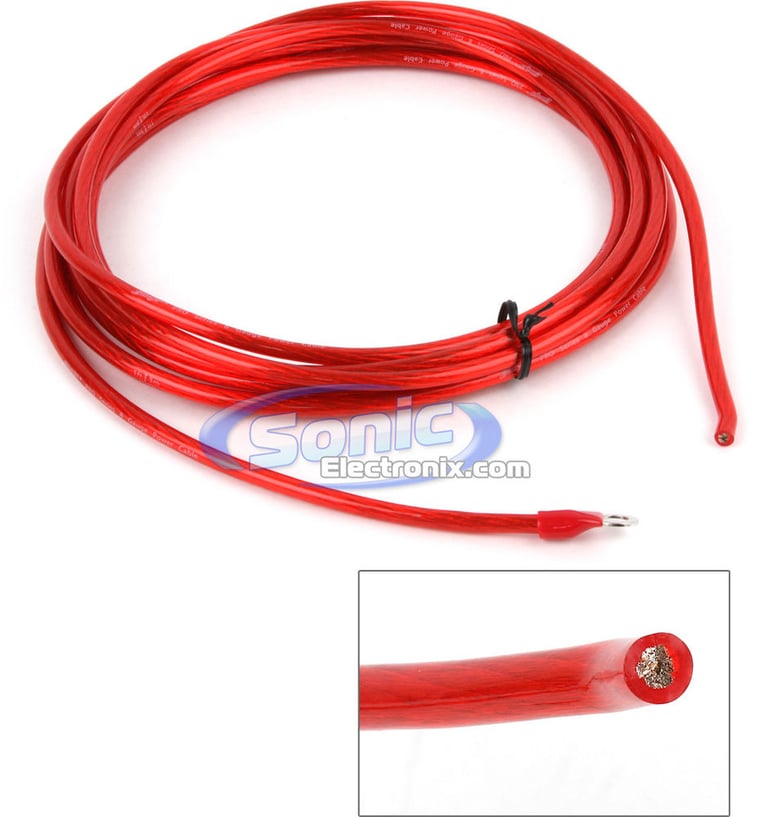

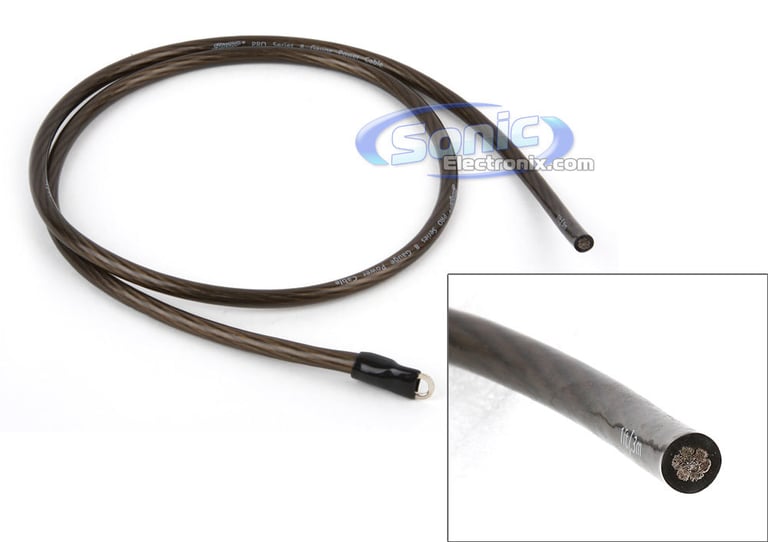

  1. 18 ft. 8 Gauge red power wire
  2. 3 ft. 8 Gauge black ground wire
  3. 30 ft. 16 Gauge black speaker wire

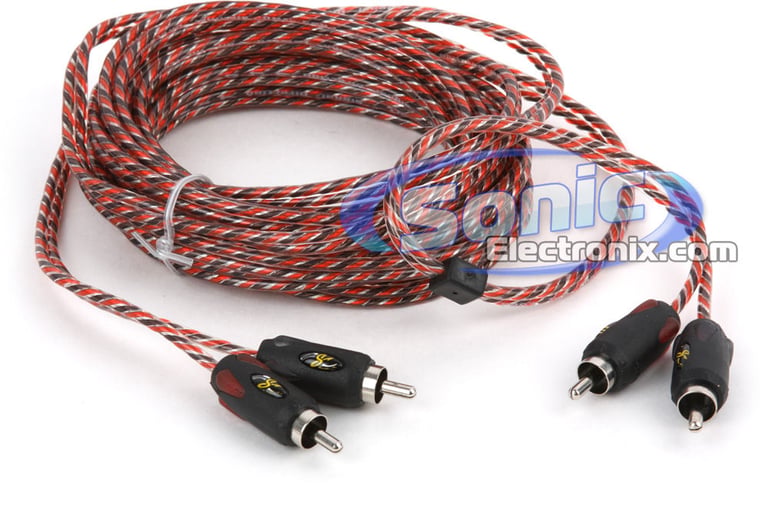

  4. 17 ft. 2 Channel PRO3 Twisted-pair interconnect cables
  5. 17 ft. 18 Gauge blue remote wire

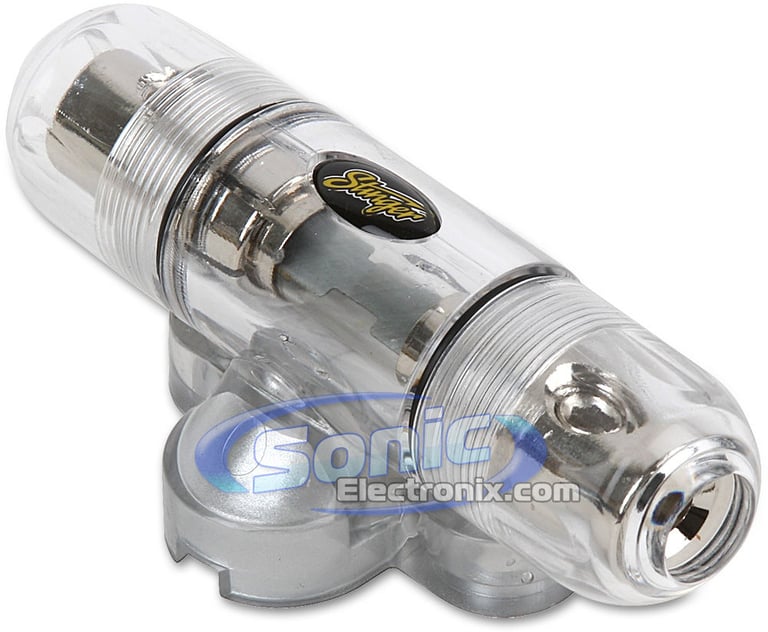

  6. AGU Style fuse holder
  7. 60A AGU Style fuse

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
250 watts
Total RMS Power Handling
250 watts
Peak Power Handling
500 watts
Total Peak Power Handling
500 watts
Woofer Surround
Polyester Foam
Woofer Composition
Polypropylene-Mica
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.73 cubic feet
Maximum Ported Box Volume
1.73 cubic feet
Sensitivity
93.18 dB
Frequency Response
20 - 250 Hz
Xmax (millimeters)
15mm Peak to Peak
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
10-15/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF200.2_V 122

Weight:

21.50lbs

Internal SKU:

bmf2002_v122

Internal Product ID:

37951

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


500W Massive Audio + Crossfire Bass Bundle thumbnail image

5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%



Durability
4.4
Value
4
Features
4.4
Design
4
Usability
4.4

Customer Reviews

Sort by:

Loading...

Nice buy

The following review is for SPK5681R, which is a part of the bundle you are viewing.

Plenty of length for even the longest cars. I have a Ford F-350 crew cab and it was plenty of wire to reach all the way to the back to my subs.

By Kyle on March 22, 2011

35 found this helpful


Probably best not to..

The following review is for V 122ii, which is a part of the bundle you are viewing.

I'm actually not impressed with this sub at all, even as an entry level offering. The Audiobahn AW1251J in my wife's Jeep for 5.00 less is definately better. As is the MTX TN12-04 I bought this to replace. And this is all apples to apples. All 3 subs are in similar sized sealed boxes and all are getting similar power. I was going to put the MTX stuff in my crawler because I thought this would be an upgrade, but it definitely does not handle the power or the deep notes near as well. My advice is keep looking. I've only had it about a week so I can't speak to durabilty except that the foam blocks around the outside are trying to fall off.

By Duane on March 18, 2012

2 found this helpful


Very nice underrated 2 channel amp.

The following review is for BMF200.2, which is a part of the bundle you are viewing.

I bought this amp to power a set of Infinity 6 1/2 component set. The power is great, if not shocking. The fact that it is rated at a real world 12.5 volts is a HUGE plus with me. Amps rated at 14.4 volts I avoid because I want to know what it produces at 12.5 volts, when the car is off. All amps produce more power at 14.4 volts. The looks of the amplifier are great as well because flash is not my thing. Controls are placed thoughtfully and easy to adjust. There are also RCA outs which allow you to daisy chain additional amps with ease. Though the amp gets a little warm, it never goes into thermal protection (I am pushing it pretty hard in 2 ohms) This amp is best suited for persons that love getting MORE than what they paid for without sacrificing quality.

By Lawrence on June 4, 2011
