Earthquake Sound DBXi-15D Open Box Complete

15" Dual 4 ohm DBXi Series Car Subwoofer

Earthquake Sound
Shop all Earthquake Sound
highlight-star-icon

• Item Condition: Open Box Complete
• 2000W Peak
• 750W RMS
• 2" Aluminum Bobbin Voice Coil
• 150 Oz. Double Stacked Magnet
• Sensitivity: 85dB
• Mounting Depth: 6-3/8"

Learn more about the ls-dbxi15d-obc6

We apologize

This item has been discontinued

Description


Earthquake Sound brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.



Go off the Richter Scale with DBXi Subwoofers

The DBXI-15D Dual 4 ohm 15" subwoofer is the perfect example of what it means to carry the Earthquake Sound name. Earthquake Sound subwoofers need to not only be loud but also sound great and perform without any problems. With an RMS of 750 watts this woofer will produce enough bass to really satisfy those low-frequency reproduction needs. The woofer features a pressed pulp fiber woofer cone and high-roll rubber surround for added stiffness, rigidity, and higher excursion capabilities. Its turbo propped cooling reduces thermal heat and thus increases output and lowering distortion during all periods of play. The woofer also features a 2" voice coil and double stacked magnet structure able to produce an impressive 3.5" of linear excursion, giving you deep impact bass. The DBXi woofer is your everyday driver that will perform day in and day out without compromising quality.

Still Wondering about the Power?

Check out the DBXI-15D breaking CD's

Watch the DBXI-15D flexing this car!

  • A part that is fully functional but shows no sign of use outside of installation.

General Features:

  • 15" Dual 4 ohm DBXi Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 750 watts
  • Impedance: Dual 4 ohm
  • Pressed pulp fiber woofer cone material
  • High-roll rubber woofer surround
  • New and improved design
  • Stitched tensile leads
  • Deep impact bass
  • Turbo propped cooling

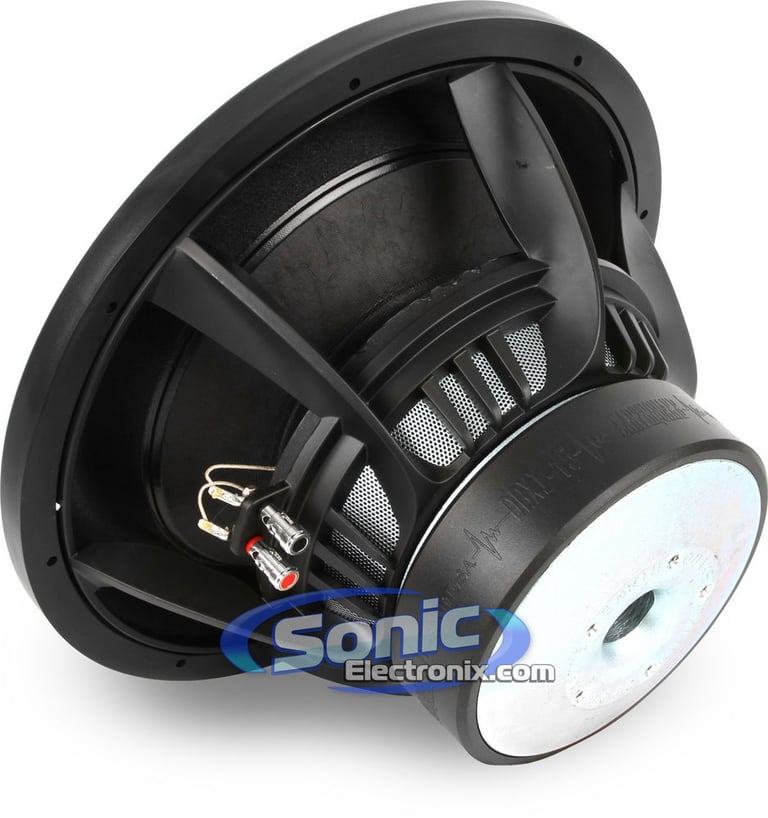

  • Die-cast aluminum basket
  • 2" Aluminum bobbin voice coil
  • 150 oz. Double stacked magnet structure
  • Sensitivity: 88 dB
  • Xmax: 88.9 mm
  • Mounting Depth: 6-3/8"
  • Cutout dimensions: 13-3/4"
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Earthquake Sound DBXi-15D Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Earthquake Sound DBXi-15D Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Earthquake Sound DBXi-15D Open Box Complete Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Earthquake Sound DBXi-15D Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Earthquake DBXI Series
Subwoofer Size
15"
Peak Power Handling
2000 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
88 dB
Xmax (millimeters)
88.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
High-Roll Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.0 cubic feet
Maximum Sealed Box Volume
2.50 cubic feet
Minimum Ported Box Volume
2.20 cubic feet
Maximum Ported Box Volume
4.20 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
13-3/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
20 Hz
Equivalent Compliance (Vas)
91.1 liters
Total Speaker Q Value (Qts)
0.45
Electrical Q Value (Qes)
1.14
Electrical Resistance of Voice Coil (Re)
4.0 ohm
Mechanical Q Value (Qms)
5.99
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DBXi-15D Open Box Complete

Weight:

30.00lbs

Internal SKU:

ls-dbxi15d-obc6

Internal Product ID:

130077
