Dual 12" 12W0v3-4 BassWedge Loaded Ported Enclosure with Gray Carpet Finish
Product highlights
• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish

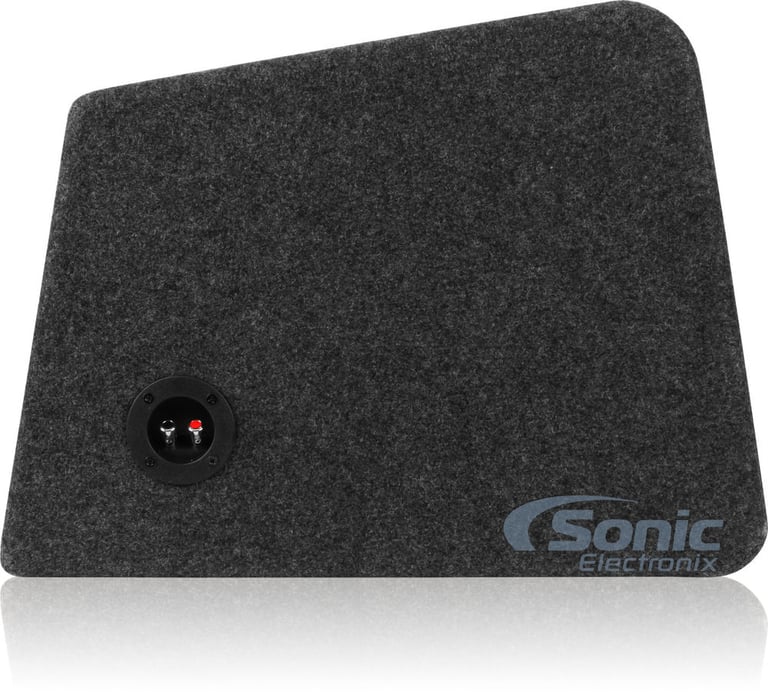

• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo
Item Condition - Open Box, Great:
This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

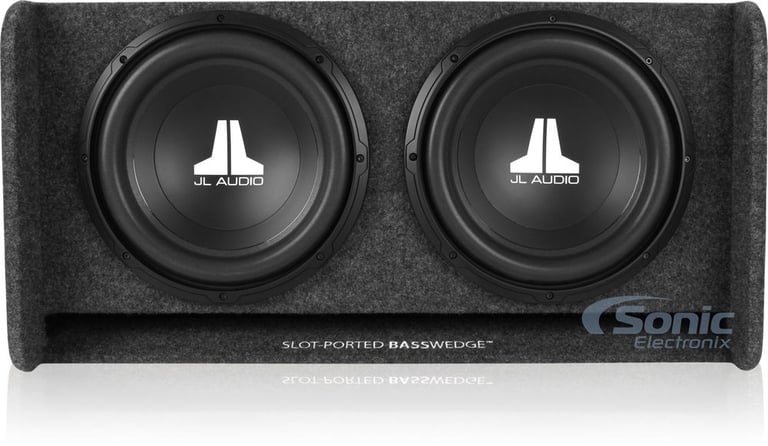

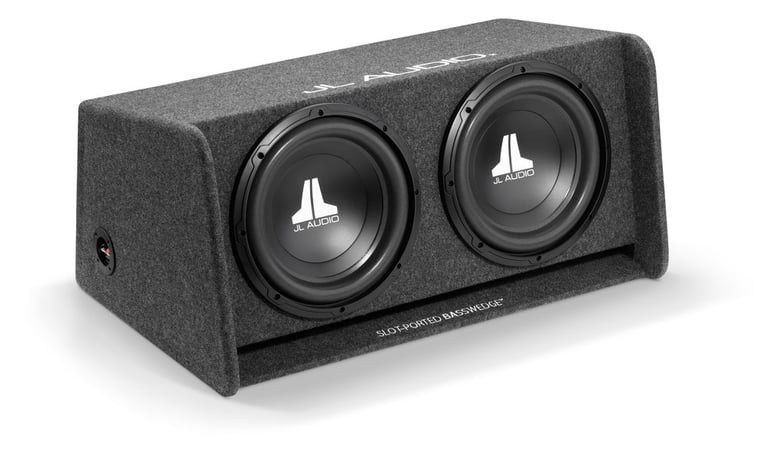

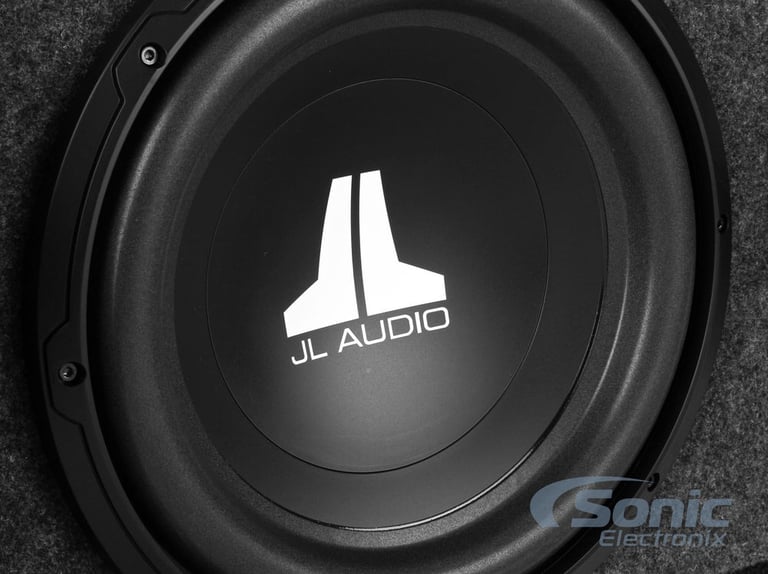

JL Audio's dual 12" slot-ported loaded BassWedge subwoofer enclosure has a peak power rating of 1200 watts and an RMS rating of 600 watts. The enclosure is loaded and wired with two JL Audio 12W0v3 single 4-ohm subwoofers. The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.0-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.
The CP212-W0v3 Enclosure can be driven with as little as 150 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 400 - 600 Watts of continuous power per driver, like the JL Audio XD600/1v2 or JL Audio JX500/1D. In addition, The ultra-versatile BassWedge shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.
 |
 |
JL Model Comparison | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | RMS Power | Cone Material | Surround Material | Sensitivity (dB) | Frequency Response | Xmax (mm | Terminals | Made In America | |
| W7 Series | 500-1500 Watts | Polypropylene | Foam Overroll | 82.7 - 86.3 | 15-250 Hz | 19-32 | Push Terminals |  |
|
| W6 Series | 600 Watts | Polypropylene | Rubber | 82.7 - 85.4 | 20-200 Hz | 19 | Push Terminals | |
|
| W3 Series | 150-600 Watts | Polypropylene | Rubber | 80.5-87.90 | 20-250 Hz | 8.89-15.5 | Push Terminals | |
|
| W1 Series | 150-300 Watts | Polypropylene | Rubber | 83.9-86.1 | 22-200 | 8-11 | Push Terminals | ||
| W0 Series | 300-500 Watts | Polypropylene | Foam | 84-88.20 | 20-250 Hz | 11.4-12.7 | Push Terminals | ||
| WX Series | 200 Watts | Polypropylene | Foam | 86-87.17 | 22-250 Hz | 10 | Spade Terminals | ||
This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.
Manufacturer:
Model Number:
CP212-W0v3-2
Weight:
72.00lbs
Internal SKU:
ls-cp212w0v3-obc4
Internal Product ID:
143465
